Specifications
Order Number:
| model & product | l x w x h |
|---|---|

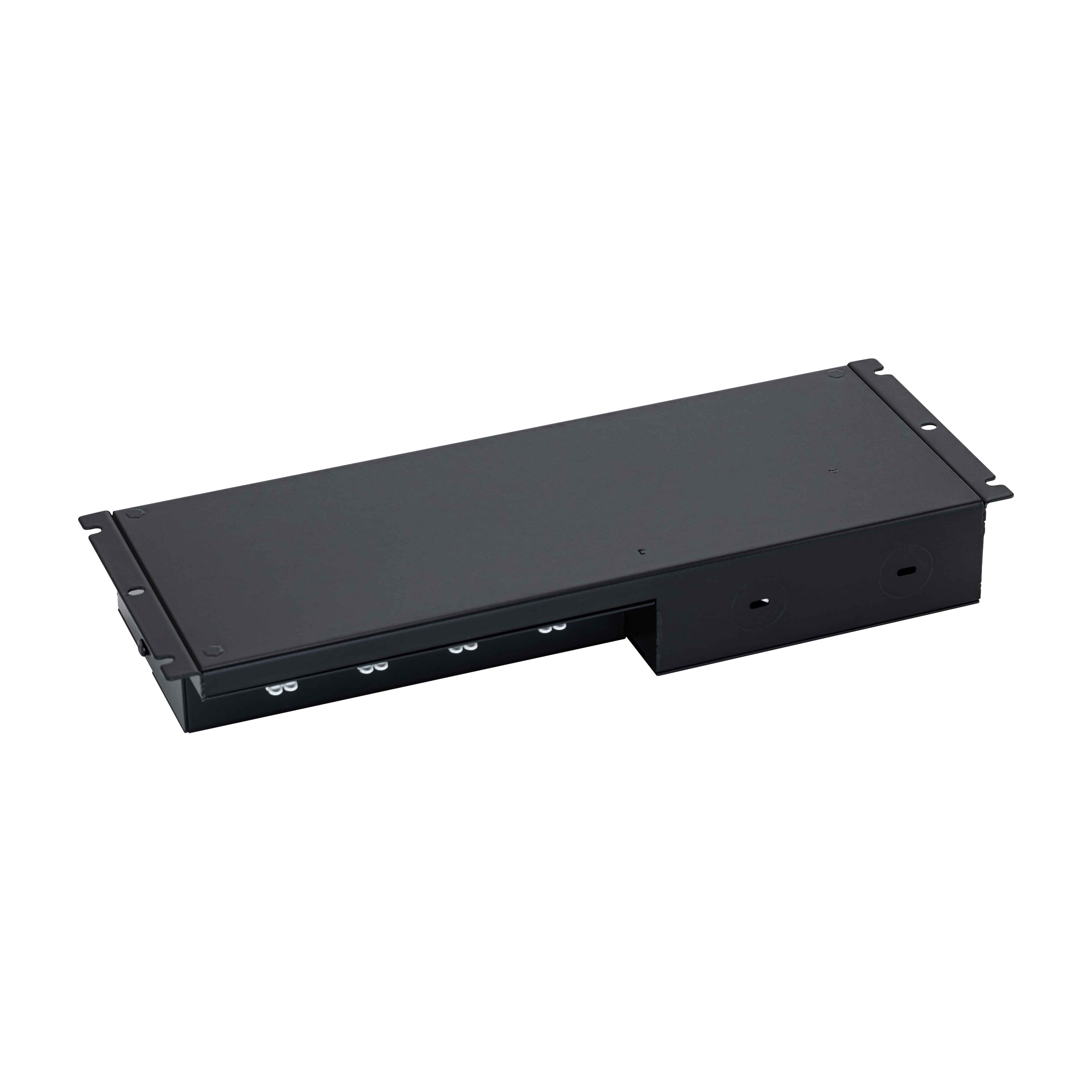

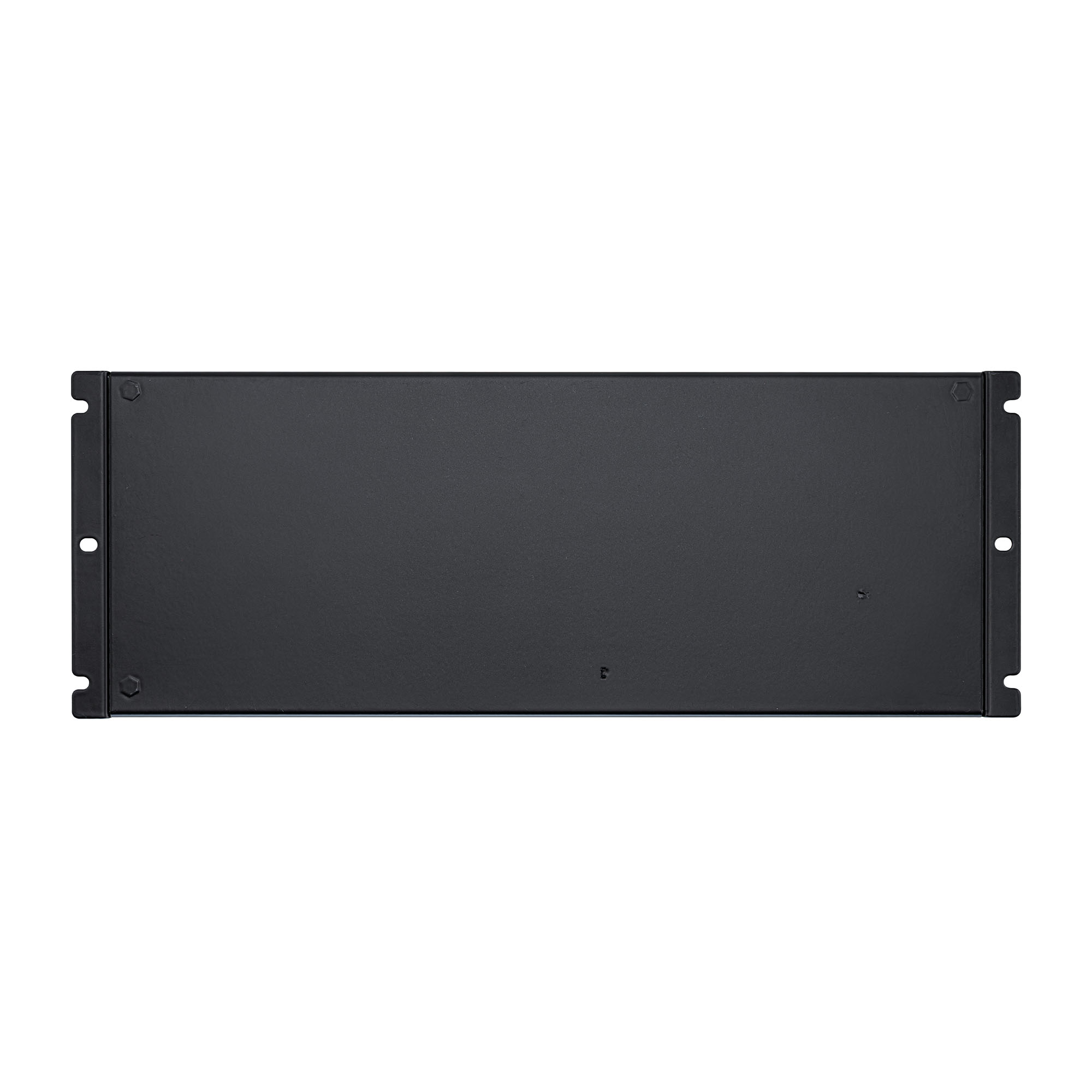

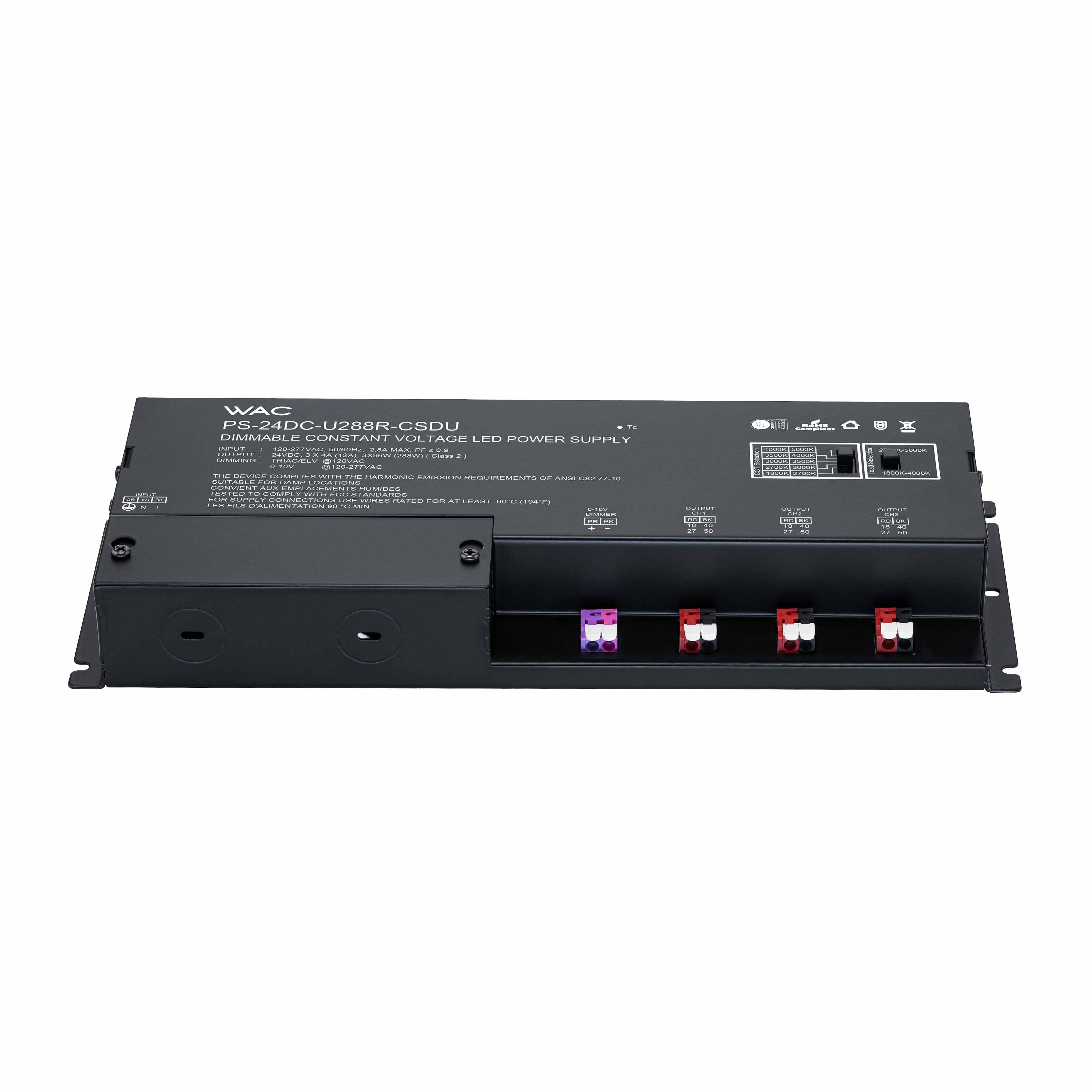

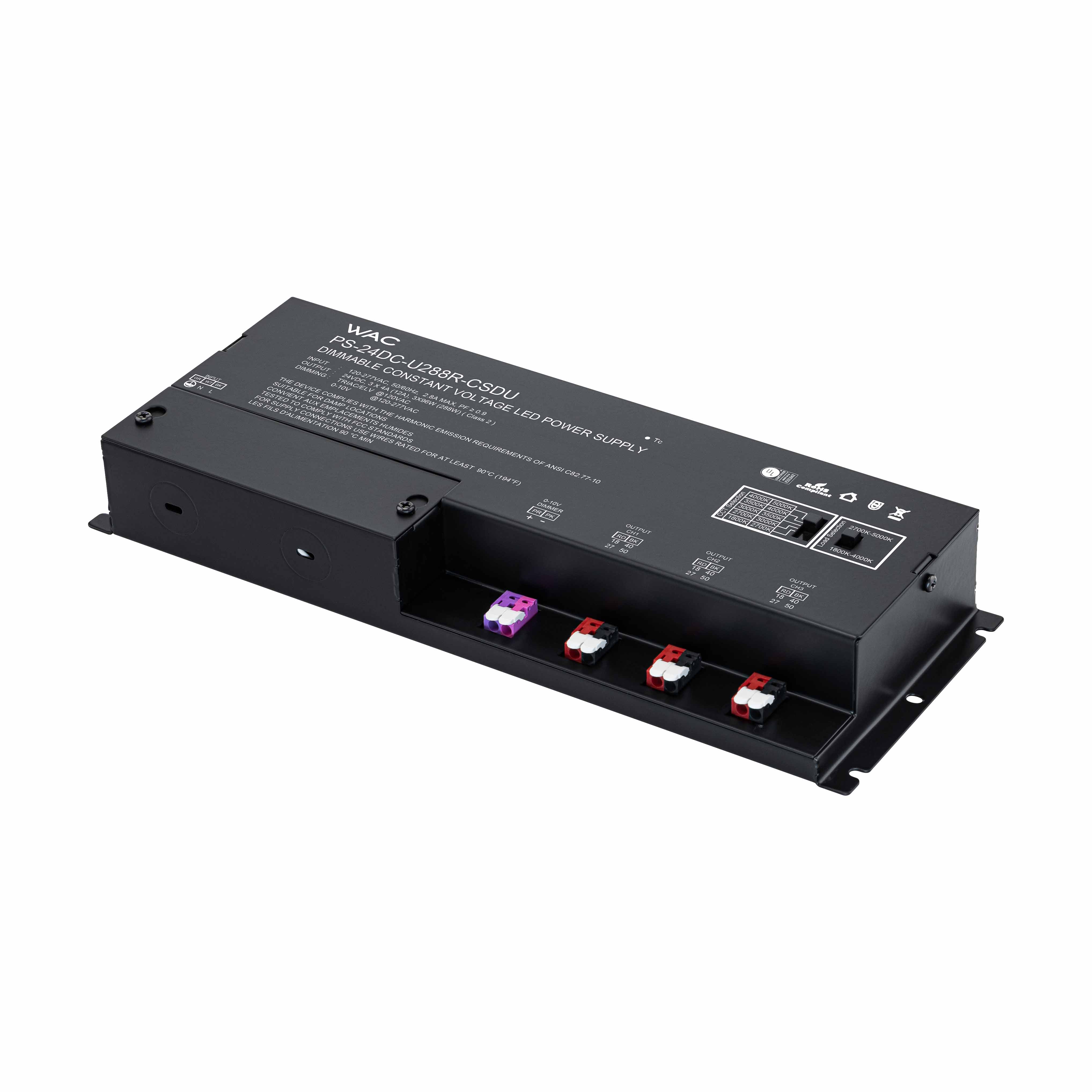

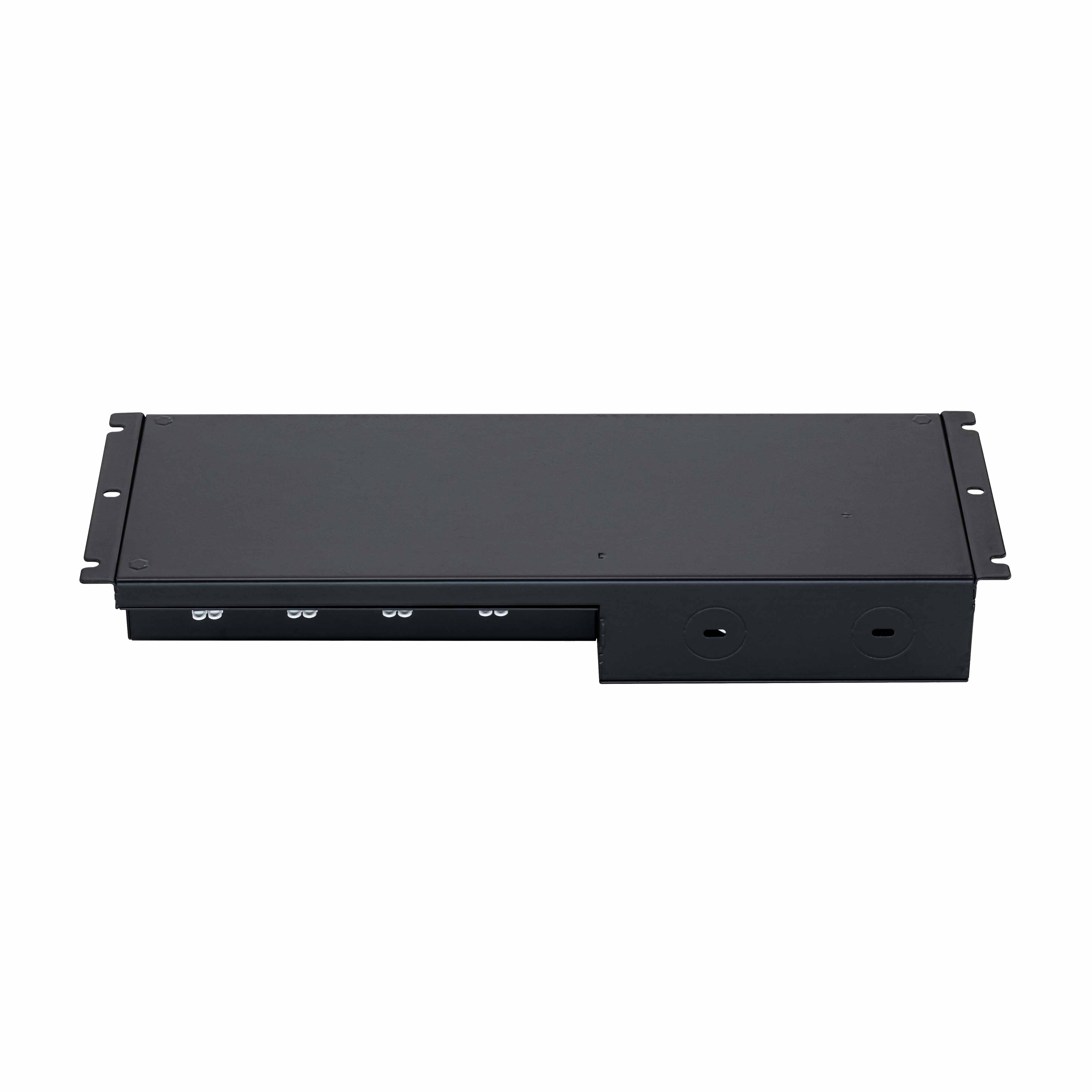

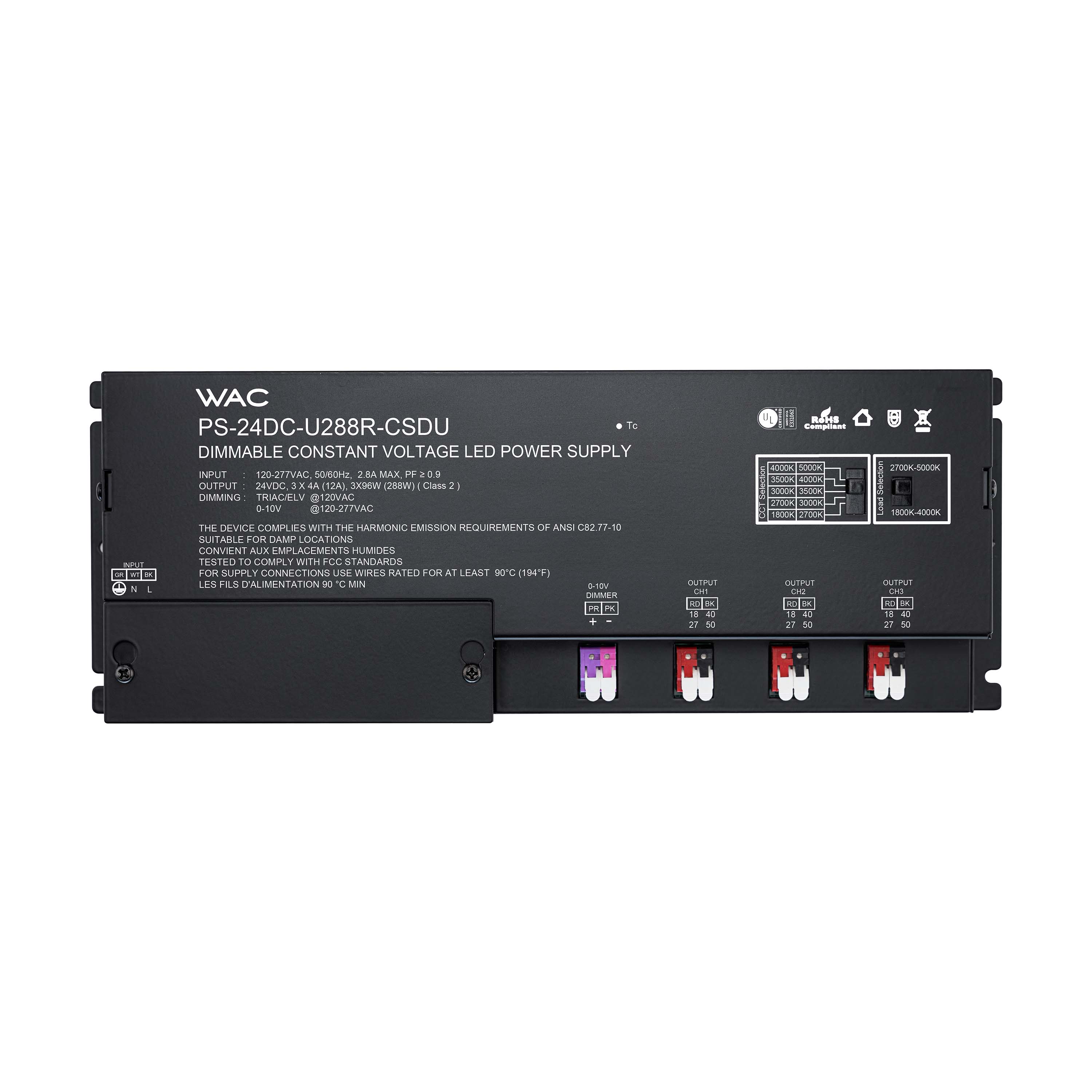

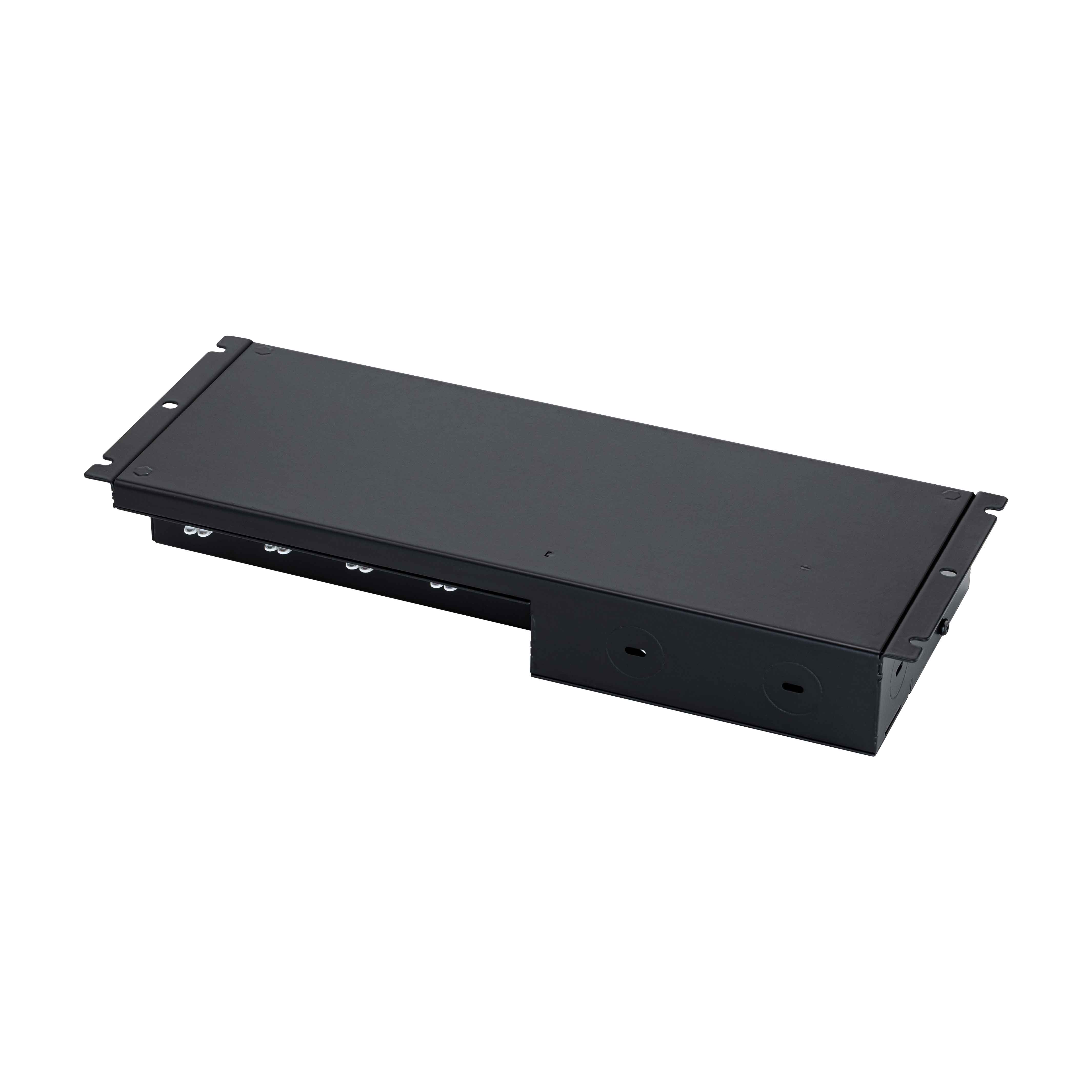

| PS-24DC-U288R-CSDU - 288W 120-277VAC INPUT 24VDC Power Supply in BLACK | 12 15/16” X 4 3/4” X 1 3/4” |
Features
- Input: 120-277 VAC, 50/60Hz
- ELV Dimming: 100-1%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-1%
- Select and choose desirable CCT
- Universal Input 120-277VAC
- 3 X 96W , ≥ 0.9 pf
- Overload and short circuit protection
- TRIAC/ELV/0-10V Dimming Control
- Class 2 Output
- FCC Part 15 Class B Compliant
- Can be mounted on ceiling or wall in all orientations

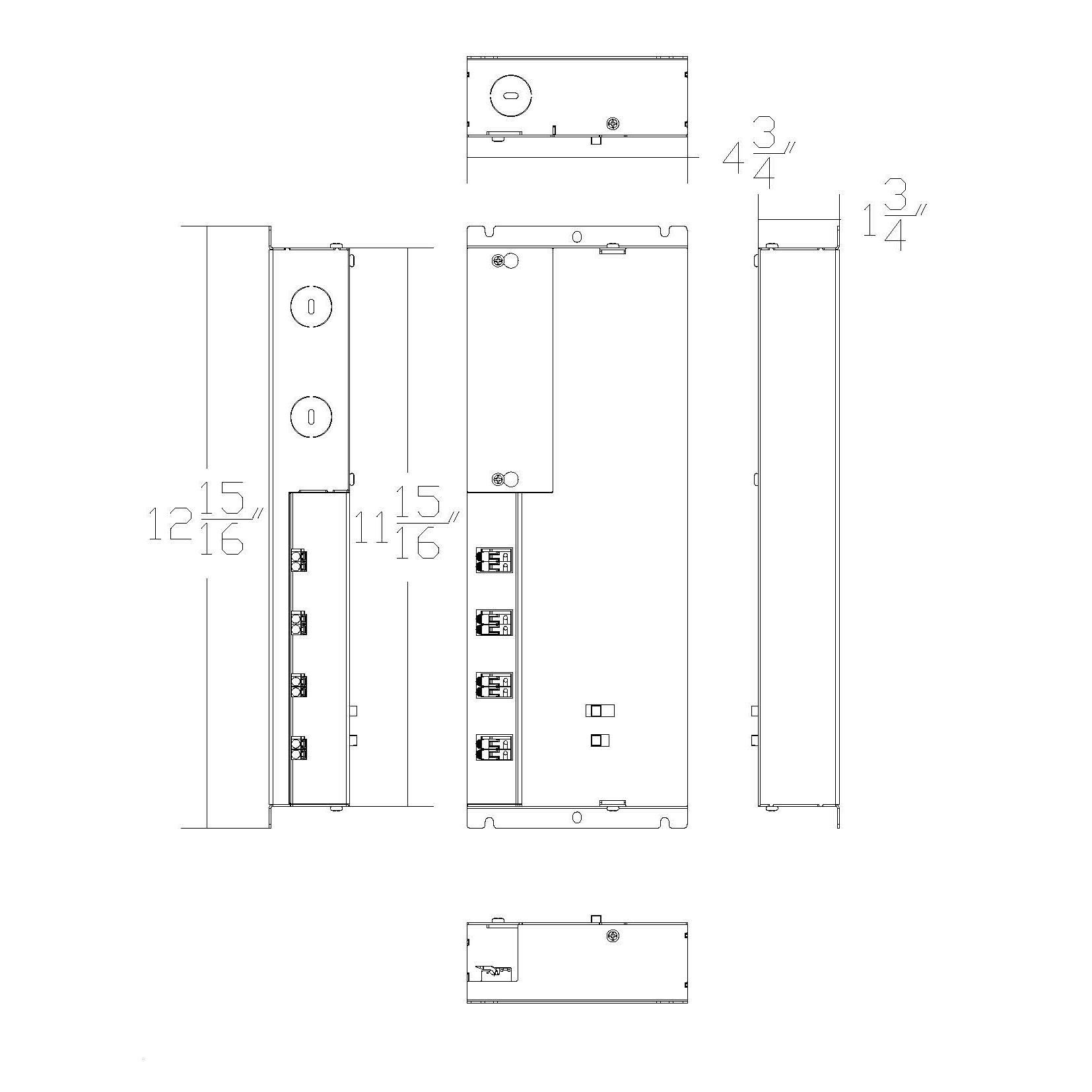

Line Drawing
