Aether 2″ Square Downlight Trim

Specifications

Order Number:

model	beam	color temp & cri	lumens	cbcp	finish
R2ASDT	F - 40°	827 - 2700K - 85	1210	2125	BK - Black
R2ASDT	F - 40°	827 - 2700K - 85	1210	2125	BKWT - Black/White
R2ASDT	F - 40°	827 - 2700K - 85	1210	2125	HZWT - Haze/White
R2ASDT	F - 40°	827 - 2700K - 85	1210	2125	WT - White
R2ASDT	F - 40°	830 - 3000K - 85	1275	2235	BK - Black
R2ASDT	F - 40°	830 - 3000K - 85	1275	2235	BKWT - Black/White
R2ASDT	F - 40°	830 - 3000K - 85	1275	2235	HZWT - Haze/White
R2ASDT	F - 40°	830 - 3000K - 85	1275	2235	WT - White
R2ASDT	F - 40°	835 - 3500K - 85	1300	2280	BK - Black
R2ASDT	F - 40°	835 - 3500K - 85	1300	2280	BKWT - Black/White
R2ASDT	F - 40°	835 - 3500K - 85	1300	2280	HZWT - Haze/White
R2ASDT	F - 40°	835 - 3500K - 85	1300	2280	WT - White
R2ASDT	F - 40°	840 - 4000K - 85	1310	2300	BK - Black
R2ASDT	F - 40°	840 - 4000K - 85	1310	2300	BKWT - Black/White
R2ASDT	F - 40°	840 - 4000K - 85	1310	2300	HZWT - Haze/White
R2ASDT	F - 40°	840 - 4000K - 85	1310	2300	WT - White
R2ASDT	F - 40°	927 - 2700K - 90	1010	1770	BK - Black
R2ASDT	F - 40°	927 - 2700K - 90	1010	1770	BKWT - Black/White
R2ASDT	F - 40°	927 - 2700K - 90	1010	1770	HZWT - Haze/White
R2ASDT	F - 40°	927 - 2700K - 90	1010	1770	WT - White
R2ASDT	F - 40°	930 - 3000K - 90	1045	1835	BK - Black
R2ASDT	F - 40°	930 - 3000K - 90	1045	1835	BKWT - Black/White
R2ASDT	F - 40°	930 - 3000K - 90	1045	1835	HZWT - Haze/White
R2ASDT	F - 40°	930 - 3000K - 90	1045	1835	WT - White
R2ASDT	N - 24°	827 - 2700K - 85	1230	3860	BK - Black
R2ASDT	N - 24°	827 - 2700K - 85	1230	3860	BKWT - Black/White
R2ASDT	N - 24°	827 - 2700K - 85	1230	3860	HZWT - Haze/White
R2ASDT	N - 24°	827 - 2700K - 85	1230	3860	WT - White
R2ASDT	N - 24°	830 - 3000K - 85	1295	4060	BK - Black
R2ASDT	N - 24°	830 - 3000K - 85	1295	4060	BKWT - Black/White
R2ASDT	N - 24°	830 - 3000K - 85	1295	4060	HZWT - Haze/White
R2ASDT	N - 24°	830 - 3000K - 85	1295	4060	WT - White
R2ASDT	N - 24°	835 - 3500K - 85	1320	4140	BK - Black
R2ASDT	N - 24°	835 - 3500K - 85	1320	4140	BKWT - Black/White
R2ASDT	N - 24°	835 - 3500K - 85	1320	4140	HZWT - Haze/White
R2ASDT	N - 24°	835 - 3500K - 85	1320	4140	WT - White
R2ASDT	N - 24°	840 - 4000K - 85	1335	4180	BK - Black
R2ASDT	N - 24°	840 - 4000K - 85	1335	4180	BKWT - Black/White
R2ASDT	N - 24°	840 - 4000K - 85	1335	4180	HZWT - Haze/White
R2ASDT	N - 24°	840 - 4000K - 85	1335	4180	WT - White
R2ASDT	N - 24°	927 - 2700K - 90	1025	3215	BK - Black
R2ASDT	N - 24°	927 - 2700K - 90	1025	3215	BKWT - Black/White
R2ASDT	N - 24°	927 - 2700K - 90	1025	3215	HZWT - Haze/White
R2ASDT	N - 24°	927 - 2700K - 90	1025	3215	WT - White
R2ASDT	N - 24°	930 - 3000K - 90	1065	3335	BK - Black
R2ASDT	N - 24°	930 - 3000K - 90	1065	3335	BKWT - Black/White
R2ASDT	N - 24°	930 - 3000K - 90	1065	3335	HZWT - Haze/White
R2ASDT	N - 24°	930 - 3000K - 90	1065	3335	WT - White
R2ASDT	S - 17°	827 - 2700K - 85	1230	6000	BK - Black
R2ASDT	S - 17°	827 - 2700K - 85	1230	6000	BKWT - Black/White
R2ASDT	S - 17°	827 - 2700K - 85	1230	6000	HZWT - Haze/White
R2ASDT	S - 17°	827 - 2700K - 85	1230	6000	WT - White
R2ASDT	S - 17°	830 - 3000K - 85	1295	6310	BK - Black
R2ASDT	S - 17°	830 - 3000K - 85	1295	6310	BKWT - Black/White
R2ASDT	S - 17°	830 - 3000K - 85	1295	6310	HZWT - Haze/White
R2ASDT	S - 17°	830 - 3000K - 85	1295	6310	WT - White
R2ASDT	S - 17°	835 - 3500K - 85	1320	6440	BK - Black
R2ASDT	S - 17°	835 - 3500K - 85	1320	6440	BKWT - Black/White
R2ASDT	S - 17°	835 - 3500K - 85	1320	6440	HZWT - Haze/White
R2ASDT	S - 17°	835 - 3500K - 85	1320	6440	WT - White
R2ASDT	S - 17°	840 - 4000K - 85	1335	6500	BK - Black
R2ASDT	S - 17°	840 - 4000K - 85	1335	6500	BKWT - Black/White
R2ASDT	S - 17°	840 - 4000K - 85	1335	6500	HZWT - Haze/White
R2ASDT	S - 17°	840 - 4000K - 85	1335	6500	WT - White
R2ASDT	S - 17°	927 - 2700K - 90	1030	5000	BK - Black
R2ASDT	S - 17°	927 - 2700K - 90	1030	5000	BKWT - Black/White
R2ASDT	S - 17°	927 - 2700K - 90	1030	5000	HZWT - Haze/White
R2ASDT	S - 17°	927 - 2700K - 90	1030	5000	WT - White
R2ASDT	S - 17°	930 - 3000K - 90	1065	5185	BK - Black
R2ASDT	S - 17°	930 - 3000K - 90	1065	5185	BKWT - Black/White
R2ASDT	S - 17°	930 - 3000K - 90	1065	5185	HZWT - Haze/White
R2ASDT	S - 17°	930 - 3000K - 90	1065	5185	WT - White
R2ASDT	W - 50°	827 - 2700K - 85	1135	1390	BK - Black
R2ASDT	W - 50°	827 - 2700K - 85	1135	1390	BKWT - Black/White
R2ASDT	W - 50°	827 - 2700K - 85	1135	1390	HZWT - Haze/White
R2ASDT	W - 50°	827 - 2700K - 85	1135	1390	WT - White
R2ASDT	W - 50°	830 - 3000K - 85	1195	1460	BK - Black
R2ASDT	W - 50°	830 - 3000K - 85	1195	1460	BKWT - Black/White
R2ASDT	W - 50°	830 - 3000K - 85	1195	1460	HZWT - Haze/White
R2ASDT	W - 50°	830 - 3000K - 85	1195	1460	WT - White
R2ASDT	W - 50°	835 - 3500K - 85	1220	1490	BK - Black
R2ASDT	W - 50°	835 - 3500K - 85	1220	1490	BKWT - Black/White
R2ASDT	W - 50°	835 - 3500K - 85	1220	1490	HZWT - Haze/White
R2ASDT	W - 50°	835 - 3500K - 85	1220	1490	WT - White
R2ASDT	W - 50°	840 - 4000K - 85	1230	1505	BK - Black
R2ASDT	W - 50°	840 - 4000K - 85	1230	1505	BKWT - Black/White
R2ASDT	W - 50°	840 - 4000K - 85	1230	1505	HZWT - Haze/White
R2ASDT	W - 50°	840 - 4000K - 85	1230	1505	WT - White
R2ASDT	W - 50°	927 - 2700K - 90	950	1155	BK - Black
R2ASDT	W - 50°	927 - 2700K - 90	950	1155	BKWT - Black/White
R2ASDT	W - 50°	927 - 2700K - 90	950	1155	HZWT - Haze/White
R2ASDT	W - 50°	927 - 2700K - 90	950	1155	WT - White
R2ASDT	W - 50°	930 - 3000K - 90	985	1200	BK - Black
R2ASDT	W - 50°	930 - 3000K - 90	985	1200	BKWT - Black/White
R2ASDT	W - 50°	930 - 3000K - 90	985	1200	HZWT - Haze/White
R2ASDT	W - 50°	930 - 3000K - 90	985	1200	WT - White

Features

Delivered Lumens: Up to 1335lm
CBCP: Up to 6500
CCT: 2700K, 3000K, 3500K, 4000K
CRI: Up to 90
Power: 15W
Rated Life: 50000 Hours
Construction: Die-cast aluminum trim with die-cast aluminum heat sink
Shallow housing under 2in depth
Single spot light source

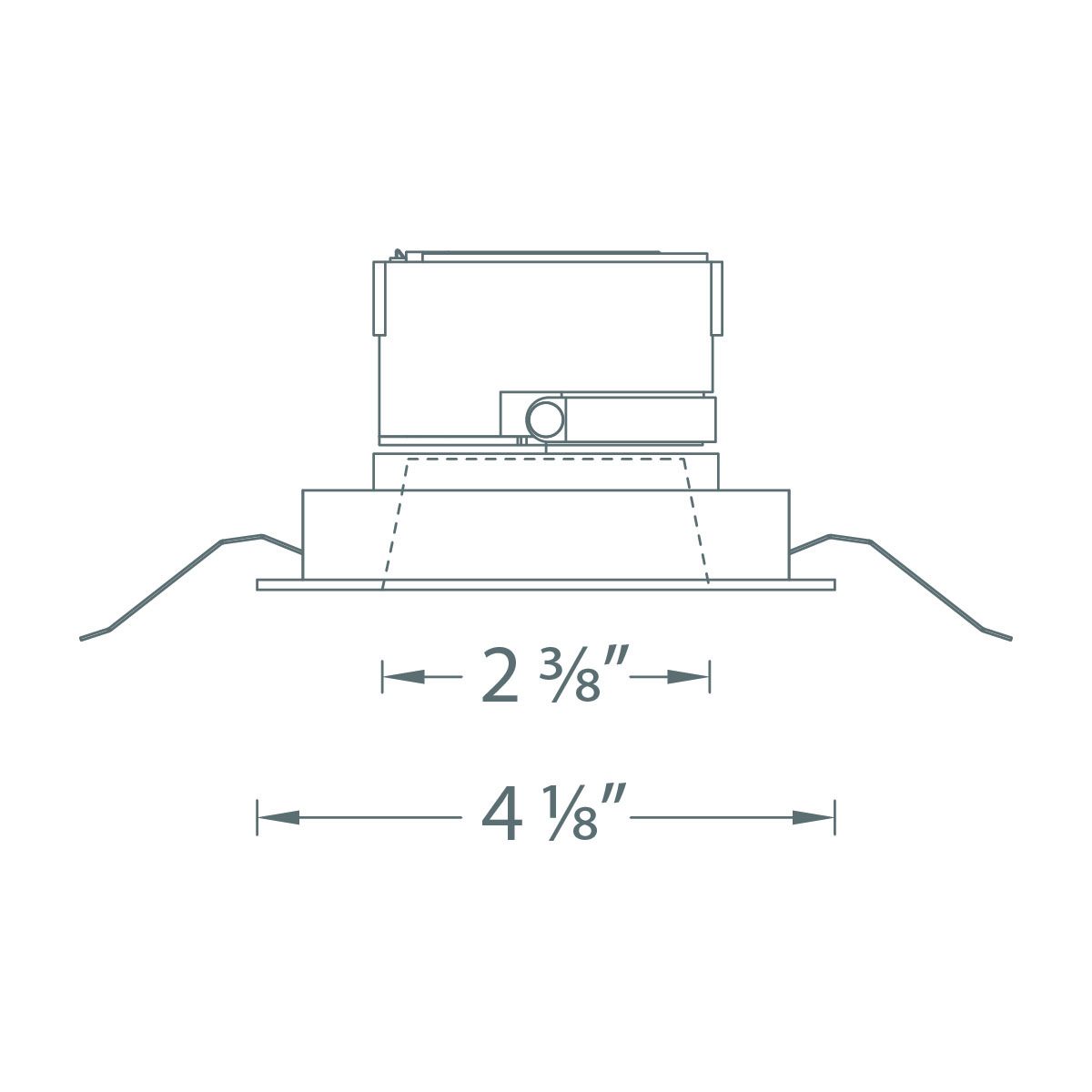

Line Drawing

WACLighting.com Line Drawing

Components

Aether 2"
Shallow Housing
