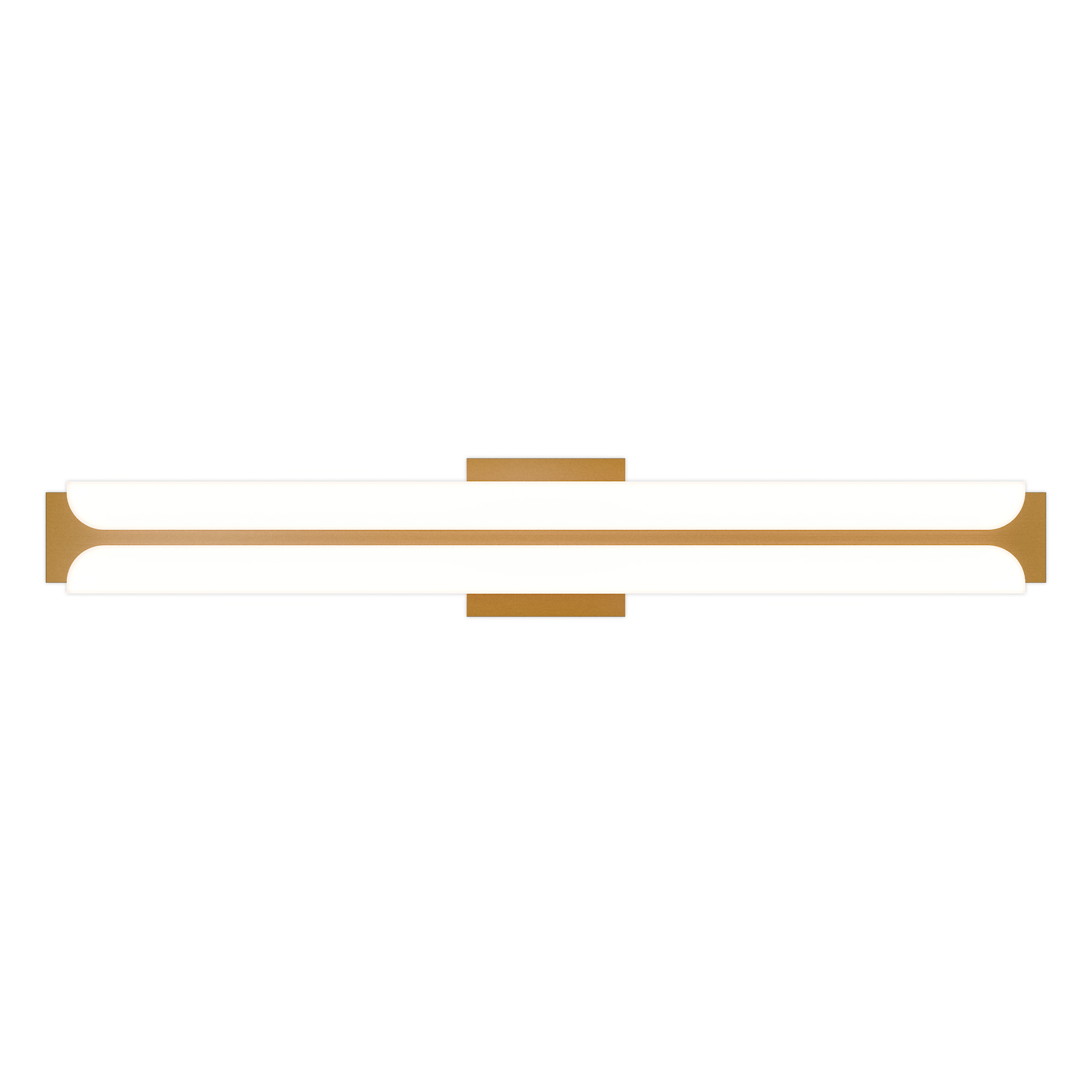

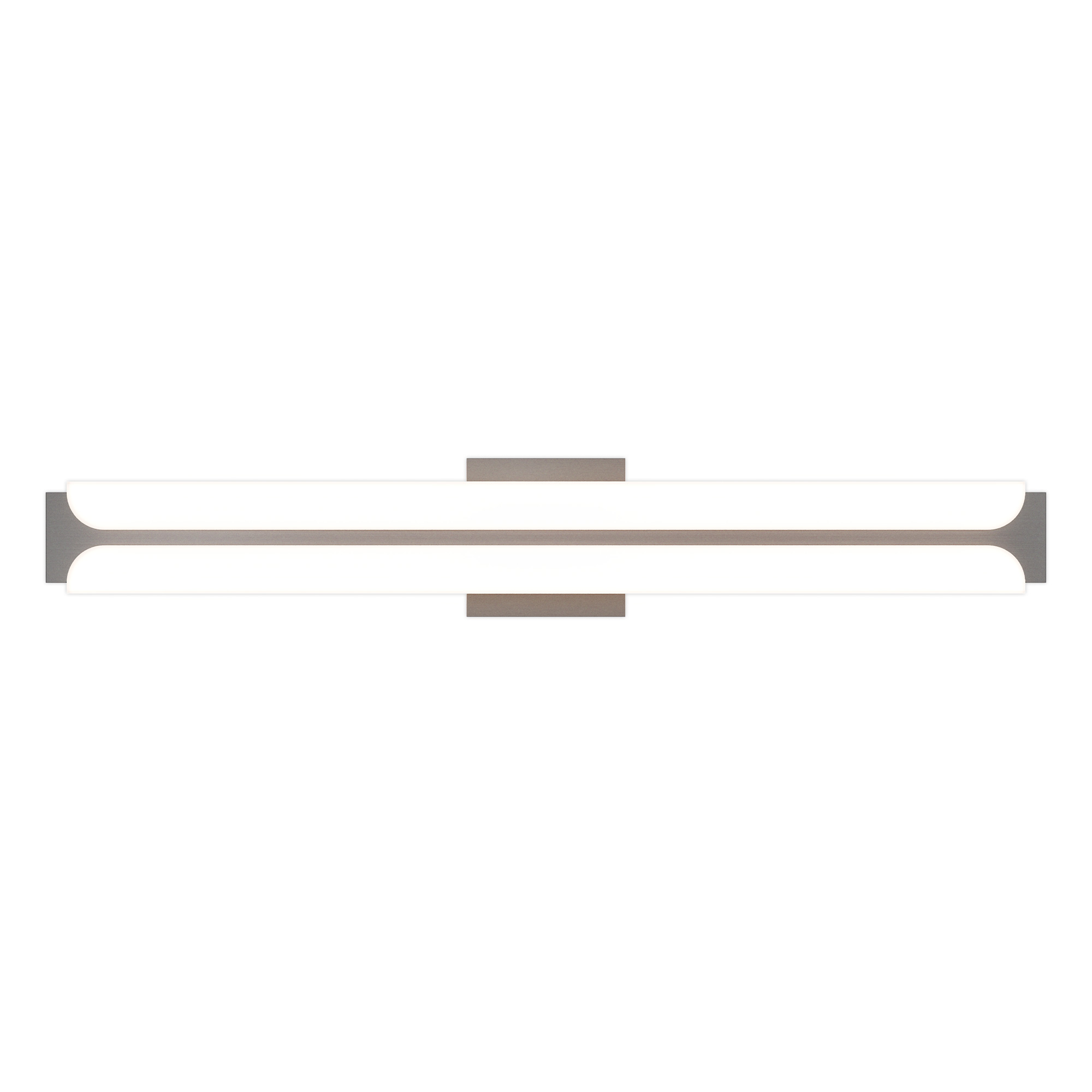

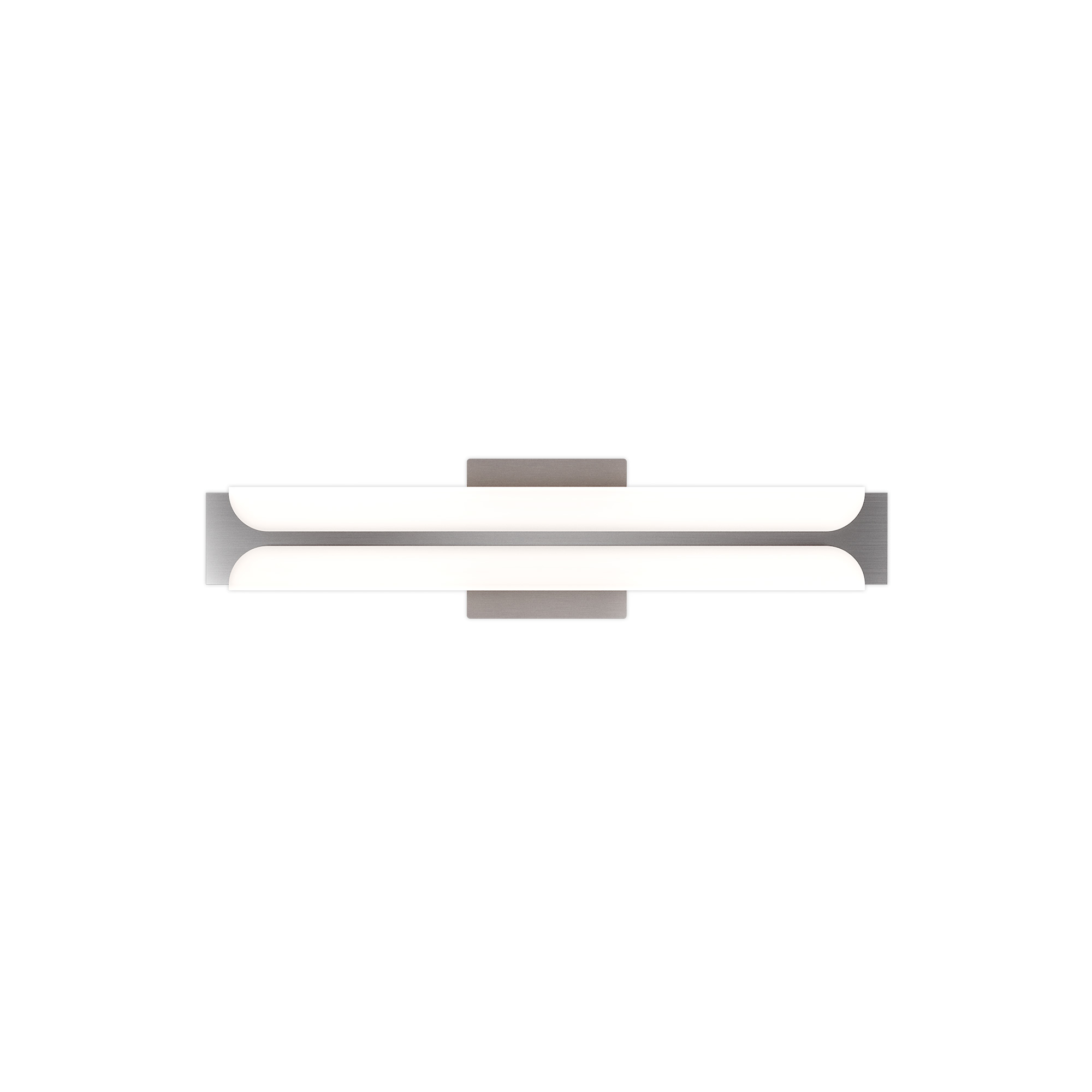

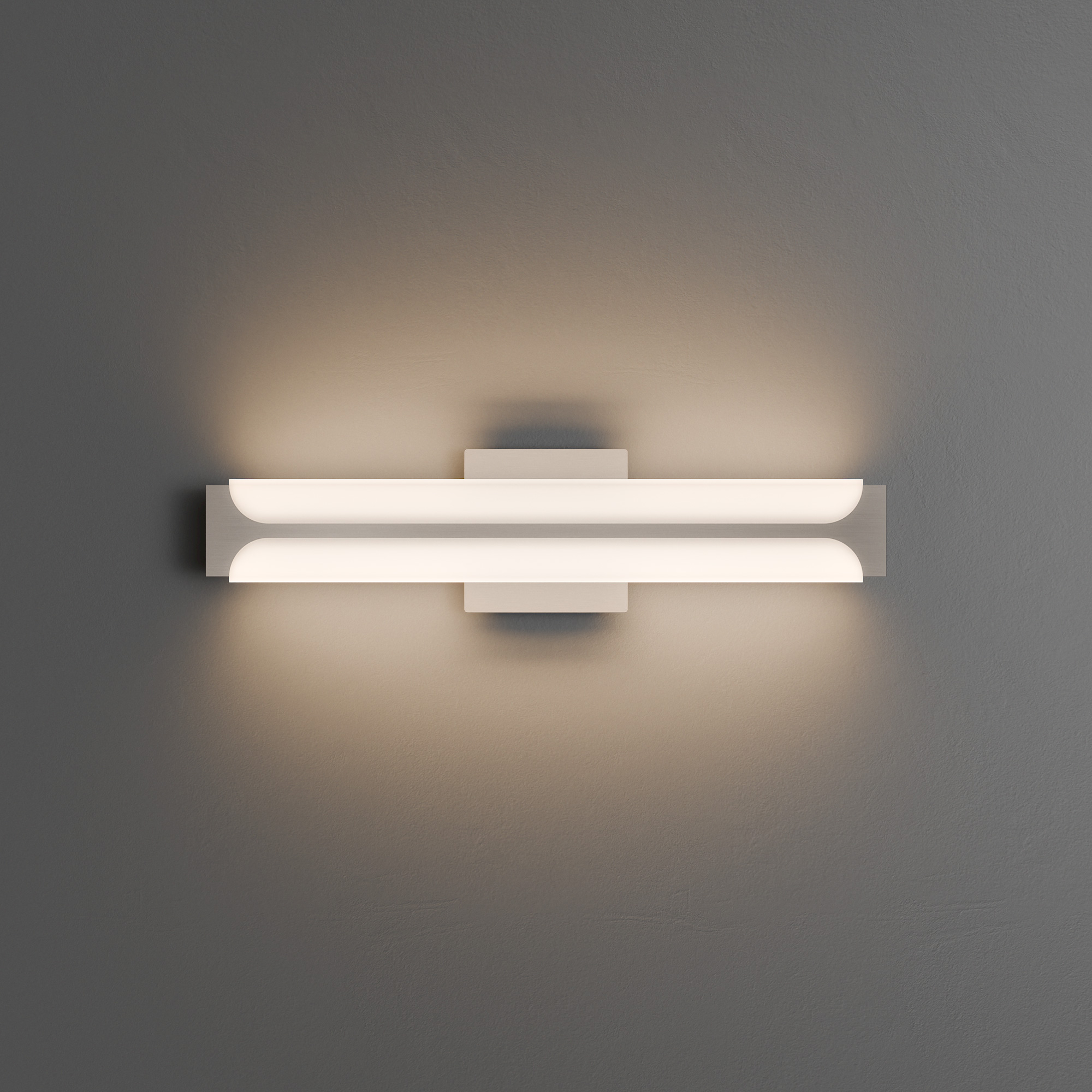

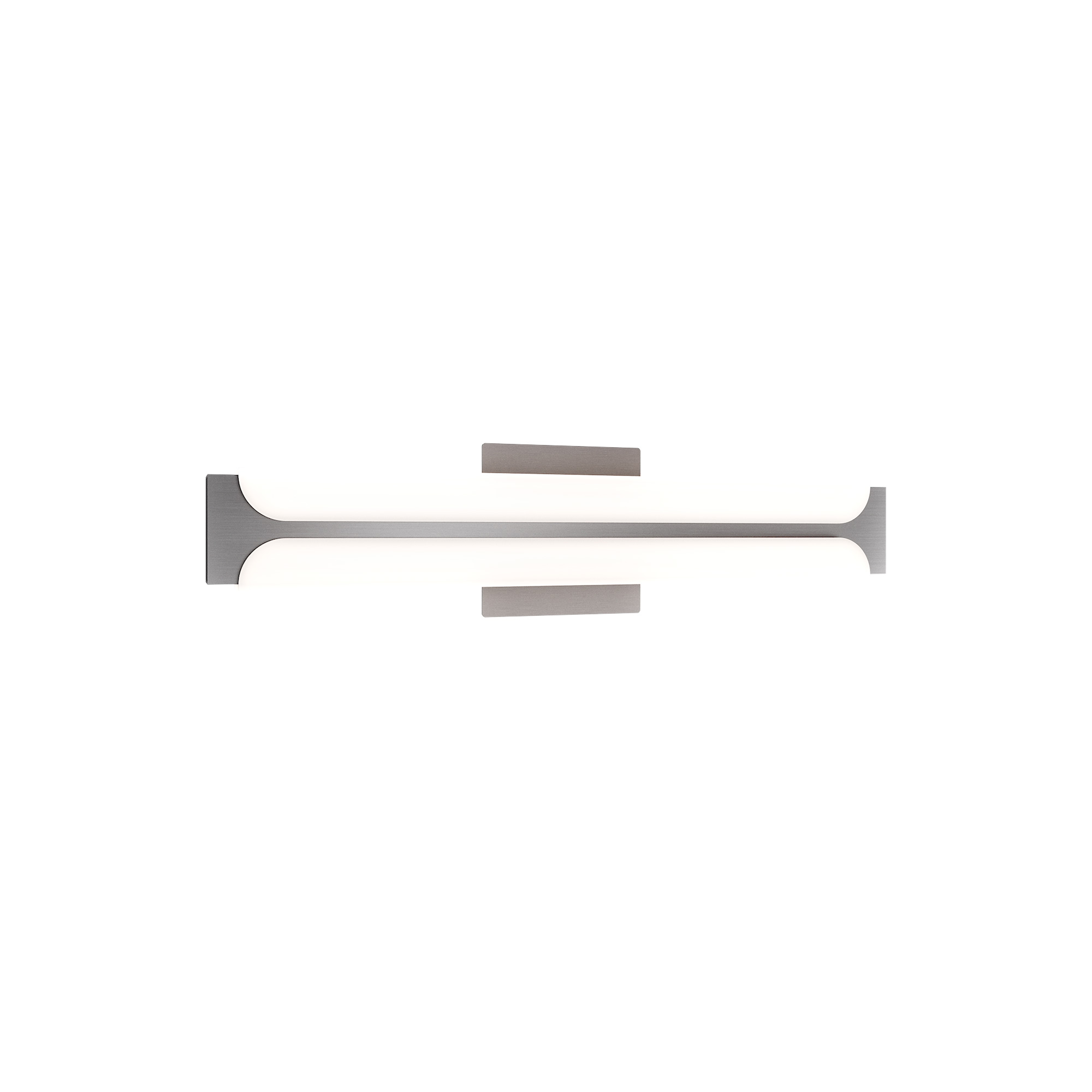

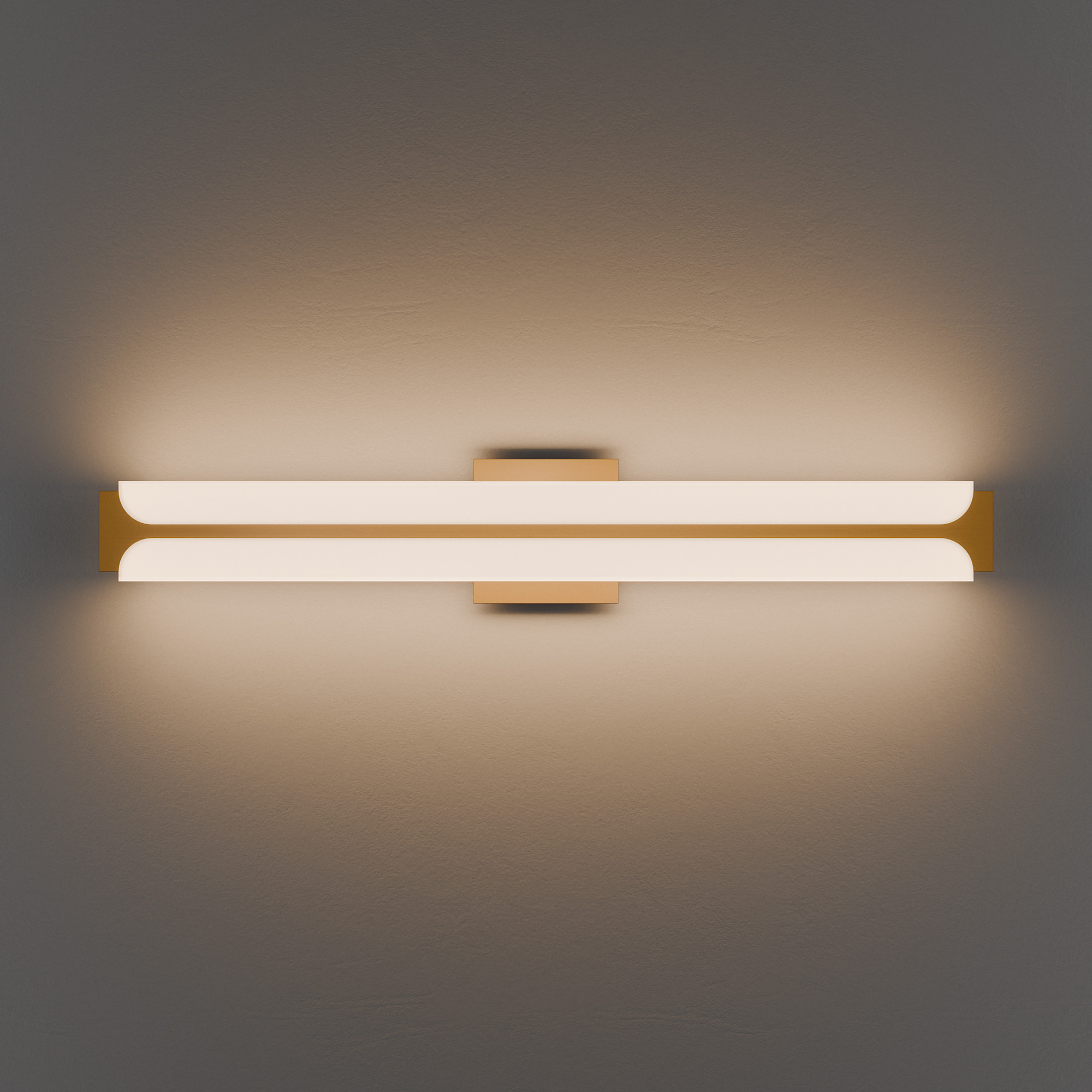

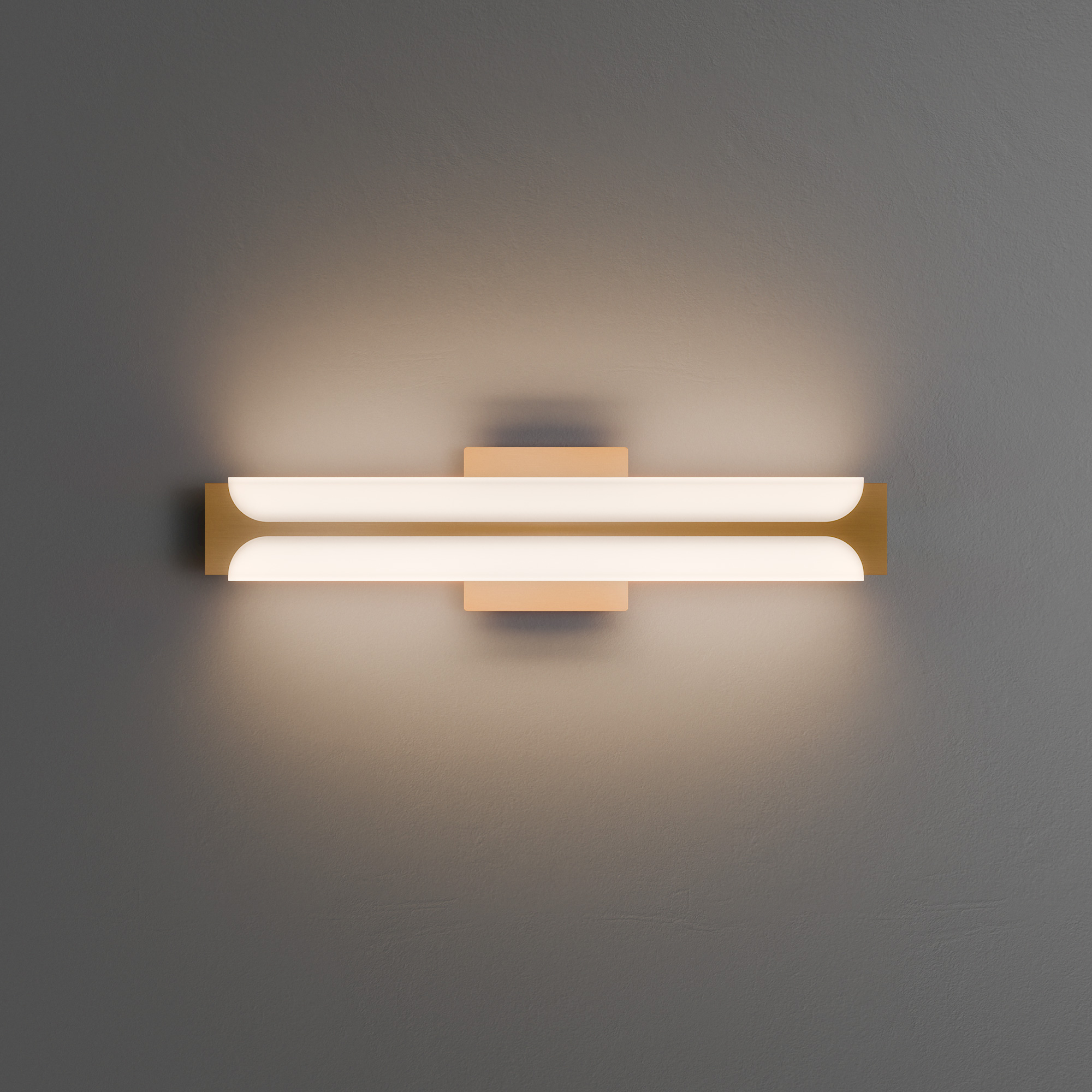

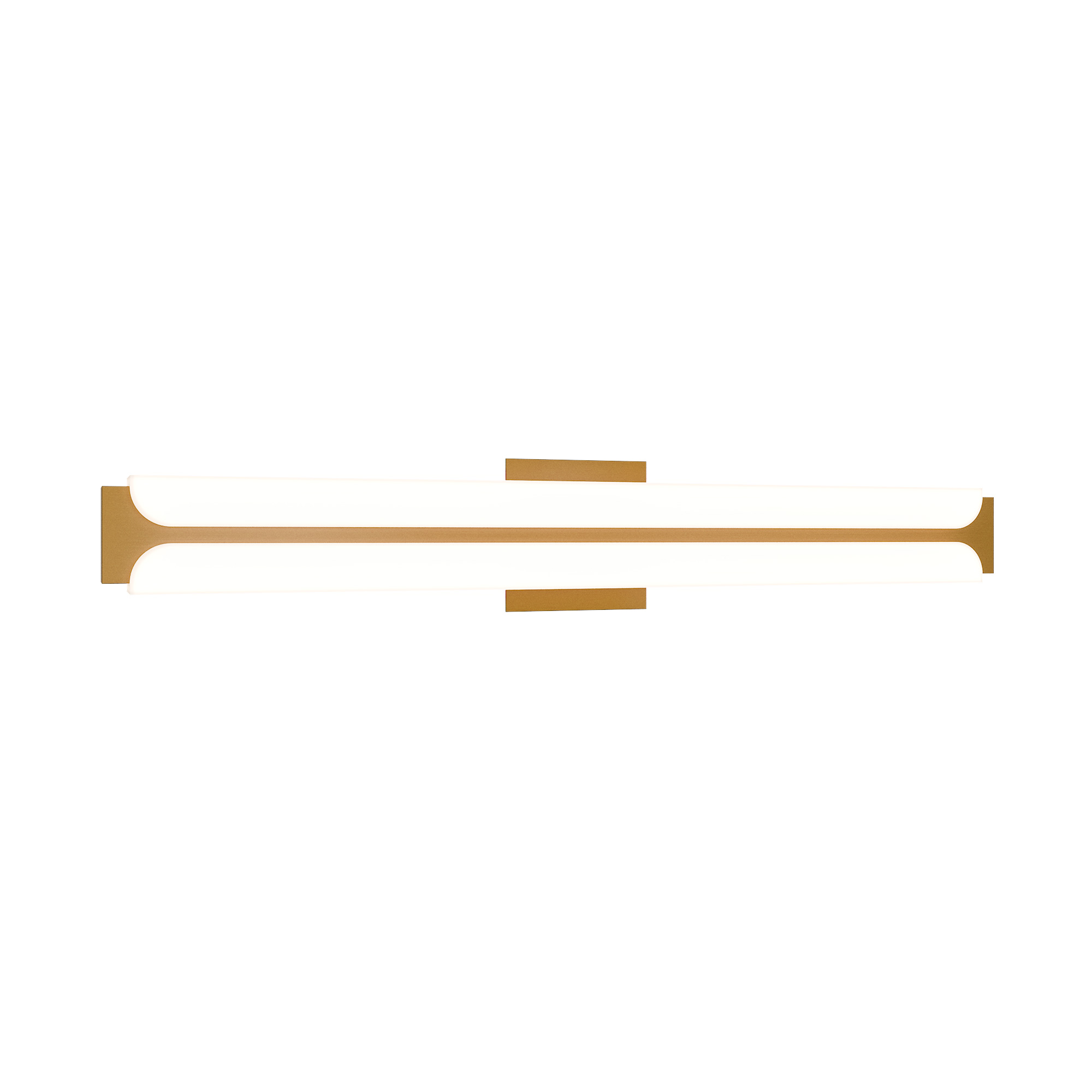

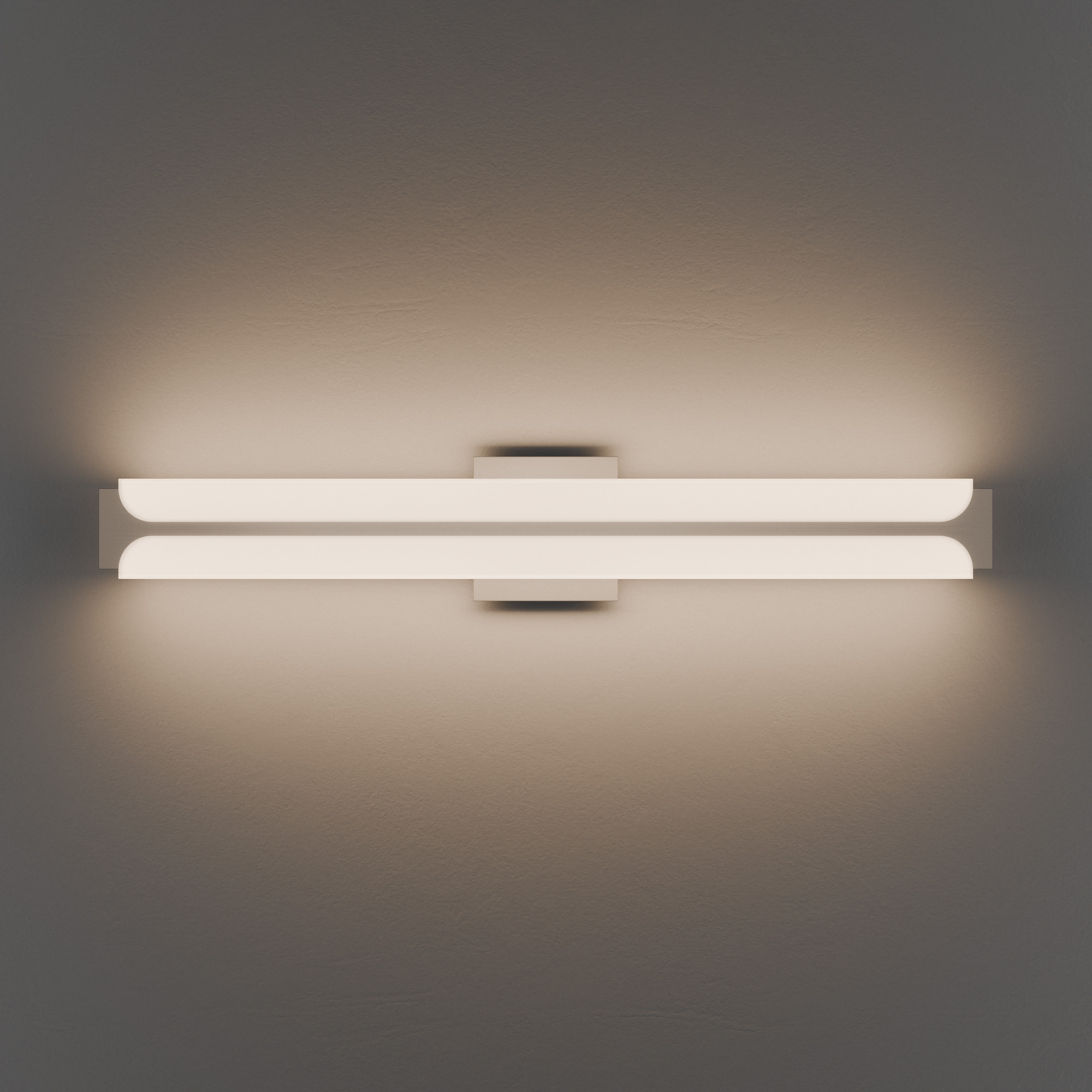

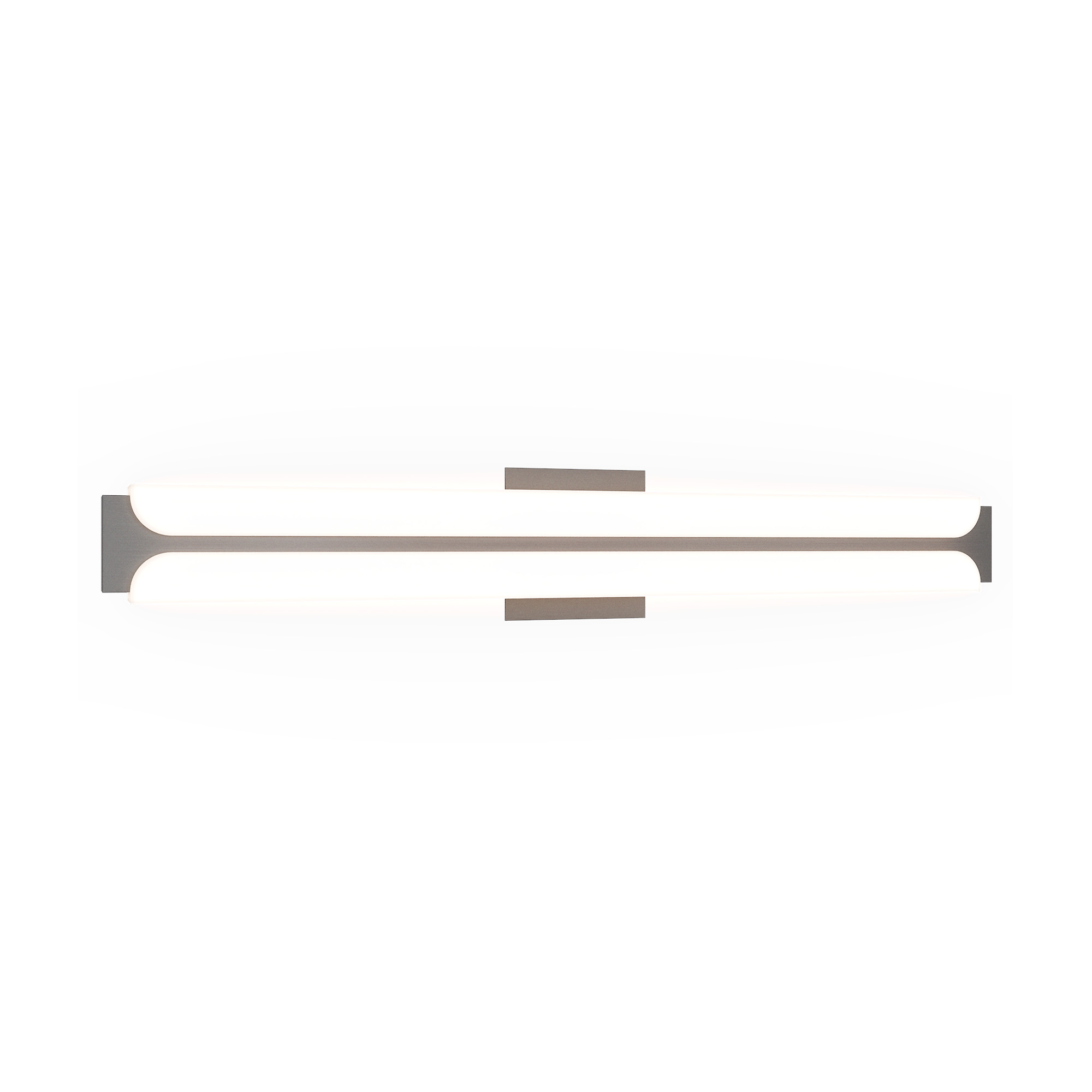

Bifold Bath & Wall WAC HOME

NEW

Order Number:

model & size	color temp	finish	led watts	led lumens	delivered lumens

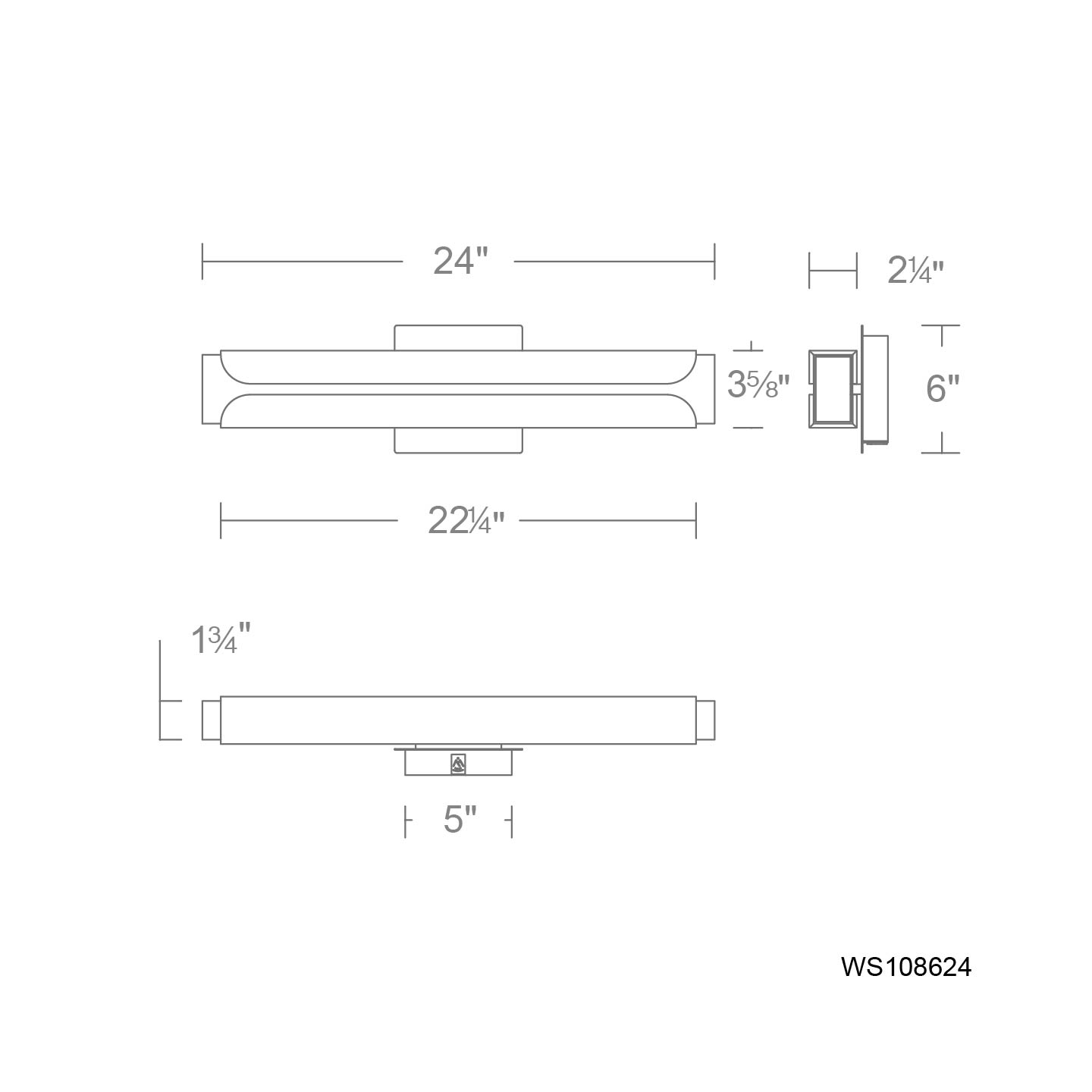

WS108624 - 24"	1800-4000K for WAC Home System	AB - Aged Brass	18.9W	1900	1526
WS108624 - 24"	1800-4000K for WAC Home System	BN - Brushed Nickel	18.9W	1900	1526
WS108636 - 36"	1800-4000K for WAC Home System	AB - Aged Brass	26.5W	2700	2222
WS108636 - 36"	1800-4000K for WAC Home System	BN - Brushed Nickel	26.5W	2700	2222

Delivered Lumens: Up to 2222lm
CCT: 1800-4000K for WAC Home System
CRI: 90
Power: 18.9W, 26.5W
Input: 120-277V, 50/60Hz
ELV Dimming: 100-10%
TRIAC Dimming: 100-10%
Rated Life: 50000 Hours

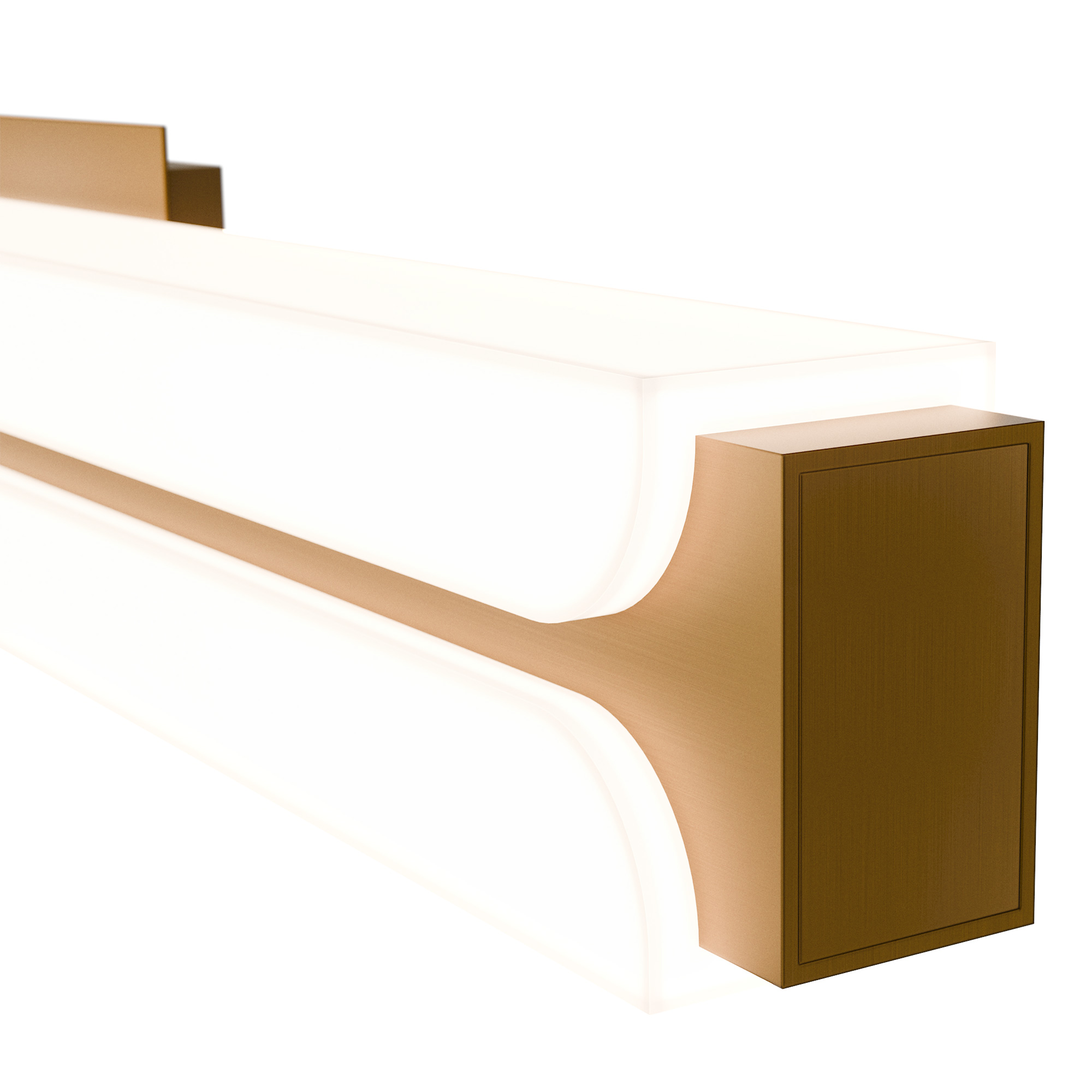

Construction: Aluminum body with acrylic diffuser
3000K(Default)
1800-4000K for WAC HOME SYSTEM ONLY
Standard dimming function available for default setting if not using WAC HOME SYSTEM

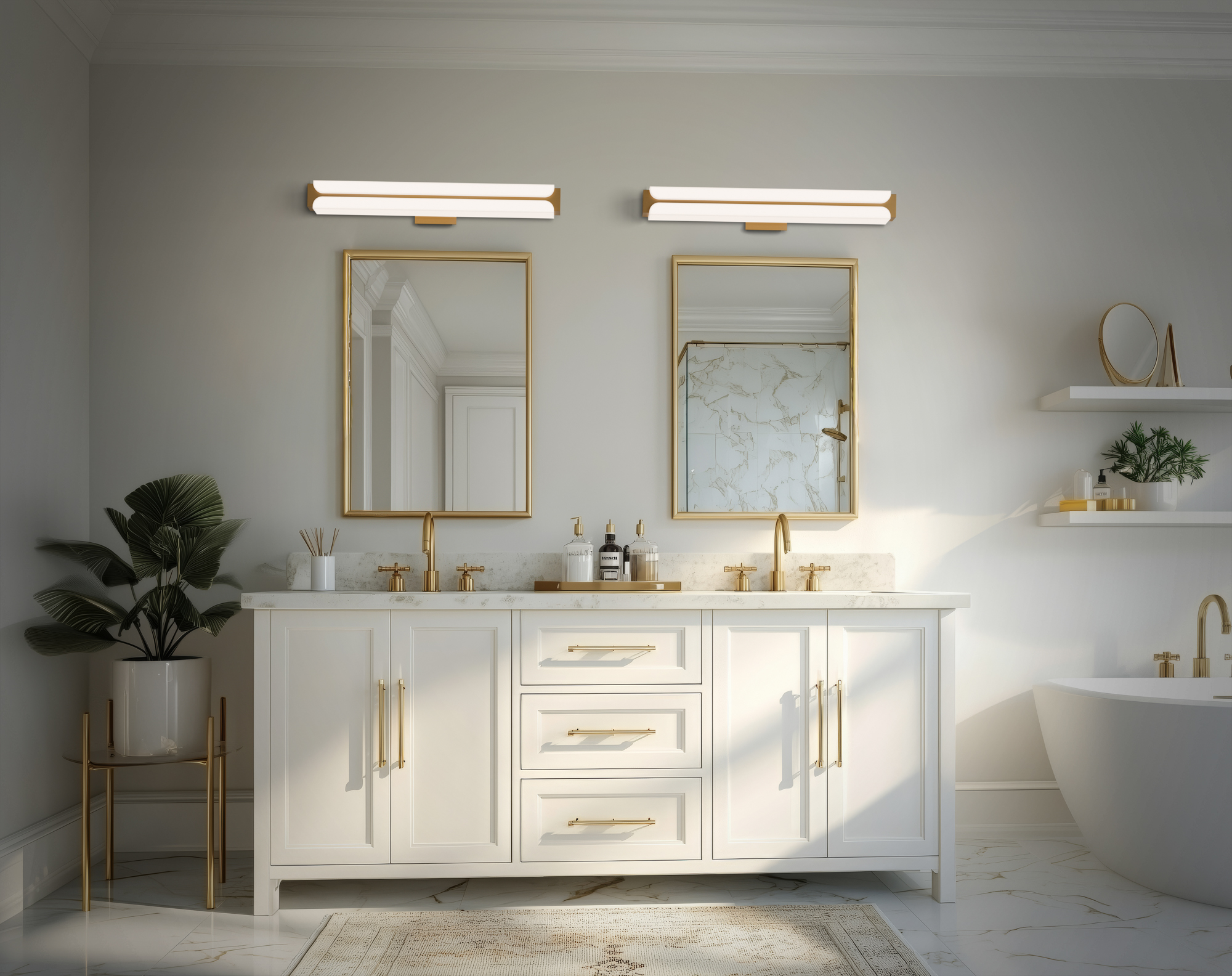

Can be mounted on wall in all orientations
Driver concealed within the canopy
Adjustable backplate
Can be mounted on wall in all orientations

When fixture is connected to TRIAC/ ELV dimmer, fixture will fully dim while maintaining 3000K color temp.
When fixture is connected to WAC Home Gateway and WAC Home Wallstation Tunable white and Dim-to-Warm functions are activated.
Use the MyWAC app for additional WAC Home functions.
