Specifications Limited Availability, Consult Factory
Limited Availability, Consult Factory
Order Number:
| model & size | color temp & cri | watt | lumens | finish |
|---|---|---|---|---|
| PD-20004 - 46" - 4 Lights | 3000K - 90 | 23W | 820 | AB - Aged Brass |
| PD-20010 - 10" - 1 Light | 3000K - 90 | 9W | 273 | AB - Aged Brass |
| PD-20014 - 14" - 1 Light | 3000K - 90 | 9W | 306 | AB - Aged Brass |
Features
- Delivered Lumens: 820lm
- CCT: 3000K
- CRI: 90
- Power: 9W, 23W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- 0-10V Dimming: 100-5%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum hardware with glass diffuser
- Low profile, powered aircraft cables for an ultra-clean look
- Mouth blown glass with unique hand crafted halo band
- Open bottom for easy cleaning
- Can be mounted on a sloped ceiling
- Three 12” and one 6” downrods included for PD-20004 only
- Quick spin-on canopy design with minimal hardware for easy installation
- Driver concealed within the canopy

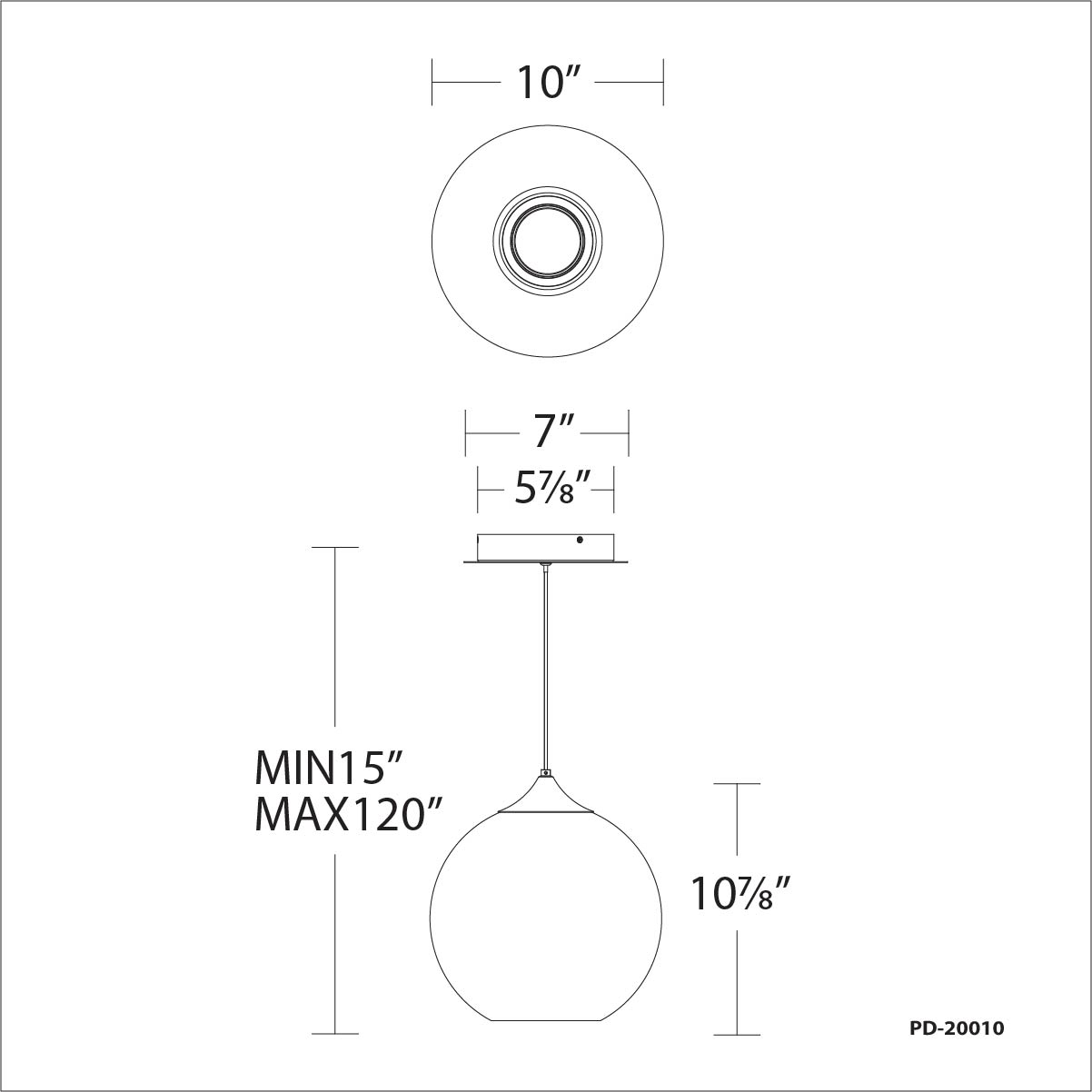

Line Drawing
