Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS-79622 - 22" | 2700K | PN - Polished Nickel | 31W | 2600 | 1500 |
| WS-79622 - 22" | 3500K | PN - Polished Nickel | 31W | 2600 | 1500 |
| WS-79622 - 22" | 3000K | PN - Polished Nickel | 31W | 2600 | 1500 |
| WS-79628 - 28" | 2700K | PN - Polished Nickel | 40W | 3600 | 2365 |
| WS-79628 - 28" | 3500K | PN - Polished Nickel | 40W | 3600 | 2365 |
| WS-79628 - 28" | 3000K | PN - Polished Nickel | 40W | 3600 | 2365 |
| WS-79636 - 36" | 2700K | PN - Polished Nickel | 47W | 4100 | 2800 |
| WS-79636 - 36" | 3500K | PN - Polished Nickel | 47W | 4100 | 2800 |
| WS-79636 - 36" | 3000K | PN - Polished Nickel | 47W | 4100 | 2800 |
Features
- Delivered Lumens: 2800lm
- CCT: 2700K, 3000K, 3500K
- CRI: 90
- Power: 31W, 40W, 47W
- Input: 120 VAC, 277 VAC, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum hardware, mitered glass diffuser with silk-screen exterior
- Conversion plate for 4" J box included
- Trimless spackle cover available for 4" square junction box recessed in drywall thicknesses of 1/2", 5/8", 1", and 1-1/4"; accessory not included and can be ordered separately (model# CP-TL-WT)
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K
- Option to pre-select color temperature or adjust in the field
- 0-10V dimming option (LDS065M010AFE-LO1) available (special order), unit dimensions: 3.4" x 1.2" x 0.5"
- ACLED driverless technology
- Can be mounted on ceiling or wall in all orientations
- For 277V special order, add an "F" before the finish: WS-79636F-PN

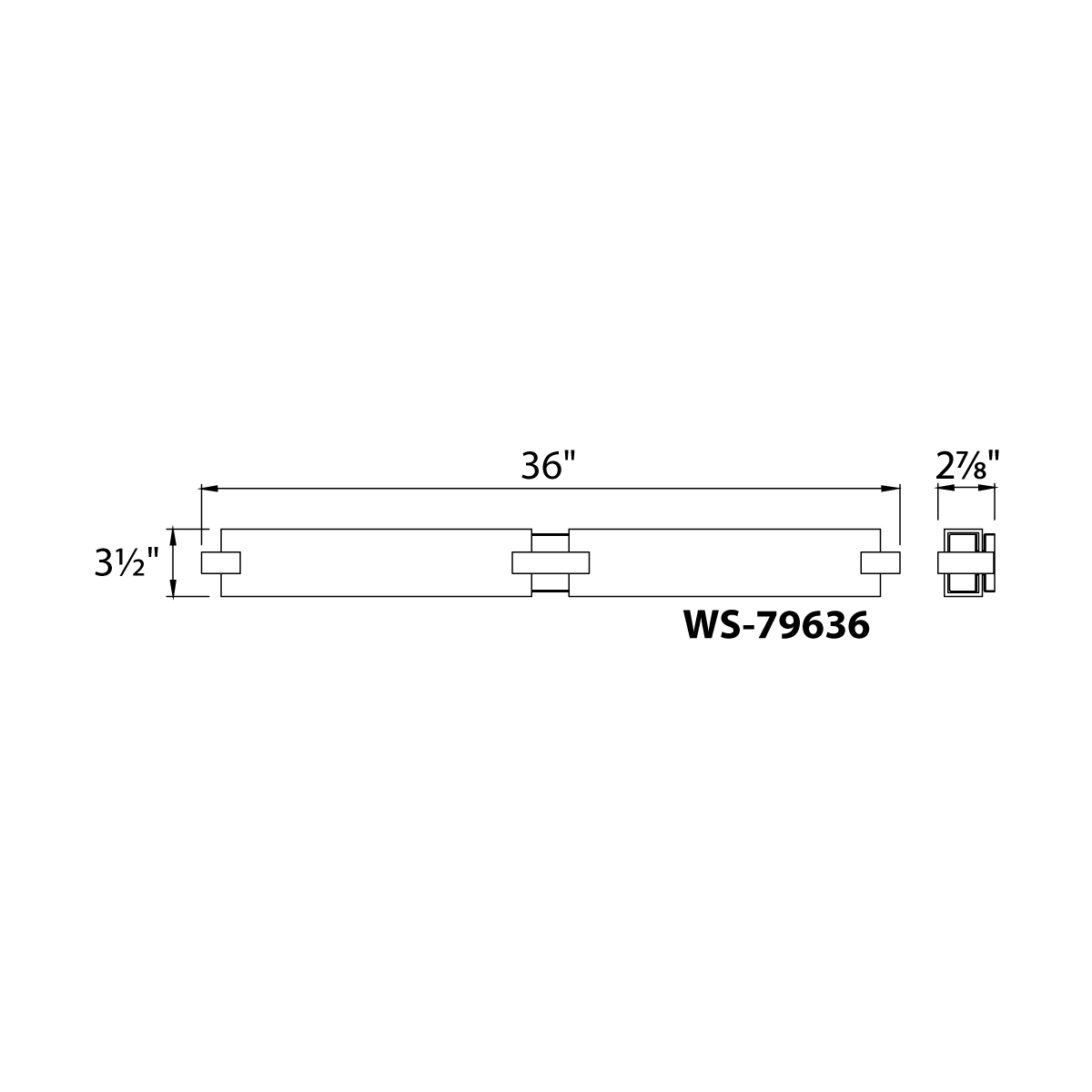

Line Drawing
