Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WSW119610 - 10" | 3000K | BK - Black | 10.4W | 176 | 115 |
| WSW119618 - 18" | 3000K | BK - Black | 16.2W | 297 | 194 |
| WSW119626 - 26" | 3000K | BK - Black | 22.8W | 478 | 310 |
Features
- Delivered Lumens: Up to 310lm
- CCT: 3000K
- CRI: 90
- Power: 10.4W, 16.2W, 22.8W
- Input: 120V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Stainless steel body with glass diffuser
- ACLED driverless technology
- Light engine is factory sealed for maximum protection from the elements
- Weather resistant powder coated finishes
- Weather resistant powder coated finishes
- ACLED driverless technology
- Can be mounted on ceiling or wall vertically

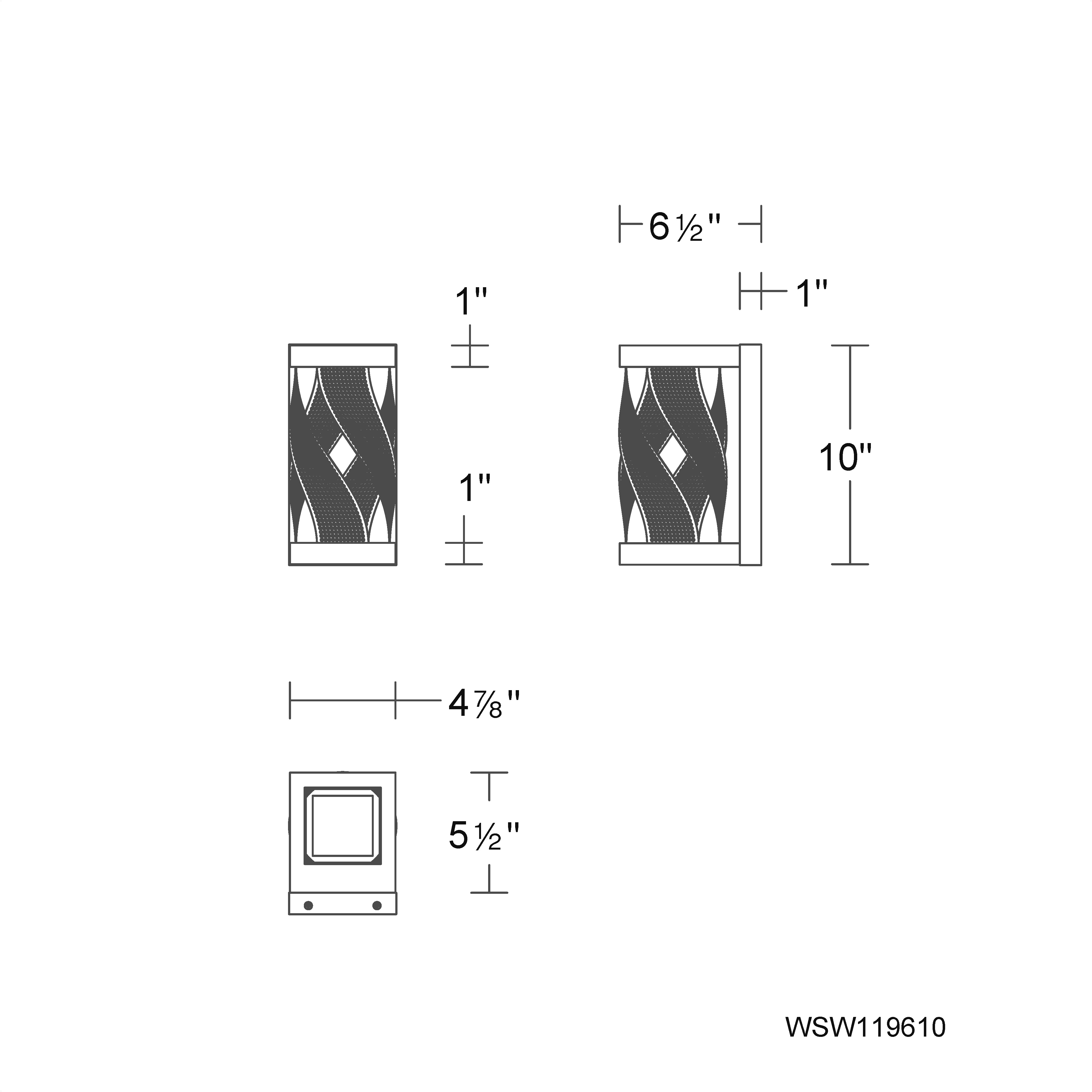

Line Drawing
