Specifications
Order Number:
| model & voltage | color temp & cri | lumens | finish |
|---|---|---|---|
| HR2S-DU-A - 24VDC | 1800K-4000K - 90 | 185 | BK - BLACK |

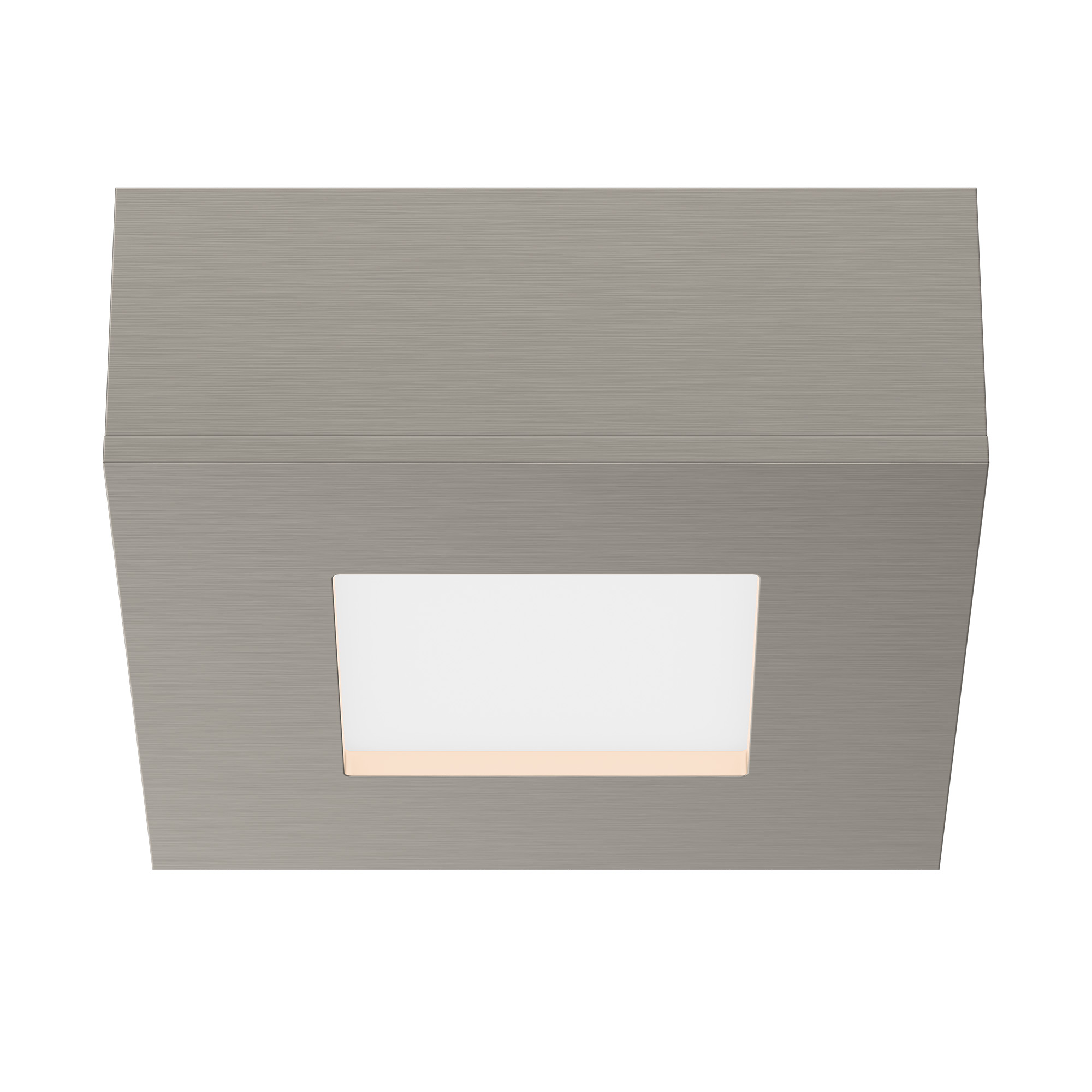

| HR2S-DU-A - 24VDC | 1800K-4000K - 90 | 185 | BN - BRUSHED NICKEL |

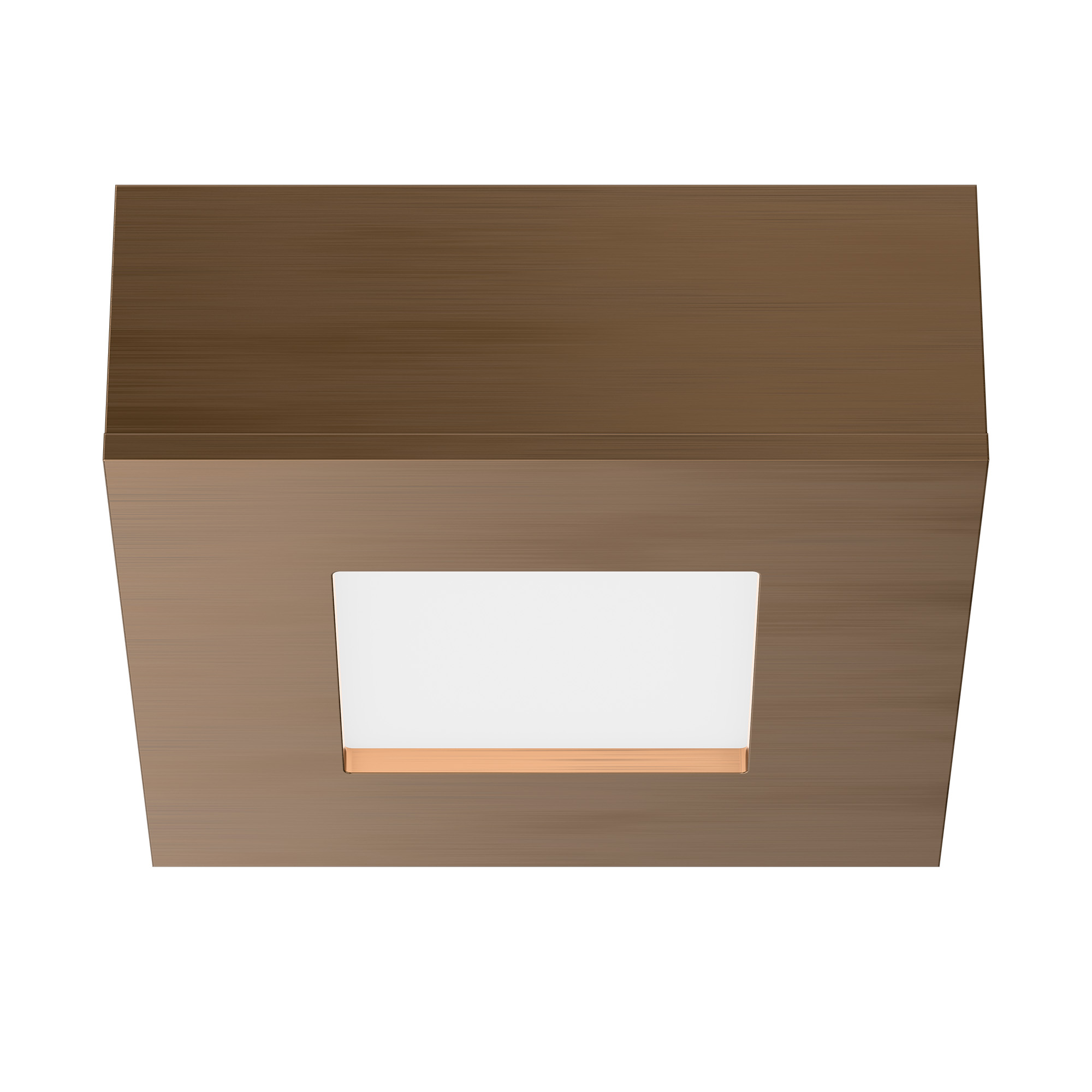

| HR2S-DU-A - 24VDC | 1800K-4000K - 90 | 185 | CB - COPPER BRONZE |

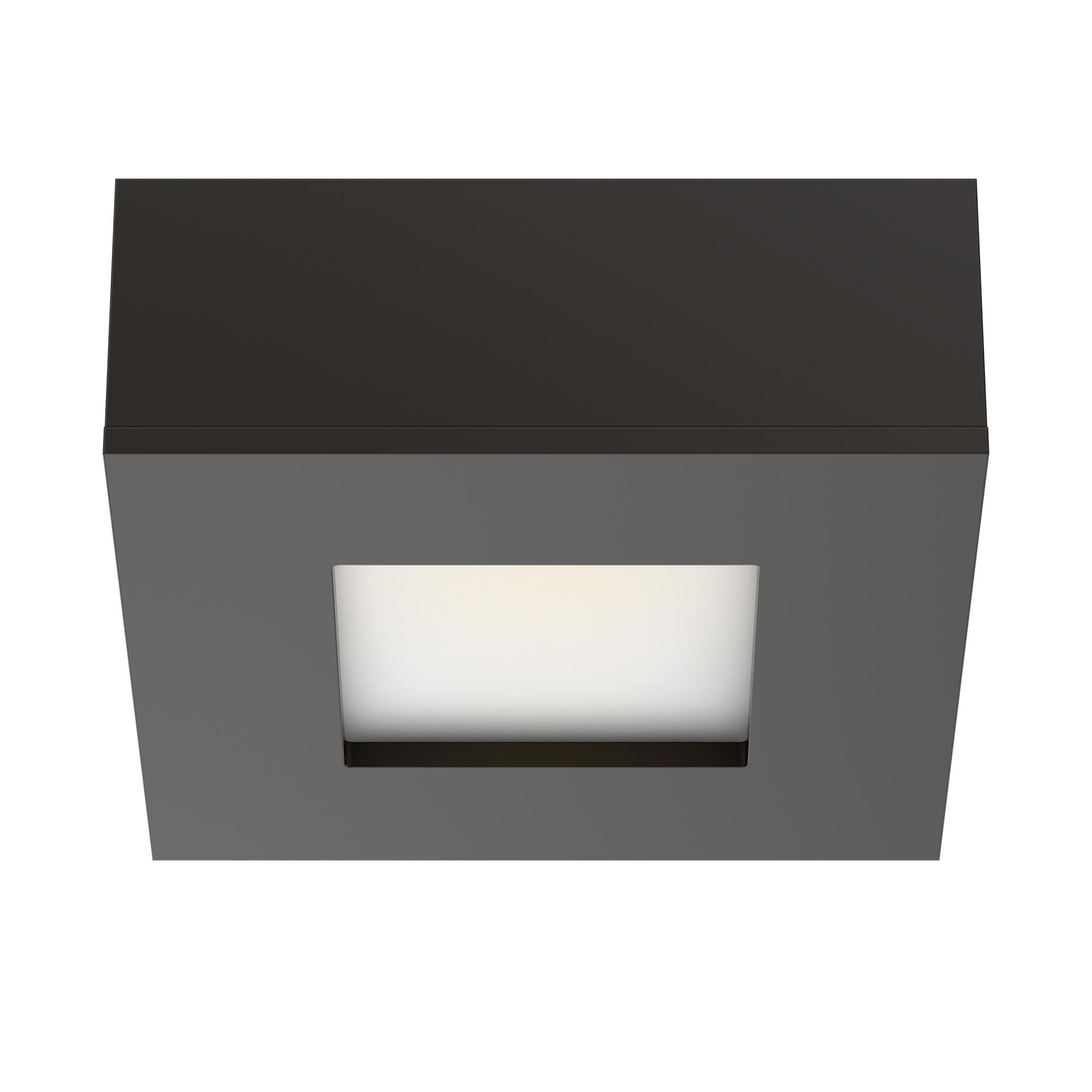

| HR2S-DU-A - 24VDC | 1800K-4000K - 90 | 185 | DB - DARK BRONZE |
| HR2S-DU-A - 24VDC | 1800K-4000K - 90 | 185 | WT - WHITE |
Features
- Delivered Lumens: 185lm
- CCT: 1800K-4000K
- CRI: 90
- Power: 3.6W
- Input: 24VDC, 50/60Hz
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-1%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum
- CCT selectable from 1800K-4000K
- Diffused optical design, no LED-hotspot
- Die-cast aluminum construction
- Compatible with various standard or smart power supplies
- Quick and easy installation
- Recessed or surface mounting
- Driver required
- Can be mounted on wall in all orientations
Line Drawing
