Specifications
Retired
Order Number:
| model & size | color temp & cri | watt | lumens | finish |
|---|---|---|---|---|
| PD-54924 - 24" - 1 Tier | 3000K - 90 | 37W | 2000 | BN - Brushed Nickel |
| PD-54924 - 24" - 1 Tier | 3000K - 90 | 37W | 2000 | SG - Soft Gold |
| PD-54932 - 32" - 1 Tier | 3000K - 90 | 94W | 4230 | BN - Brushed Nickel |
| PD-54932 - 32" - 2 Tier | 3000K - 90 | 94W | 4230 | SG - Soft Gold |
| PD-54934 - 32" - 2 Tier | 3000K - 90 | 112W | 5210 | BN - Brushed Nickel |
| PD-54934 - 32" - 2 Tier | 3000K - 90 | 112W | 5210 | SG - Soft Gold |
Features
- Delivered Lumens: Up to 5210lm
- CCT: 3000K
- CRI: 90
- Power: 37W, 94W, 112W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- 0-10V Dimming: 100-5%
- TRIAC Dimming: 100-10%
- Rated Life: 54000 Hours
- Construction: Classic chain-link aluminum body design with composite diffuser.
- Thin powered aircraft cables provide an ultra-clean look
- Can be mounted on a sloped ceiling
- Driver concealed within the canopy

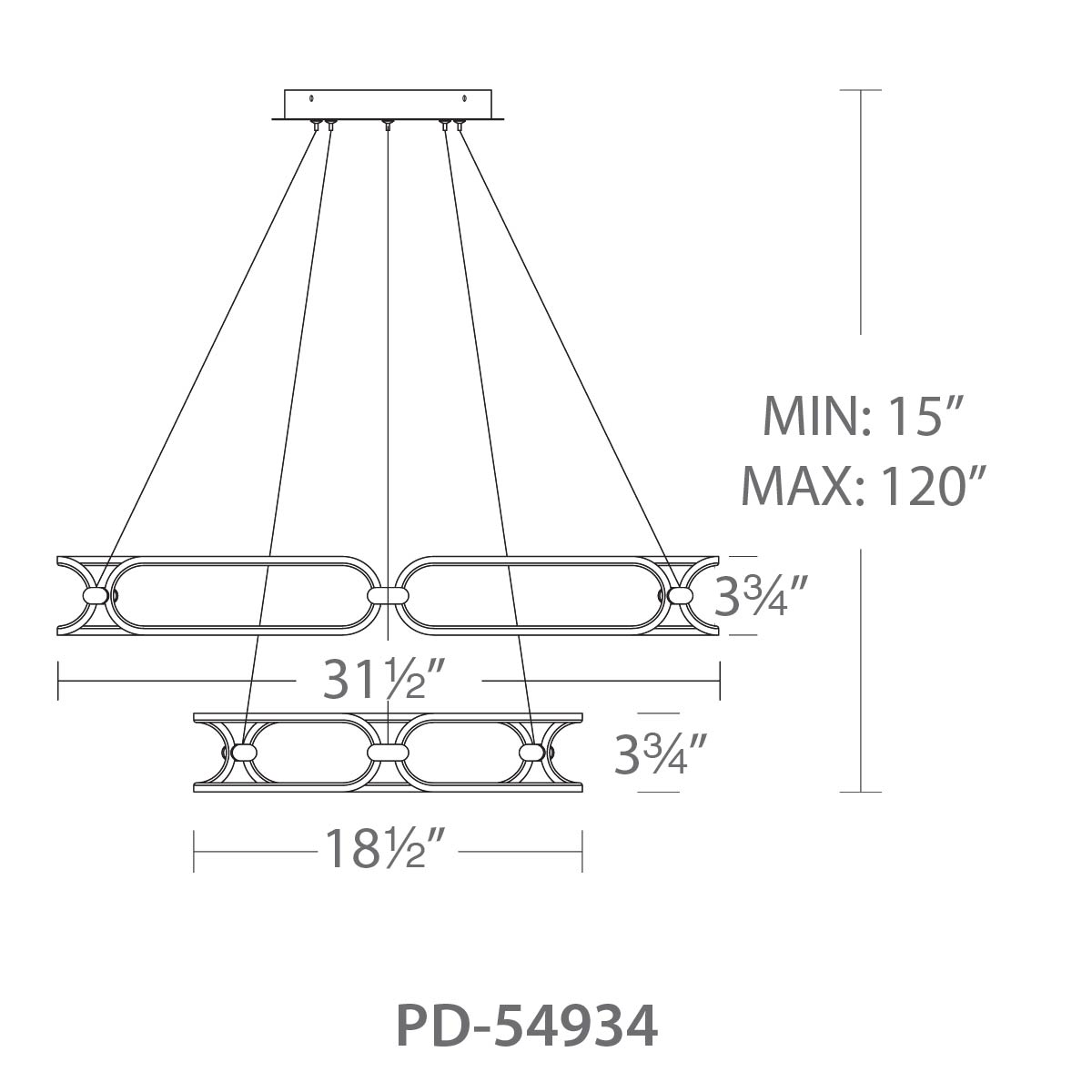

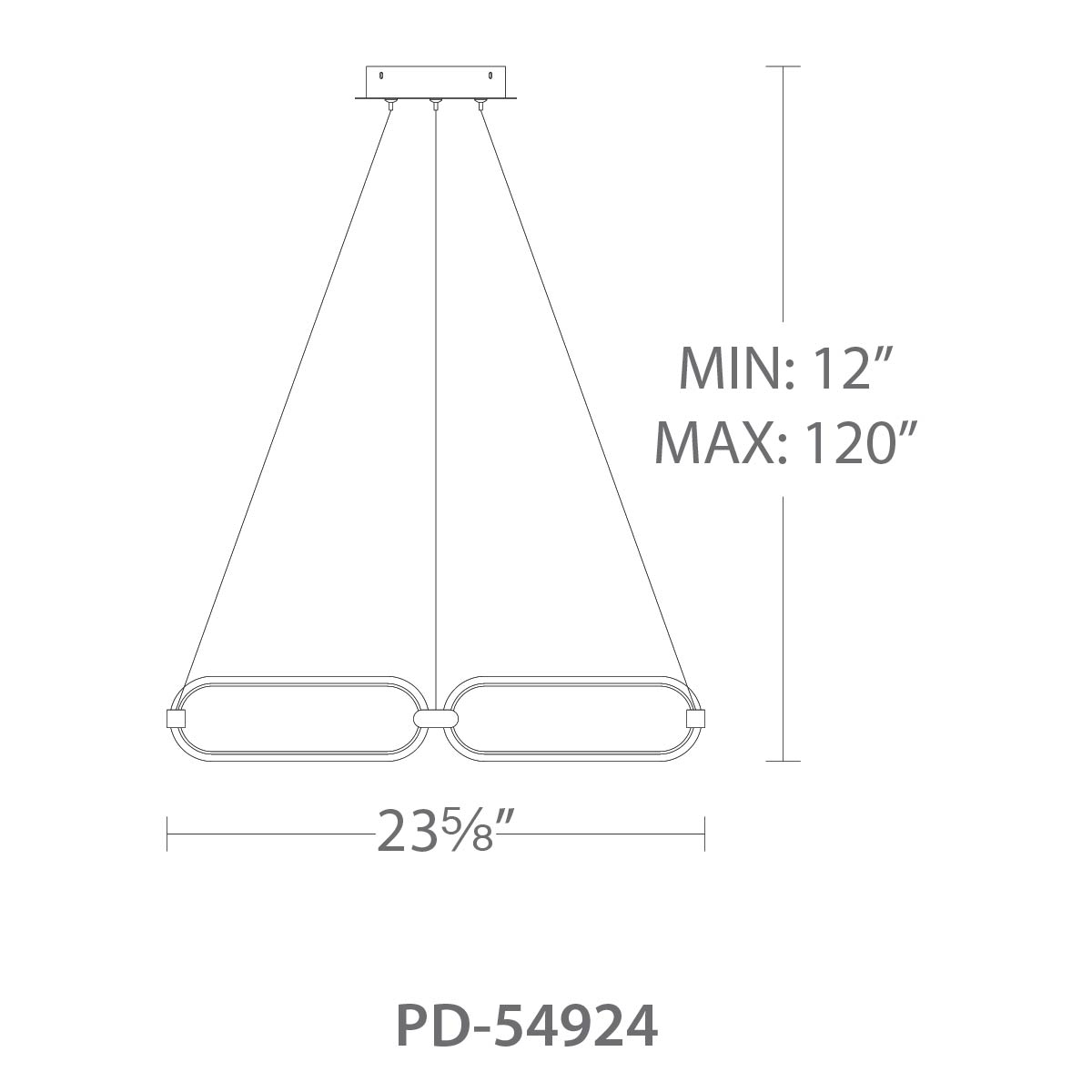

Line Drawing
