Specifications Limited Availability, Consult Factory
Limited Availability, Consult Factory
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS-59210 - 10" | 2700K | AB - Aged Brass | 15W | 1000 | 297 |
| WS-59210 - 10" | 2700K | BK - Black | 15W | 1000 | 297 |
| WS-59210 - 10" | 2700K | BN - Brushed Nickel | 15W | 1000 | 297 |
| WS-59210 - 10" | 2700K | WT - White | 15W | 1000 | 297 |
| WS-59210 - 10" | 3000K | AB - Aged Brass | 15W | 1000 | 336 |
| WS-59210 - 10" | 3000K | BK - Black | 15W | 1000 | 336 |
| WS-59210 - 10" | 3000K | BN - Brushed Nickel | 15W | 1000 | 336 |
| WS-59210 - 10" | 3000K | WT - White | 15W | 1000 | 336 |
| WS-59210 - 10" | 3500K | AB - Aged Brass | 15W | 1000 | 309 |
| WS-59210 - 10" | 3500K | BK - Black | 15W | 1000 | 309 |
| WS-59210 - 10" | 3500K | BN - Brushed Nickel | 15W | 1000 | 309 |
| WS-59210 - 10" | 3500K | WT - White | 15W | 1000 | 309 |
Features
- Delivered Lumens: 336lm
- CCT: 2700K, 3000K, 3500K
- CRI: 90
- Power: 15W
- Input: 120 VAC, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body, frosted glass diffuser
- Directional illumination
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K
- Slide-on canopy with minimal hardware
- Option to pre-select color temperature or adjust in the field
- ACLED driverless technology
- Can be mounted on wall in all orientations

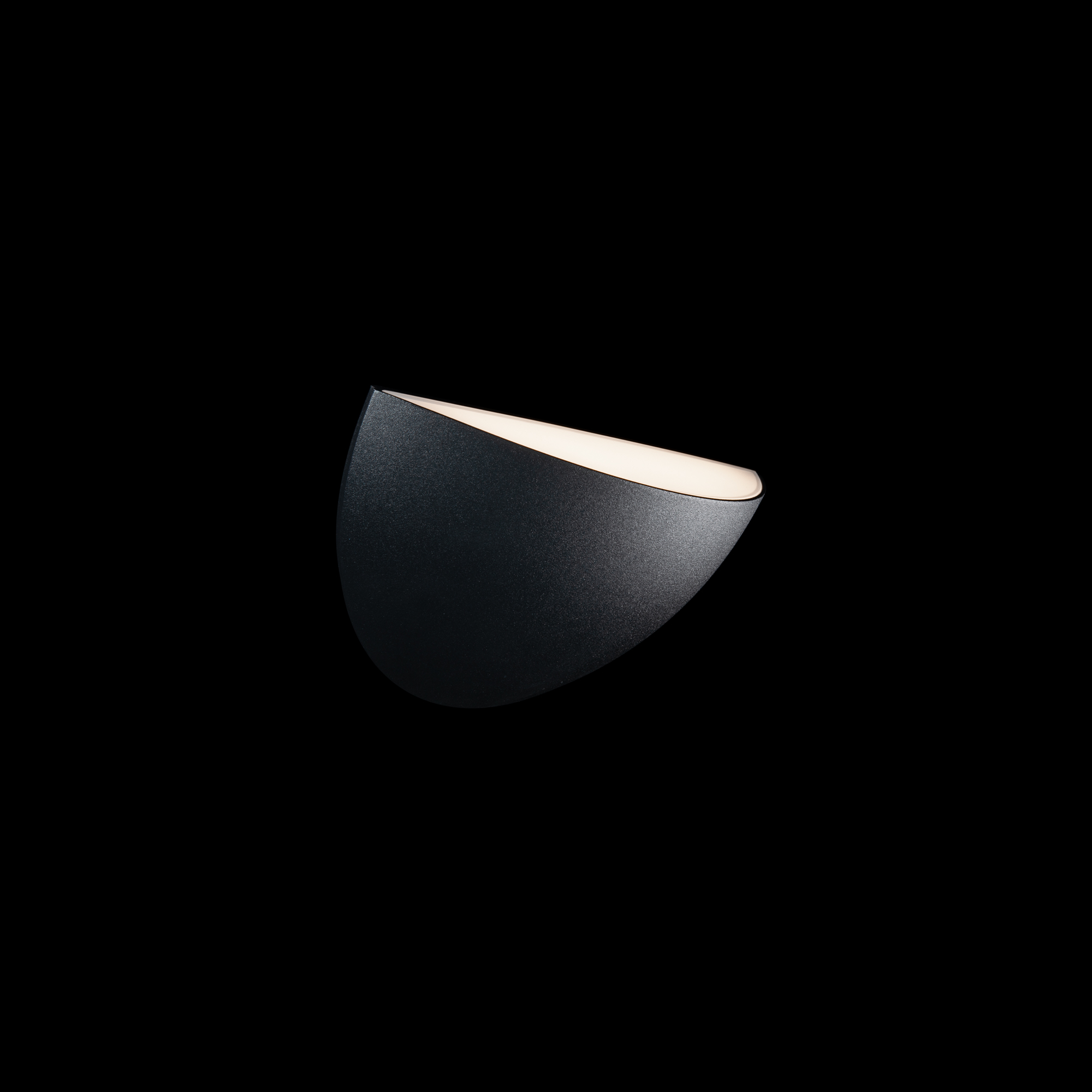

Gallery
Line Drawing
