Specifications
Order Number:
| model & voltage | color temp & cri | lumens | finish |
|---|---|---|---|
| 6705 - 9-15 VAC | 2700K - 90 | 305 | BK - Black on Aluminum |
| 6705 - 9-15 VAC | 2700K - 90 | 305 | BZ - Bronze on Aluminum |
| 6705 - 9-15 VAC | 2700K - 90 | 305 | GT - Granite on Aluminum |
| 6705 - 9-15 VAC | 3000K - 90 | 310 | BK - Black on Aluminum |
| 6705 - 9-15 VAC | 3000K - 90 | 310 | BZ - Bronze on Aluminum |
| 6705 - 9-15 VAC | 3000K - 90 | 310 | GT - Granite on Aluminum |
Features
- Delivered Lumens: Up to 310lm
- CCT: 2700K, 3000K
- CRI: 90
- Power: 7.4W
- Input: 9-15 VAC, 50/60Hz
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum
- Sleek Contemporary design blends seamlessly into pathways while providing soft, even illumination
- IP66 Rated, protected against powerful water jets
- Maintains constant lumen output against voltage drop
- Transformer required

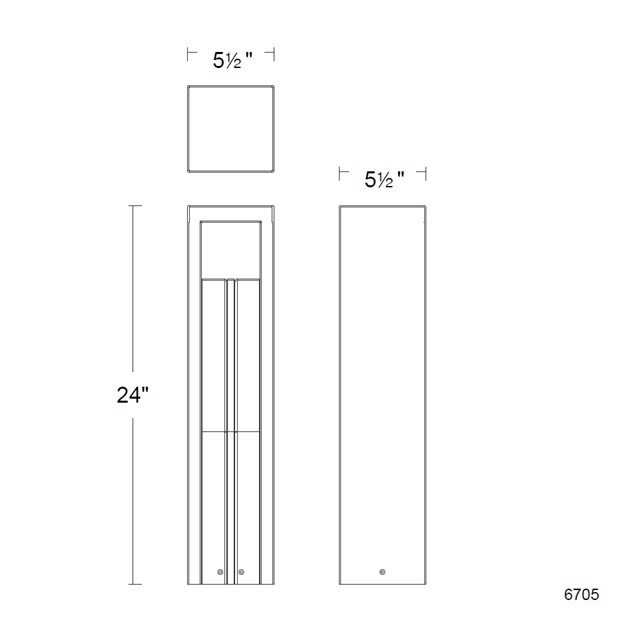

Line Drawing
