Specifications
Order Number:
| model | color temp & cri | lumens | finish |
|---|---|---|---|
| WS-W220208 | CS - 2700K/3000K/3500K/4000K/5000K - 80 | 685 | BK - Black |
| WS-W220208 | CS - 2700K/3000K/3500K/4000K/5000K - 80 | 685 | BZ - Bronze |
| WS-W220208 | CS - 2700K/3000K/3500K/4000K/5000K - 80 | 685 | WT - White |
| WS-W220212 | CS - 2700K/3000K/3500K/4000K/5000K - 80 | 1440 | BK - Black |
| WS-W220212 | CS - 2700K/3000K/3500K/4000K/5000K - 80 | 1440 | BZ - Bronze |
| WS-W220212 | CS - 2700K/3000K/3500K/4000K/5000K - 80 | 1440 | WT - White |
Features
- Delivered Lumens: Up to 1440lm
- CCT: 2700K/3000K/3500K/4000K/5000K
- CRI: 80
- Power: 10W, 16W
- Input: 120 VAC, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum
- Multiple LED array for uniform illumination

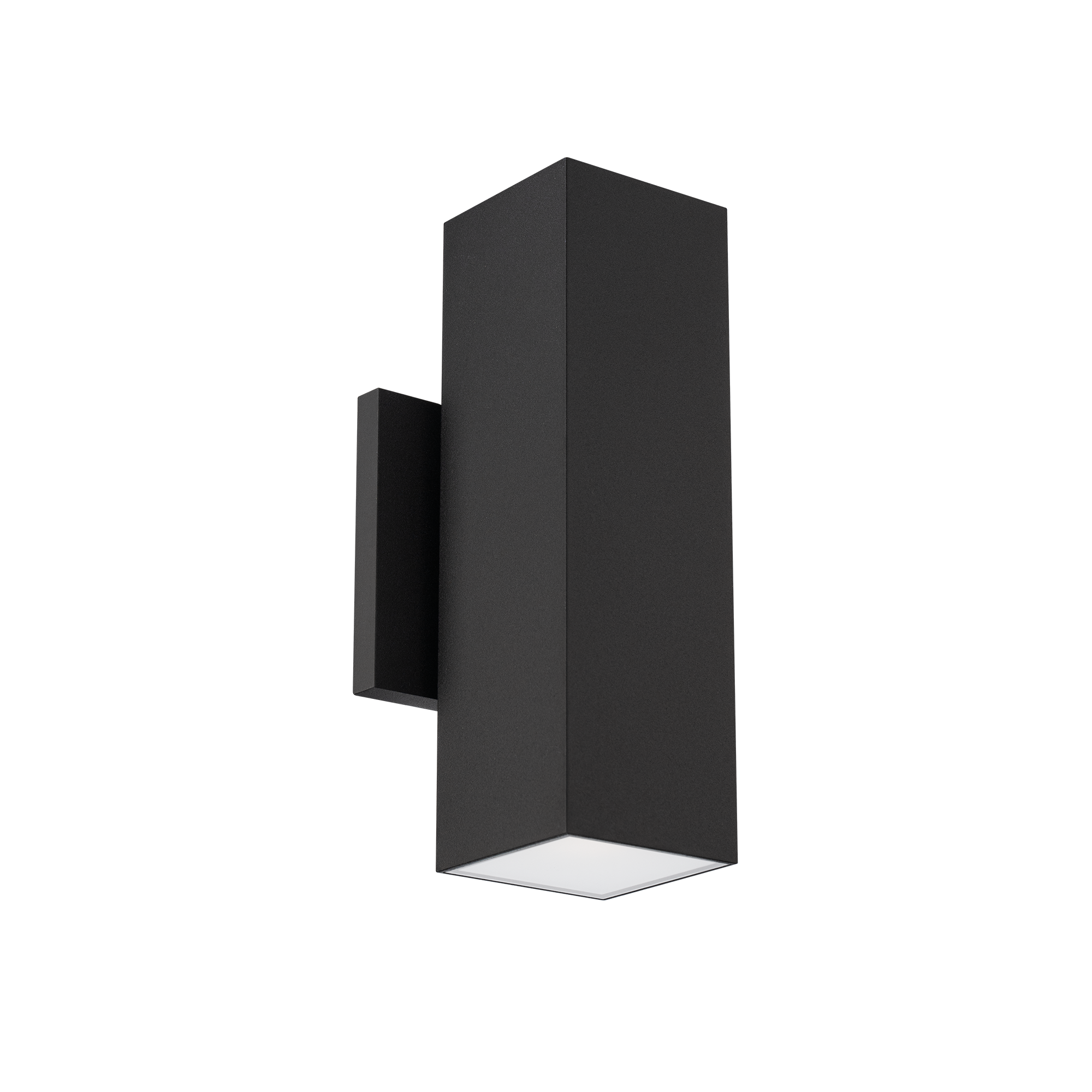

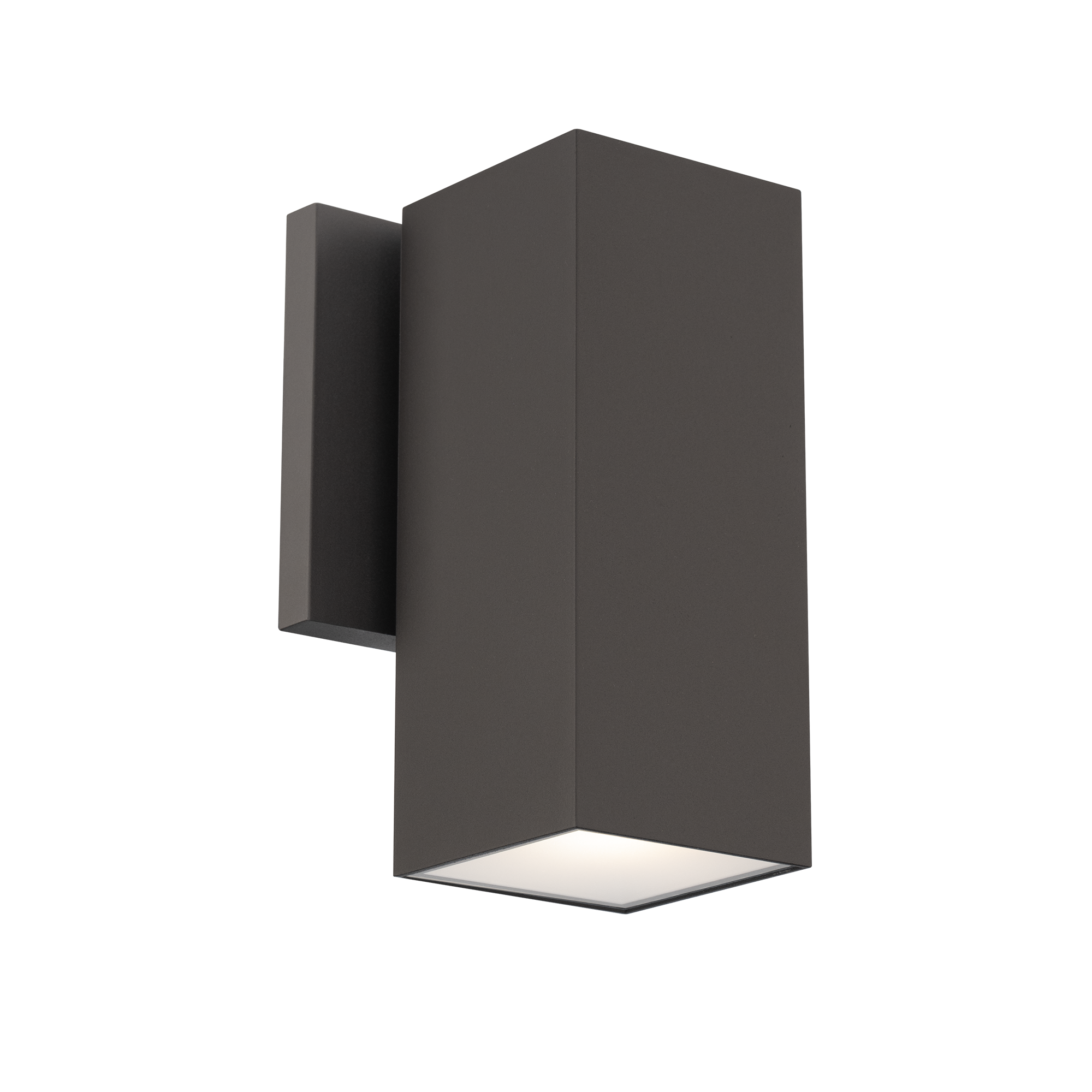

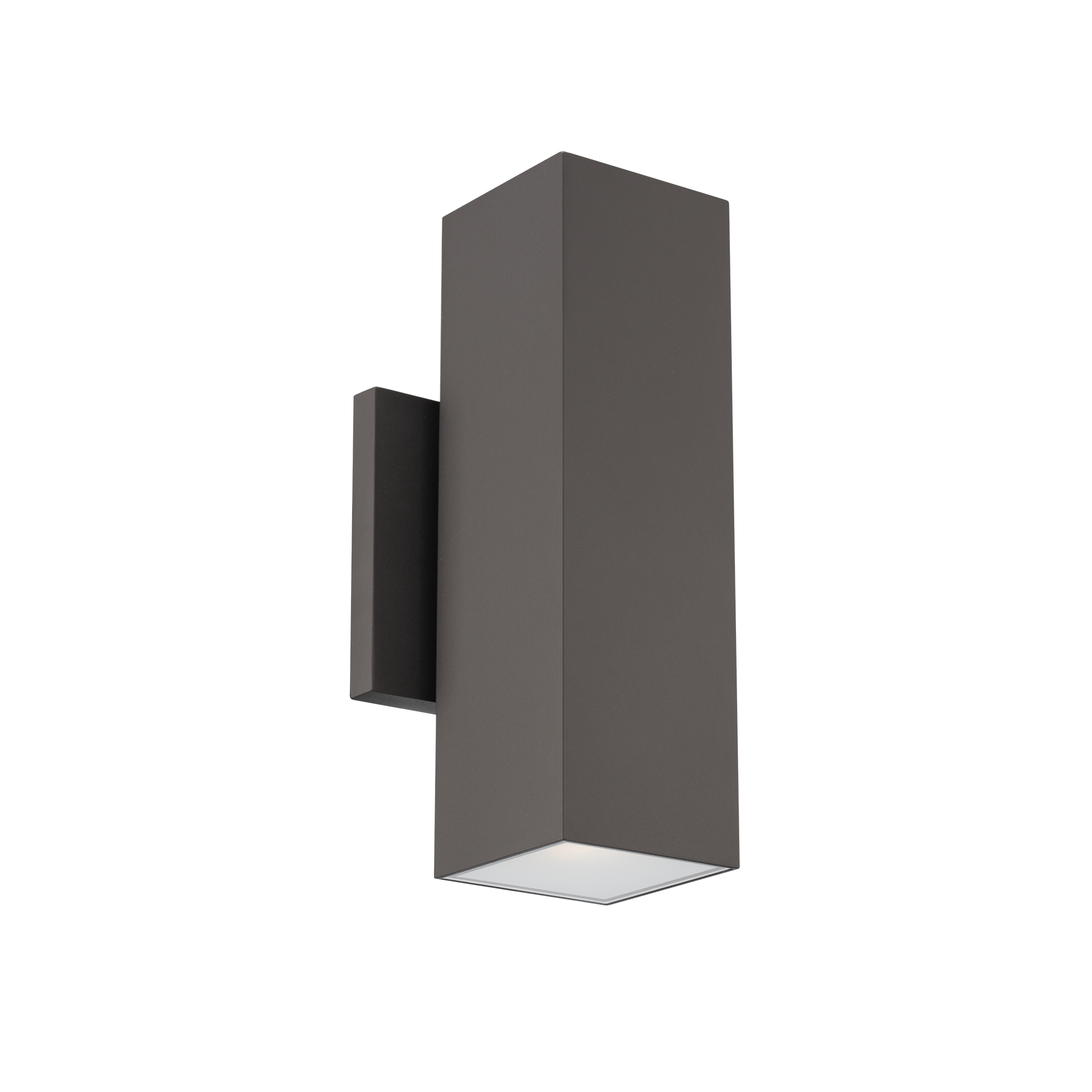

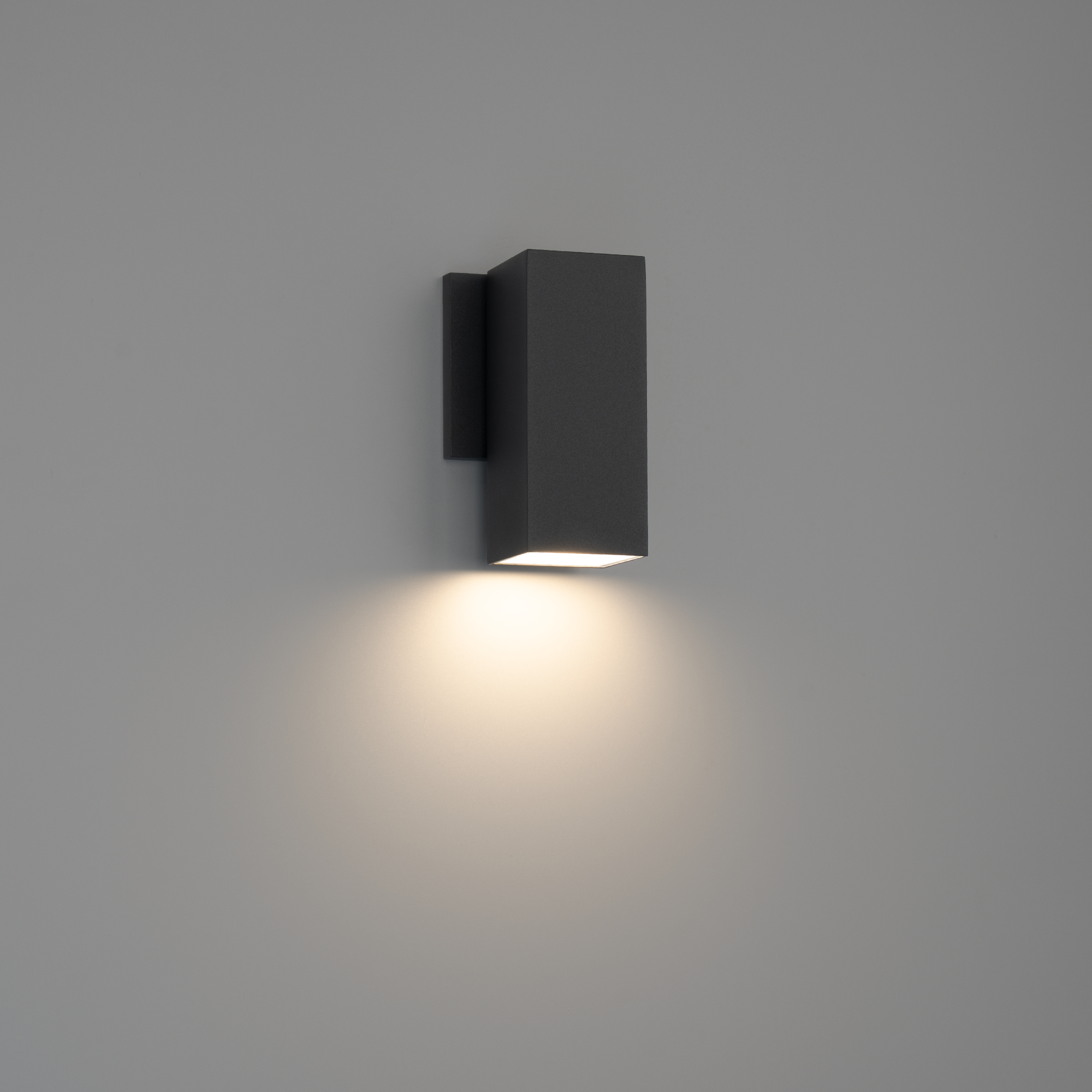

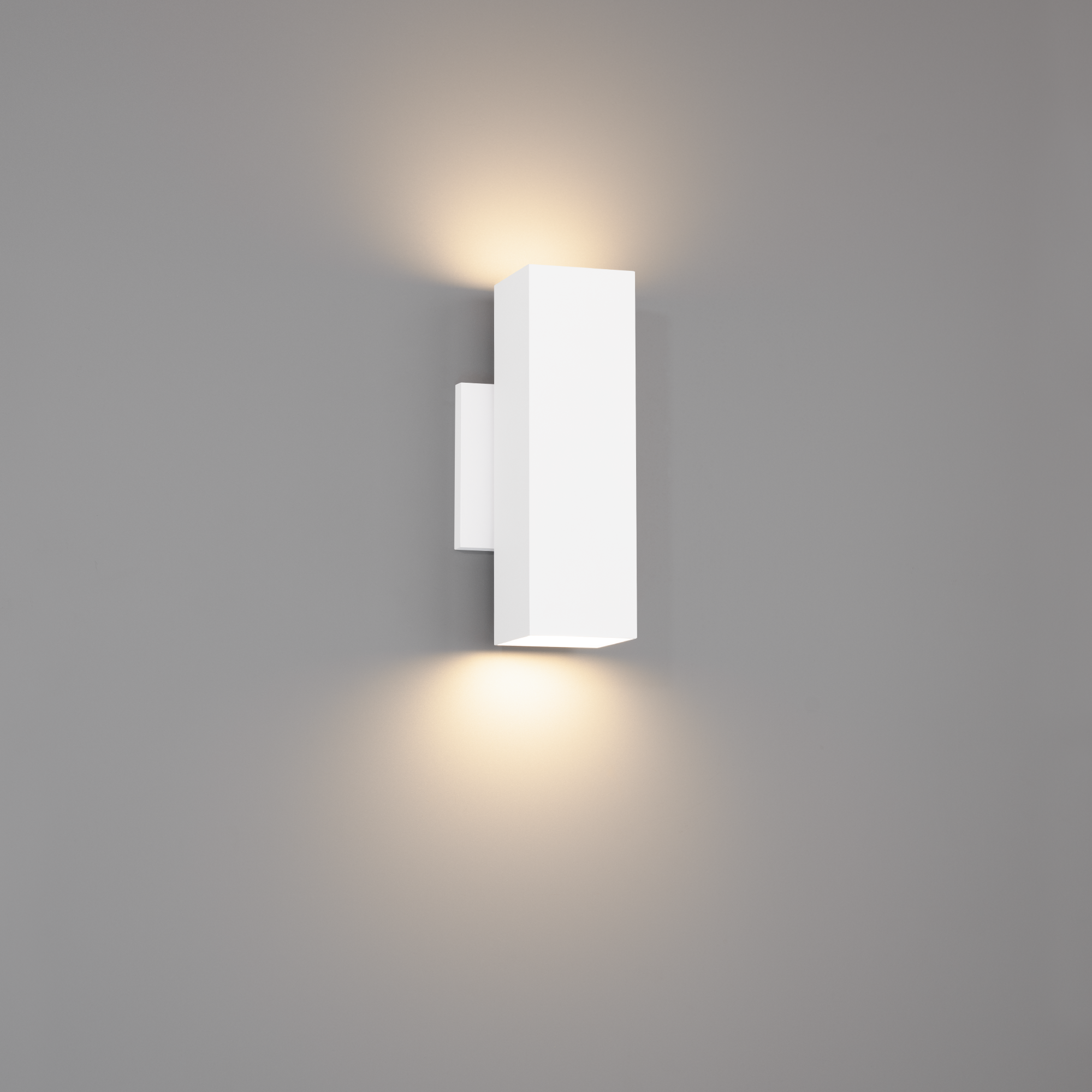

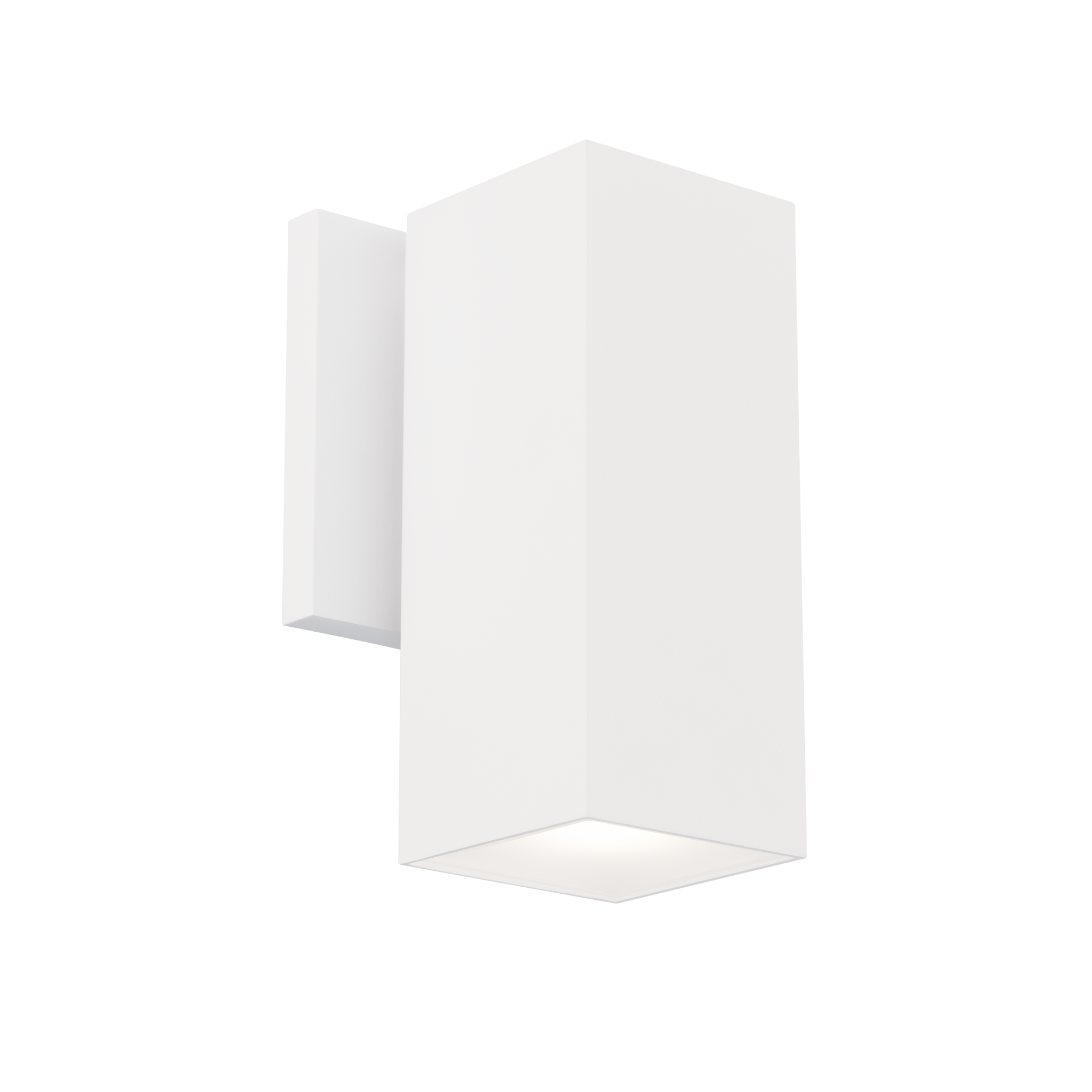

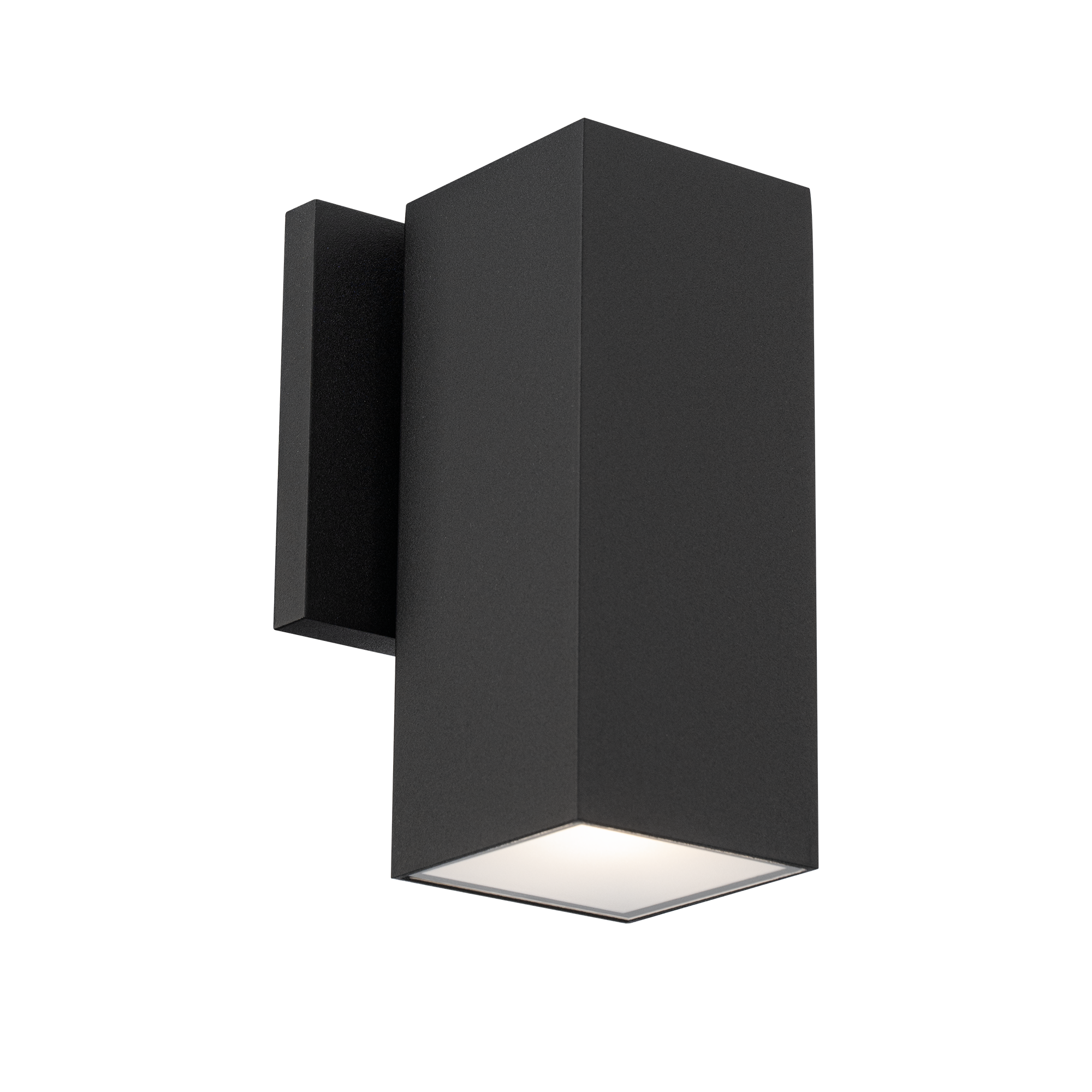

- WS-W220208 is one direction, WS-W220212 is an up & down light
- 5CCT switch located on back of canopy
- ACLED driverless technology
- Can be mounted on wall in all orientations

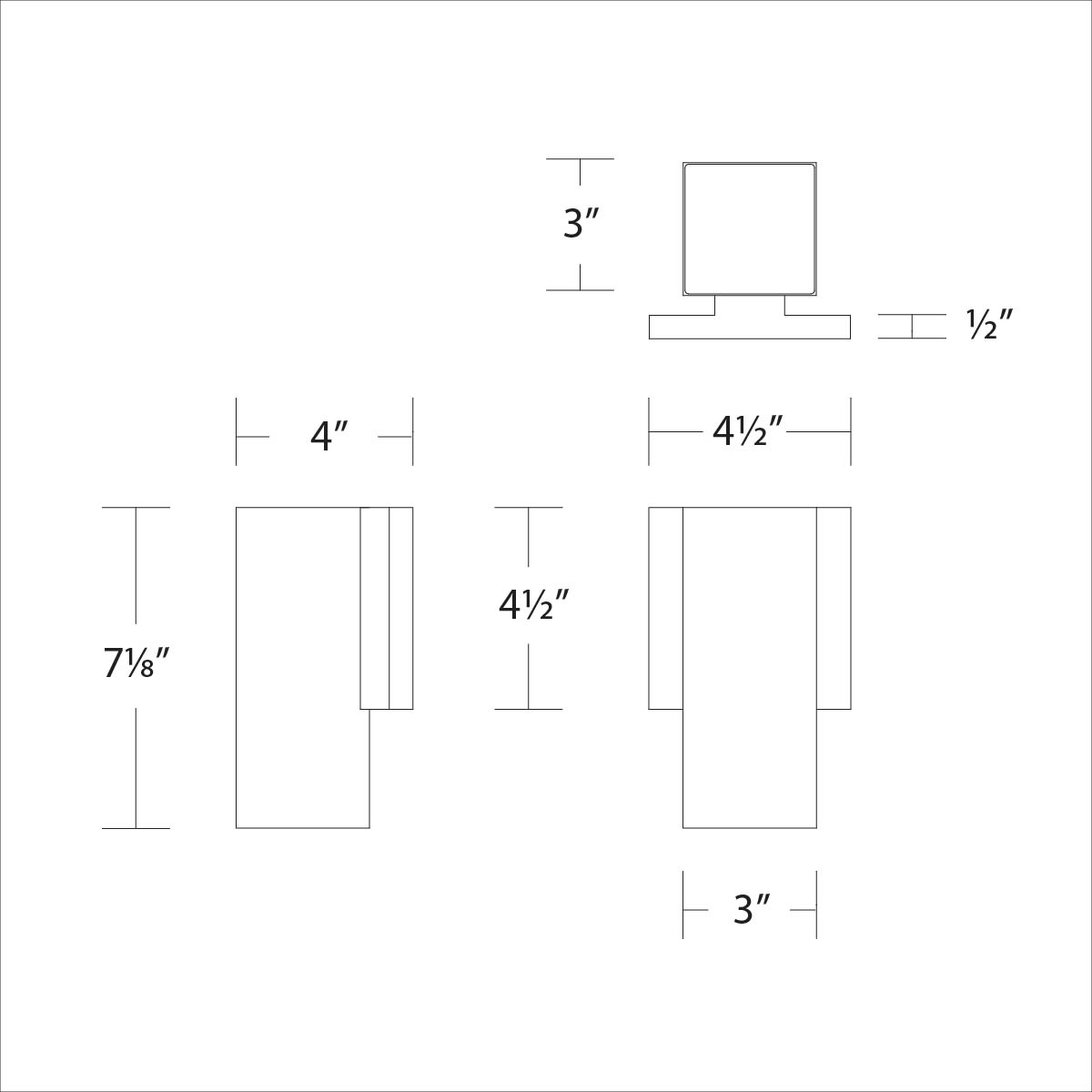

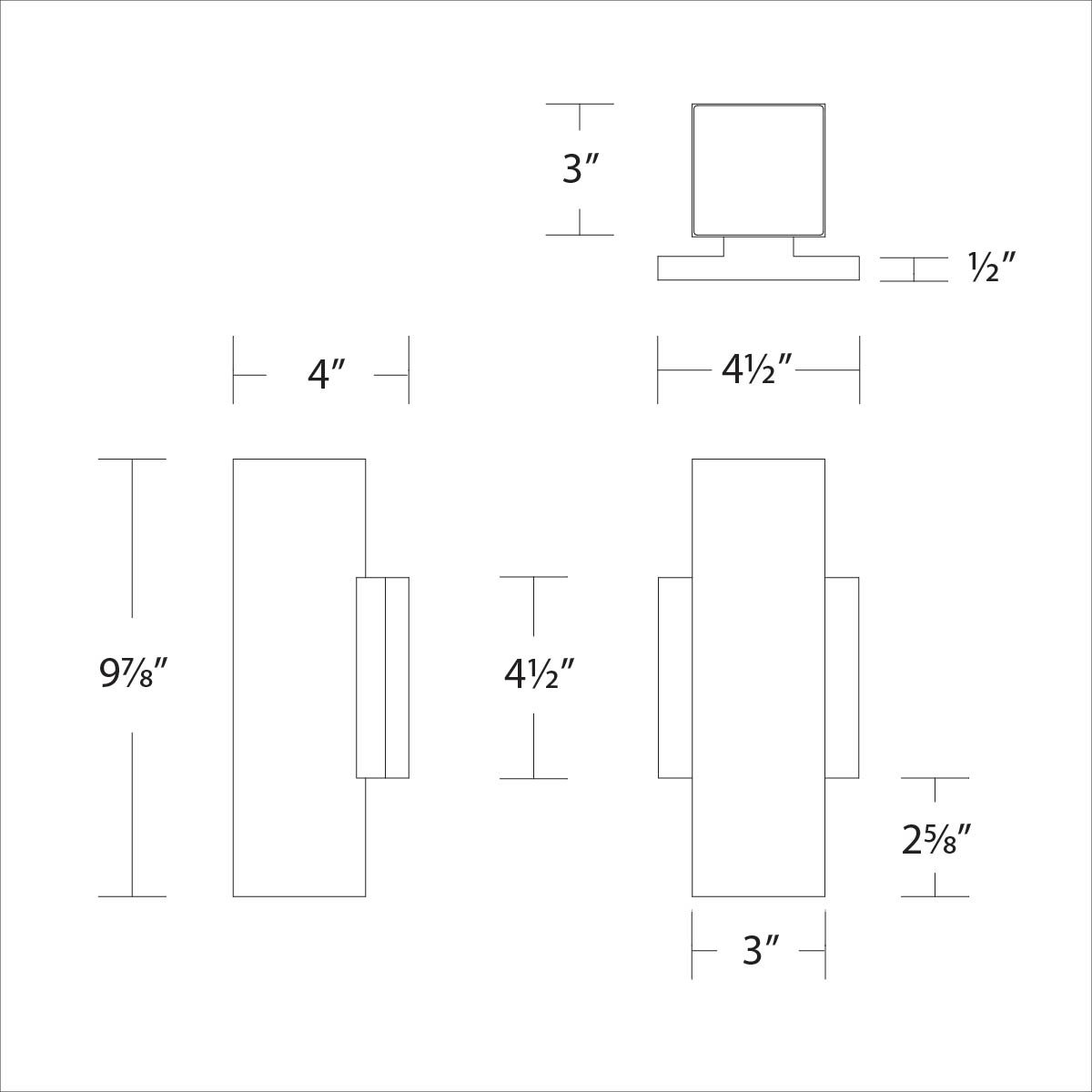

Line Drawing
