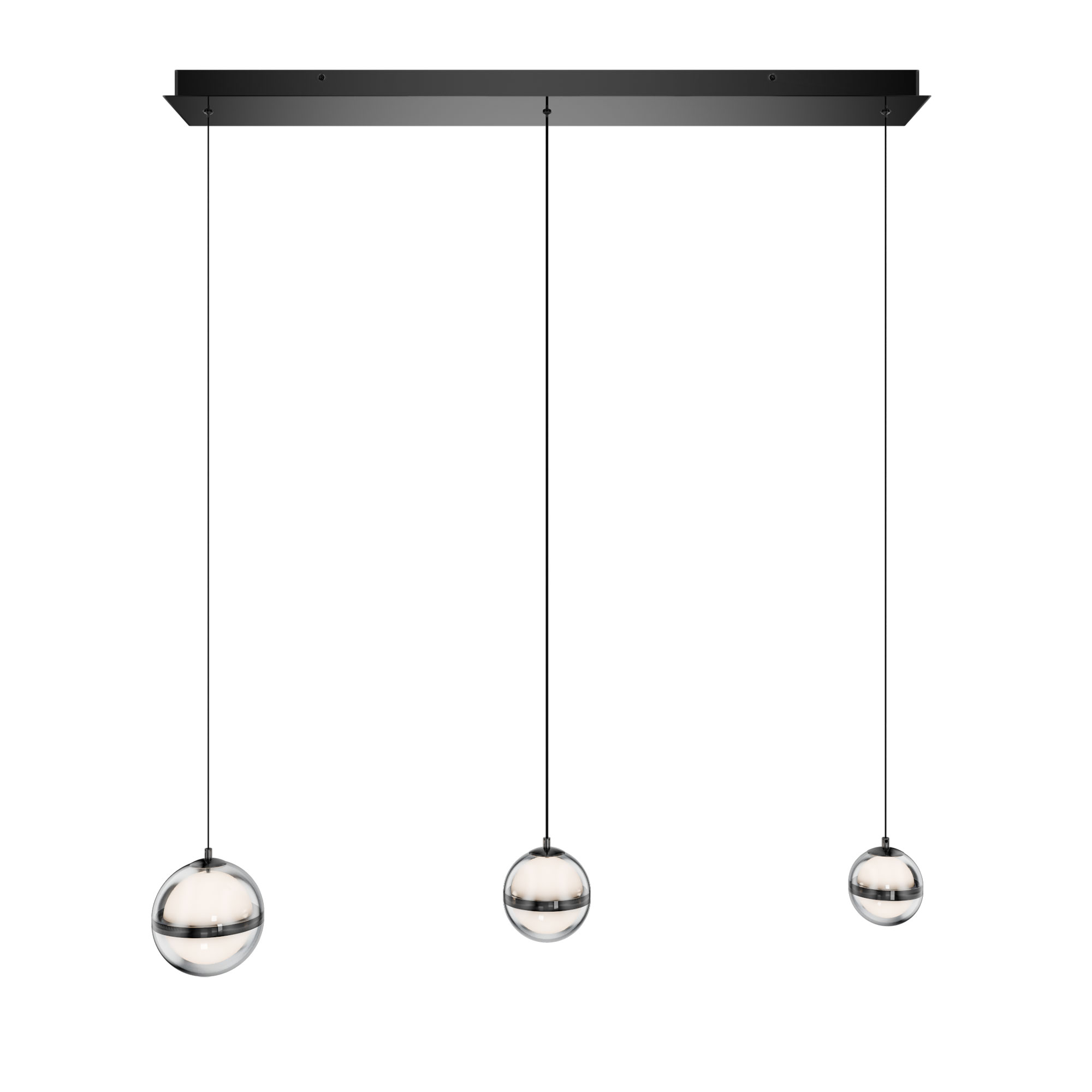

Cyllindra Linear Multi Light 4CCT

Specifications

Order Number:
model & size color temp finish led watts led lumens delivered lumens
PD-77503L 2700K/3000K/3500K/4000K AB - Aged Brass 28W 1642

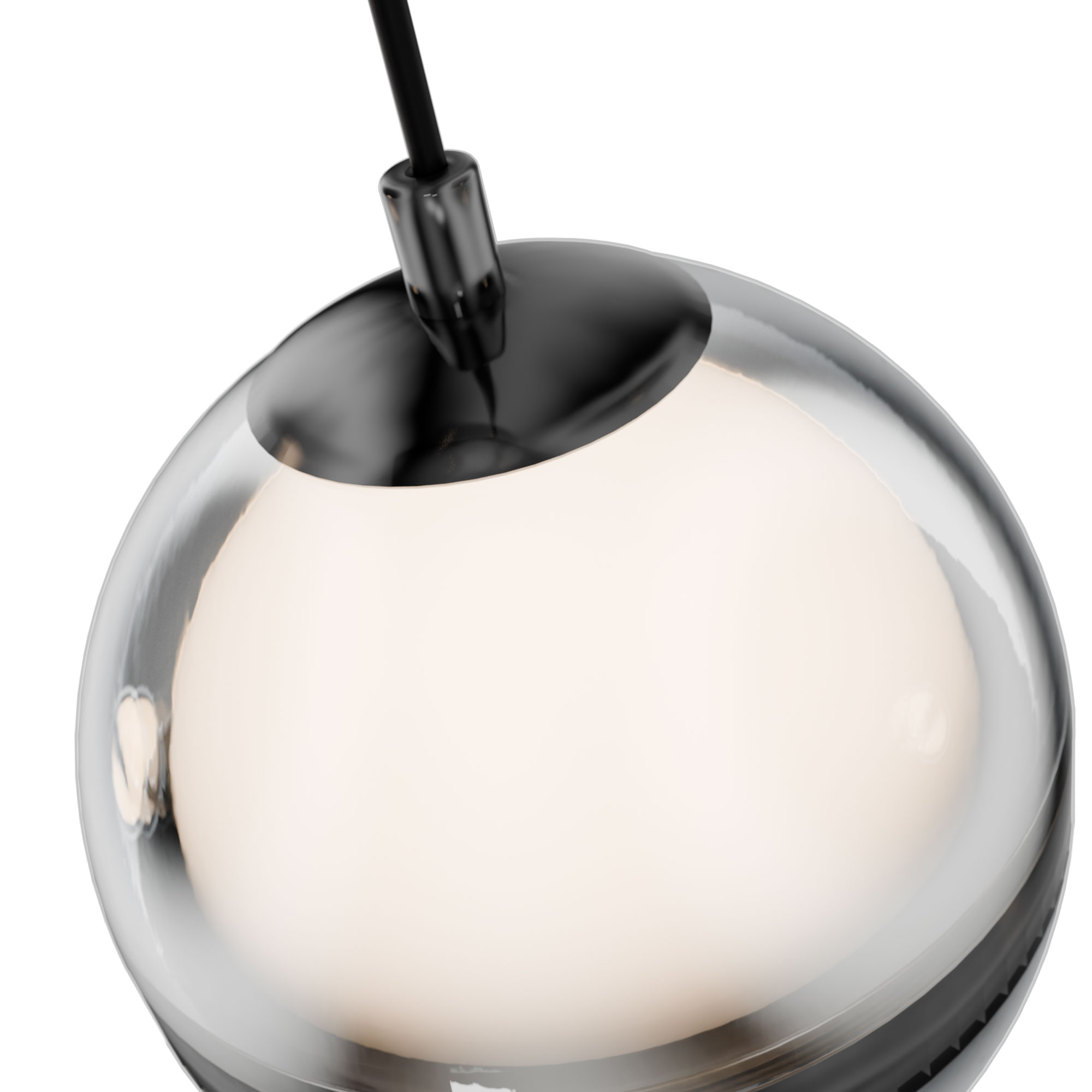

PD-77503L 2700K/3000K/3500K/4000K BC - Black Chrome 28W 1642

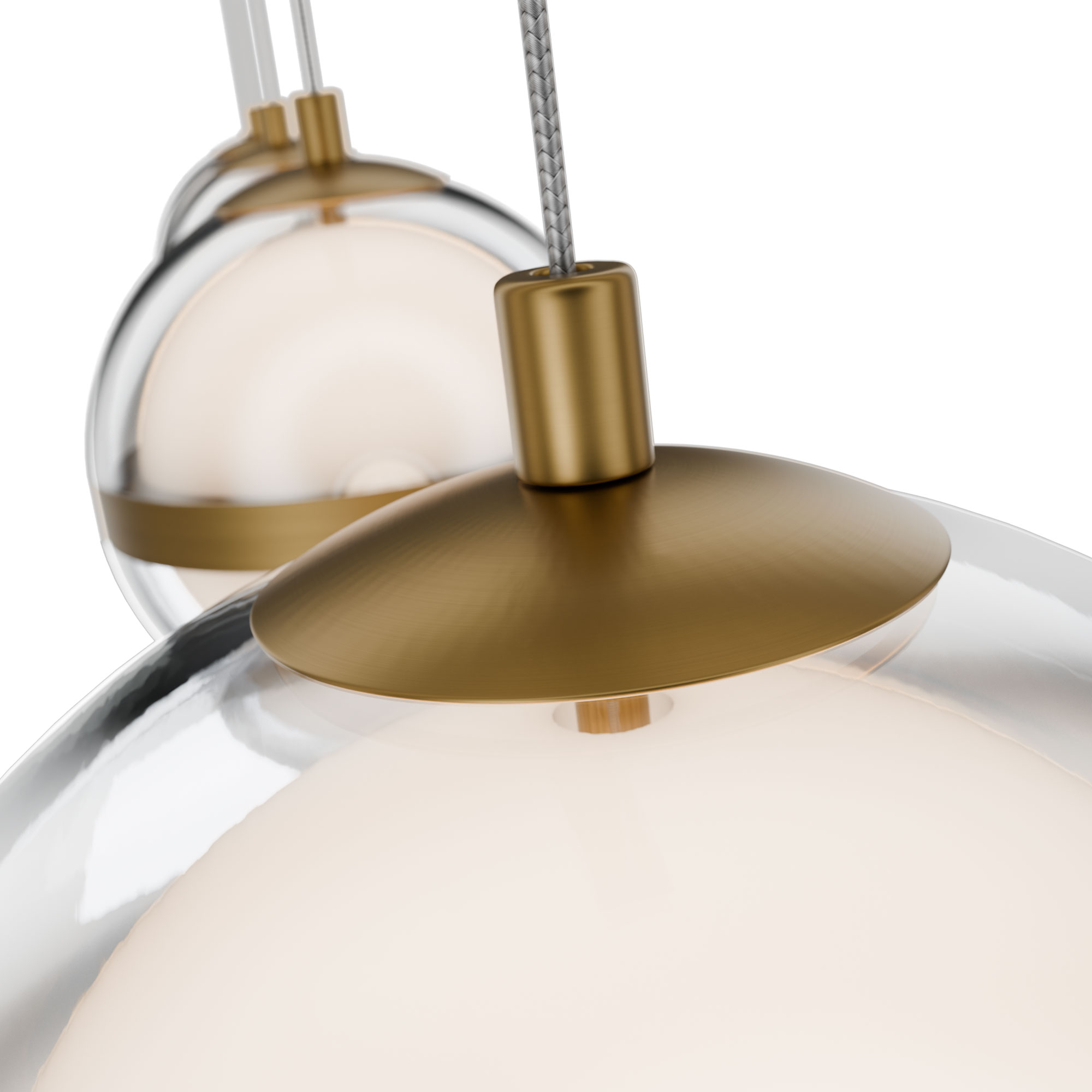

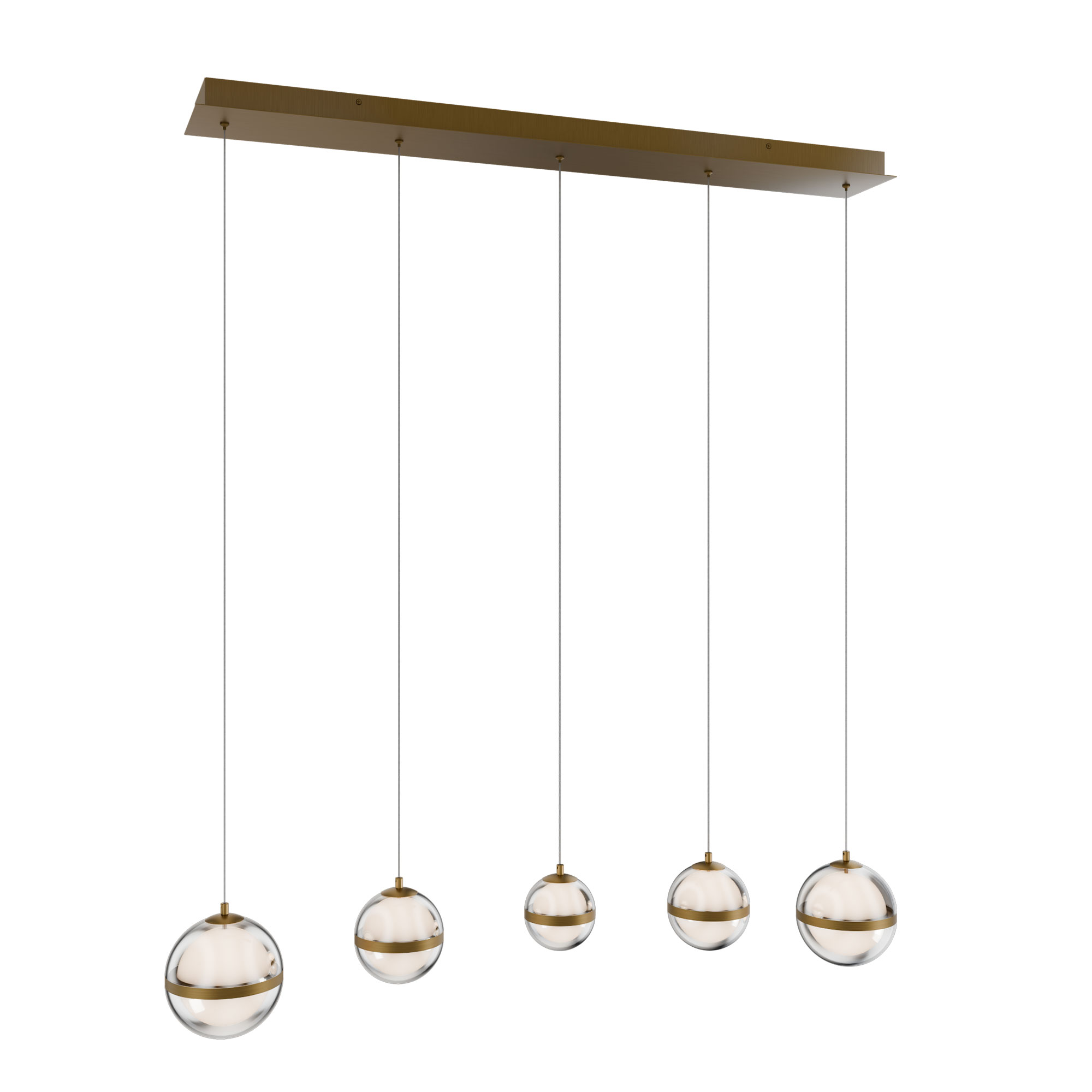

PD-77505L 2700K/3000K/3500K/4000K AB - Aged Brass 48W 2815

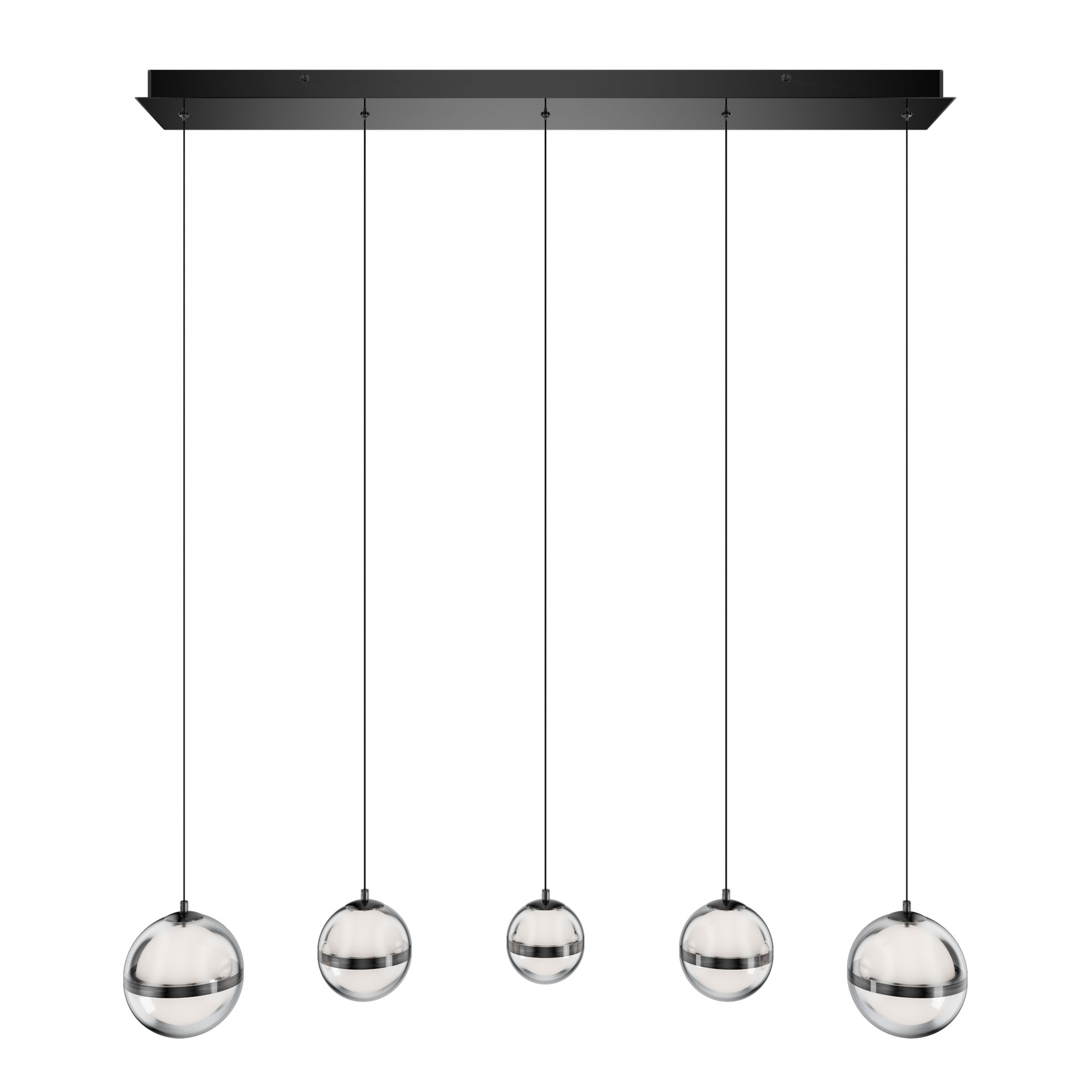

PD-77505L 2700K/3000K/3500K/4000K BC - Black Chrome 48W 2815

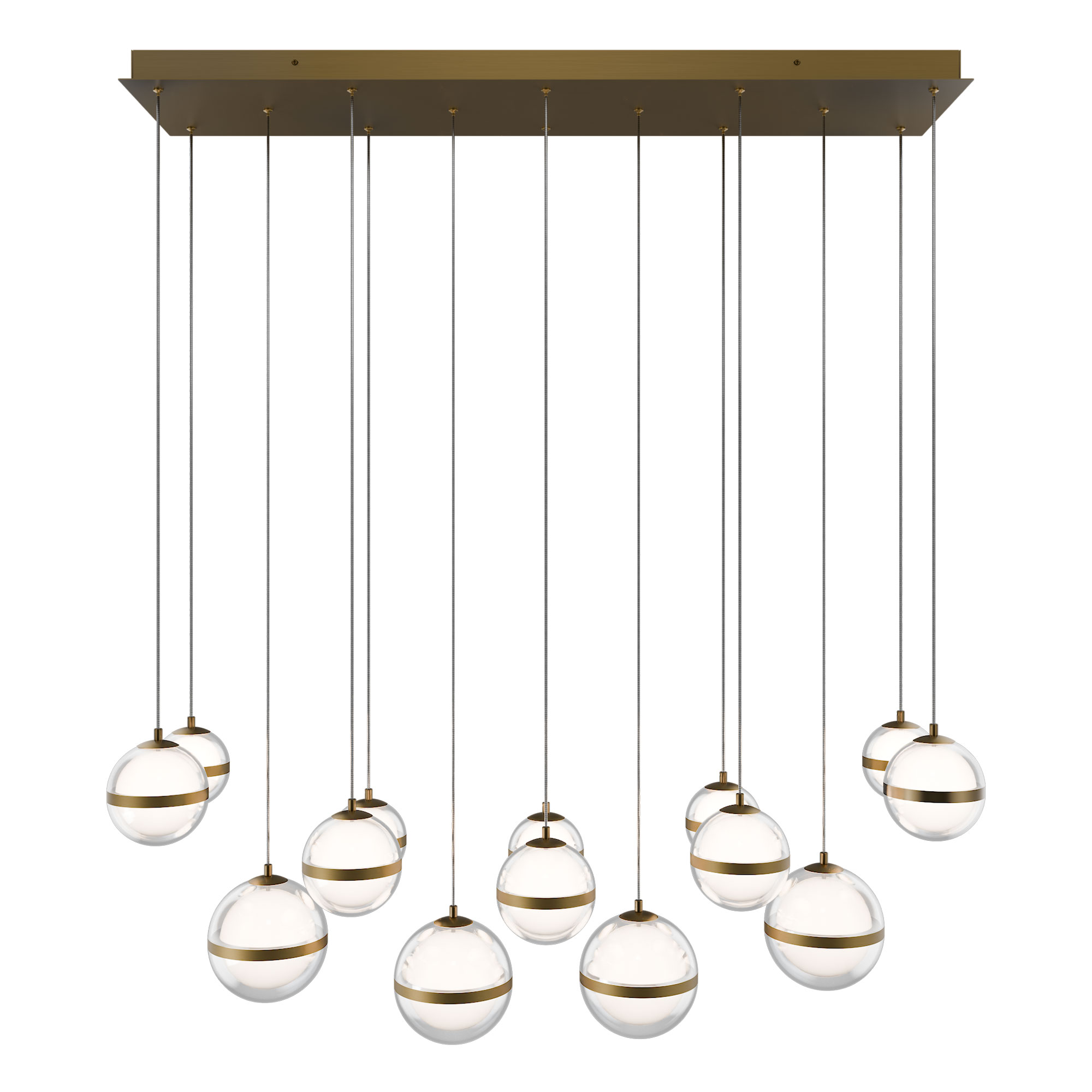

PD-77514L 2700K/3000K/3500K/4000K AB - Aged Brass 132W 7354

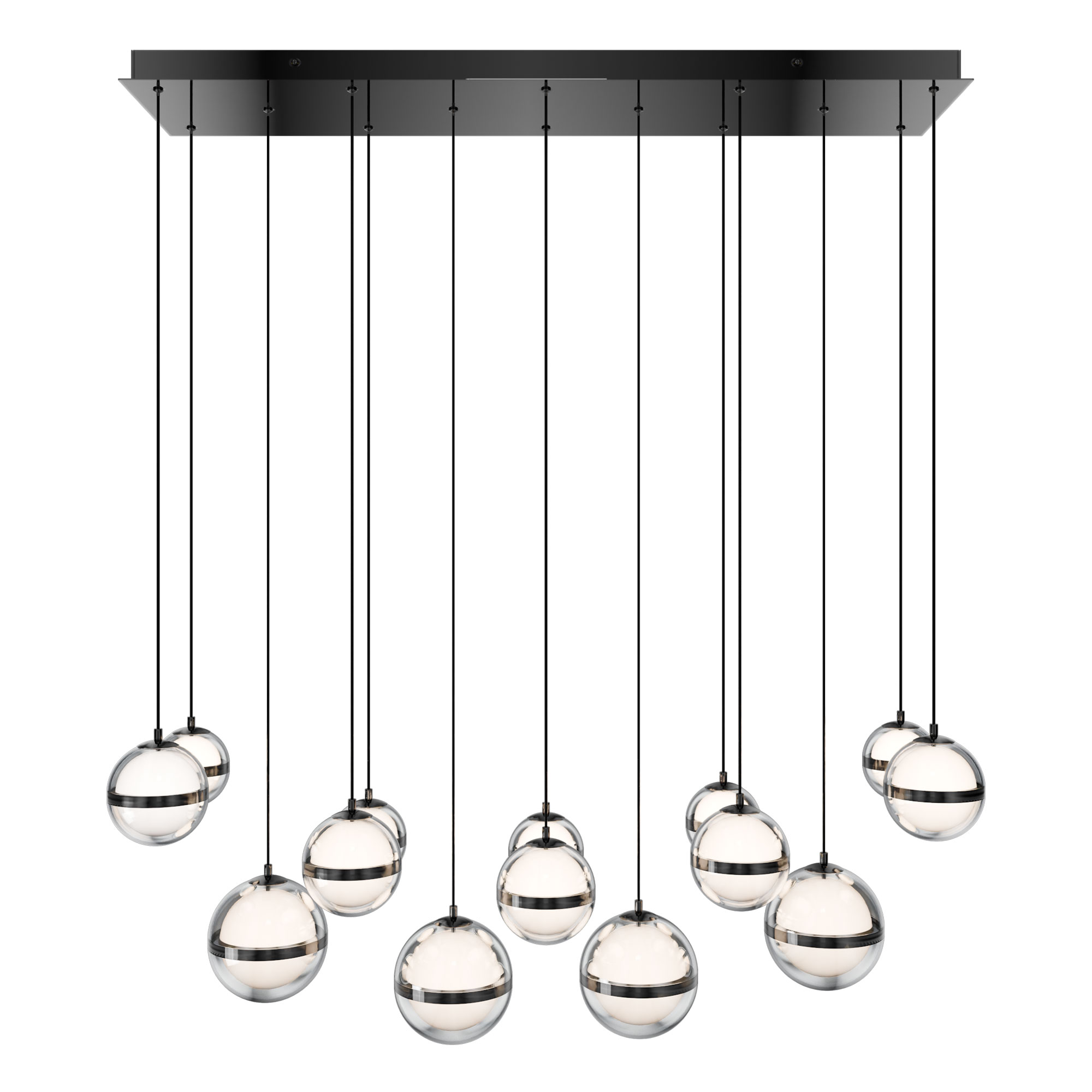

PD-77514L 2700K/3000K/3500K/4000K BC - Black Chrome 132W 7354

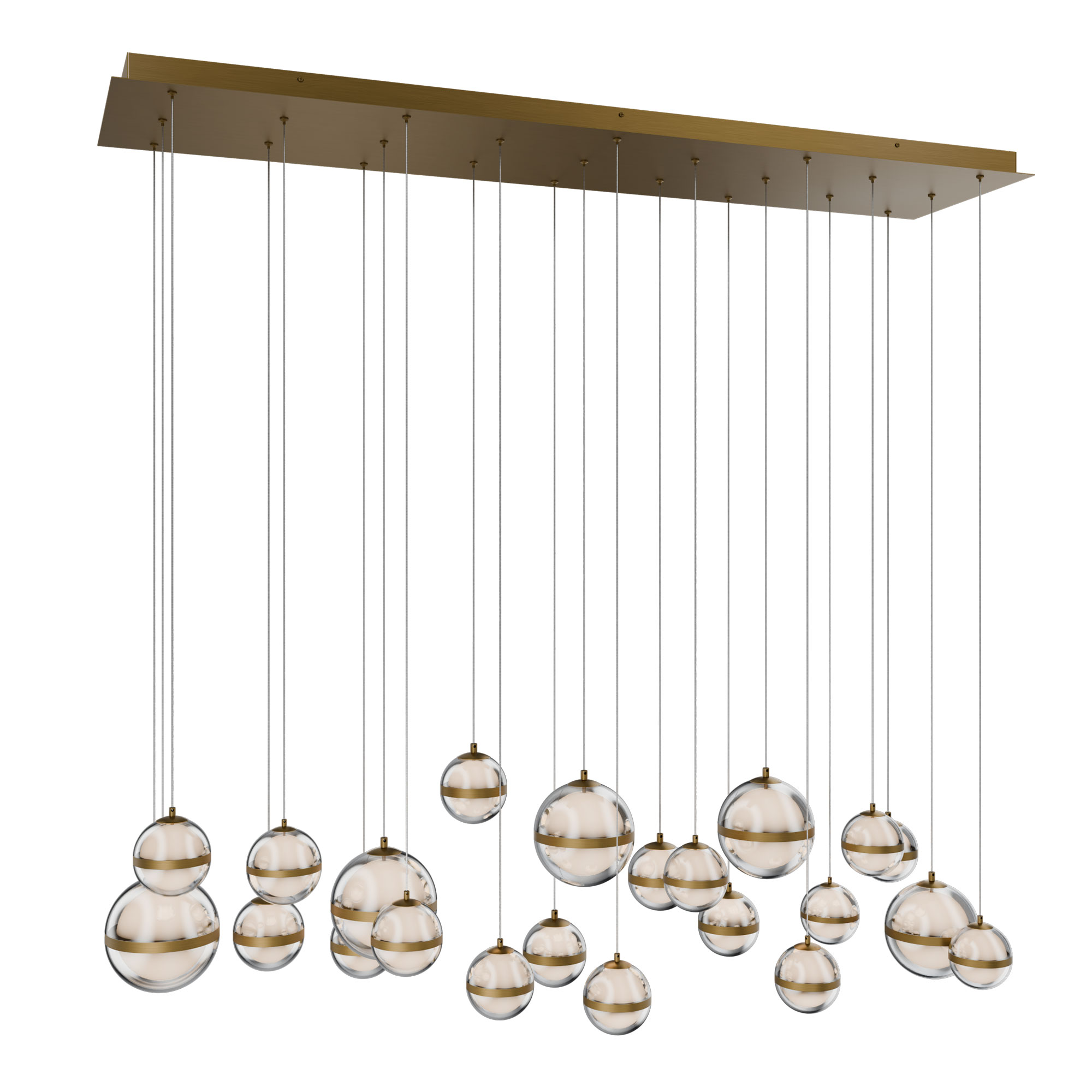

PD-77523L 2700K/3000K/3500K/4000K AB - Aged Brass 236W 11401

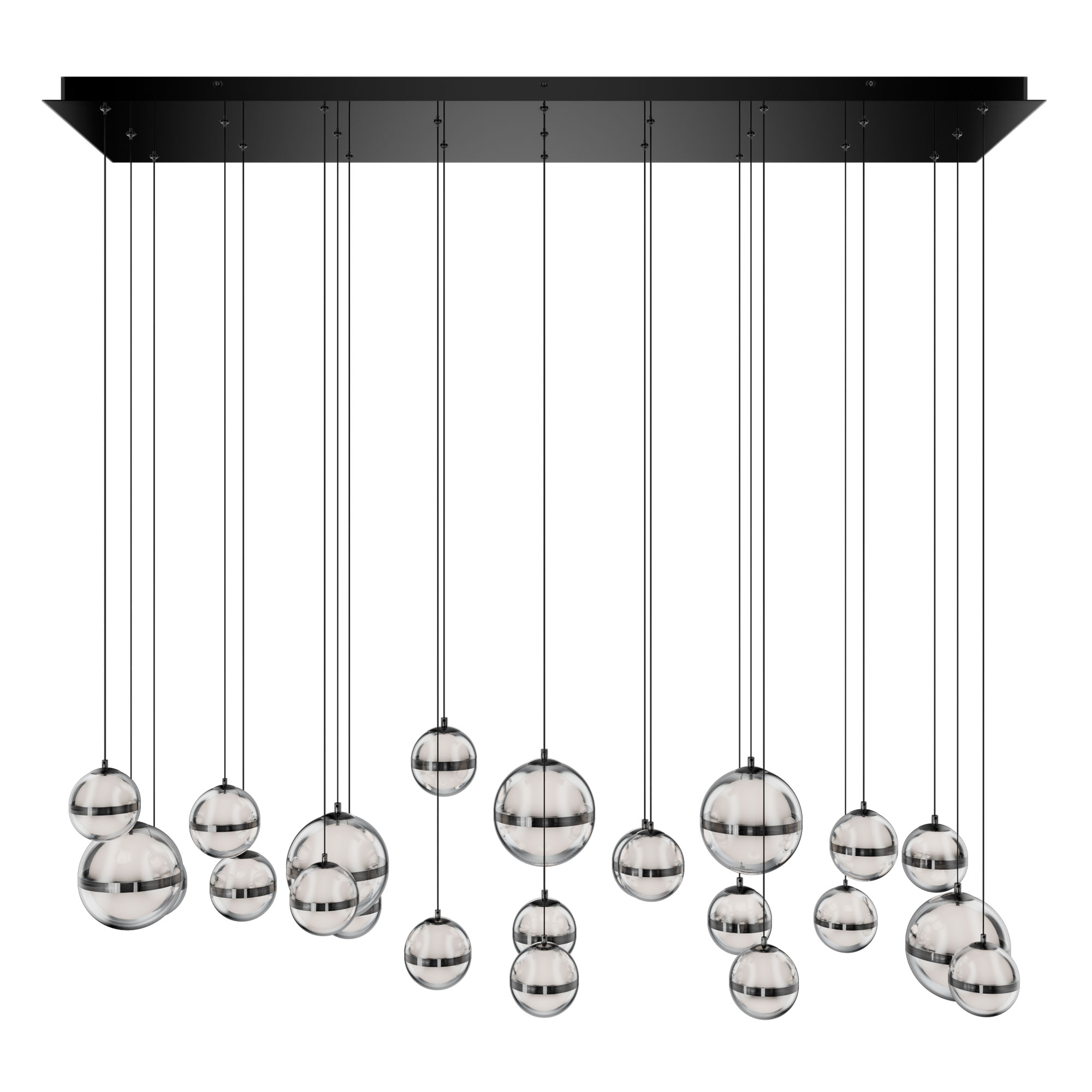

PD-77523L 2700K/3000K/3500K/4000K BC - Black Chrome 236W 11401

Features

  • Delivered Lumens: Up to 11401lm
  • CCT: 2700K/3000K/3500K/4000K
  • CRI: 90
  • Power: 28W, 48W, 132W, 236W
  • Input: 120/277V, 50/60Hz
  • ELV Dimming: 100-10%
  • TRIAC Dimming: 100-10%
  • Rated Life: 50000 Hours
  • Construction: Aluminum hardware with acrylic globes
  • Thin, adjustable powered aircraft cables for an ultra-clean look
  • May be mounted on a sloped ceiling
  • Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
  • Option to pre-select color temperature or adjust in the field

Line Drawing
