Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| PD-77513S | 2700K/3000K/3500K/4000K | AB - Aged Brass | 128W | 13367 | 9548 |
| PD-77513S | 2700K/3000K/3500K/4000K | BC - Black Chrome | 128W | 13367 | 9548 |

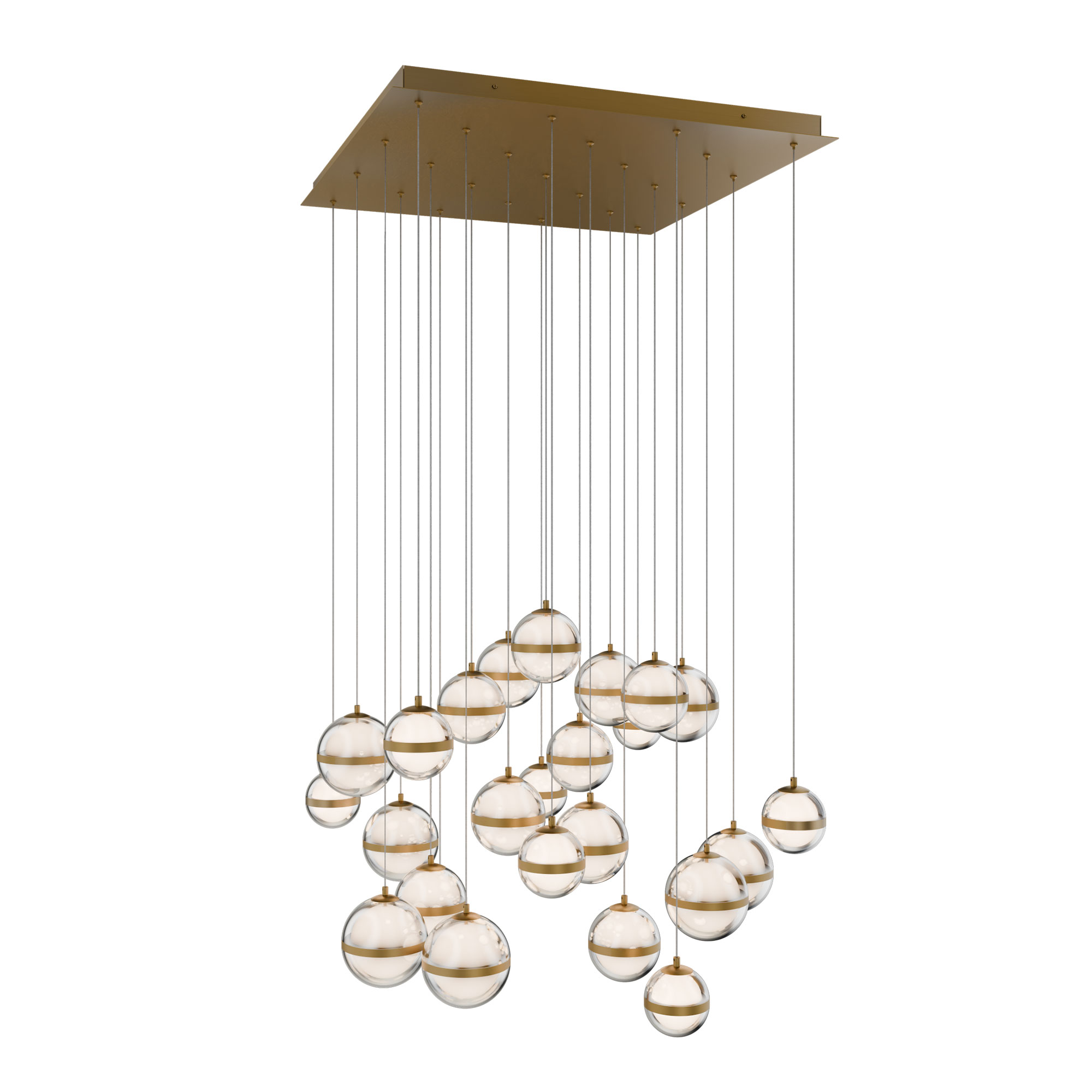

| PD-77525S | 2700K/3000K/3500K/4000K | AB - Aged Brass | 236W | 17440 | 12457 |
| PD-77525S | 2700K/3000K/3500K/4000K | BC - Black Chrome | 236W | 17440 | 12457 |
| PD-77541S | 2700K/3000K/3500K/4000K | AB - Aged Brass | 385W | 26800 | 19143 |
| PD-77541S | 2700K/3000K/3500K/4000K | BC - Black Chrome | 385W | 26800 | 19143 |
Features
- Delivered Lumens: Up to 19143lm
- CCT: 2700K/3000K/3500K/4000K
- CRI: 90
- Power: 128W, 236W, 385W
- Input: 120/277V, 50/60Hz
- ELV Dimming: 100-10%
- 0-10V Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum hardware with acrylic globes
- Thin, adjustable powered aircraft cables for an ultra-clean look
- May be mounted on a sloped ceiling
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
- Option to pre-select color temperature or adjust in the field
Line Drawing
