Specifications
Order Number:
| model & voltage | color temp & cri | lumens | finish |
|---|---|---|---|
| 3051 - 9-15 VAC | Color Changing - 85 | 75 | BBR - Bronze on Brass |
| 3051 - 9-15 VAC | Color Changing - 85 | 75 | BK - Black on Aluminum |
| 3051 - 9-15 VAC | Color Changing - 85 | 75 | BZ - Bronze on Aluminum |
| 3051 - 9-15 VAC | Color Changing - 85 | 75 | WT - White on Aluminum |
Features
- Delivered Lumens: 75lm
- CCT: Color Changing
- CRI: 85
- Power: 2.7W
- Input: 9-15 VAC, 50/60Hz
- Rated Life: 50000 Hours
- Construction: Die-cast brass
- IP66 rated, Protected against powerful water jets
- 10ft lead wire and direct burial gel-filled wire nuts included
- Each fixture can be individually controlled
- Fixtures can be grouped and controlled together
- Fixtures can generate tens of thousands of different colors
- Integrators can control the fixtures using industry standard DMX 512
- Transformer required
- Can be mounted on wall in all orientations

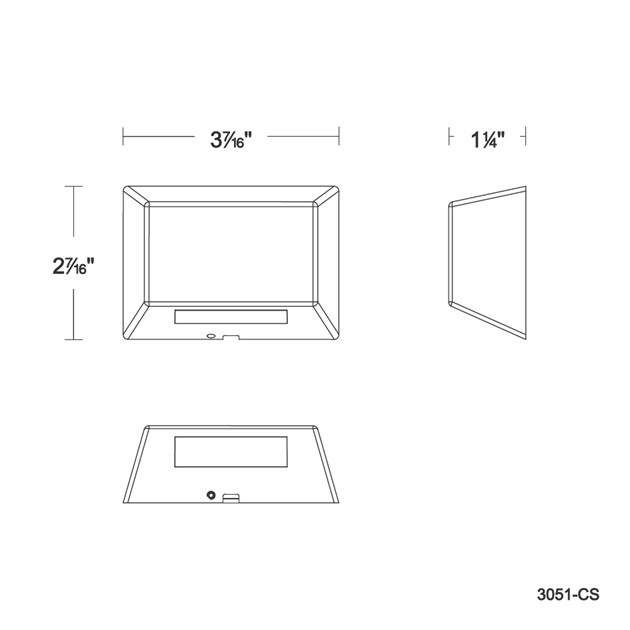

Line Drawing
