Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|

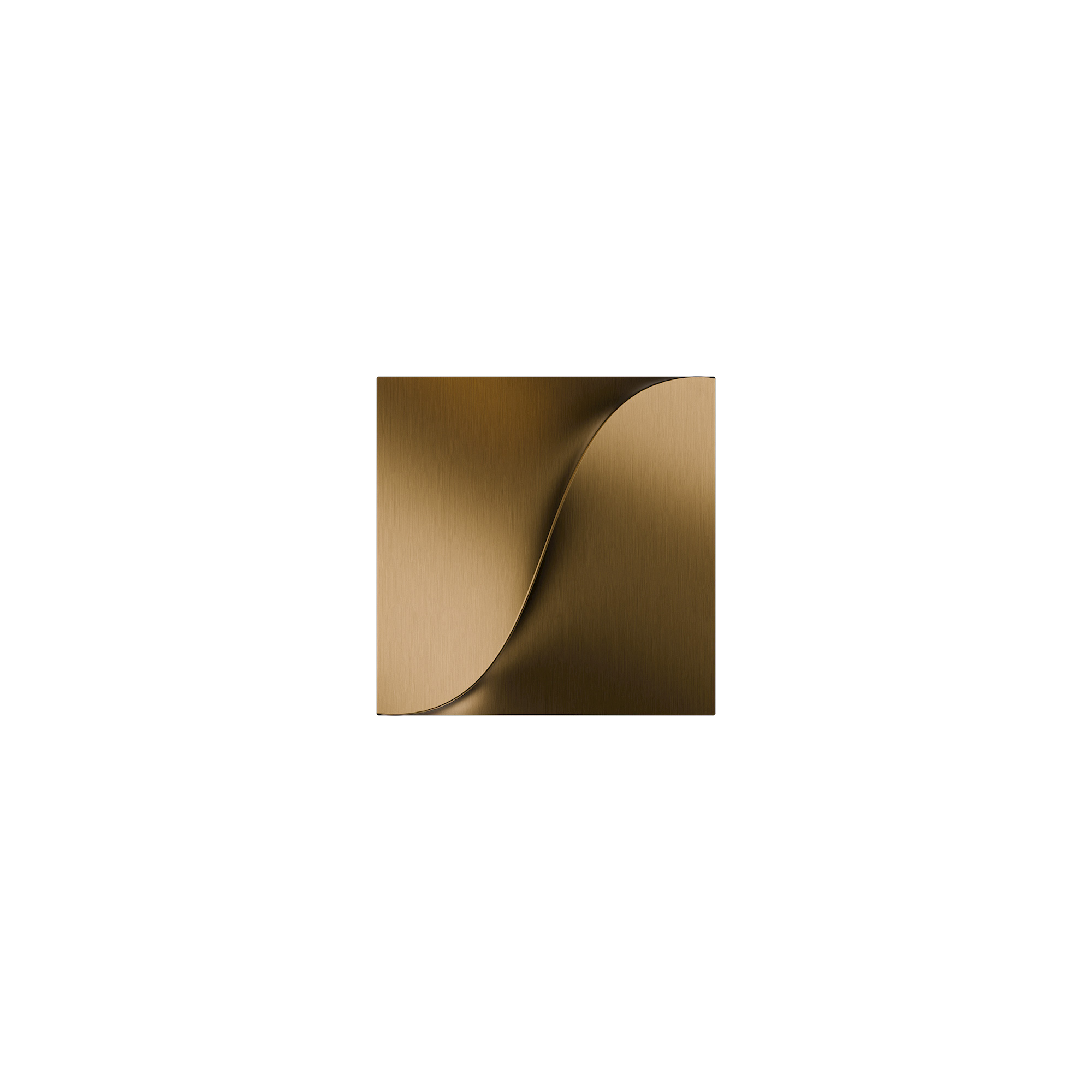

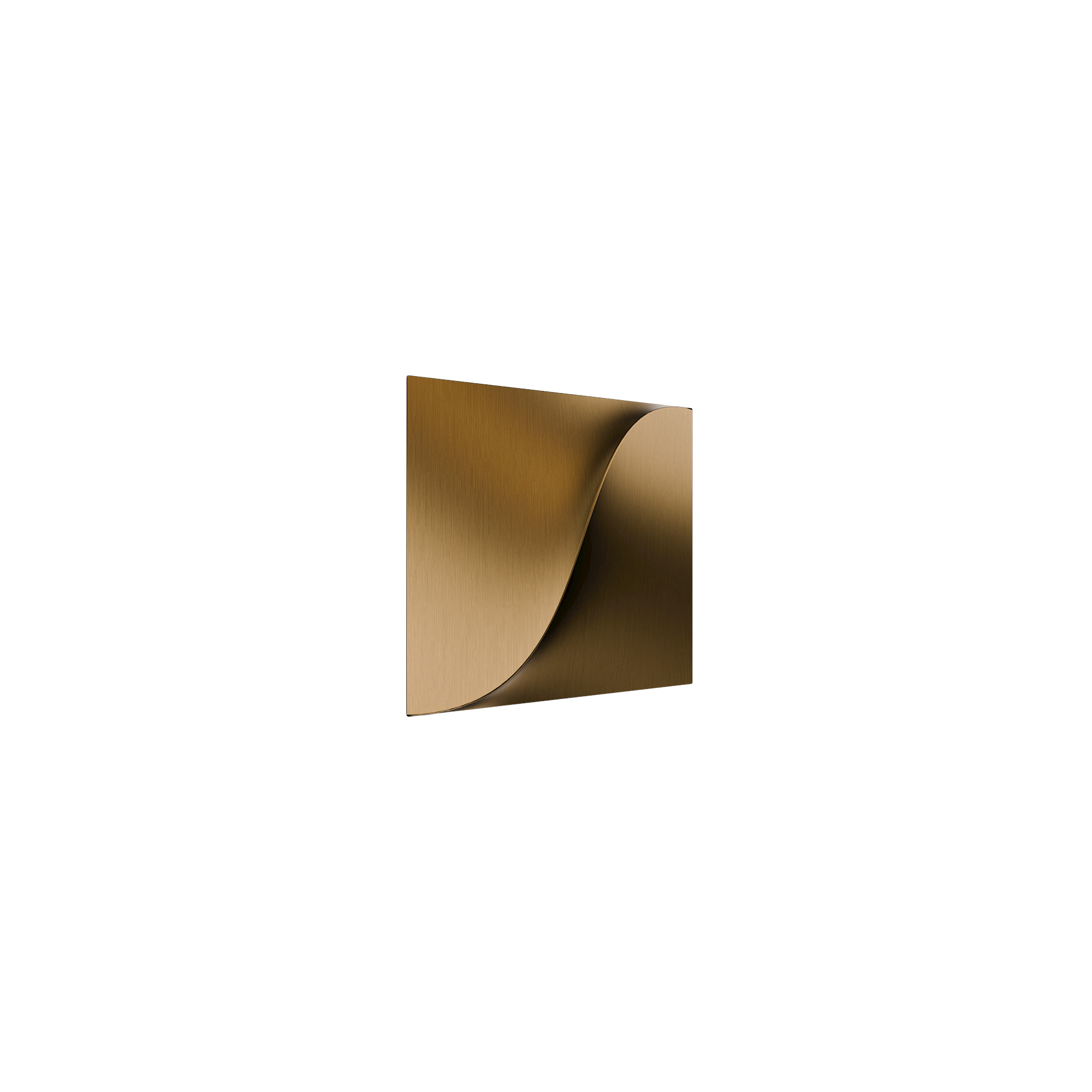

| WS101606 - 6" | 2700K/3000K/3500K/4000K | AB - Aged Brass | 15W | 892 | 687 |

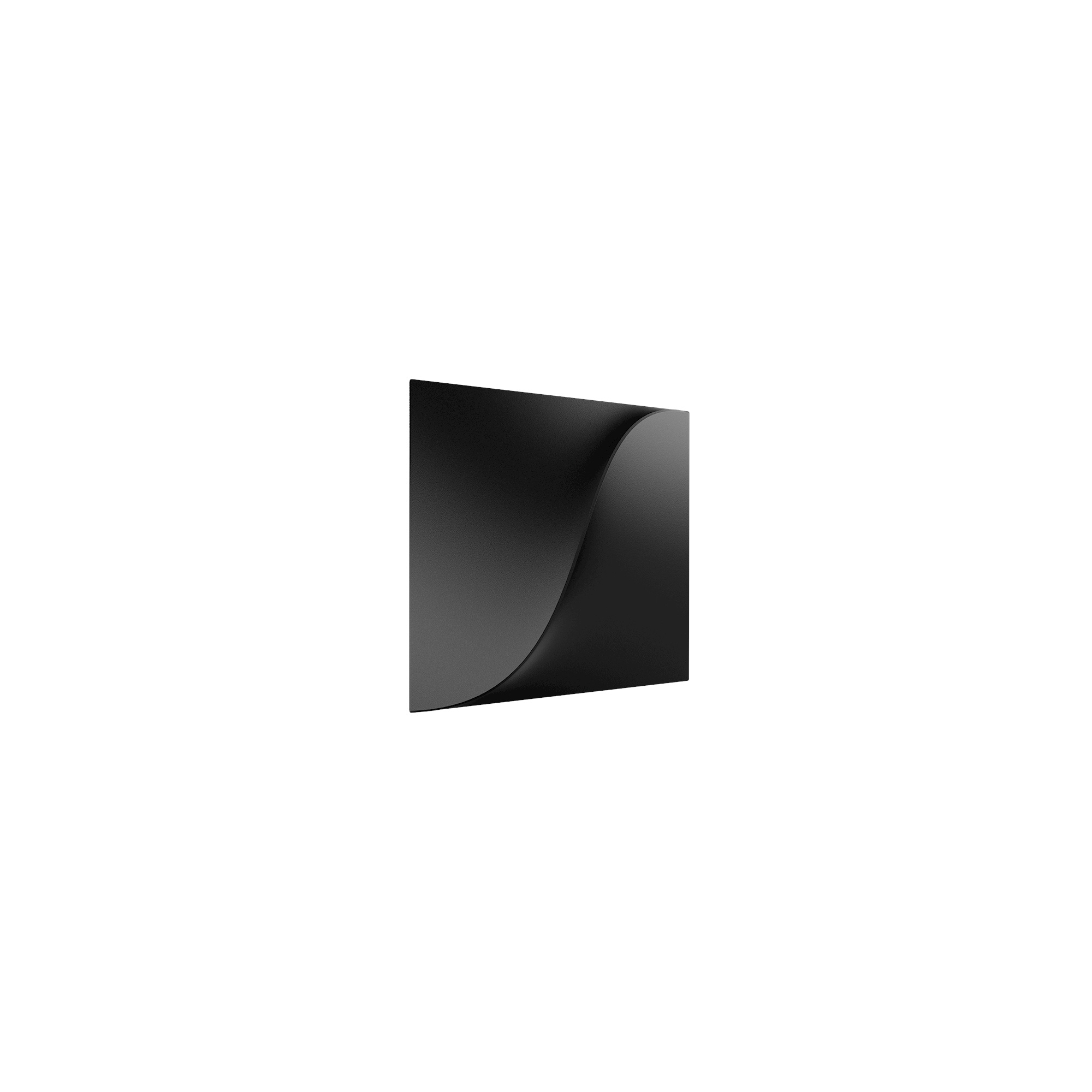

| WS101606 - 6" | 2700K/3000K/3500K/4000K | BK - Black | 15W | 892 | 687 |

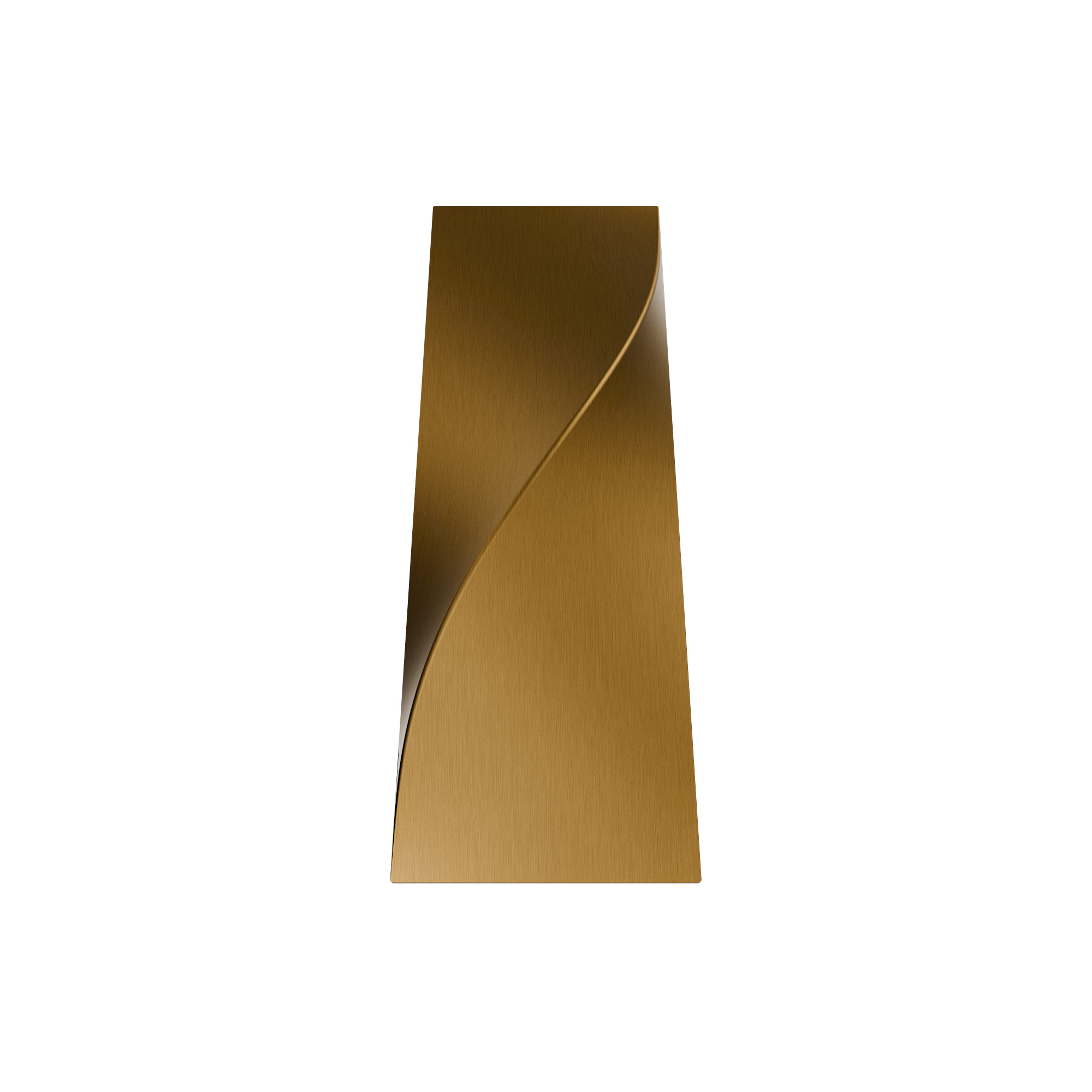

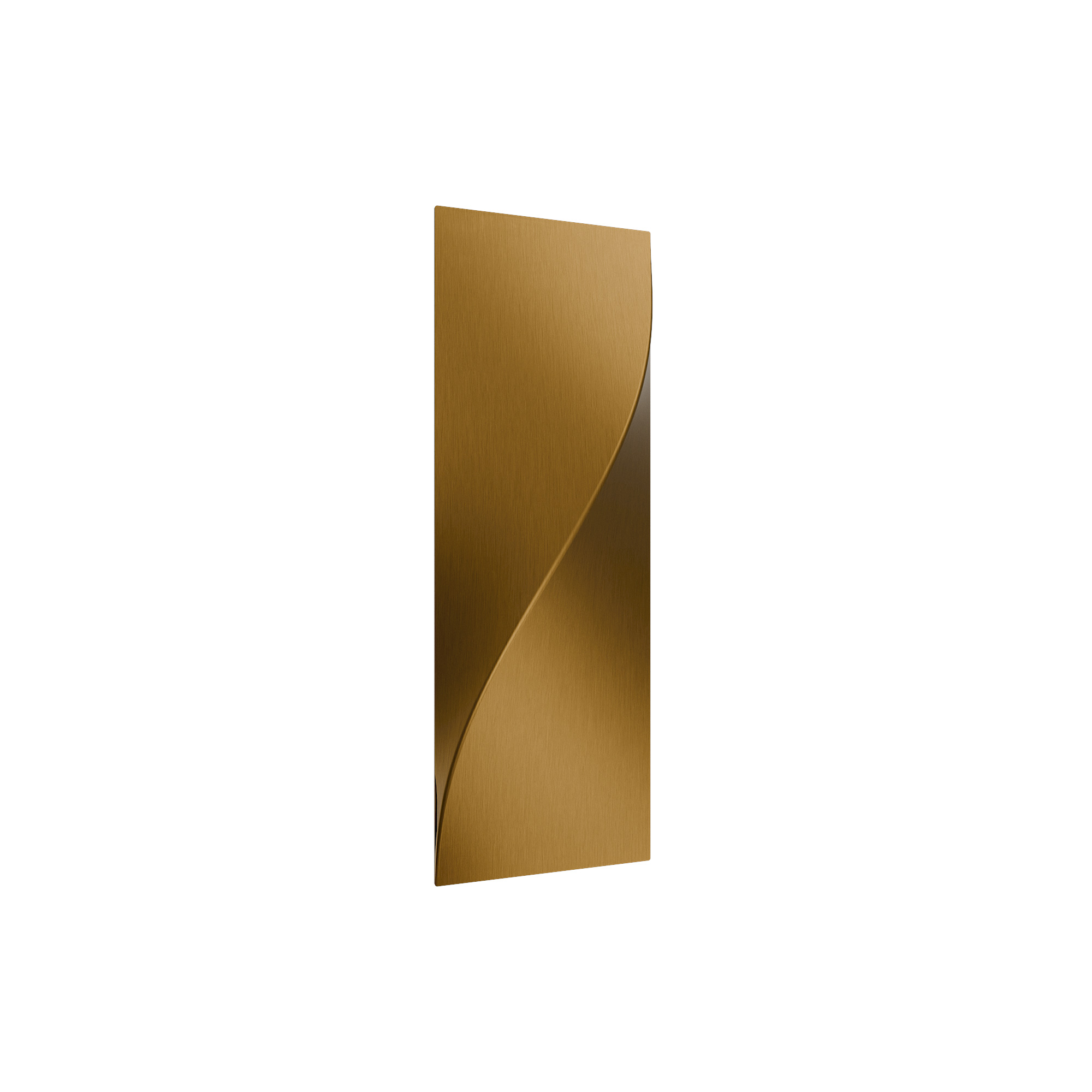

| WS101620 - 20" | 2700K/3000K/3500K/4000K | AB - Aged Brass | 28W | 1675 | 1173 |

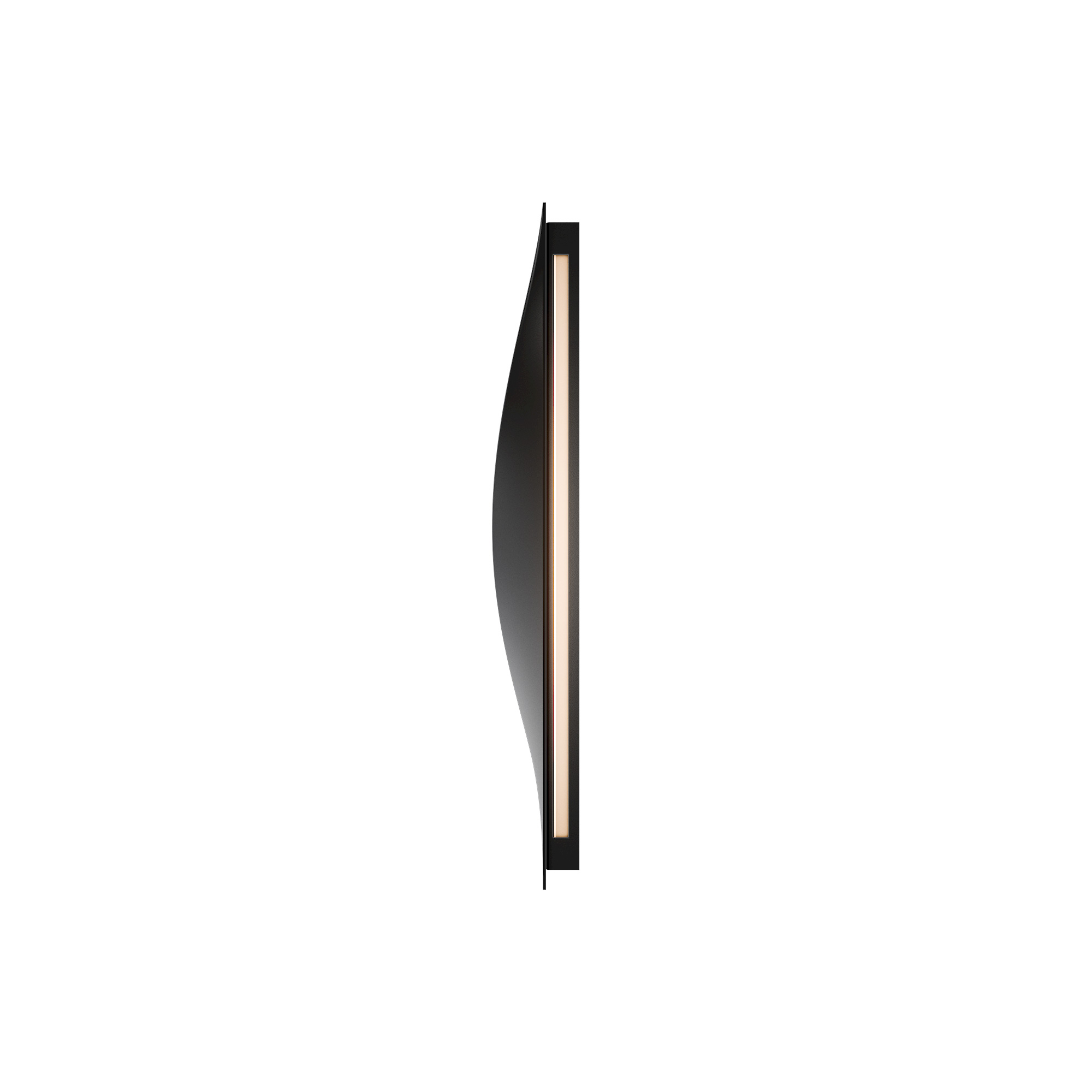

| WS101620 - 20" | 2700K/3000K/3500K/4000K | BK - Black | 28W | 1675 | 1173 |
Features
- Delivered Lumens: Up to 1173lm
- CCT: 2700K/3000K/3500K/4000K
- CRI: 90
- Power: 15W, 28W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with acrylic diffuser
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
- Driver concealed within the canopy
- Can be mounted on wall in all orientations
- Illumination from all four sides
- Illumination from all four sides
- Can be mounted on wall in all orientations
Line Drawing
