Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS104609 - 9" | 1800-4000K for WAC Home System | BK - Black | 10.5W | 1133 | 569 |
| WS104609 - 9" | 1800-4000K for WAC Home System | BN - Brushed Nickel | 10.5W | 1133 | 569 |
Features
- Delivered Lumens: 569lm
- CCT: 1800-4000K for WAC Home System
- CRI: 90
- Power: 10.5W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with mouth blown opal glass
- 3000K (Default)
- 1800-4000K for WAC HOME SYSTEM ONLY
- Standard dimming function available for default setting if not using WAC HOME SYSTEM
- Can be mounted on wall in all orientations
- Driver concealed within the canopy
- Can be mounted on wall in all orientations
- When fixture is connected to TRIAC/ ELV dimmer, fixture will fully dim while maintaining 3000K color temp.
- When fixture is connected to WAC Home Gateway and WAC Home Wallstation Tunable white and Dim-to-Warm functions are activated.
- Use the MyWAC app for additional WAC Home functions.
- Additional WAC Home compatible products
- Learn more about WAC Home Technology
WAC Home

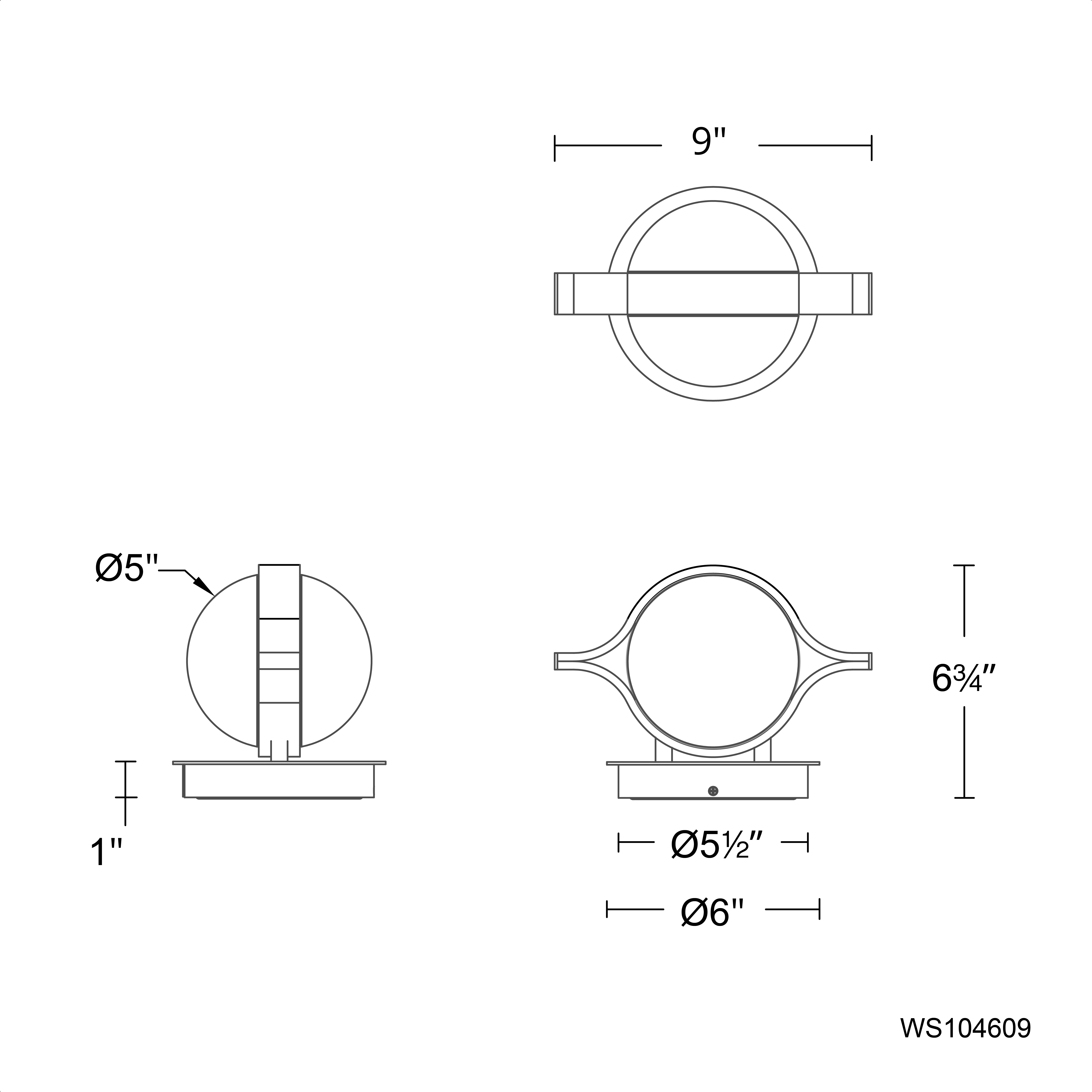

Line Drawing
