Specifications
Order Number:
| model | finish |
|---|---|
| MP-120 | BK - Black |
| MP-120 | BZ - Bronze |
| MP-120 | GY - Gray |
| MP-120 | WT - White |
Features
- Input: 120-277 VAC, 50/60Hz
- Detects motion to control fixtures on/off for adjustable amount of time (10 seconds to 10 minutes)
- D2D mode allows sensor to be used as photocell
- Motion sensitivity adjustable between 10ft to 50ft (180° cone)
- Manual Override the sensor for 5 hours by quickly flipping the light switch
- Built-In learning function to prevent sensor from being affected by reflected light
- Can be mounted on a canopy or on a lighting fixture

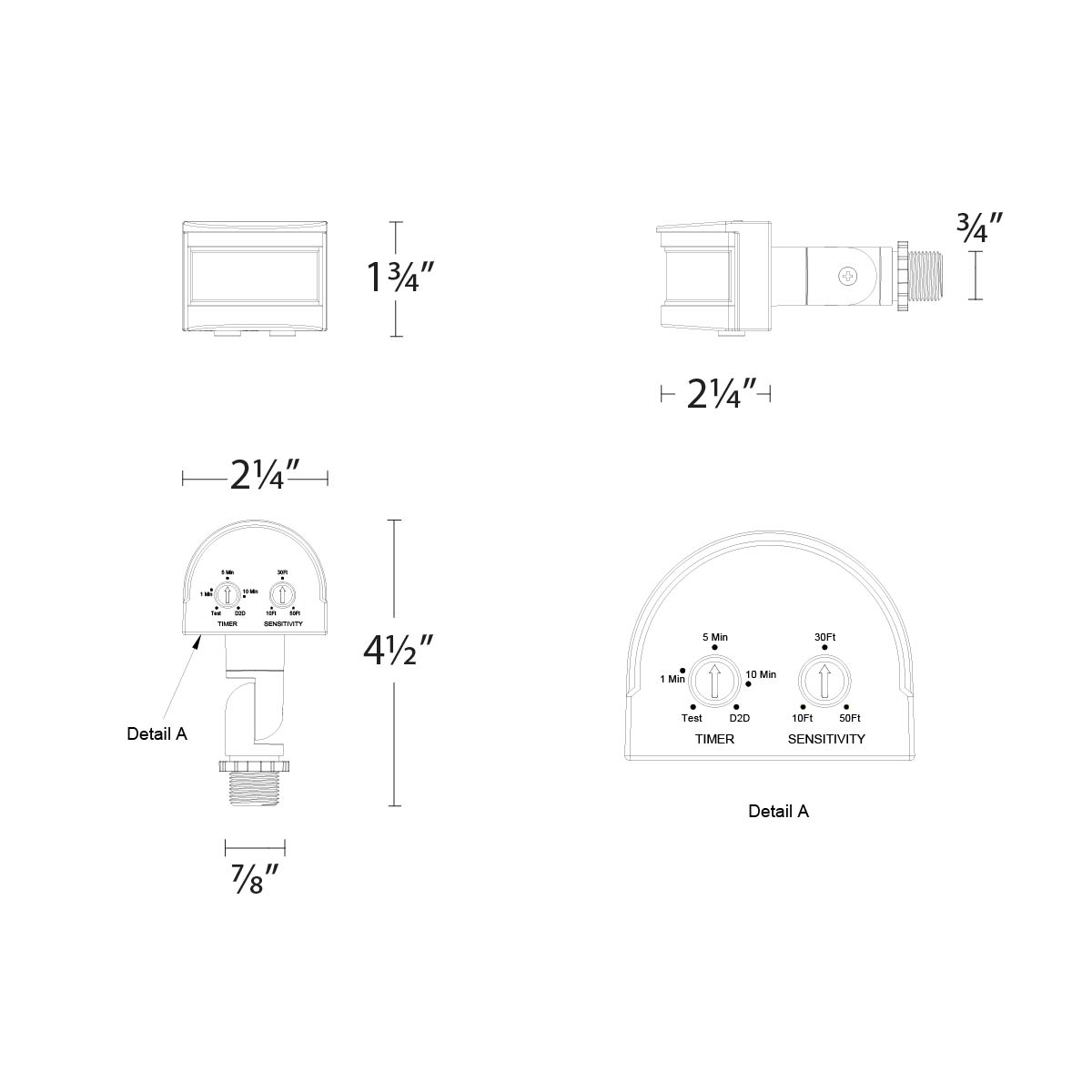

Line Drawing
