Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS-47108 - 8" | 2700K | BK - Black | 13W | 1100 | 714 |
| WS-47108 - 8" | 2700K | BN - Brushed Nickel | 13W | 1100 | 714 |
| WS-47108 - 8" | 3000K | BK - Black | 13W | 1100 | 737 |
| WS-47108 - 8" | 3000K | BN - Brushed Nickel | 13W | 1100 | 737 |
| WS-47108 - 8" | 3500K | BK - Black | 13W | 1100 | 597 |
| WS-47108 - 8" | 3500K | BN - Brushed Nickel | 13W | 1100 | 597 |
| WS-47116 - 16" | 2700K | BK - Black | 16W | 1400 | 823 |
| WS-47116 - 16" | 2700K | BN - Brushed Nickel | 16W | 1400 | 823 |
| WS-47116 - 16" | 3000K | BK - Black | 16W | 1400 | 882 |
| WS-47116 - 16" | 3000K | BN - Brushed Nickel | 16W | 1400 | 882 |
| WS-47116 - 16" | 3500K | BK - Black | 16W | 1400 | 885 |
| WS-47116 - 16" | 3500K | BN - Brushed Nickel | 16W | 1400 | 885 |
Features
- Delivered Lumens: 885lm
- CCT: 2700K, 3000K, 3500K
- CRI: 90
- Power: 13W, 16W
- Input: 120 VAC, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 54000 Hours
- Construction: Aluminum body, fabric diffuser
- Fabric shade with top and bottom etched acrylic diffuser
- 3CCT (2700K/3000K/3500K) selectable switch
- WS-47116 is ADA compliant, low profile design
- Option to pre-select color temperature or adjust in the field
- ACLED driverless technology
- Can be mounted on wall in all orientations
Gallery

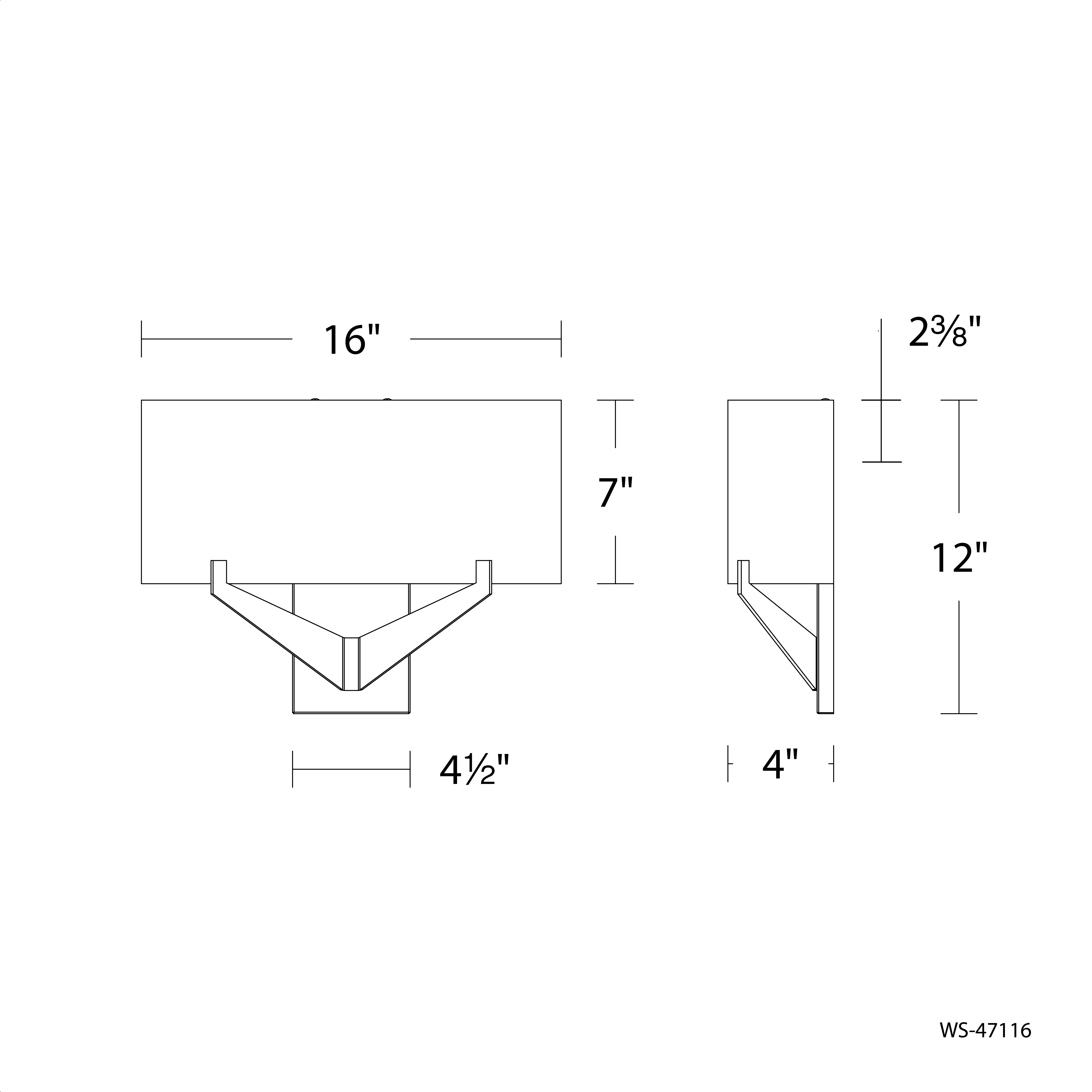

Line Drawing
