Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS103624 - 24" | 2700K/3000K/3500K/4000K | AB - Aged Brass | 14.5W | 1522 | 1346 |
| WS103624 - 24" | 2700K/3000K/3500K/4000K | BC - Black Chrome | 14.5W | 1522 | 1346 |
| WS103634 - 34" | 2700K/3000K/3500K/4000K | AB - Aged Brass | 20.2W | 2360 | 1999 |
| WS103634 - 34" | 2700K/3000K/3500K/4000K | BC - Black Chrome | 20.2W | 2360 | 1999 |
Features
- Delivered Lumens: Up to 1999lm
- CCT: 2700K/3000K/3500K/4000K
- CRI: 90
- Power: 14.5W, 20.2W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with acrylic diffuser
- Built in color temperature adjustability. Switch from 3000K/3500K/4000K/5000K
- Can be mounted on wall in all orientations
- Driver concealed within the canopy
- Can be mounted on wall in all orientations

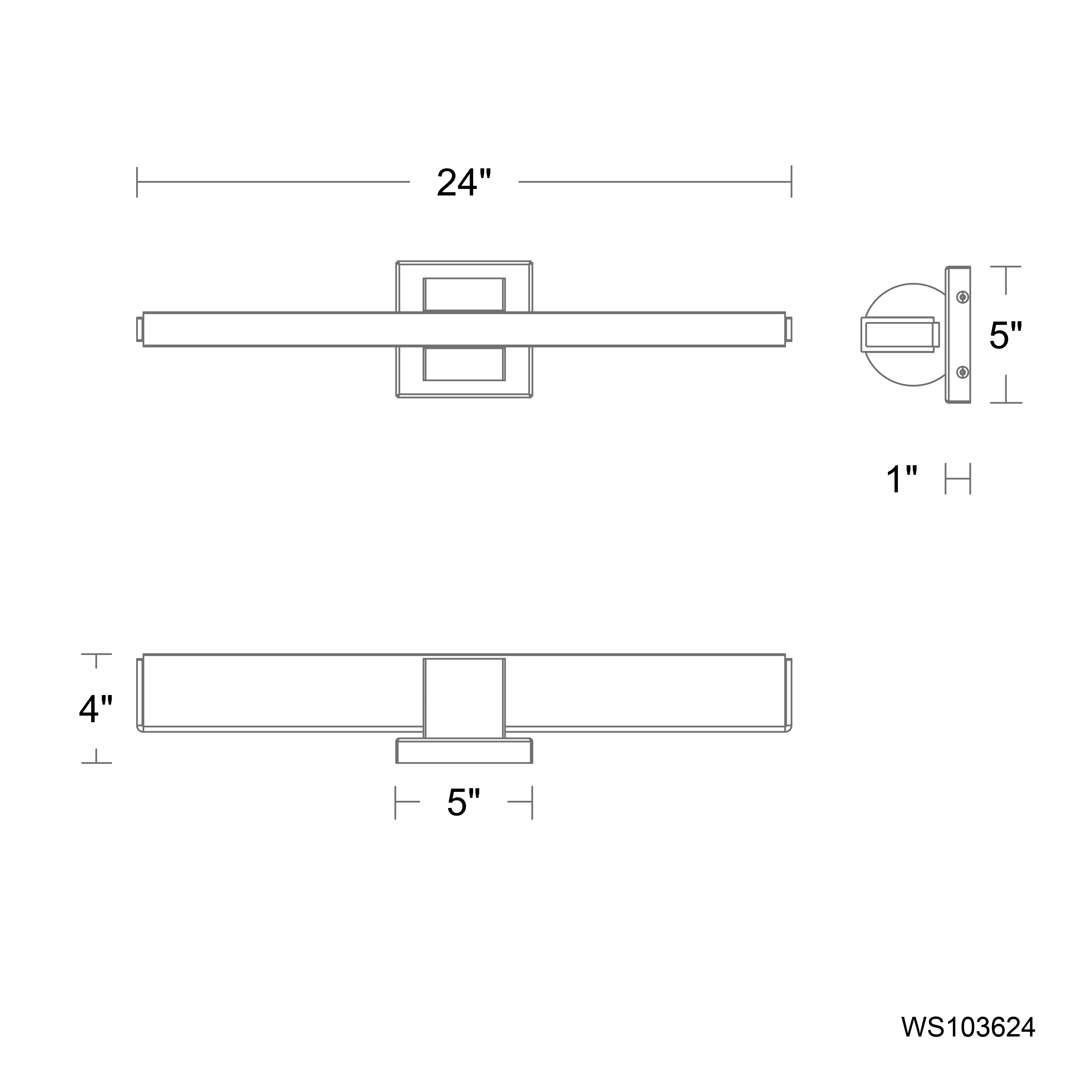

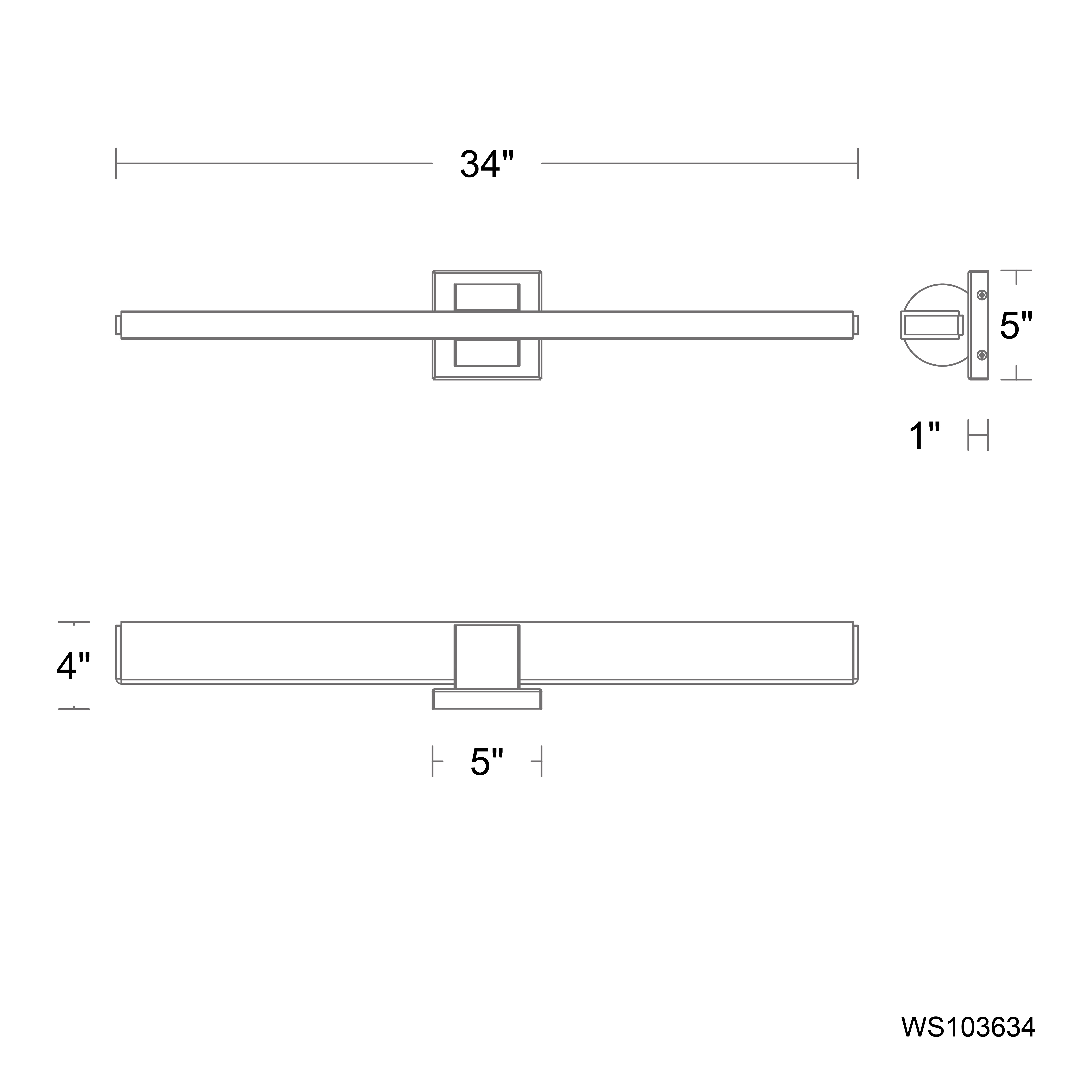

Line Drawing
