Specifications
Order Number:
| model & size | color temp & cri | lumens | finish |
|---|---|---|---|
| WS-224 | 2700K/3000K/3500K/4000K/5000K - 90 | 1400 | WT - White |
| WS-236 | 2700K/3000K/3500K/4000K/5000K - 90 | 2250 | WT - White |
| WS-248 | 2700K/3000K/3500K/4000K/5000K - 90 | 2630 | WT - White |
Features
- Delivered Lumens: Up to 2630lm
- CCT: 2700K/3000K/3500K/4000K/5000K
- CRI: 90
- Power: 16W, 25W, 30W
- Input: 120 -277 VAC, 50/60Hz
- IC Rated, Airtight
- ELV Dimming: 100-5%
- TRIAC Dimming: 100-5%
- Rated Life: 50000 Hours
- Construction: Aluminum with white acrylic diffuser
- 5-CCT Switchable between 2700K and 5000K
- Multiple LED array for uniform illumination
- Driver included
- Can be mounted on ceiling or wall in all orientations

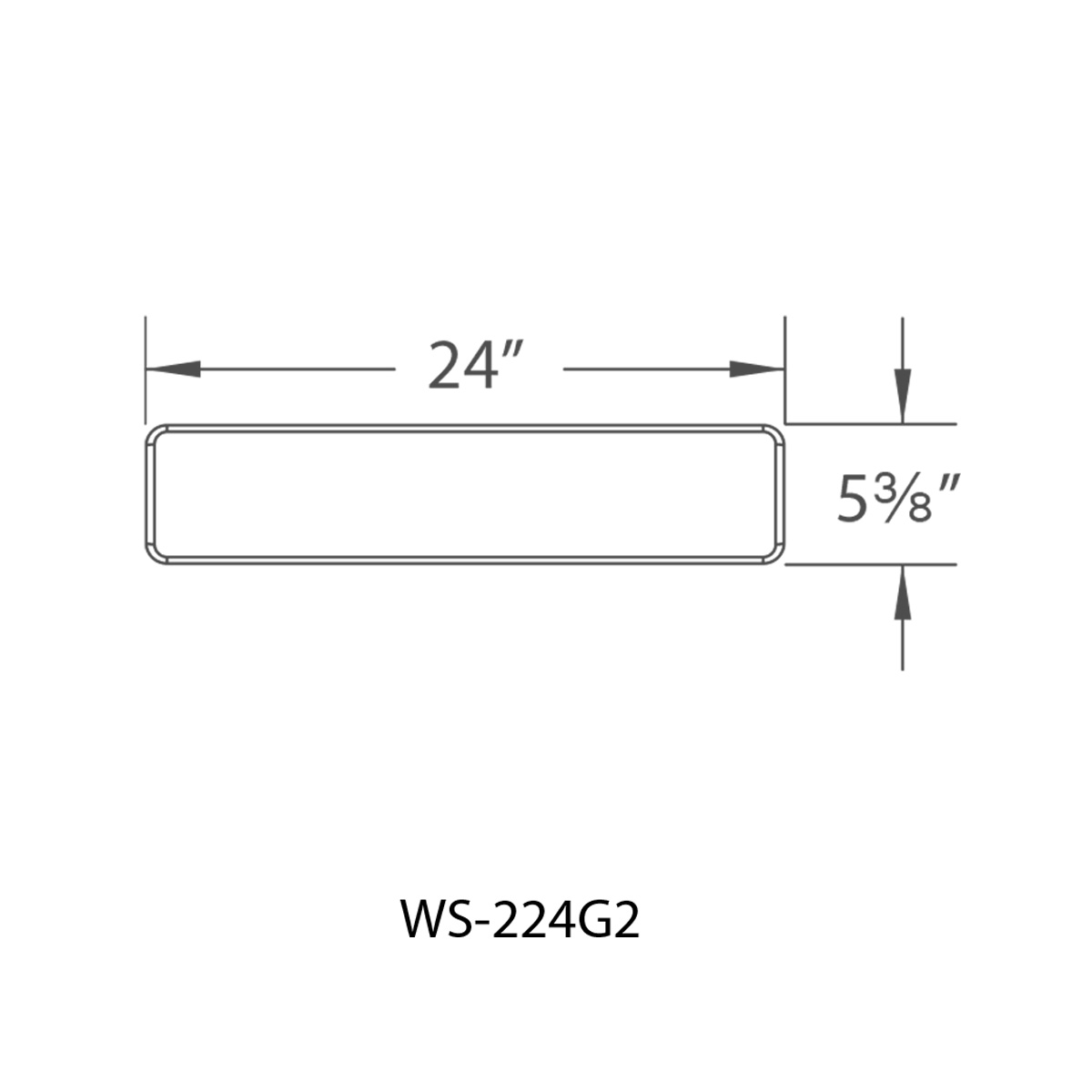

Line Drawing
