Specifications
Retired
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS-W23610 - 10" | 3000K | BK - Black | 7W | 630 | 122 |
| WS-W23610 - 10" | 3000K | BZ - Bronze | 7W | 630 | 122 |
| WS-W23610 - 10" | 3000K | GH - Graphite | 7W | 630 | 122 |
| WS-W23614 - 14" | 3000K | BK - Black | 12W | 965 | 111 |
| WS-W23614 - 14" | 3000K | BZ - Bronze | 12W | 965 | 111 |
| WS-W23614 - 14" | 3000K | GH - Graphite | 12W | 965 | 111 |
Features
- Delivered Lumens: 122lm
- CCT: 3000K
- CRI: 90
- Power: 7W, 12W
- Input: 120 VAC, 277 VAC, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum with acrylic diffuser
- Title 24 may not be available for all finishes, check for availability
- ACLED driverless technology
- Can be mounted on wall in all orientations
- For 277V special order, add an "F" before the finish: WS-W23610F-BK

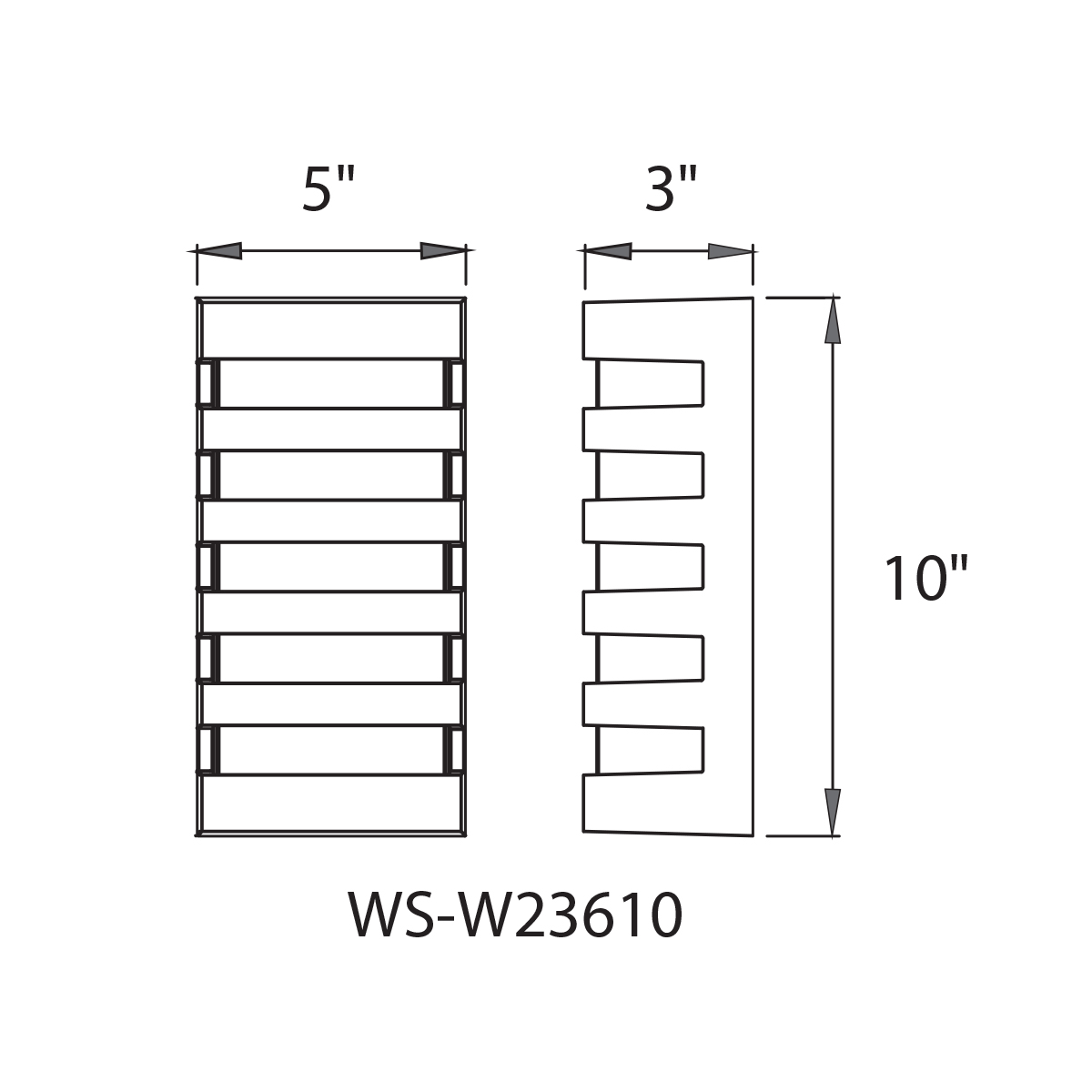

Line Drawing
