Specifications
Order Number:
| model | power | emergency backup battery | description |
|---|---|---|---|
| R4FBFT | 1 - 13W | Default | FQ 4" Frame-In Trimmed 13W |
| R4FBFT | 1 - 13W | EM-Emergency Backup | FQ 4" Frame-In Trimmed 13W EM |
| R4FBFT | 2 - 19W | Default | FQ 4" Frame-In Trimmed 19W |
| R4FBFT | 2 - 19W | EM-Emergency Backup | FQ 4" Frame-In Trimmed 19W EM |
| R4FBFT | 3 - 25W | Default | FQ 4" Frame-In Trimmed 25W |
| R4FBFT | 3 - 25W | EM-Emergency Backup | FQ 4" Frame-In Trimmed 25W EM |
| R4FBFT | 4 - 28W | Default | FQ 4" Frame-In Trimmed 28W |
| R4FBFT | 4 - 28W | EM-Emergency Backup | FQ 4" Frame-In Trimmed 28W EM |
| R4FRFL | 1 - 13W | Default | FQ 4" Frame Round Trimless 13W |
| R4FRFL | 2 - 19W | Default | FQ 4" Frame Round Trimless 19W |
| R4FRFL | 3 - 25W | Default | FQ 4" Frame Round Trimless 25W |
| R4FRFL | 4 - 28W | Default | FQ 4" Frame Round Trimless 28W |
| R4FSFL | 1 - 13W | Default | FQ 4" Frame Kit Square Trimless 13W |
| R4FSFL | 2 - 19W | Default | FQ 4" Frame Kit Square Trimless 19W |
| R4FSFL | 3 - 25W | Default | FQ 4" Frame Kit Square Trimless 25W |
| R4FSFL | 4 - 28W | Default | FQ 4" Frame Kit Square Trimless 28W |
Features
- Power: 13W, 19W, 25W, 28W
- Input: 120-277 VAC, 50/60Hz
- Non IC
- ELV Dimming: 100-1%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-1%
- Construction: 20 gauge galvanized steel
- One size housing for all round and square trim types for simplicity and versatility
- Uniformed ceiling cutout size for DL, ADJ, WW in Round or Square, Trim or Trimless
- Quick connectors installed on driver for easy driver replacement
- EM fixtures provided with integral emergency battery backup with 24" lead wire remote test switch
- Driver concealed within the fixture

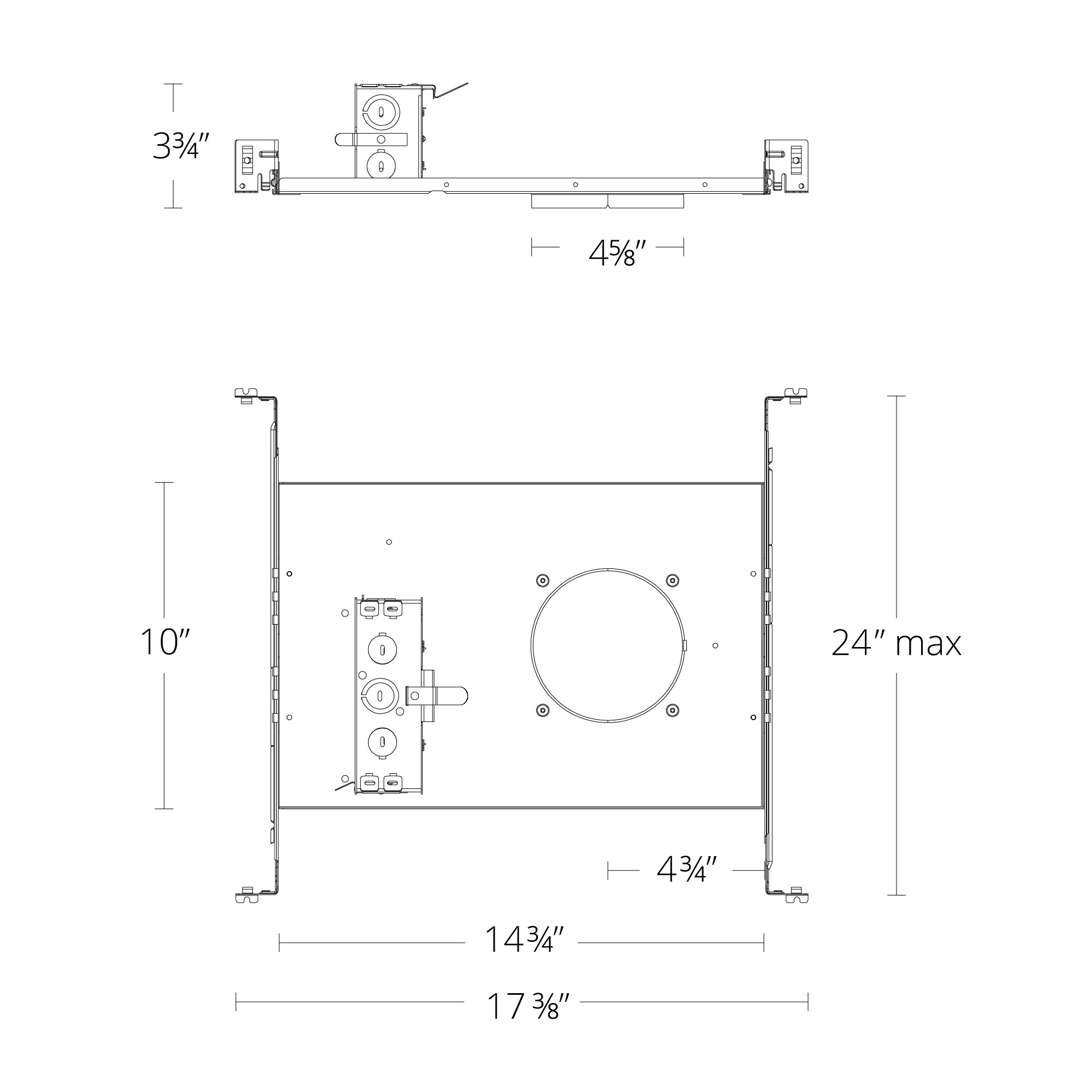

Line Drawing
