Specifications
Order Number:
| model | color temp & cri | max lumens | max cbcp | power | finish |
|---|---|---|---|---|---|
| R4FSDL-TWA | TWA - 1800K - 4000K - 90 | 1870 | 4650 | 14W, 19W, 26W | BK - Black |
| R4FSDL-TWA | TWA - 1800K - 4000K - 90 | 1870 | 4650 | 14W, 19W, 26W | DB - Dark Bronze |
| R4FSDL-TWA | TWA - 1800K - 4000K - 90 | 1870 | 4650 | 14W, 19W, 26W | HZ - Haze |
| R4FSDL-TWA | TWA - 1800K - 4000K - 90 | 1870 | 4650 | 14W, 19W, 26W | WT - White |
Features
- Delivered Lumens: 1870lm
- CBCP: 4650
- CCT: 1800K - 4000K
- CRI: 90
- Power: 14W, 19W, 26W
- Rated Life: 50000 Hours
- Construction: Durable die-cast aluminum trim with aluminum heat sink
- Operating Temp: -4°F to 104°F (-20°C to 40°C)
- Two-piece die-cast construction
- Light engine mounted on trim with springs for easy replacement
- 30° shielding angle design for great visual comfort
- Field changeable beam angle with reflectors provided
- Accepts one Lens or glare control accessory
- Refer to specification sheet for lumens and CBCP data

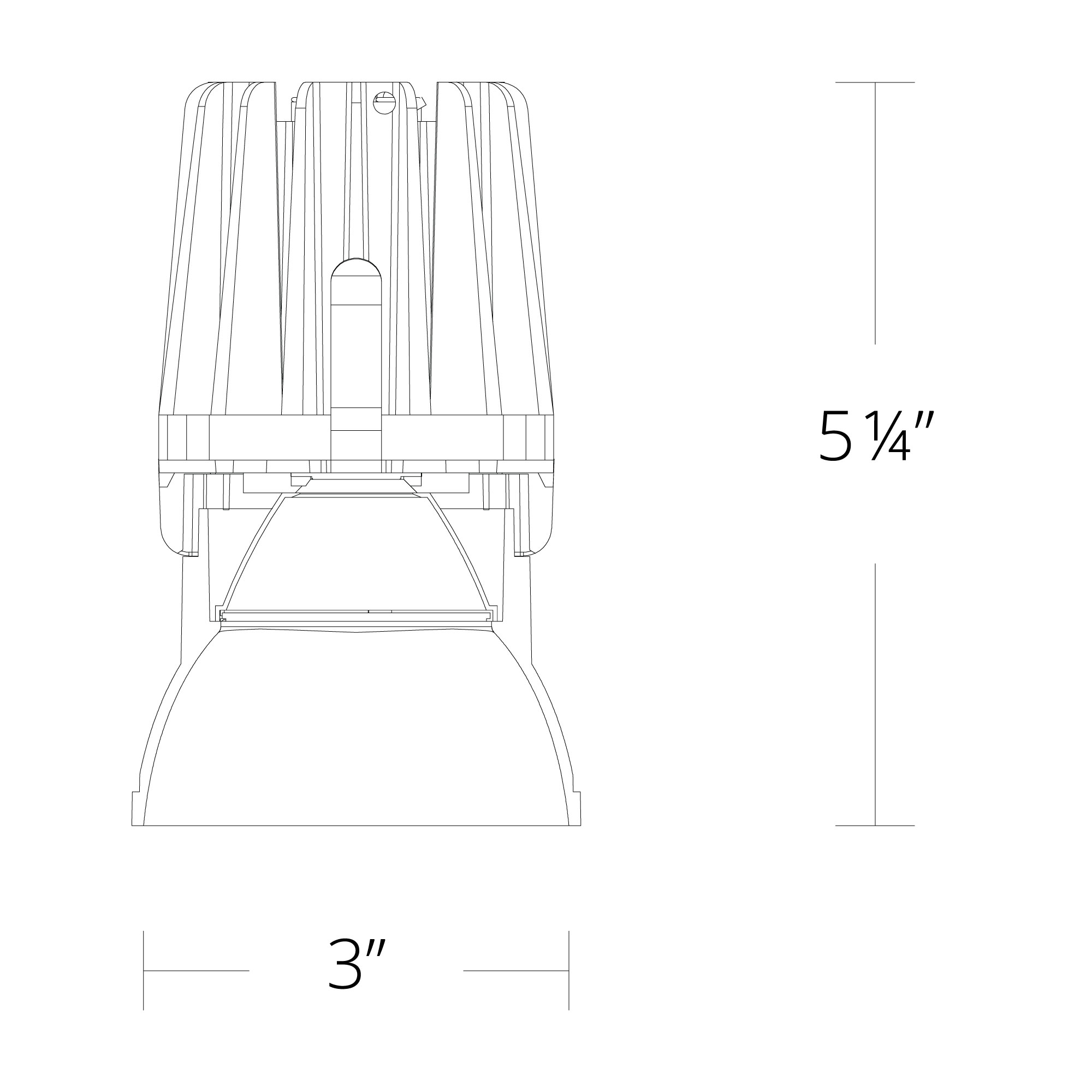

Line Drawing
