Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| FM701618 - 18" | 2700K/3000K/3500K/4000K | BK/GO - Black/Gold | 31.8W | 1657 | 1162 |

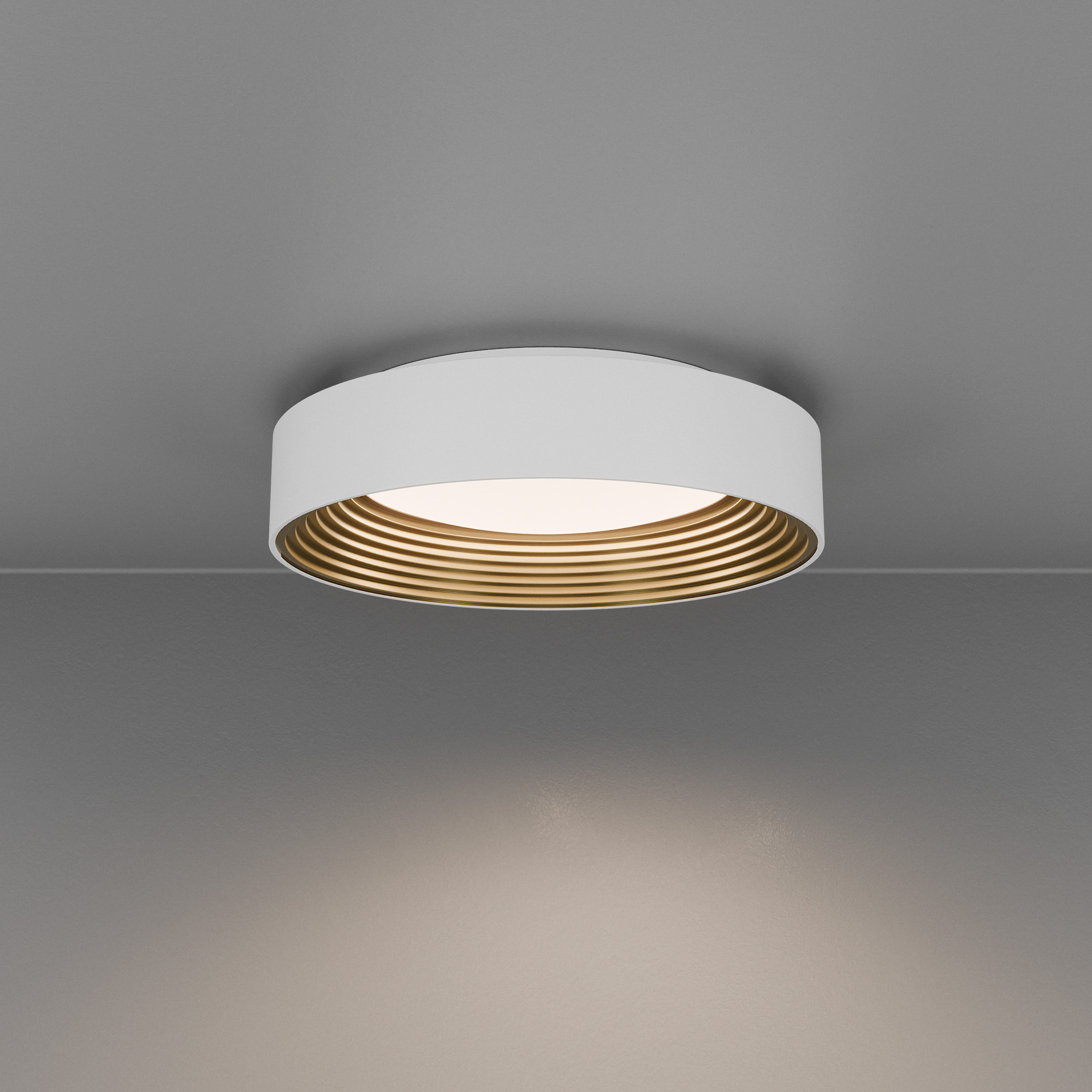

| FM701618 - 18" | 2700K/3000K/3500K/4000K | WT/GO - White/Gold | 31.8W | 1657 | 1162 |

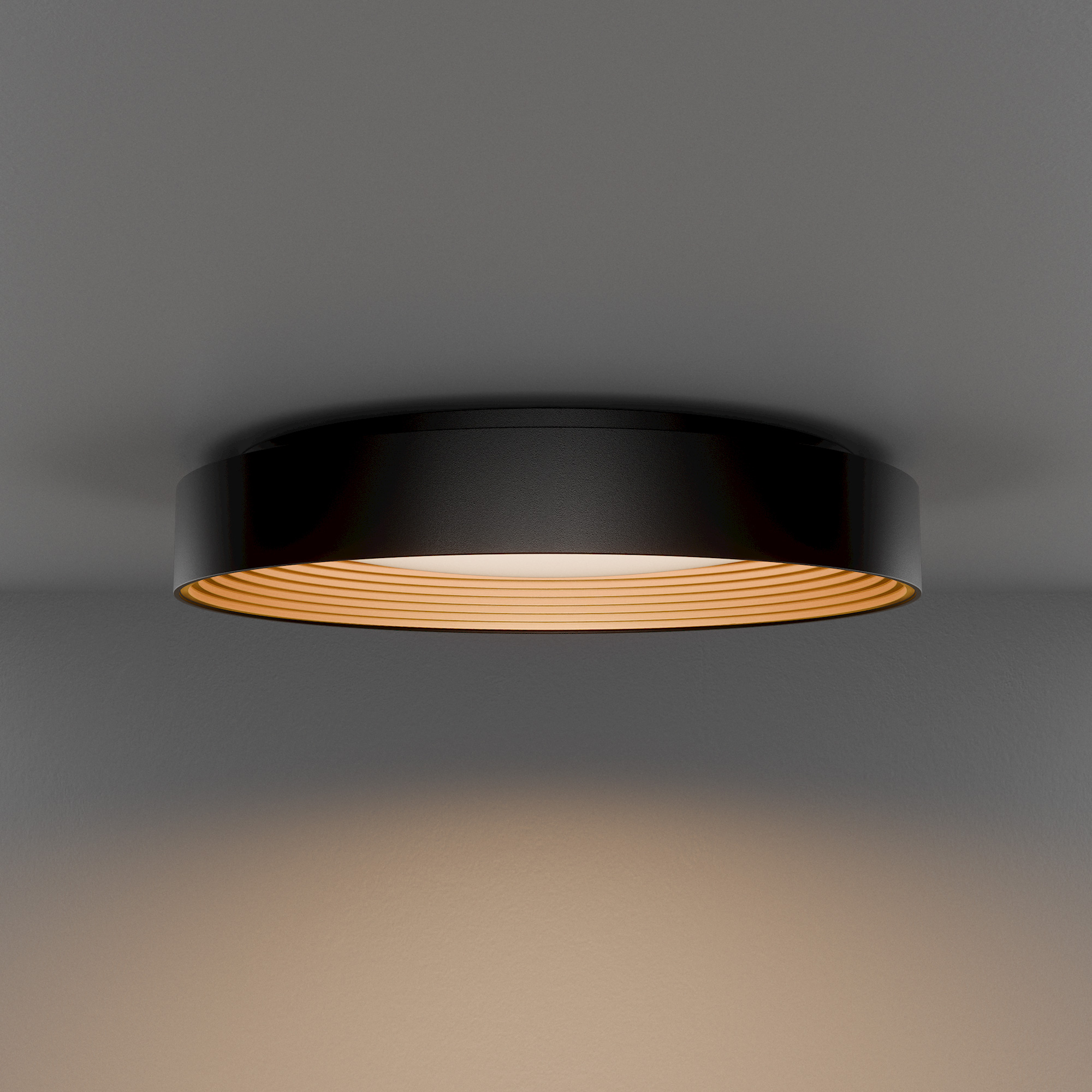

| FM701626 - 26" | 2700K/3000K/3500K/4000K | BK/GO - Black/Gold | 36.7W | 2976 | 2270 |

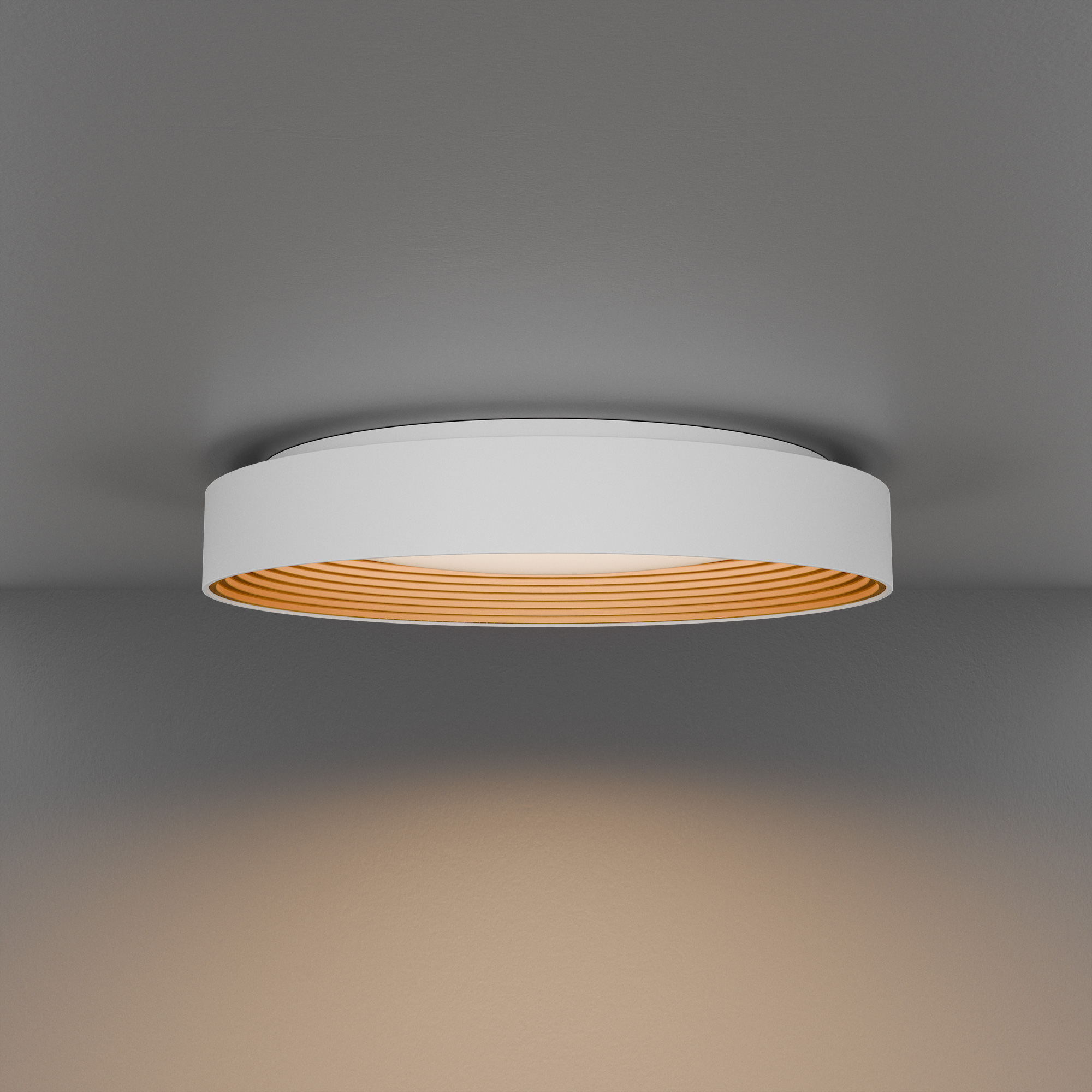

| FM701626 - 26" | 2700K/3000K/3500K/4000K | WT/GO - White/Gold | 36.7W | 2976 | 2270 |
Features
- Delivered Lumens: Up to 2270lm
- CCT: 2700K/3000K/3500K/4000K
- CRI: 90
- Power: 31.8W, 36.7W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with acrylic diffuser
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
- Driver concealed within the canopy
- Can be mounted on ceiling or wall in all orientations
Line Drawing
