Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| PD418614 - 14" | 1800-4000K for WAC Home System | AB - Aged Brass | 20W | 2025 | 1670 |
| PD418614 - 14" | 1800-4000K for WAC Home System | BK - Black | 20W | 2025 | 1670 |
| PD418620 - 20" | 1800-4000K for WAC Home System | AB - Aged Brass | 42.3W | 4083 | 3075 |
| PD418620 - 20" | 1800-4000K for WAC Home System | BK - Black | 42.3W | 4083 | 3075 |
Features
- Delivered Lumens: Up to 3075lm
- CCT: 1800-4000K for WAC Home System
- CRI: 90
- Power: 20W, 42.3W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with opaline glass
- 3000K(Default)
- 1800-4000K for WAC HOME SYSTEM ONLY
- Standard dimming function available for default setting if not using WAC HOME SYSTEM
- Consistency of opaline glass may vary

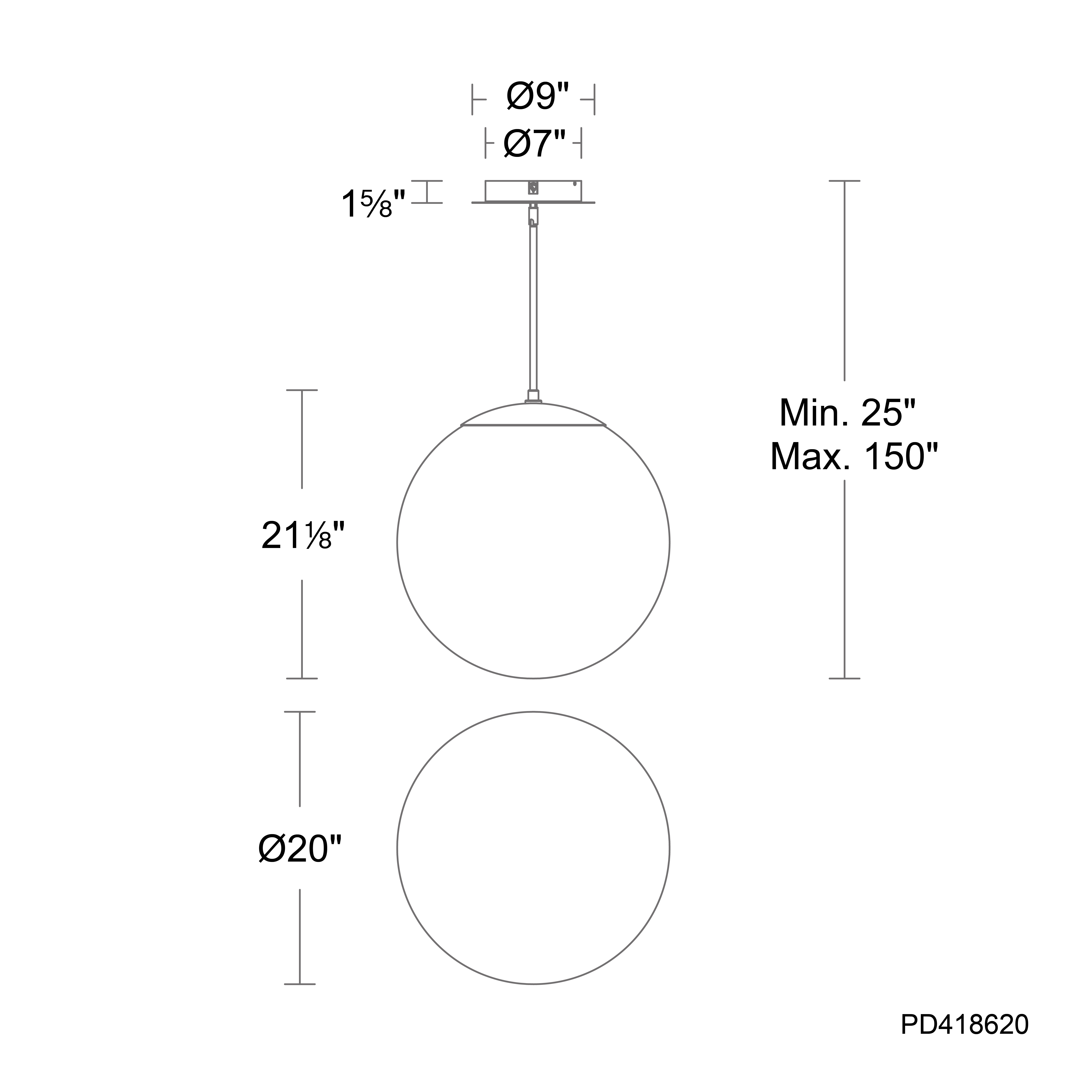

- Three 12" and one 6" downrods included for customized length
- May be mounted on a sloped ceiling
- Driver concealed within the canopy
- When fixture is connected to TRIAC/ ELV dimmer, fixture will fully dim while maintaining 3000K color temp.
- When fixture is connected to WAC Home Gateway and WAC Home Wallstation Tunable white and Dim-to-Warm functions are activated.
- Use the MyWAC app for additional WAC Home functions.
- Additional WAC Home compatible products
- Learn more about WAC Home Technology
