Specifications
Retired
Order Number:
| model & size | color temp & cri | finish | watt | voltage | led lumens | delivered lumens |
|---|---|---|---|---|---|---|
| WS-44505 - 5" | 2700K - 90 | CH - Chrome | 18W | 120 VAC | 675 | 605 |
| WS-44512 - 12" | 2700K - 90 | CH - Chrome | 32W | 120 VAC | 1554 | 1355 |
| WS-44522 - 22" | 2700K - 90 | CH - Chrome | 48W | 120-277V | 2346 | 2210 |
Features
- Delivered Lumens: Up to 2210lm
- CCT: 2700K
- CRI: 90
- Power: 18W, 32W, 48W
- Input: 120 VAC, 120-277V, 277 VAC, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 60000 Hours
- Construction: Aluminum hardware with mouth blown etched glass diffuser
- Each light also contains a powerful downlight
- WS-44522 has Universal Voltage Input (120V-277V)
- Driver installed within the Junction Box, driver dimension: 2.76" x 1.26" x 1.18"
- For 277V special order, add an "F" before the finish: WS-44505F-CH

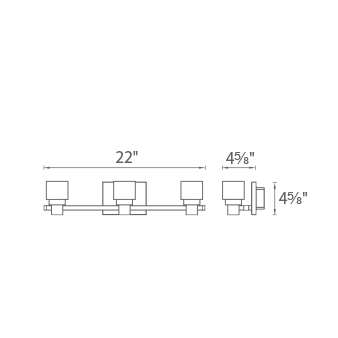

Line Drawing
