Large Stealth Framing Projector Fixed Wide Beam 24W Monopoint Luminaire

NEW

NEW

Order Number:

system type	model	color temp & cri	lumens	cbcp	finish
MO	1224	F27 - 2700K - 90	795	1375	BK - Black
MO	1224	F27 - 2700K - 90	795	1375	WT - White
MO	1224	F30 - 3000K - 90	840	1450	BK - Black
MO	1224	F30 - 3000K - 90	840	1450	WT - White
MO	1224	F35 - 3500K - 90	880	1520	BK - Black
MO	1224	F35 - 3500K - 90	880	1520	WT - White
MO	1224	F40 - 4000K - 90	905	1565	BK - Black
MO	1224	F40 - 4000K - 90	905	1565	WT - White

Delivered Lumens: Up to 905lm
CBCP: 1565
CCT: 2700K, 3000K, 3500K, 4000K
CRI: 90
Power: 24W
Input: 120-277 VAC, 50/60Hz
ELV Dimming: 100-1%
0-10V Dimming: 100-1%
TRIAC Dimming: 100-1%
Rated Life: 50000 Hours
Construction: Die-cast aluminum
Precise, high definition zoomable projection
Stealth armature with 360° horizontal rotation and 90° vertical aiming
Accepts one glass or metal gobo
Custom gobo size: Outside Diameter: 24.5mm, Thickness: ≤ 1.5mm, Image Size: ≤ 19mm

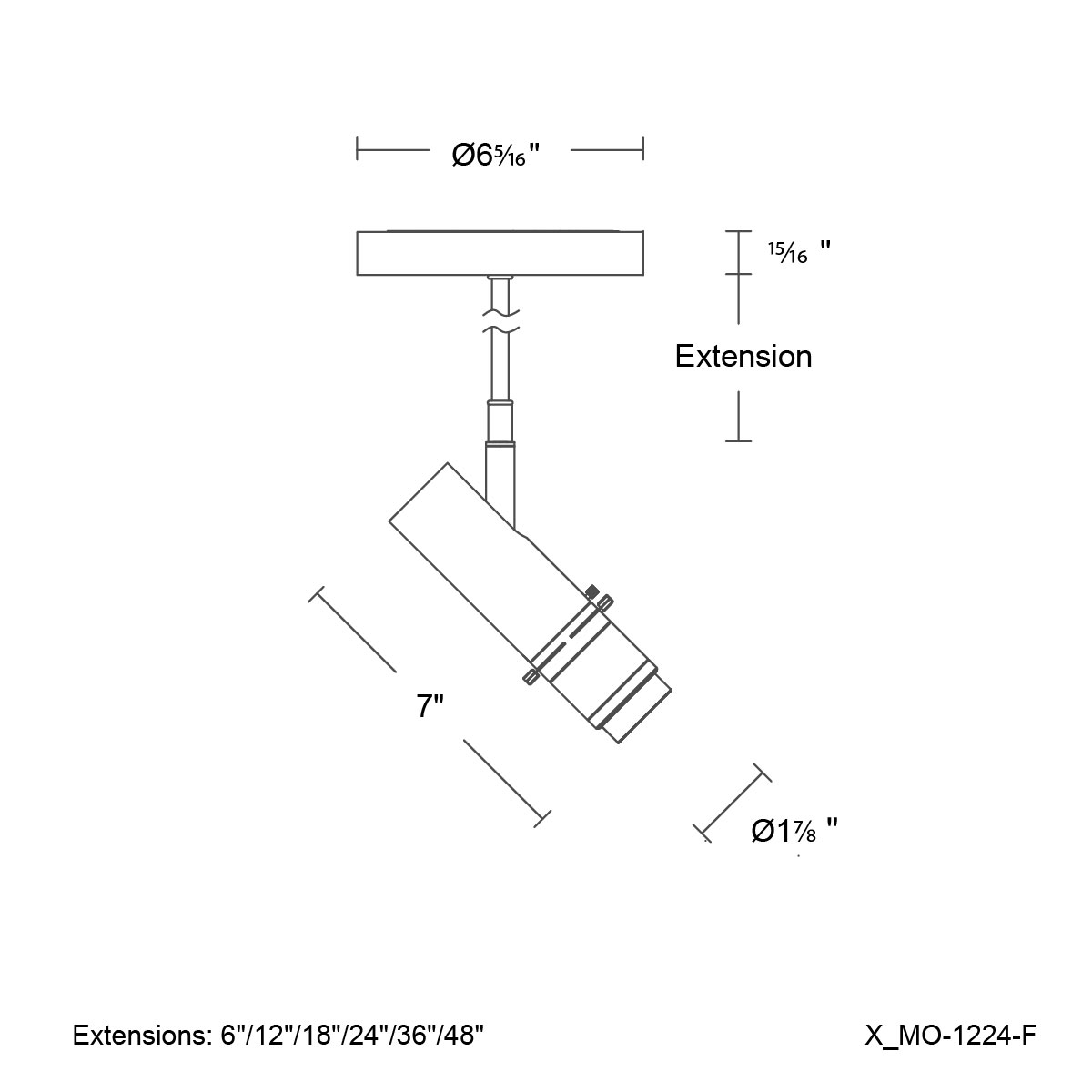

Extensions are custom order as a complete unit, ceiling mount only
Driver concealed within the canopy
Can be mounted on ceiling or wall in all orientations
