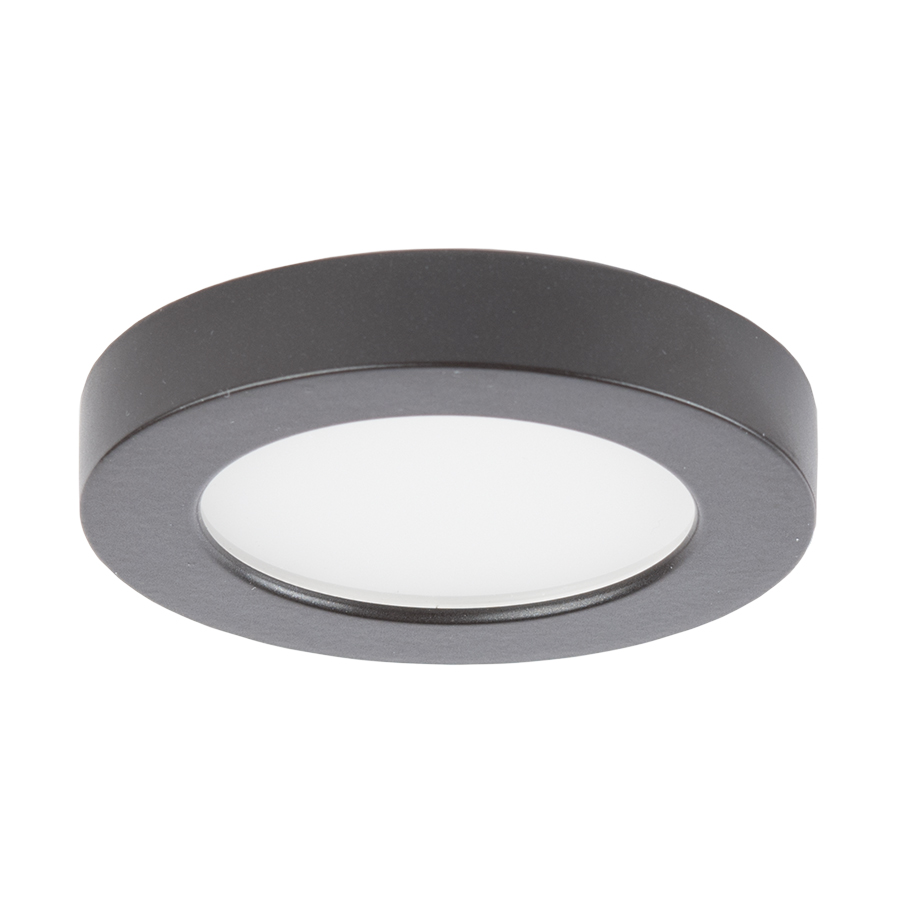

LED 90 Button Light

Specifications

Order Number:
model & voltage color temp & cri lumens finish
HR-LED90 - 24 VAC 2700K - 90 200 BK - Black
HR-LED90 - 24 VAC 2700K - 90 200 BN - Brushed Nickel
HR-LED90 - 24 VAC 2700K - 90 200 DB - Dark Bronze
HR-LED90 - 24 VAC 2700K - 90 200 WT - White
HR-LED90 - 24 VAC 3000K - 90 200 BK - Black
HR-LED90 - 24 VAC 3000K - 90 200 BN - Brushed Nickel
HR-LED90 - 24 VAC 3000K - 90 200 DB - Dark Bronze
HR-LED90 - 24 VAC 3000K - 90 200 WT - White

Features

  • Delivered Lumens: 200lm
  • CCT: 2700K, 3000K
  • CRI: 90
  • Power: 5W
  • Input: 24 VAC, 50/60Hz
  • ELV Dimming: 100-5%
  • Rated Life: 100000 Hours
  • Construction: Die-cast aluminum fixture, stamped steel housing for surface mount
  • Recessed or surface mounting
  • Super thin profile at 2"
  • Edge-lit LEDs reduce glare and assure even light distribution
  • Anti-microbial white paint
  • Transformer required

Line Drawing

Components

Accessories
