Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS-31524 - 24" | 2700K | AB - Aged Brass | 55W | 3569 | 2767 |
| WS-31524 - 24" | 2700K | BC - Black Chrome | 55W | 3569 | 2767 |
| WS-31524 - 24" | 3000K | AB - Aged Brass | 55W | 3569 | 2767 |
| WS-31524 - 24" | 3000K | BC - Black Chrome | 55W | 3569 | 2767 |
| WS-31524 - 24" | 3500K | AB - Aged Brass | 55W | 3569 | 2767 |
| WS-31524 - 24" | 3500K | BC - Black Chrome | 55W | 3569 | 2767 |
| WS-31524 - 24" | 4000K | AB - Aged Brass | 55W | 3569 | 2767 |
| WS-31524 - 24" | 4000K | BC - Black Chrome | 55W | 3569 | 2767 |
Features
- Delivered Lumens: 2767lm
- CCT: 2700K, 3000K, 3500K, 4000K
- CRI: 90
- Power: 55W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- 0-10V Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum hardware
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
- Option to pre-select color temperature or adjust in the field

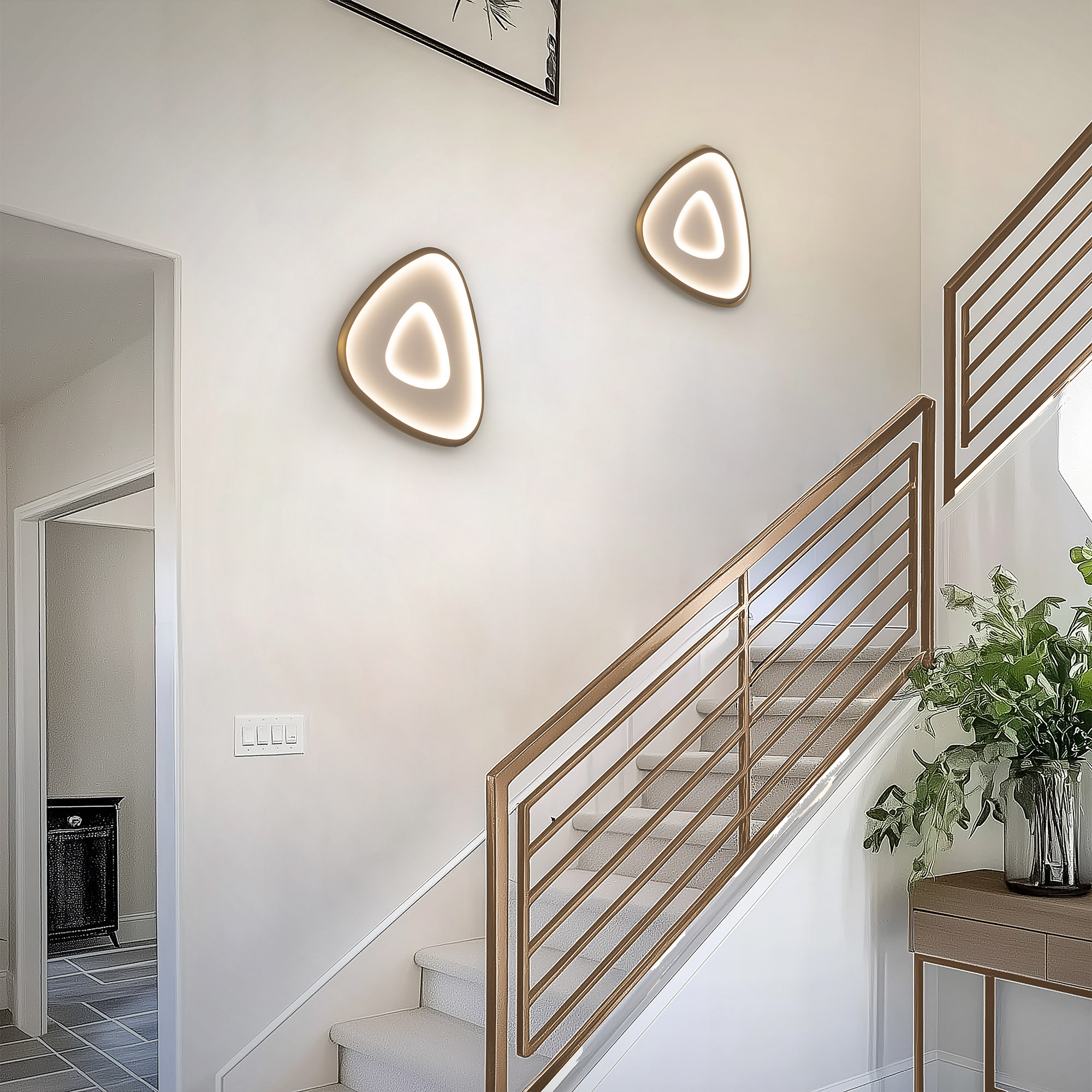

- Can be mounted on ceiling or wall in all orientations
Line Drawing
