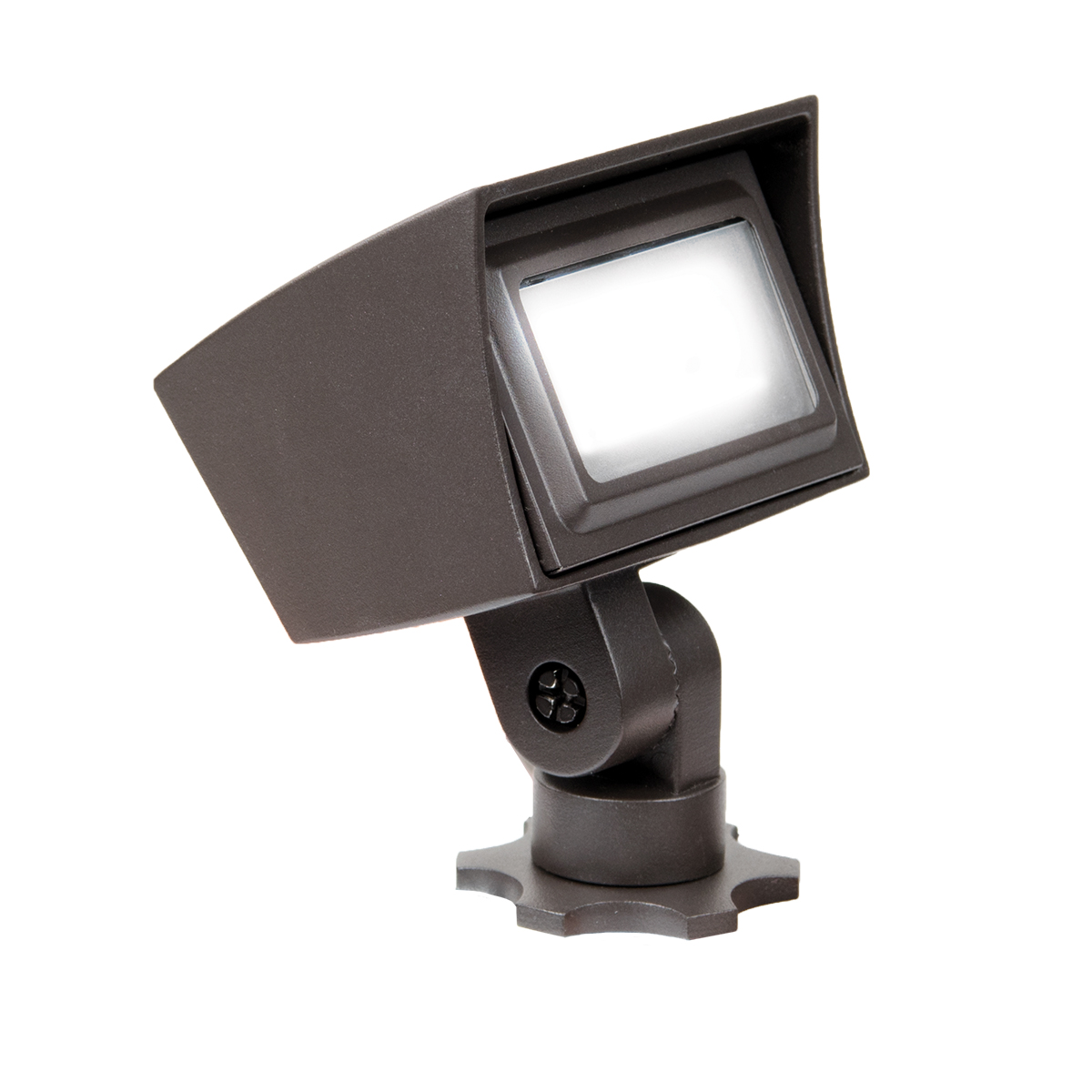

Mini Wall Wash 12V Dual CCT Selectable 2700K/3000K

Specifications

Order Number:
model & voltage color temp & cri lumens finish
5121 - 9-15 VAC 2700K/3000K - 85 80-420 BBR - Bronze on Brass
5121 - 9-15 VAC 2700K/3000K - 85 80-420 BK - Black on Aluminum
5121 - 9-15 VAC 2700K/3000K - 85 80-420 BZ - Bronze on Aluminum
5121 - 9-15 VAC 2700K/3000K - 85 80-420 WT - White on Aluminum

Features

  • Delivered Lumens: 420lm
  • CCT: 2700K/3000K
  • CRI: 85
  • Power: 1-8W
  • Input: 9-15 VAC, 50/60Hz
  • Rated Life: 60000 Hours
  • Construction: Corrosion resistant aluminum alloy
  • A uniform wide distribution wall wash from a small form factor
  • Integral brightness control, select color temperature option
  • IP66 Rated, protected against high-pressure water jets
  • Mounting stake, 6ft lead wire and direct burial gel-filled wire nuts included
  • Maintains constant lumen output against voltage drop
  • MLV dimmable with remote MLV dimmer
  • Transformer required
  • Can be mounted on ceiling or wall in all orientations

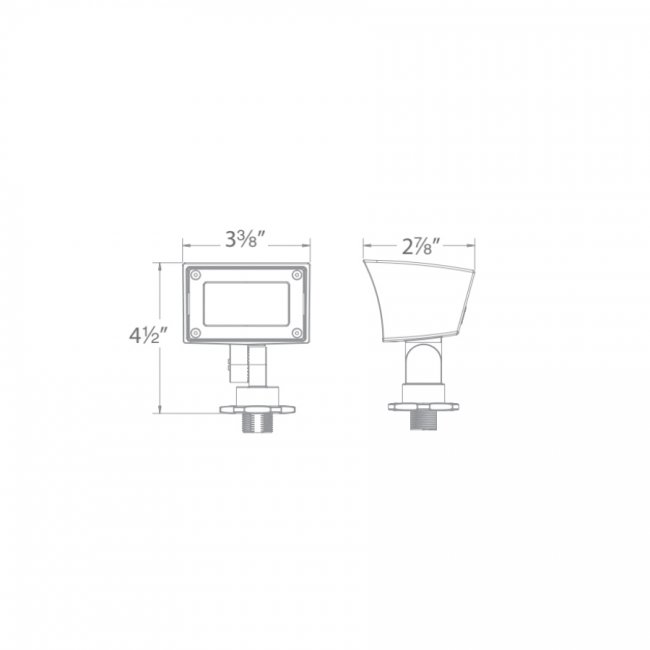

Line Drawing

Components

Accessories
