Specifications
Order Number:
| model & size | watt | rating |
|---|---|---|
| R1GNL02 - 2 CELL | 8W | IC |
| R1GNL04 - 4 CELL | 14W | IC |
| R1GNL06 - 6 CELL | 20W | IC |
| R1GNL08 - 8 CELL | 27W | IC |
| R1GNL12 - 12 CELL | 38W | Non IC |
Features
- Power: 8W, 14W, 20W, 27W, 38W
- Input: 120-277 VAC, 50/60Hz
- IC Rated, Non IC Rated, Airtight
- ELV Dimming: 100-5%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-5%
- Construction: 20 Gauge cold rolled steel
- Compatible with downlight and wall wash trimless for IC and Non IC applications
- Quick connectors installed on driver for easy driver replacement
- Trimless spackle flange included
- Driver concealed within the fixture

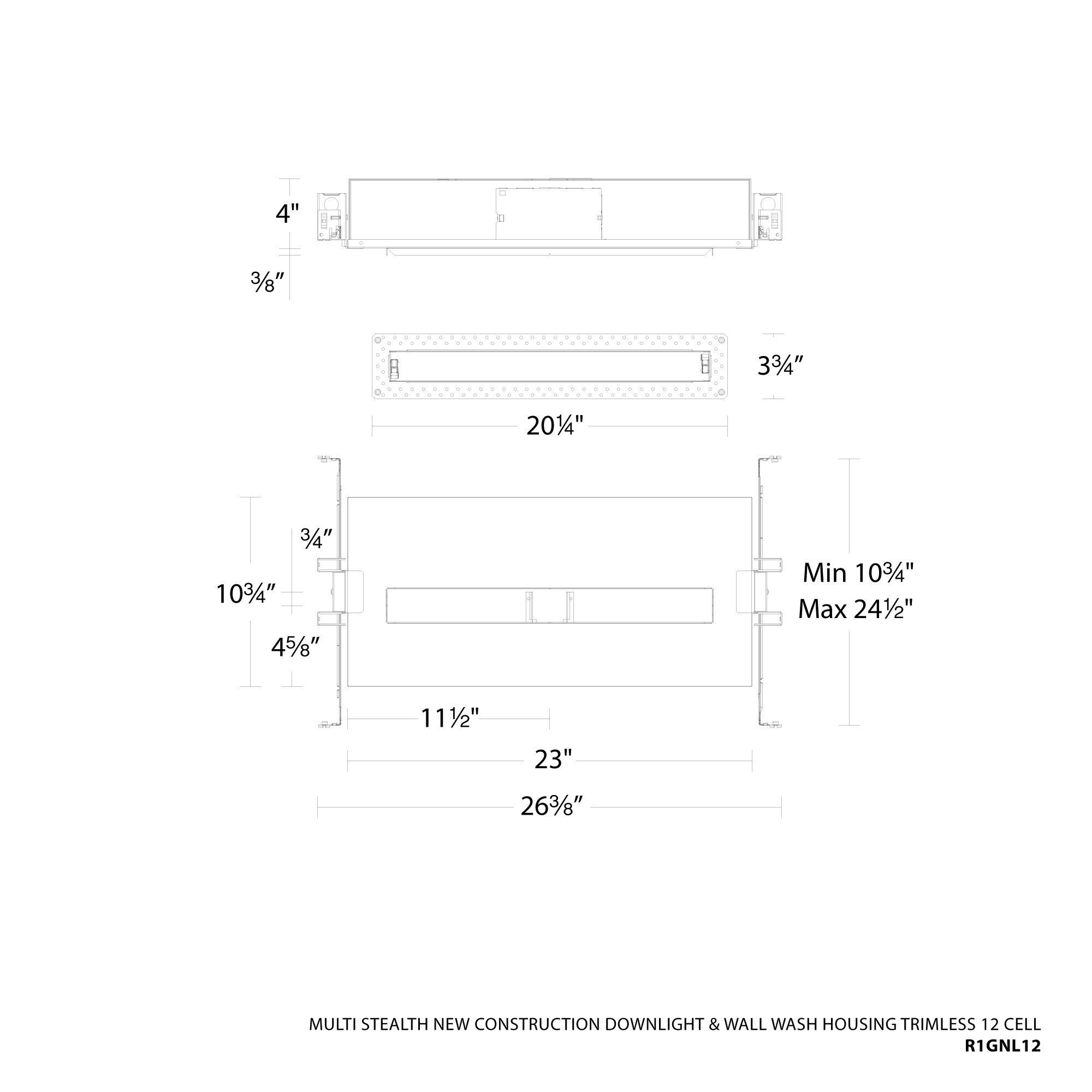

Line Drawing
