Multi Stealth Adjustable Trimless

Specifications

Order Number:

model & size	watt	beam	color temp & cri	delivered lumens	cbcp	finish
R1GAL02 - 2 CELL	8W	F - 45°	927 - 2700K - 90	510	835	BK - Black
R1GAL02 - 2 CELL	8W	F - 45°	927 - 2700K - 90	510	835	CH - Chrome
R1GAL02 - 2 CELL	8W	F - 45°	927 - 2700K - 90	510	835	GL - Gold
R1GAL02 - 2 CELL	8W	F - 45°	927 - 2700K - 90	510	835	HZ - Haze
R1GAL02 - 2 CELL	8W	F - 45°	927 - 2700K - 90	510	835	WT - White
R1GAL02 - 2 CELL	8W	F - 45°	930 - 3000K - 90	530	880	BK - Black
R1GAL02 - 2 CELL	8W	F - 45°	930 - 3000K - 90	530	880	CH - Chrome
R1GAL02 - 2 CELL	8W	F - 45°	930 - 3000K - 90	530	880	GL - Gold
R1GAL02 - 2 CELL	8W	F - 45°	930 - 3000K - 90	530	880	HZ - Haze
R1GAL02 - 2 CELL	8W	F - 45°	930 - 3000K - 90	530	880	WT - White
R1GAL02 - 2 CELL	8W	F - 45°	935 - 3500K - 90	560	925	BK - Black
R1GAL02 - 2 CELL	8W	F - 45°	935 - 3500K - 90	560	925	CH - Chrome
R1GAL02 - 2 CELL	8W	F - 45°	935 - 3500K - 90	560	925	GL - Gold
R1GAL02 - 2 CELL	8W	F - 45°	935 - 3500K - 90	560	925	HZ - Haze
R1GAL02 - 2 CELL	8W	F - 45°	935 - 3500K - 90	560	925	WT - White
R1GAL02 - 2 CELL	8W	F - 45°	940 - 4000K - 90	570	940	BK - Black
R1GAL02 - 2 CELL	8W	F - 45°	940 - 4000K - 90	570	940	CH - Chrome
R1GAL02 - 2 CELL	8W	F - 45°	940 - 4000K - 90	570	940	GL - Gold
R1GAL02 - 2 CELL	8W	F - 45°	940 - 4000K - 90	570	940	HZ - Haze
R1GAL02 - 2 CELL	8W	F - 45°	940 - 4000K - 90	570	940	WT - White
R1GAL02 - 2 CELL	8W	N - 32°	927 - 2700K - 90	520	1230	BK - Black
R1GAL02 - 2 CELL	8W	N - 32°	927 - 2700K - 90	520	1230	CH - Chrome
R1GAL02 - 2 CELL	8W	N - 32°	927 - 2700K - 90	520	1230	GL - Gold
R1GAL02 - 2 CELL	8W	N - 32°	927 - 2700K - 90	520	1230	HZ - Haze
R1GAL02 - 2 CELL	8W	N - 32°	927 - 2700K - 90	520	1230	WT - White
R1GAL02 - 2 CELL	8W	N - 32°	930 - 3000K - 90	550	1290	BK - Black
R1GAL02 - 2 CELL	8W	N - 32°	930 - 3000K - 90	550	1290	CH - Chrome
R1GAL02 - 2 CELL	8W	N - 32°	930 - 3000K - 90	550	1290	GL - Gold
R1GAL02 - 2 CELL	8W	N - 32°	930 - 3000K - 90	550	1290	HZ - Haze
R1GAL02 - 2 CELL	8W	N - 32°	930 - 3000K - 90	550	1290	WT - White
R1GAL02 - 2 CELL	8W	N - 32°	935 - 3500K - 90	570	1355	BK - Black
R1GAL02 - 2 CELL	8W	N - 32°	935 - 3500K - 90	570	1355	CH - Chrome
R1GAL02 - 2 CELL	8W	N - 32°	935 - 3500K - 90	570	1355	GL - Gold
R1GAL02 - 2 CELL	8W	N - 32°	935 - 3500K - 90	570	1355	HZ - Haze
R1GAL02 - 2 CELL	8W	N - 32°	935 - 3500K - 90	570	1355	WT - White
R1GAL02 - 2 CELL	8W	N - 32°	940 - 4000K - 90	580	1385	BK - Black
R1GAL02 - 2 CELL	8W	N - 32°	940 - 4000K - 90	580	1385	CH - Chrome
R1GAL02 - 2 CELL	8W	N - 32°	940 - 4000K - 90	580	1385	GL - Gold
R1GAL02 - 2 CELL	8W	N - 32°	940 - 4000K - 90	580	1385	HZ - Haze
R1GAL02 - 2 CELL	8W	N - 32°	940 - 4000K - 90	580	1385	WT - White
R1GAL02 - 2 CELL	8W	S - 16°	927 - 2700K - 90	500	2170	BK - Black
R1GAL02 - 2 CELL	8W	S - 16°	927 - 2700K - 90	500	2170	CH - Chrome
R1GAL02 - 2 CELL	8W	S - 16°	927 - 2700K - 90	500	2170	GL - Gold
R1GAL02 - 2 CELL	8W	S - 16°	927 - 2700K - 90	500	2170	HZ - Haze
R1GAL02 - 2 CELL	8W	S - 16°	927 - 2700K - 90	500	2170	WT - White
R1GAL02 - 2 CELL	8W	S - 16°	930 - 3000K - 90	530	2285	BK - Black
R1GAL02 - 2 CELL	8W	S - 16°	930 - 3000K - 90	530	2285	CH - Chrome
R1GAL02 - 2 CELL	8W	S - 16°	930 - 3000K - 90	530	2285	GL - Gold
R1GAL02 - 2 CELL	8W	S - 16°	930 - 3000K - 90	530	2285	HZ - Haze
R1GAL02 - 2 CELL	8W	S - 16°	930 - 3000K - 90	530	2285	WT - White
R1GAL02 - 2 CELL	8W	S - 16°	935 - 3500K - 90	560	2400	BK - Black
R1GAL02 - 2 CELL	8W	S - 16°	935 - 3500K - 90	560	2400	CH - Chrome
R1GAL02 - 2 CELL	8W	S - 16°	935 - 3500K - 90	560	2400	GL - Gold
R1GAL02 - 2 CELL	8W	S - 16°	935 - 3500K - 90	560	2400	HZ - Haze
R1GAL02 - 2 CELL	8W	S - 16°	935 - 3500K - 90	560	2400	WT - White
R1GAL02 - 2 CELL	8W	S - 16°	940 - 4000K - 90	570	2445	BK - Black
R1GAL02 - 2 CELL	8W	S - 16°	940 - 4000K - 90	570	2445	CH - Chrome
R1GAL02 - 2 CELL	8W	S - 16°	940 - 4000K - 90	570	2445	GL - Gold
R1GAL02 - 2 CELL	8W	S - 16°	940 - 4000K - 90	570	2445	HZ - Haze
R1GAL02 - 2 CELL	8W	S - 16°	940 - 4000K - 90	570	2445	WT - White
R1GAL04 - 4 CELL	14W	F - 45°	927 - 2700K - 90	1020	1710	BK - Black
R1GAL04 - 4 CELL	14W	F - 45°	927 - 2700K - 90	1020	1710	CH - Chrome
R1GAL04 - 4 CELL	14W	F - 45°	927 - 2700K - 90	1020	1710	GL - Gold
R1GAL04 - 4 CELL	14W	F - 45°	927 - 2700K - 90	1020	1710	HZ - Haze
R1GAL04 - 4 CELL	14W	F - 45°	927 - 2700K - 90	1020	1710	WT - White
R1GAL04 - 4 CELL	14W	F - 45°	930 - 3000K - 90	1070	1800	BK - Black
R1GAL04 - 4 CELL	14W	F - 45°	930 - 3000K - 90	1070	1800	CH - Chrome
R1GAL04 - 4 CELL	14W	F - 45°	930 - 3000K - 90	1070	1800	GL - Gold
R1GAL04 - 4 CELL	14W	F - 45°	930 - 3000K - 90	1070	1800	HZ - Haze
R1GAL04 - 4 CELL	14W	F - 45°	930 - 3000K - 90	1070	1800	WT - White
R1GAL04 - 4 CELL	14W	F - 45°	935 - 3500K - 90	1120	1890	BK - Black
R1GAL04 - 4 CELL	14W	F - 45°	935 - 3500K - 90	1120	1890	CH - Chrome
R1GAL04 - 4 CELL	14W	F - 45°	935 - 3500K - 90	1120	1890	GL - Gold
R1GAL04 - 4 CELL	14W	F - 45°	935 - 3500K - 90	1120	1890	HZ - Haze
R1GAL04 - 4 CELL	14W	F - 45°	935 - 3500K - 90	1120	1890	WT - White
R1GAL04 - 4 CELL	14W	F - 45°	940 - 4000K - 90	1150	1925	BK - Black
R1GAL04 - 4 CELL	14W	F - 45°	940 - 4000K - 90	1150	1925	CH - Chrome
R1GAL04 - 4 CELL	14W	F - 45°	940 - 4000K - 90	1150	1925	GL - Gold
R1GAL04 - 4 CELL	14W	F - 45°	940 - 4000K - 90	1150	1925	HZ - Haze
R1GAL04 - 4 CELL	14W	F - 45°	940 - 4000K - 90	1150	1925	WT - White
R1GAL04 - 4 CELL	14W	N - 32°	927 - 2700K - 90	1010	2290	BK - Black
R1GAL04 - 4 CELL	14W	N - 32°	927 - 2700K - 90	1010	2290	CH - Chrome
R1GAL04 - 4 CELL	14W	N - 32°	927 - 2700K - 90	1010	2290	GL - Gold
R1GAL04 - 4 CELL	14W	N - 32°	927 - 2700K - 90	1010	2290	HZ - Haze
R1GAL04 - 4 CELL	14W	N - 32°	927 - 2700K - 90	1010	2290	WT - White
R1GAL04 - 4 CELL	14W	N - 32°	930 - 3000K - 90	1070	2410	BK - Black
R1GAL04 - 4 CELL	14W	N - 32°	930 - 3000K - 90	1070	2410	CH - Chrome
R1GAL04 - 4 CELL	14W	N - 32°	930 - 3000K - 90	1070	2410	GL - Gold
R1GAL04 - 4 CELL	14W	N - 32°	930 - 3000K - 90	1070	2410	HZ - Haze
R1GAL04 - 4 CELL	14W	N - 32°	930 - 3000K - 90	1070	2410	WT - White
R1GAL04 - 4 CELL	14W	N - 32°	935 - 3500K - 90	1120	2530	BK - Black
R1GAL04 - 4 CELL	14W	N - 32°	935 - 3500K - 90	1120	2530	CH - Chrome
R1GAL04 - 4 CELL	14W	N - 32°	935 - 3500K - 90	1120	2530	GL - Gold
R1GAL04 - 4 CELL	14W	N - 32°	935 - 3500K - 90	1120	2530	HZ - Haze
R1GAL04 - 4 CELL	14W	N - 32°	935 - 3500K - 90	1120	2530	WT - White
R1GAL04 - 4 CELL	14W	N - 32°	940 - 4000K - 90	1140	2580	BK - Black
R1GAL04 - 4 CELL	14W	N - 32°	940 - 4000K - 90	1140	2580	CH - Chrome
R1GAL04 - 4 CELL	14W	N - 32°	940 - 4000K - 90	1140	2580	GL - Gold
R1GAL04 - 4 CELL	14W	N - 32°	940 - 4000K - 90	1140	2580	HZ - Haze
R1GAL04 - 4 CELL	14W	N - 32°	940 - 4000K - 90	1140	2580	WT - White
R1GAL04 - 4 CELL	14W	S - 16°	927 - 2700K - 90	980	4465	BK - Black
R1GAL04 - 4 CELL	14W	S - 16°	927 - 2700K - 90	980	4465	CH - Chrome
R1GAL04 - 4 CELL	14W	S - 16°	927 - 2700K - 90	980	4465	GL - Gold
R1GAL04 - 4 CELL	14W	S - 16°	927 - 2700K - 90	980	4465	HZ - Haze
R1GAL04 - 4 CELL	14W	S - 16°	927 - 2700K - 90	980	4465	WT - White
R1GAL04 - 4 CELL	14W	S - 16°	930 - 3000K - 90	1030	4700	BK - Black
R1GAL04 - 4 CELL	14W	S - 16°	930 - 3000K - 90	1030	4700	CH - Chrome
R1GAL04 - 4 CELL	14W	S - 16°	930 - 3000K - 90	1030	4700	GL - Gold
R1GAL04 - 4 CELL	14W	S - 16°	930 - 3000K - 90	1030	4700	HZ - Haze
R1GAL04 - 4 CELL	14W	S - 16°	930 - 3000K - 90	1030	4700	WT - White
R1GAL04 - 4 CELL	14W	S - 16°	935 - 3500K - 90	1080	4935	BK - Black
R1GAL04 - 4 CELL	14W	S - 16°	935 - 3500K - 90	1080	4935	CH - Chrome
R1GAL04 - 4 CELL	14W	S - 16°	935 - 3500K - 90	1080	4935	GL - Gold
R1GAL04 - 4 CELL	14W	S - 16°	935 - 3500K - 90	1080	4935	HZ - Haze
R1GAL04 - 4 CELL	14W	S - 16°	935 - 3500K - 90	1080	4935	WT - White
R1GAL04 - 4 CELL	14W	S - 16°	940 - 4000K - 90	1100	5030	BK - Black
R1GAL04 - 4 CELL	14W	S - 16°	940 - 4000K - 90	1100	5030	CH - Chrome
R1GAL04 - 4 CELL	14W	S - 16°	940 - 4000K - 90	1100	5030	GL - Gold
R1GAL04 - 4 CELL	14W	S - 16°	940 - 4000K - 90	1100	5030	HZ - Haze
R1GAL04 - 4 CELL	14W	S - 16°	940 - 4000K - 90	1100	5030	WT - White
R1GAL06 - 6 CELL	20W	F - 45°	927 - 2700K - 90	1560	2745	BK - Black
R1GAL06 - 6 CELL	20W	F - 45°	927 - 2700K - 90	1560	2745	CH - Chrome
R1GAL06 - 6 CELL	20W	F - 45°	927 - 2700K - 90	1560	2745	GL - Gold
R1GAL06 - 6 CELL	20W	F - 45°	927 - 2700K - 90	1560	2745	HZ - Haze
R1GAL06 - 6 CELL	20W	F - 45°	927 - 2700K - 90	1560	2745	WT - White
R1GAL06 - 6 CELL	20W	F - 45°	930 - 3000K - 90	1650	2890	BK - Black
R1GAL06 - 6 CELL	20W	F - 45°	930 - 3000K - 90	1650	2890	CH - Chrome
R1GAL06 - 6 CELL	20W	F - 45°	930 - 3000K - 90	1650	2890	GL - Gold
R1GAL06 - 6 CELL	20W	F - 45°	930 - 3000K - 90	1650	2890	HZ - Haze
R1GAL06 - 6 CELL	20W	F - 45°	930 - 3000K - 90	1650	2890	WT - White
R1GAL06 - 6 CELL	20W	F - 45°	935 - 3500K - 90	1730	3035	BK - Black
R1GAL06 - 6 CELL	20W	F - 45°	935 - 3500K - 90	1730	3035	CH - Chrome
R1GAL06 - 6 CELL	20W	F - 45°	935 - 3500K - 90	1730	3035	GL - Gold
R1GAL06 - 6 CELL	20W	F - 45°	935 - 3500K - 90	1730	3035	HZ - Haze
R1GAL06 - 6 CELL	20W	F - 45°	935 - 3500K - 90	1730	3035	WT - White
R1GAL06 - 6 CELL	20W	F - 45°	940 - 4000K - 90	1760	3090	BK - Black
R1GAL06 - 6 CELL	20W	F - 45°	940 - 4000K - 90	1760	3090	CH - Chrome
R1GAL06 - 6 CELL	20W	F - 45°	940 - 4000K - 90	1760	3090	GL - Gold
R1GAL06 - 6 CELL	20W	F - 45°	940 - 4000K - 90	1760	3090	HZ - Haze
R1GAL06 - 6 CELL	20W	F - 45°	940 - 4000K - 90	1760	3090	WT - White
R1GAL06 - 6 CELL	20W	N - 32°	927 - 2700K - 90	1560	3505	BK - Black
R1GAL06 - 6 CELL	20W	N - 32°	927 - 2700K - 90	1560	3505	CH - Chrome
R1GAL06 - 6 CELL	20W	N - 32°	927 - 2700K - 90	1560	3505	GL - Gold
R1GAL06 - 6 CELL	20W	N - 32°	927 - 2700K - 90	1560	3505	HZ - Haze
R1GAL06 - 6 CELL	20W	N - 32°	927 - 2700K - 90	1560	3505	WT - White
R1GAL06 - 6 CELL	20W	N - 32°	930 - 3000K - 90	1640	3685	BK - Black
R1GAL06 - 6 CELL	20W	N - 32°	930 - 3000K - 90	1640	3685	CH - Chrome
R1GAL06 - 6 CELL	20W	N - 32°	930 - 3000K - 90	1640	3685	GL - Gold
R1GAL06 - 6 CELL	20W	N - 32°	930 - 3000K - 90	1640	3685	HZ - Haze
R1GAL06 - 6 CELL	20W	N - 32°	930 - 3000K - 90	1640	3685	WT - White
R1GAL06 - 6 CELL	20W	N - 32°	935 - 3500K - 90	1720	3870	BK - Black
R1GAL06 - 6 CELL	20W	N - 32°	935 - 3500K - 90	1720	3870	CH - Chrome
R1GAL06 - 6 CELL	20W	N - 32°	935 - 3500K - 90	1720	3870	GL - Gold
R1GAL06 - 6 CELL	20W	N - 32°	935 - 3500K - 90	1720	3870	HZ - Haze
R1GAL06 - 6 CELL	20W	N - 32°	935 - 3500K - 90	1720	3870	WT - White
R1GAL06 - 6 CELL	20W	N - 32°	940 - 4000K - 90	1760	3945	BK - Black
R1GAL06 - 6 CELL	20W	N - 32°	940 - 4000K - 90	1760	3945	CH - Chrome
R1GAL06 - 6 CELL	20W	N - 32°	940 - 4000K - 90	1760	3945	GL - Gold
R1GAL06 - 6 CELL	20W	N - 32°	940 - 4000K - 90	1760	3945	HZ - Haze
R1GAL06 - 6 CELL	20W	N - 32°	940 - 4000K - 90	1760	3945	WT - White
R1GAL06 - 6 CELL	20W	S - 16°	927 - 2700K - 90	1530	6745	BK - Black
R1GAL06 - 6 CELL	20W	S - 16°	927 - 2700K - 90	1530	6745	CH - Chrome
R1GAL06 - 6 CELL	20W	S - 16°	927 - 2700K - 90	1530	6745	GL - Gold
R1GAL06 - 6 CELL	20W	S - 16°	927 - 2700K - 90	1530	6745	HZ - Haze
R1GAL06 - 6 CELL	20W	S - 16°	927 - 2700K - 90	1530	6745	WT - White
R1GAL06 - 6 CELL	20W	S - 16°	930 - 3000K - 90	1610	7100	BK - Black
R1GAL06 - 6 CELL	20W	S - 16°	930 - 3000K - 90	1610	7100	CH - Chrome
R1GAL06 - 6 CELL	20W	S - 16°	930 - 3000K - 90	1610	7100	GL - Gold
R1GAL06 - 6 CELL	20W	S - 16°	930 - 3000K - 90	1610	7100	HZ - Haze
R1GAL06 - 6 CELL	20W	S - 16°	930 - 3000K - 90	1610	7100	WT - White
R1GAL06 - 6 CELL	20W	S - 16°	935 - 3500K - 90	1690	7455	BK - Black
R1GAL06 - 6 CELL	20W	S - 16°	935 - 3500K - 90	1690	7455	CH - Chrome
R1GAL06 - 6 CELL	20W	S - 16°	935 - 3500K - 90	1690	7455	GL - Gold
R1GAL06 - 6 CELL	20W	S - 16°	935 - 3500K - 90	1690	7455	HZ - Haze
R1GAL06 - 6 CELL	20W	S - 16°	935 - 3500K - 90	1690	7455	WT - White
R1GAL06 - 6 CELL	20W	S - 16°	940 - 4000K - 90	1720	7595	BK - Black
R1GAL06 - 6 CELL	20W	S - 16°	940 - 4000K - 90	1720	7595	CH - Chrome
R1GAL06 - 6 CELL	20W	S - 16°	940 - 4000K - 90	1720	7595	GL - Gold
R1GAL06 - 6 CELL	20W	S - 16°	940 - 4000K - 90	1720	7595	HZ - Haze
R1GAL06 - 6 CELL	20W	S - 16°	940 - 4000K - 90	1720	7595	WT - White
R1GAL08 - 8 CELL	27W	F - 45°	927 - 2700K - 90	2100	3625	BK - Black
R1GAL08 - 8 CELL	27W	F - 45°	927 - 2700K - 90	2100	3625	CH - Chrome
R1GAL08 - 8 CELL	27W	F - 45°	927 - 2700K - 90	2100	3625	GL - Gold
R1GAL08 - 8 CELL	27W	F - 45°	927 - 2700K - 90	2100	3625	HZ - Haze
R1GAL08 - 8 CELL	27W	F - 45°	927 - 2700K - 90	2100	3625	WT - White
R1GAL08 - 8 CELL	27W	F - 45°	930 - 3000K - 90	2210	3815	BK - Black
R1GAL08 - 8 CELL	27W	F - 45°	930 - 3000K - 90	2210	3815	CH - Chrome
R1GAL08 - 8 CELL	27W	F - 45°	930 - 3000K - 90	2210	3815	GL - Gold
R1GAL08 - 8 CELL	27W	F - 45°	930 - 3000K - 90	2210	3815	HZ - Haze
R1GAL08 - 8 CELL	27W	F - 45°	930 - 3000K - 90	2210	3815	WT - White
R1GAL08 - 8 CELL	27W	F - 45°	935 - 3500K - 90	2320	4005	BK - Black
R1GAL08 - 8 CELL	27W	F - 45°	935 - 3500K - 90	2320	4005	CH - Chrome
R1GAL08 - 8 CELL	27W	F - 45°	935 - 3500K - 90	2320	4005	GL - Gold
R1GAL08 - 8 CELL	27W	F - 45°	935 - 3500K - 90	2320	4005	HZ - Haze
R1GAL08 - 8 CELL	27W	F - 45°	935 - 3500K - 90	2320	4005	WT - White
R1GAL08 - 8 CELL	27W	F - 45°	940 - 4000K - 90	2370	4080	BK - Black
R1GAL08 - 8 CELL	27W	F - 45°	940 - 4000K - 90	2370	4080	CH - Chrome
R1GAL08 - 8 CELL	27W	F - 45°	940 - 4000K - 90	2370	4080	GL - Gold
R1GAL08 - 8 CELL	27W	F - 45°	940 - 4000K - 90	2370	4080	HZ - Haze
R1GAL08 - 8 CELL	27W	F - 45°	940 - 4000K - 90	2370	4080	WT - White
R1GAL08 - 8 CELL	27W	N - 32°	927 - 2700K - 90	2120	4925	BK - Black
R1GAL08 - 8 CELL	27W	N - 32°	927 - 2700K - 90	2120	4925	CH - Chrome
R1GAL08 - 8 CELL	27W	N - 32°	927 - 2700K - 90	2120	4925	GL - Gold
R1GAL08 - 8 CELL	27W	N - 32°	927 - 2700K - 90	2120	4925	HZ - Haze
R1GAL08 - 8 CELL	27W	N - 32°	927 - 2700K - 90	2120	4925	WT - White
R1GAL08 - 8 CELL	27W	N - 32°	930 - 3000K - 90	2230	5180	BK - Black
R1GAL08 - 8 CELL	27W	N - 32°	930 - 3000K - 90	2230	5180	CH - Chrome
R1GAL08 - 8 CELL	27W	N - 32°	930 - 3000K - 90	2230	5180	GL - Gold
R1GAL08 - 8 CELL	27W	N - 32°	930 - 3000K - 90	2230	5180	HZ - Haze
R1GAL08 - 8 CELL	27W	N - 32°	930 - 3000K - 90	2230	5180	WT - White
R1GAL08 - 8 CELL	27W	N - 32°	935 - 3500K - 90	2340	5440	BK - Black
R1GAL08 - 8 CELL	27W	N - 32°	935 - 3500K - 90	2340	5440	CH - Chrome
R1GAL08 - 8 CELL	27W	N - 32°	935 - 3500K - 90	2340	5440	GL - Gold
R1GAL08 - 8 CELL	27W	N - 32°	935 - 3500K - 90	2340	5440	HZ - Haze
R1GAL08 - 8 CELL	27W	N - 32°	935 - 3500K - 90	2340	5440	WT - White
R1GAL08 - 8 CELL	27W	N - 32°	940 - 4000K - 90	2390	5545	BK - Black
R1GAL08 - 8 CELL	27W	N - 32°	940 - 4000K - 90	2390	5545	CH - Chrome
R1GAL08 - 8 CELL	27W	N - 32°	940 - 4000K - 90	2390	5545	GL - Gold
R1GAL08 - 8 CELL	27W	N - 32°	940 - 4000K - 90	2390	5545	HZ - Haze
R1GAL08 - 8 CELL	27W	N - 32°	940 - 4000K - 90	2390	5545	WT - White
R1GAL08 - 8 CELL	27W	S - 16°	927 - 2700K - 90	2090	9410	BK - Black
R1GAL08 - 8 CELL	27W	S - 16°	927 - 2700K - 90	2090	9410	CH - Chrome
R1GAL08 - 8 CELL	27W	S - 16°	927 - 2700K - 90	2090	9410	GL - Gold
R1GAL08 - 8 CELL	27W	S - 16°	927 - 2700K - 90	2090	9410	HZ - Haze
R1GAL08 - 8 CELL	27W	S - 16°	927 - 2700K - 90	2090	9410	WT - White
R1GAL08 - 8 CELL	27W	S - 16°	930 - 3000K - 90	2200	9905	BK - Black
R1GAL08 - 8 CELL	27W	S - 16°	930 - 3000K - 90	2200	9905	CH - Chrome
R1GAL08 - 8 CELL	27W	S - 16°	930 - 3000K - 90	2200	9905	GL - Gold
R1GAL08 - 8 CELL	27W	S - 16°	930 - 3000K - 90	2200	9905	HZ - Haze
R1GAL08 - 8 CELL	27W	S - 16°	930 - 3000K - 90	2200	9905	WT - White
R1GAL08 - 8 CELL	27W	S - 16°	935 - 3500K - 90	2310	10400	BK - Black
R1GAL08 - 8 CELL	27W	S - 16°	935 - 3500K - 90	2310	10400	CH - Chrome
R1GAL08 - 8 CELL	27W	S - 16°	935 - 3500K - 90	2310	10400	GL - Gold
R1GAL08 - 8 CELL	27W	S - 16°	935 - 3500K - 90	2310	10400	HZ - Haze
R1GAL08 - 8 CELL	27W	S - 16°	935 - 3500K - 90	2310	10400	WT - White
R1GAL08 - 8 CELL	27W	S - 16°	940 - 4000K - 90	2350	10600	BK - Black
R1GAL08 - 8 CELL	27W	S - 16°	940 - 4000K - 90	2350	10600	CH - Chrome
R1GAL08 - 8 CELL	27W	S - 16°	940 - 4000K - 90	2350	10600	GL - Gold
R1GAL08 - 8 CELL	27W	S - 16°	940 - 4000K - 90	2350	10600	HZ - Haze
R1GAL08 - 8 CELL	27W	S - 16°	940 - 4000K - 90	2350	10600	WT - White
R1GAL12 - 12 CELL	38W	F - 45°	927 - 2700K - 90	3170	5390	BK - Black
R1GAL12 - 12 CELL	38W	F - 45°	927 - 2700K - 90	3170	5390	CH - Chrome
R1GAL12 - 12 CELL	38W	F - 45°	927 - 2700K - 90	3170	5390	GL - Gold
R1GAL12 - 12 CELL	38W	F - 45°	927 - 2700K - 90	3170	5390	HZ - Haze
R1GAL12 - 12 CELL	38W	F - 45°	927 - 2700K - 90	3170	5390	WT - White
R1GAL12 - 12 CELL	38W	F - 45°	930 - 3000K - 90	3340	5675	BK - Black
R1GAL12 - 12 CELL	38W	F - 45°	930 - 3000K - 90	3340	5675	CH - Chrome
R1GAL12 - 12 CELL	38W	F - 45°	930 - 3000K - 90	3340	5675	GL - Gold
R1GAL12 - 12 CELL	38W	F - 45°	930 - 3000K - 90	3340	5675	HZ - Haze
R1GAL12 - 12 CELL	38W	F - 45°	930 - 3000K - 90	3340	5675	WT - White
R1GAL12 - 12 CELL	38W	F - 45°	935 - 3500K - 90	3500	5960	BK - Black
R1GAL12 - 12 CELL	38W	F - 45°	935 - 3500K - 90	3500	5960	CH - Chrome
R1GAL12 - 12 CELL	38W	F - 45°	935 - 3500K - 90	3500	5960	GL - Gold
R1GAL12 - 12 CELL	38W	F - 45°	935 - 3500K - 90	3500	5960	HZ - Haze
R1GAL12 - 12 CELL	38W	F - 45°	935 - 3500K - 90	3500	5960	WT - White
R1GAL12 - 12 CELL	38W	F - 45°	940 - 4000K - 90	3570	6070	BK - Black
R1GAL12 - 12 CELL	38W	F - 45°	940 - 4000K - 90	3570	6070	CH - Chrome
R1GAL12 - 12 CELL	38W	F - 45°	940 - 4000K - 90	3570	6070	GL - Gold
R1GAL12 - 12 CELL	38W	F - 45°	940 - 4000K - 90	3570	6070	HZ - Haze
R1GAL12 - 12 CELL	38W	F - 45°	940 - 4000K - 90	3570	6070	WT - White
R1GAL12 - 12 CELL	38W	N - 32°	927 - 2700K - 90	3190	7230	BK - Black
R1GAL12 - 12 CELL	38W	N - 32°	927 - 2700K - 90	3190	7230	CH - Chrome
R1GAL12 - 12 CELL	38W	N - 32°	927 - 2700K - 90	3190	7230	GL - Gold
R1GAL12 - 12 CELL	38W	N - 32°	927 - 2700K - 90	3190	7230	HZ - Haze
R1GAL12 - 12 CELL	38W	N - 32°	927 - 2700K - 90	3190	7230	WT - White
R1GAL12 - 12 CELL	38W	N - 32°	930 - 3000K - 90	3360	7610	BK - Black
R1GAL12 - 12 CELL	38W	N - 32°	930 - 3000K - 90	3360	7610	CH - Chrome
R1GAL12 - 12 CELL	38W	N - 32°	930 - 3000K - 90	3360	7610	GL - Gold
R1GAL12 - 12 CELL	38W	N - 32°	930 - 3000K - 90	3360	7610	HZ - Haze
R1GAL12 - 12 CELL	38W	N - 32°	930 - 3000K - 90	3360	7610	WT - White
R1GAL12 - 12 CELL	38W	N - 32°	935 - 3500K - 90	3520	7990	BK - Black
R1GAL12 - 12 CELL	38W	N - 32°	935 - 3500K - 90	3520	7990	CH - Chrome
R1GAL12 - 12 CELL	38W	N - 32°	935 - 3500K - 90	3520	7990	GL - Gold
R1GAL12 - 12 CELL	38W	N - 32°	935 - 3500K - 90	3520	7990	HZ - Haze
R1GAL12 - 12 CELL	38W	N - 32°	935 - 3500K - 90	3520	7990	WT - White
R1GAL12 - 12 CELL	38W	N - 32°	940 - 4000K - 90	3590	8140	BK - Black
R1GAL12 - 12 CELL	38W	N - 32°	940 - 4000K - 90	3590	8140	CH - Chrome
R1GAL12 - 12 CELL	38W	N - 32°	940 - 4000K - 90	3590	8140	GL - Gold
R1GAL12 - 12 CELL	38W	N - 32°	940 - 4000K - 90	3590	8140	HZ - Haze
R1GAL12 - 12 CELL	38W	N - 32°	940 - 4000K - 90	3590	8140	WT - White
R1GAL12 - 12 CELL	38W	S - 16°	927 - 2700K - 90	3100	13365	BK - Black
R1GAL12 - 12 CELL	38W	S - 16°	927 - 2700K - 90	3100	13365	CH - Chrome
R1GAL12 - 12 CELL	38W	S - 16°	927 - 2700K - 90	3100	13365	GL - Gold
R1GAL12 - 12 CELL	38W	S - 16°	927 - 2700K - 90	3100	13365	HZ - Haze
R1GAL12 - 12 CELL	38W	S - 16°	927 - 2700K - 90	3100	13365	WT - White
R1GAL12 - 12 CELL	38W	S - 16°	930 - 3000K - 90	3270	14070	BK - Black
R1GAL12 - 12 CELL	38W	S - 16°	930 - 3000K - 90	3270	14070	CH - Chrome
R1GAL12 - 12 CELL	38W	S - 16°	930 - 3000K - 90	3270	14070	GL - Gold
R1GAL12 - 12 CELL	38W	S - 16°	930 - 3000K - 90	3270	14070	HZ - Haze
R1GAL12 - 12 CELL	38W	S - 16°	930 - 3000K - 90	3270	14070	WT - White
R1GAL12 - 12 CELL	38W	S - 16°	935 - 3500K - 90	3430	14770	BK - Black
R1GAL12 - 12 CELL	38W	S - 16°	935 - 3500K - 90	3430	14770	CH - Chrome
R1GAL12 - 12 CELL	38W	S - 16°	935 - 3500K - 90	3430	14770	GL - Gold
R1GAL12 - 12 CELL	38W	S - 16°	935 - 3500K - 90	3430	14770	HZ - Haze
R1GAL12 - 12 CELL	38W	S - 16°	935 - 3500K - 90	3430	14770	WT - White
R1GAL12 - 12 CELL	38W	S - 16°	940 - 4000K - 90	3490	15055	BK - Black
R1GAL12 - 12 CELL	38W	S - 16°	940 - 4000K - 90	3490	15055	CH - Chrome
R1GAL12 - 12 CELL	38W	S - 16°	940 - 4000K - 90	3490	15055	GL - Gold
R1GAL12 - 12 CELL	38W	S - 16°	940 - 4000K - 90	3490	15055	HZ - Haze
R1GAL12 - 12 CELL	38W	S - 16°	940 - 4000K - 90	3490	15055	WT - White

Features

Delivered Lumens: Up to 3590lm
CBCP: Up to 15055
CCT: 2700K, 3000K, 3500K, 4000K
CRI: 90
Power: 8W, 14W, 20W, 27W, 38W
Rated Life: 50000 Hours
Construction: Extruded aluminum with injection molded low glare bevel
Available in 2, 4, 6, 8, and 12 cell configurations
Bi-directional 35° vertical hot aiming
Indexed vertical scaling for precision alignment
Low glare multi-cell bevel with 40° cutoff angle
Interchangeable bevel available in 5 finishes
Compatible with R1GNLA new construction housing
Tool-less push mechanism secures trimless body to new construction housing
Refer to housing instructions for appropriate ceiling cutout dimensions

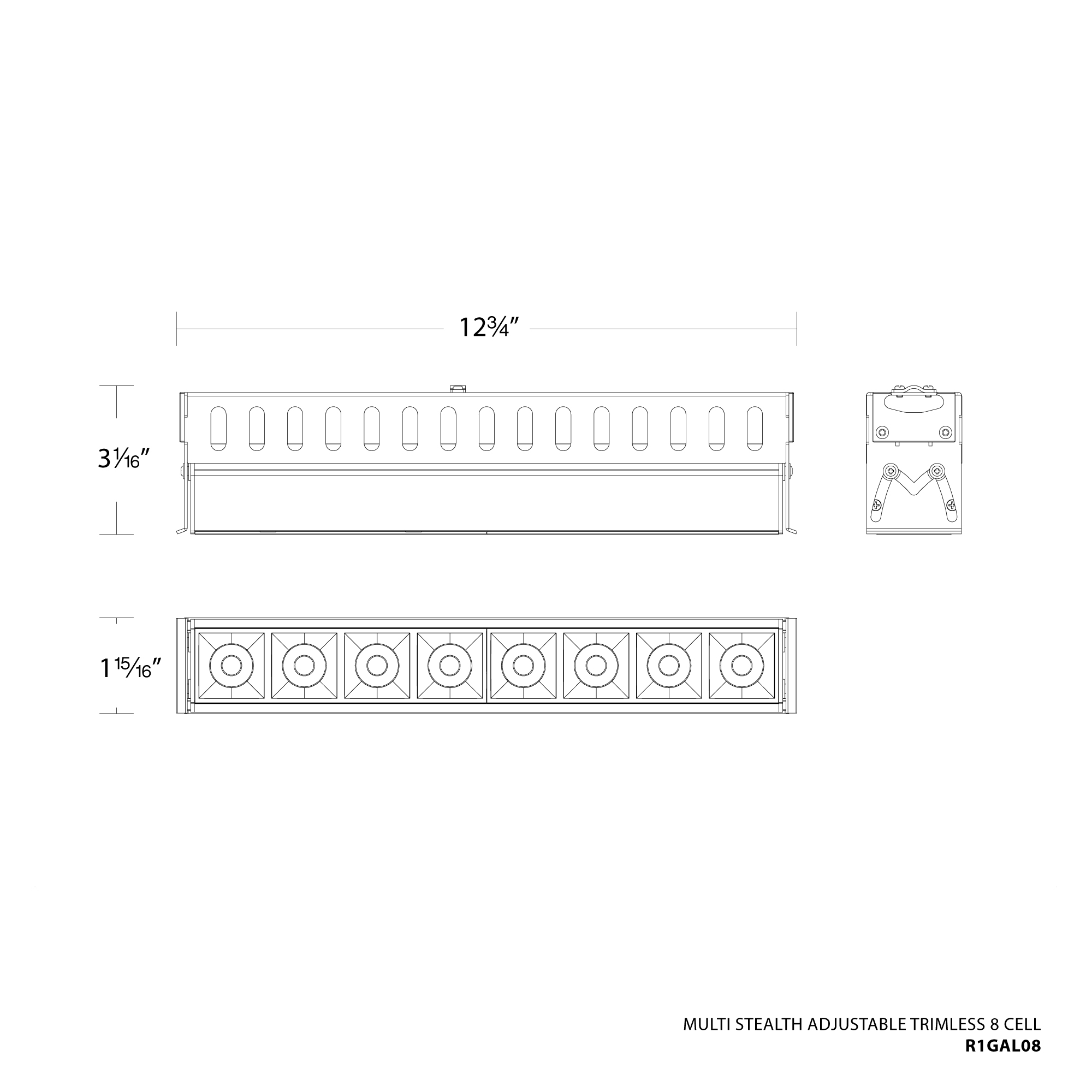

Line Drawing

WACLighting.com Line Drawing

WACLighting.com Line Drawing

WACLighting.com Line Drawing

WACLighting.com Line Drawing

WACLighting.com Line Drawing

Components

Multi Stealth
New Construction Adjustable Housing Trimless
