Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WSW120610 - 10" | 2700K/3000K/3500K/4000K | BK - Black | 10W | 80 | 72 |

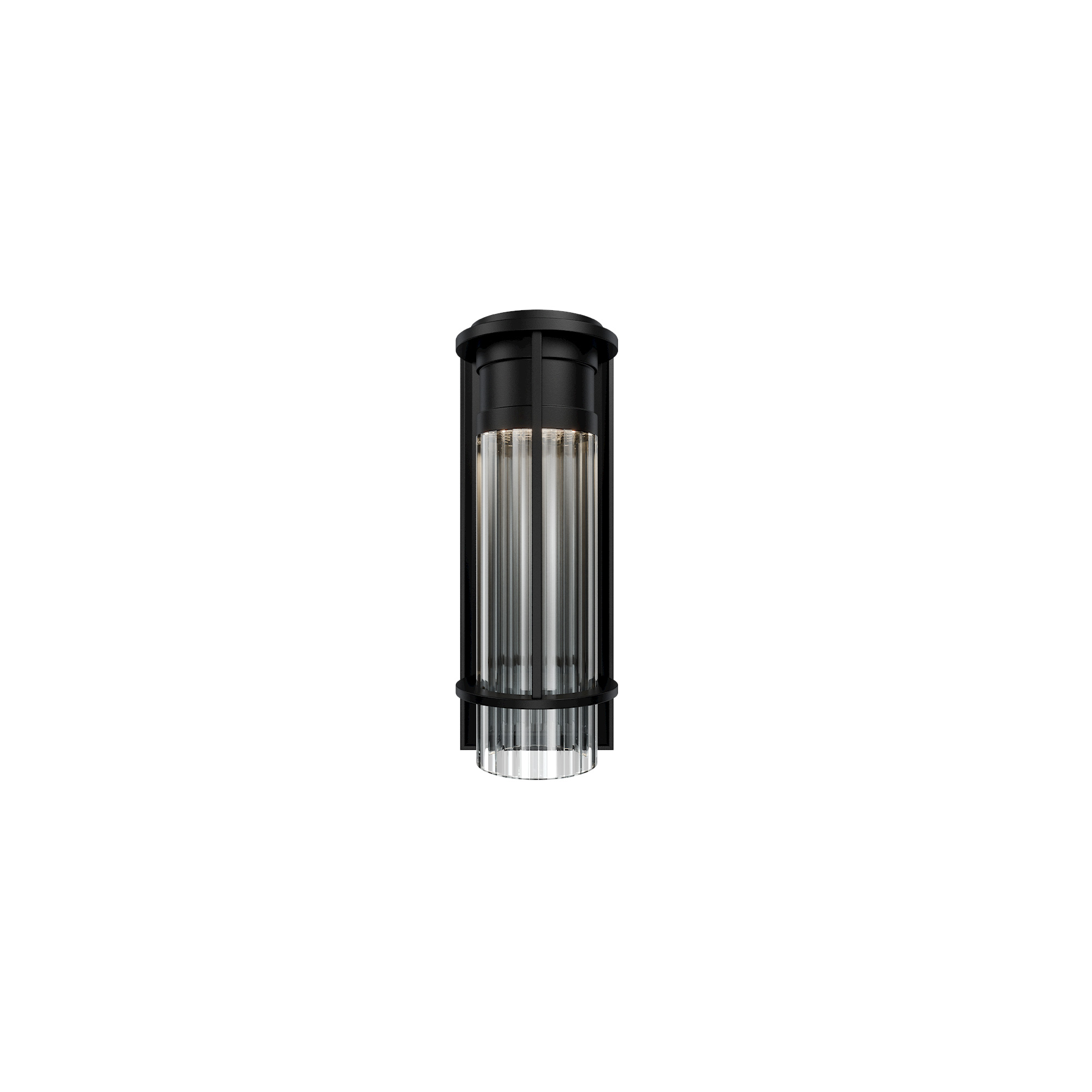

| WSW120616 - 16" | 2700K/3000K/3500K/4000K | BK - Black | 15W | 148 | 133 |
| WSW120624 - 24" | 2700K/3000K/3500K/4000K | BK - Black | 21.5W | 198 | 178 |
Features
- Delivered Lumens: Up to 178lm
- CCT: 2700K/3000K/3500K/4000K
- CRI: 90
- Power: 10W, 15W, 21.5W
- Input: 120V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours

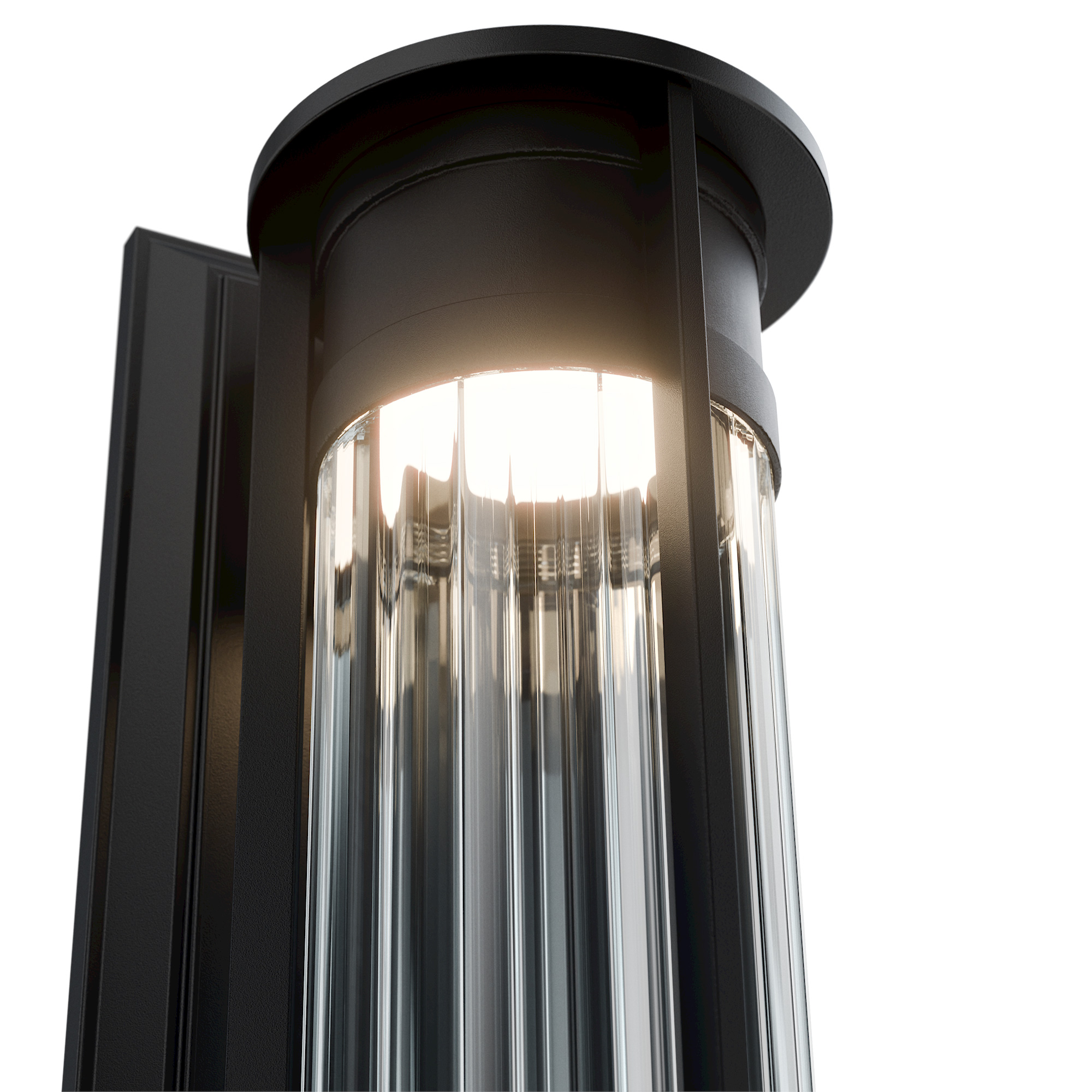

- Construction: Aluminum body with glass diffuser
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
- Weather resistant powder coated finishes
- Light engine is factory sealed for maximum protection from the elements
- ACLED driverless technology
- ACLED driverless technology

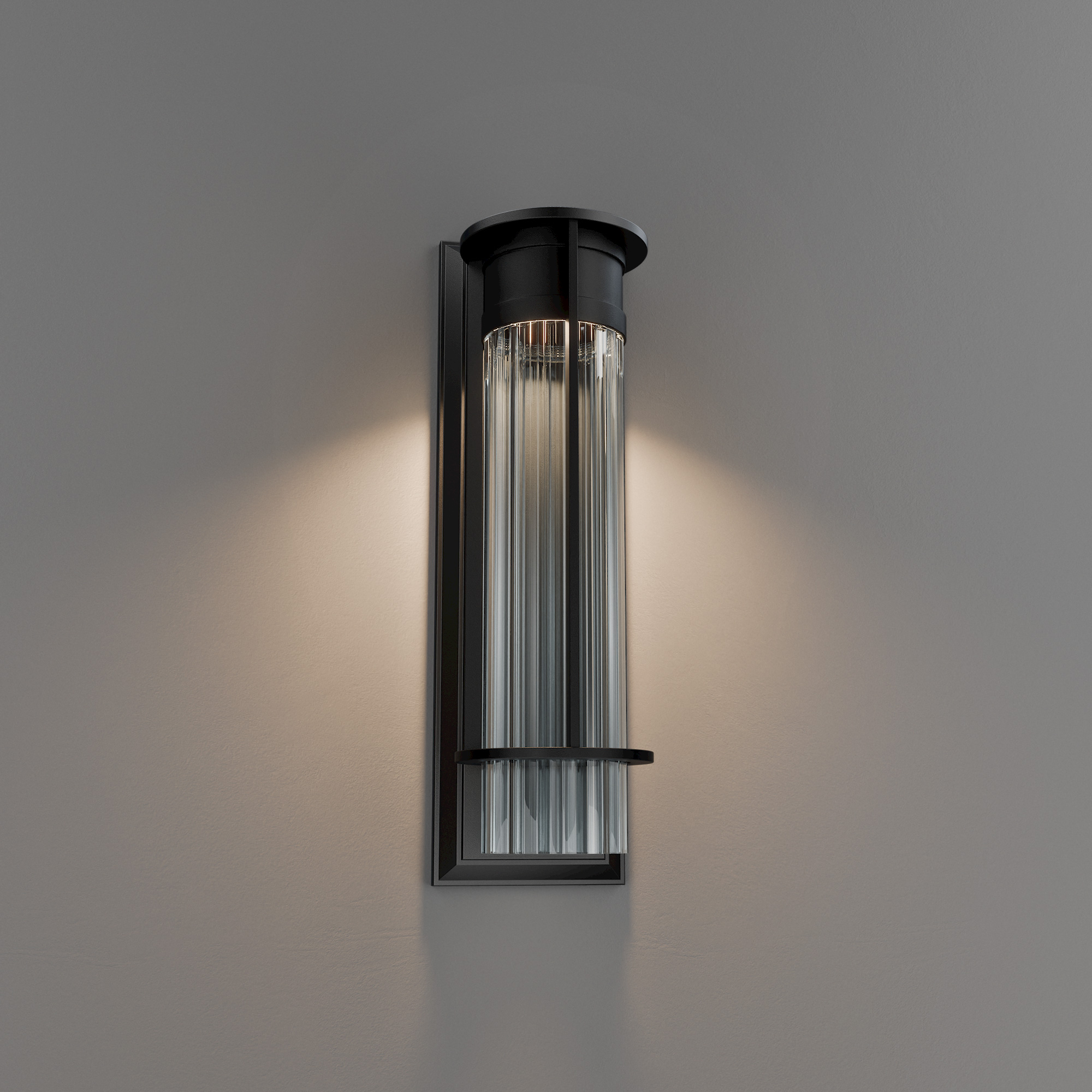

- Can be mounted on wall vertically or horizontally
Line Drawing
