Specifications
Order Number:
| model & size | color temp & cri | lumens | finish |
|---|---|---|---|
| TK-260501 - 1 Light | 2700K/3000K/3500K/4000K/5000K - 90 | 770 | BK - Black |
| TK-260501 - 1 Light | 2700K/3000K/3500K/4000K/5000K - 90 | 770 | BN - Brushed Nickel |
| TK-260501 - 1 Light | 2700K/3000K/3500K/4000K/5000K - 90 | 770 | WT - White |
Features
- Delivered Lumens: 770lm
- CBCP: 805
- CCT: 2700K/3000K/3500K/4000K/5000K
- CRI: 90
- Power: 10W
- Input: 120 VAC, 50/60Hz
- ELV Dimming: 100-5%
- TRIAC Dimming: 100-5%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum
- Multiple LED array for uniform illumination
- 5CCT Switch hidden in canopy for a clean aesthetic
- Driver concealed within the fixture
- Can be mounted on ceiling or wall in all orientations

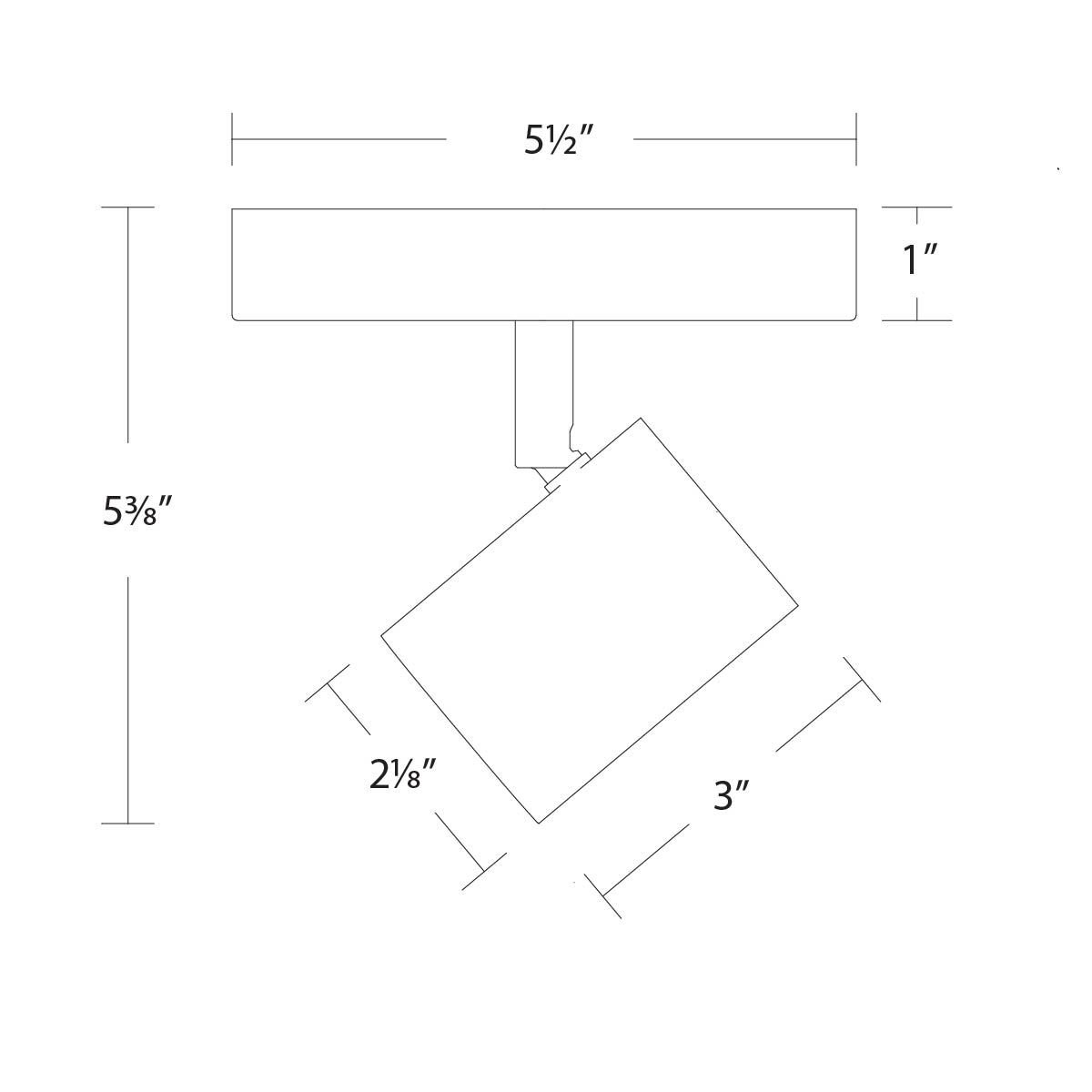

Line Drawing
