Specifications
Order Number:
| model | beam | color temp & cri | lumens | cbcp | finish |
|---|---|---|---|---|---|
| R4DRDN2 | F - 45° | 9CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1000 | 1093 | BK - Black |
| R4DRDN2 | F - 45° | 9CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1000 | 1093 | WT - White |
Features
- Delivered Lumens: 1000lm
- CBCP: 1093
- CCT: 2700K/3000K/3500K/4000K/5000K
- CRI: 90
- Power: 12W
- Input: 120-277 VAC, 50/60Hz
- IC Rated, Airtight
- ELV Dimming: 100-5%
- TRIAC Dimming: 100-5%
- Rated Life: 50000 Hours
- Construction: Die-cast Aluminum
- 5-CCT Switchable between 2700K and 5000K
- Remote driver box allows easy installation into shallow plenums
- Sold as new construction, may be configured in field for remodel
- Driver included

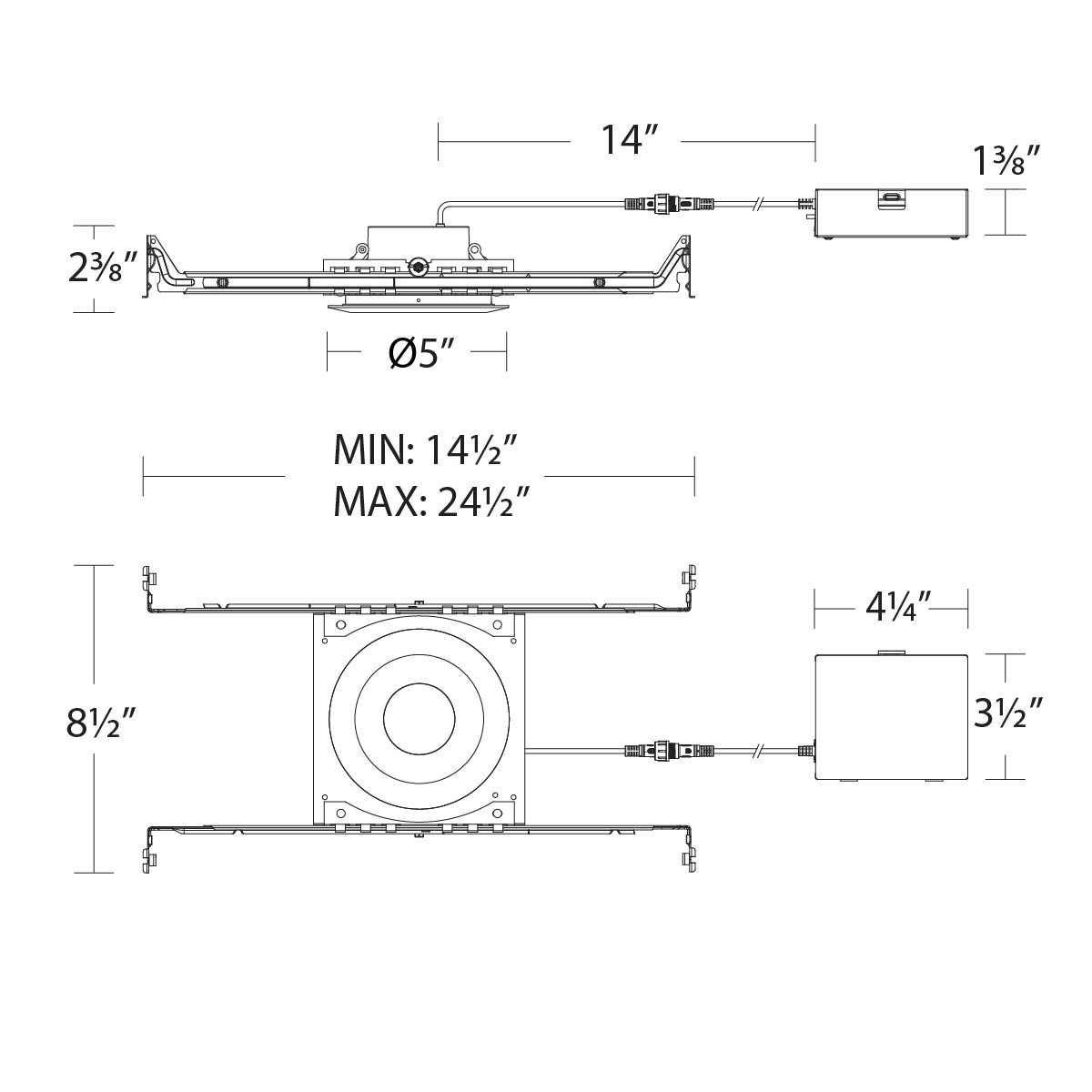

Line Drawing
