Specifications
Retired
Order Number:
| model | beam | color temp & cri | lumens | cbcp | finish |
|---|---|---|---|---|---|
| R4DSDR | F - 45° | 930 - 3000K - 90 | 1035 | 1390 | WT - White |
Features
- Delivered Lumens: 1035lm
- CBCP: 1390
- CCT: 3000K
- CRI: 90
- Power: 12W
- Input: 120-277 VAC, 50/60Hz
- IC Rated, Airtight
- ELV Dimming: 100-5%
- TRIAC Dimming: 100-5%
- Construction: Die-cast Aluminum with 20-gauge Cold Rolled Steel Junction Box
- Electrical box located on back of fixture to allow easy installation
- Sold as remodel, but new construction frame available
- Driver concealed within the fixture

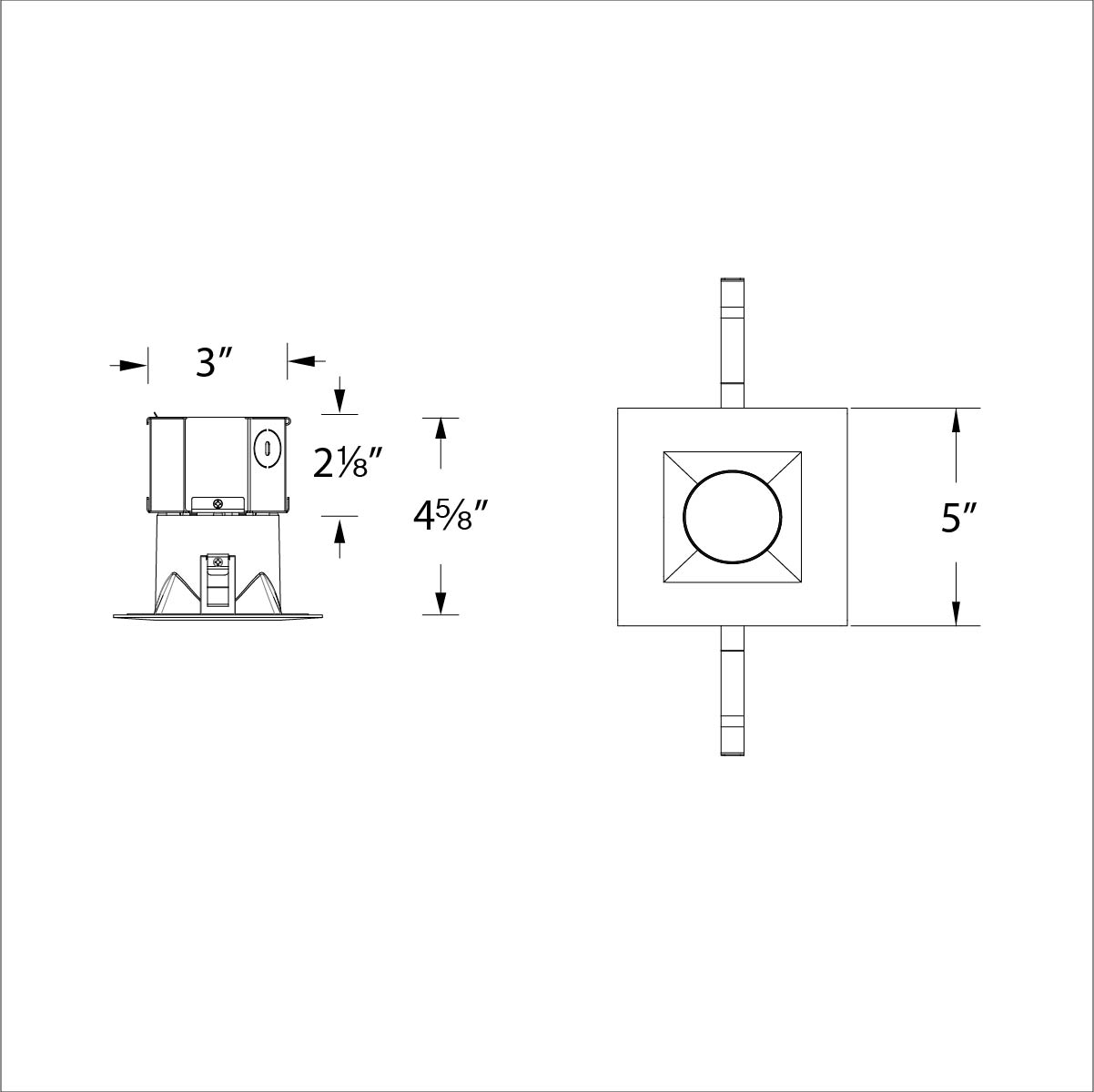

Line Drawing
