Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WSW118618 - 18" | 2700K/3000K/3500K/4000K | BK - Black | 15W | 674 | 572 |
| WSW118625 - 25" | 2700K/3000K/3500K/4000K | BK - Black | 20W | 1131 | 961 |
Features
- Delivered Lumens: Up to 961lm
- CCT: 2700K/3000K/3500K/4000K
- CRI: 90
- Power: 15W, 20W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with glass diffuser
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
- Driver concealed within the canopy
- Available in aged brass finish for indoor
- Light engine is factory sealed for maximum protection from the elements
- Weather resistant powder coated finishes
- Can be mounted on ceiling or wall vertically

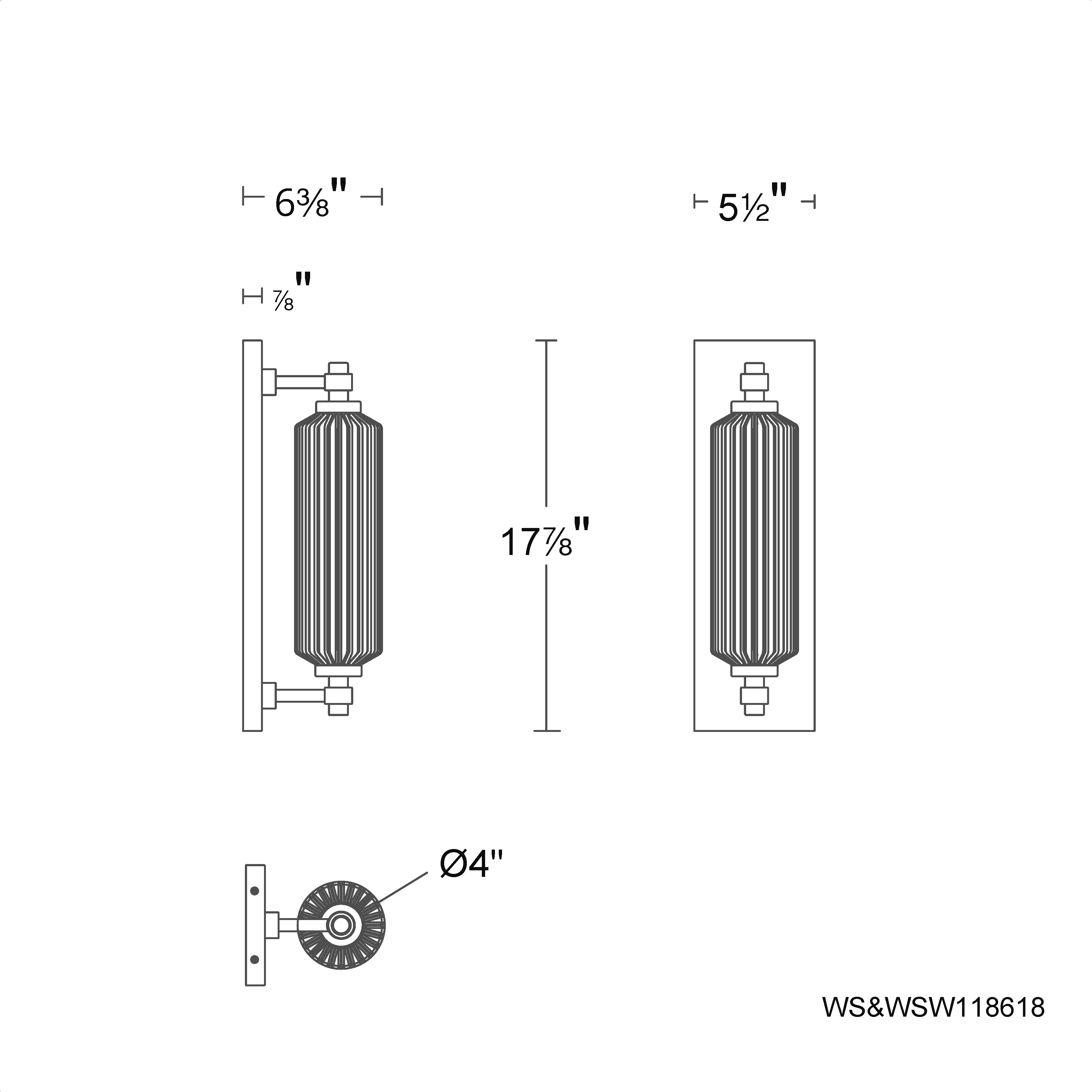

Line Drawing
