Specifications
Order Number:
| system type & voltage | model | color temp & cri | lumens | cbcp | finish |
|---|---|---|---|---|---|
| H - 120 VAC | 1210 | 927 - 2700K - 90 | 20°: 340 / 35°: 330 | 20°: 3305 / 35°: 1330 | BK - Black |
| H - 120 VAC | 1210 | 927 - 2700K - 90 | 20°: 340 / 35°: 330 | 20°: 3305 / 35°: 1330 | WT - White |
| H - 120 VAC | 1210 | 930 - 3000K - 90 | 20°: 350 / 35°: 345 | 20°: 3435 / 35°: 1380 | BK - Black |
| H - 120 VAC | 1210 | 930 - 3000K - 90 | 20°: 350 / 35°: 345 | 20°: 3435 / 35°: 1380 | WT - White |
| H - 120 VAC | 1210 | 935 - 3500K - 90 | 20°: 375 / 35°: 365 | 20°: 3645 / 35°: 1465 | BK - Black |
| H - 120 VAC | 1210 | 935 - 3500K - 90 | 20°: 375 / 35°: 365 | 20°: 3645 / 35°: 1465 | WT - White |
| H - 120 VAC | 1210 | 940 - 4000K - 90 | 20°: 380 / 35°: 375 | 20°: 3720 / 35°: 1500 | BK - Black |
| H - 120 VAC | 1210 | 940 - 4000K - 90 | 20°: 380 / 35°: 375 | 20°: 3720 / 35°: 1500 | WT - White |
| J - 120 VAC | 1210 | 927 - 2700K - 90 | 20°: 340 / 35°: 330 | 20°: 3305 / 35°: 1330 | BK - Black |
| J - 120 VAC | 1210 | 927 - 2700K - 90 | 20°: 340 / 35°: 330 | 20°: 3305 / 35°: 1330 | WT - White |
| J - 120 VAC | 1210 | 930 - 3000K - 90 | 20°: 350 / 35°: 345 | 20°: 3435 / 35°: 1380 | BK - Black |
| J - 120 VAC | 1210 | 930 - 3000K - 90 | 20°: 350 / 35°: 345 | 20°: 3435 / 35°: 1380 | WT - White |
| J - 120 VAC | 1210 | 935 - 3500K - 90 | 20°: 375 / 35°: 365 | 20°: 3645 / 35°: 1465 | BK - Black |
| J - 120 VAC | 1210 | 935 - 3500K - 90 | 20°: 375 / 35°: 365 | 20°: 3645 / 35°: 1465 | WT - White |
| J - 120 VAC | 1210 | 940 - 4000K - 90 | 20°: 380 / 35°: 375 | 20°: 3720 / 35°: 1500 | BK - Black |
| J - 120 VAC | 1210 | 940 - 4000K - 90 | 20°: 380 / 35°: 375 | 20°: 3720 / 35°: 1500 | WT - White |
| L - 120 VAC | 1210 | 927 - 2700K - 90 | 20°: 340 / 35°: 330 | 20°: 3305 / 35°: 1330 | BK - Black |
| L - 120 VAC | 1210 | 927 - 2700K - 90 | 20°: 340 / 35°: 330 | 20°: 3305 / 35°: 1330 | WT - White |
| L - 120 VAC | 1210 | 930 - 3000K - 90 | 20°: 350 / 35°: 345 | 20°: 3435 / 35°: 1380 | BK - Black |
| L - 120 VAC | 1210 | 930 - 3000K - 90 | 20°: 350 / 35°: 345 | 20°: 3435 / 35°: 1380 | WT - White |
| L - 120 VAC | 1210 | 935 - 3500K - 90 | 20°: 375 / 35°: 365 | 20°: 3645 / 35°: 1465 | BK - Black |
| L - 120 VAC | 1210 | 935 - 3500K - 90 | 20°: 375 / 35°: 365 | 20°: 3645 / 35°: 1465 | WT - White |
| L - 120 VAC | 1210 | 940 - 4000K - 90 | 20°: 380 / 35°: 375 | 20°: 3720 / 35°: 1500 | BK - Black |
| L - 120 VAC | 1210 | 940 - 4000K - 90 | 20°: 380 / 35°: 375 | 20°: 3720 / 35°: 1500 | WT - White |
Features
- Delivered Lumens: Up to 380lm
- CBCP: Up to 3720
- CCT: 2700K, 3000K, 3500K, 4000K
- CRI: 90
- Power: 12W
- Input: 120 VAC, 50/60Hz
- ELV Dimming: 100-1%
- TRIAC Dimming: 100-1%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum
- Precise, high definition zoomable projection
- Stealth armature with 360° horizontal rotation and 90° vertical aiming
- Accepts one glass or metal gobo
- Custom gobo size: Outside Diameter 19.5mm, Thickness ≤ 2.5mm, Image Size ≤ 14.5mm
- Driver concealed within the fixture

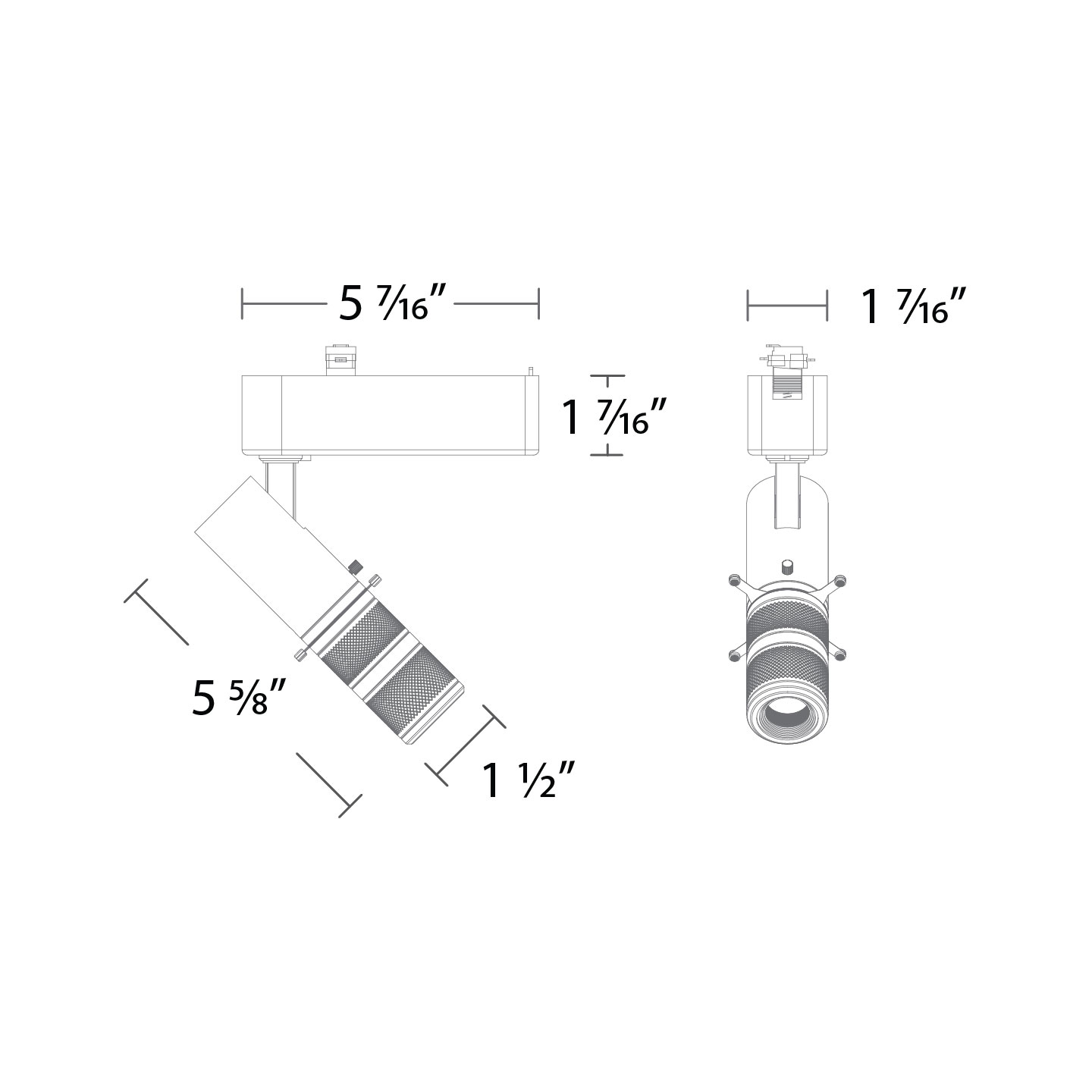

Line Drawing
