Step Light with Photocell

Specifications

Order Number:
model & voltage color temp & cri lumens finish
WL-LED102 - 120 VAC 3000K - 90 65 BK - Black on Aluminum
WL-LED102 - 120 VAC 3000K - 90 65 BN - Brush Nickel on Aluminum
WL-LED102 - 120 VAC 3000K - 90 65 BZ - Bronze on Aluminum
WL-LED102 - 120 VAC 3000K - 90 65 SS - Stainless Steel
WL-LED102 - 120 VAC 3000K - 90 65 WT - White on Aluminum
WL-LED102 - 120 VAC Amber 65 BK - Black on Aluminum
WL-LED102 - 120 VAC Amber 65 BN - Brush Nickel on Aluminum
WL-LED102 - 120 VAC Amber 65 BZ - Bronze on Aluminum
WL-LED102 - 120 VAC Amber 65 SS - Stainless Steel
WL-LED102 - 120 VAC Amber 65 WT - White on Aluminum

Features

  • CCT: 3000K, Amber
  • CRI: 90
  • Power: 2W
  • Input: 120 VAC, 50/60Hz
  • Rated Life: 54000 Hours
  • Construction: Corrosion resistant aluminum alloy
  • Options in die-cast brass or 316 marine-grade stainless steel
  • Fits into 2"×4" J-Box with minimum inside dimensions of 3"×2"×2"
  • No driver needed
  • No heat radiation
  • Low profile, flush to wall aesthetics with no visible hardware
  • Balanced lighting, free of shadows with minimum glare
  • Integrated photocell for energy saving
  • Driver concealed within the fixture

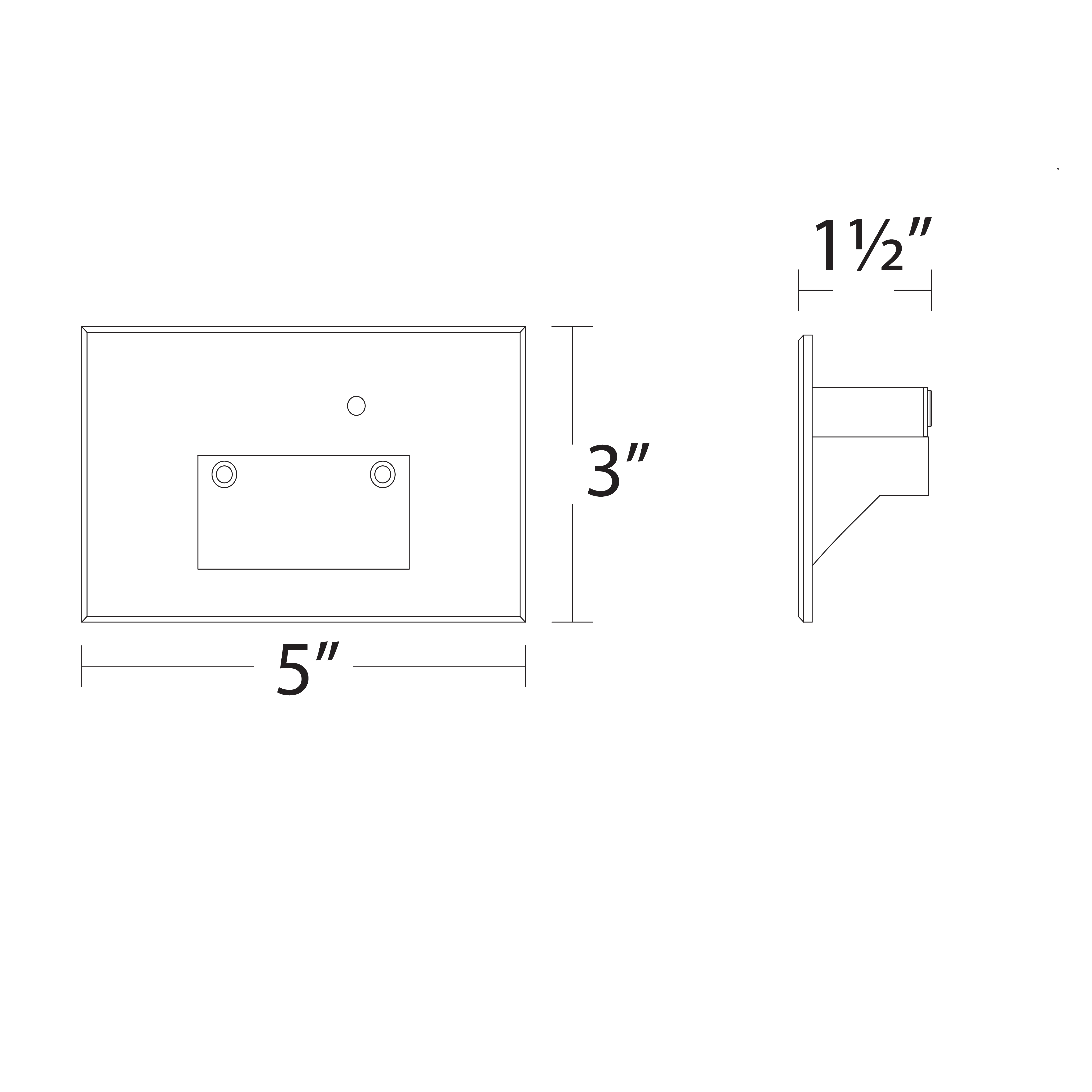

Line Drawing
