Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|

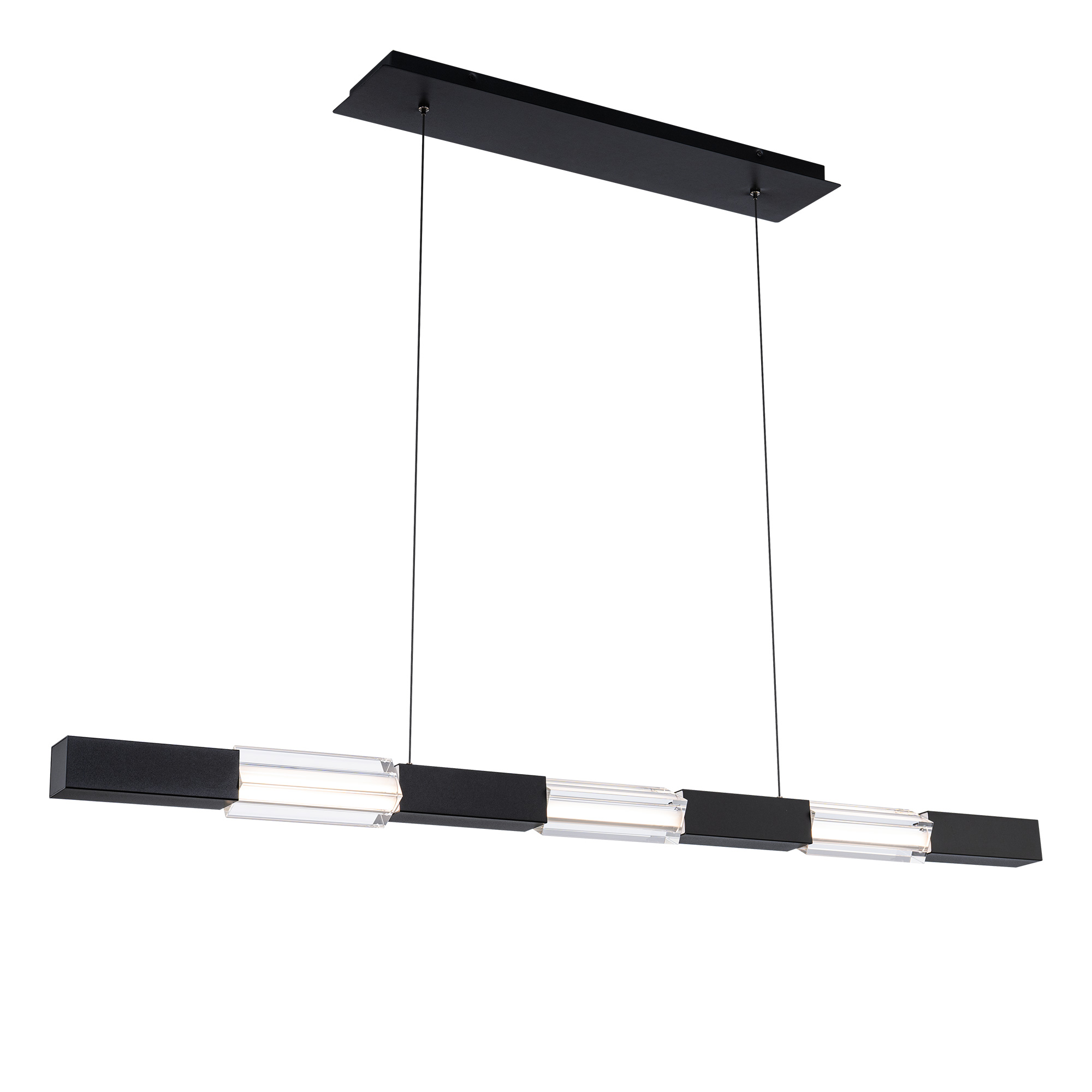

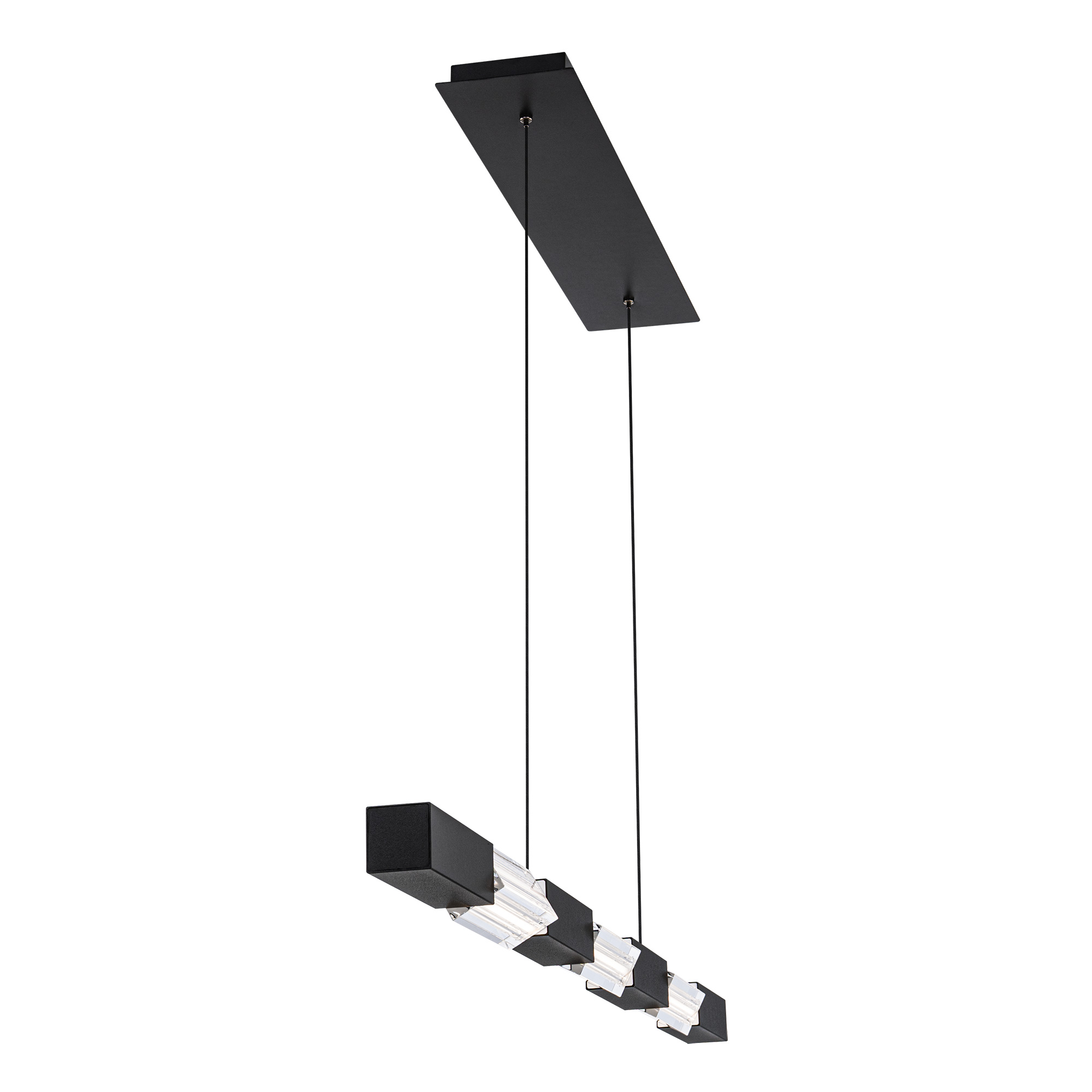

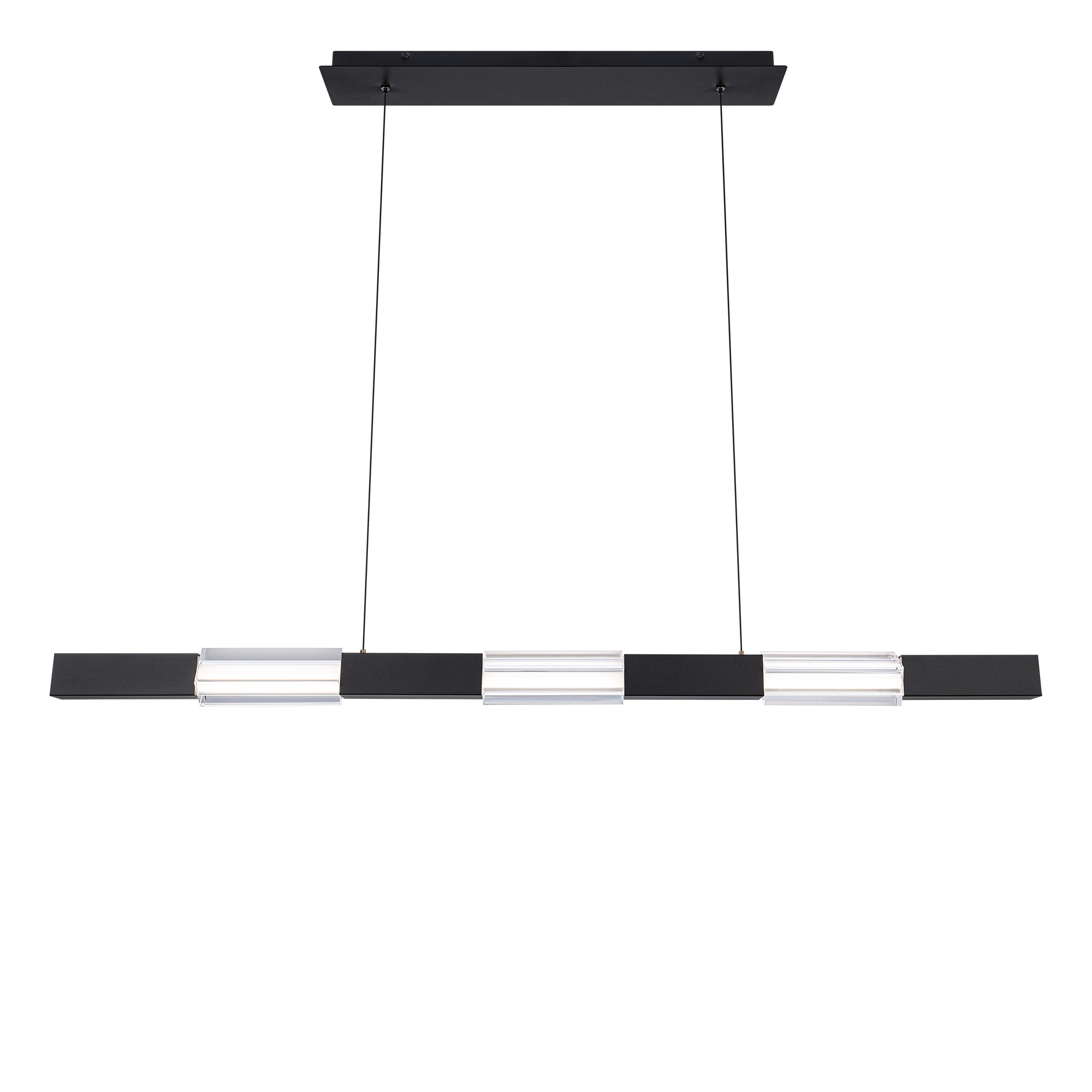

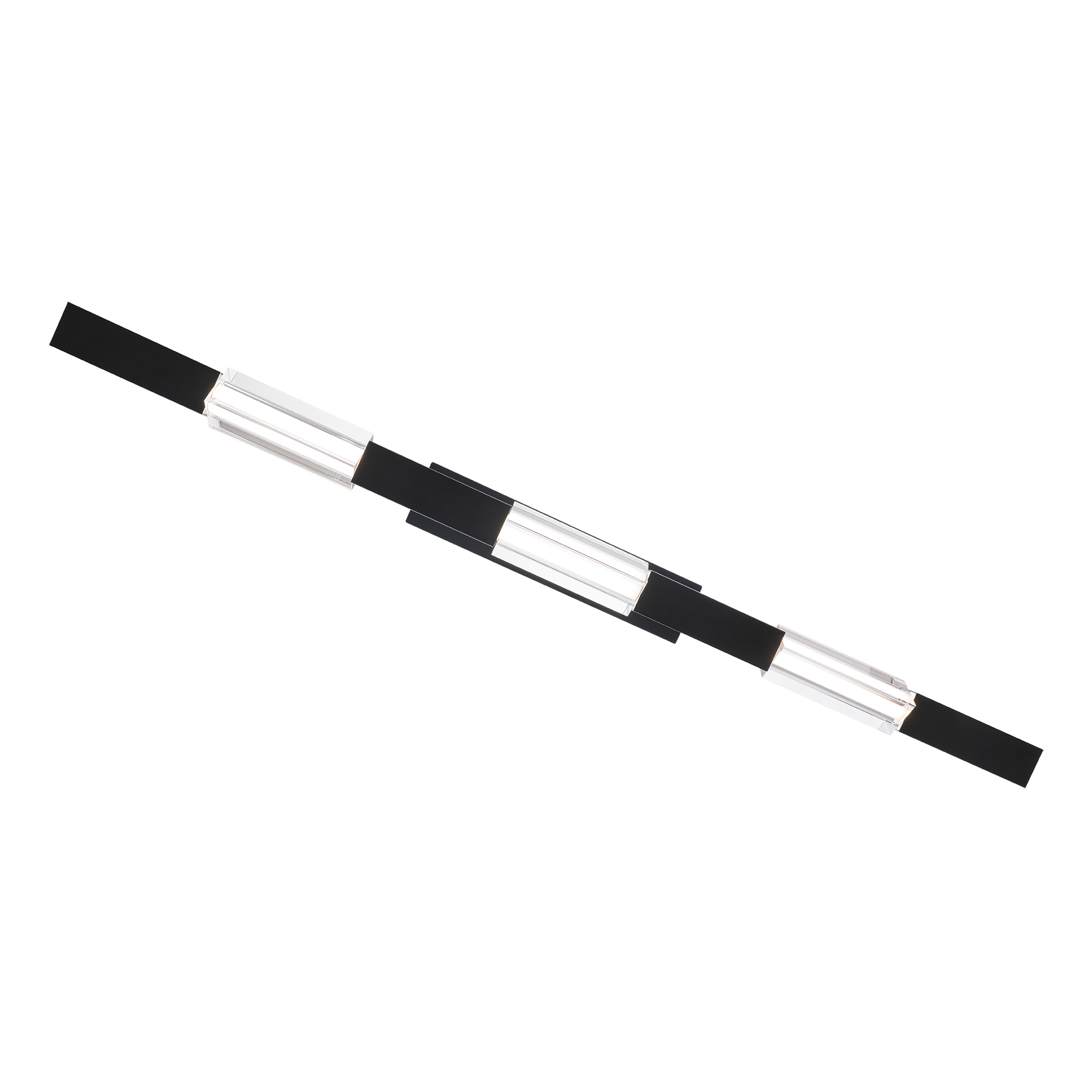

| PD-15547 - 47" | 3000K/3500K/4000K/5000K | BK - Black | 22.4W | 2000 | 1699 |

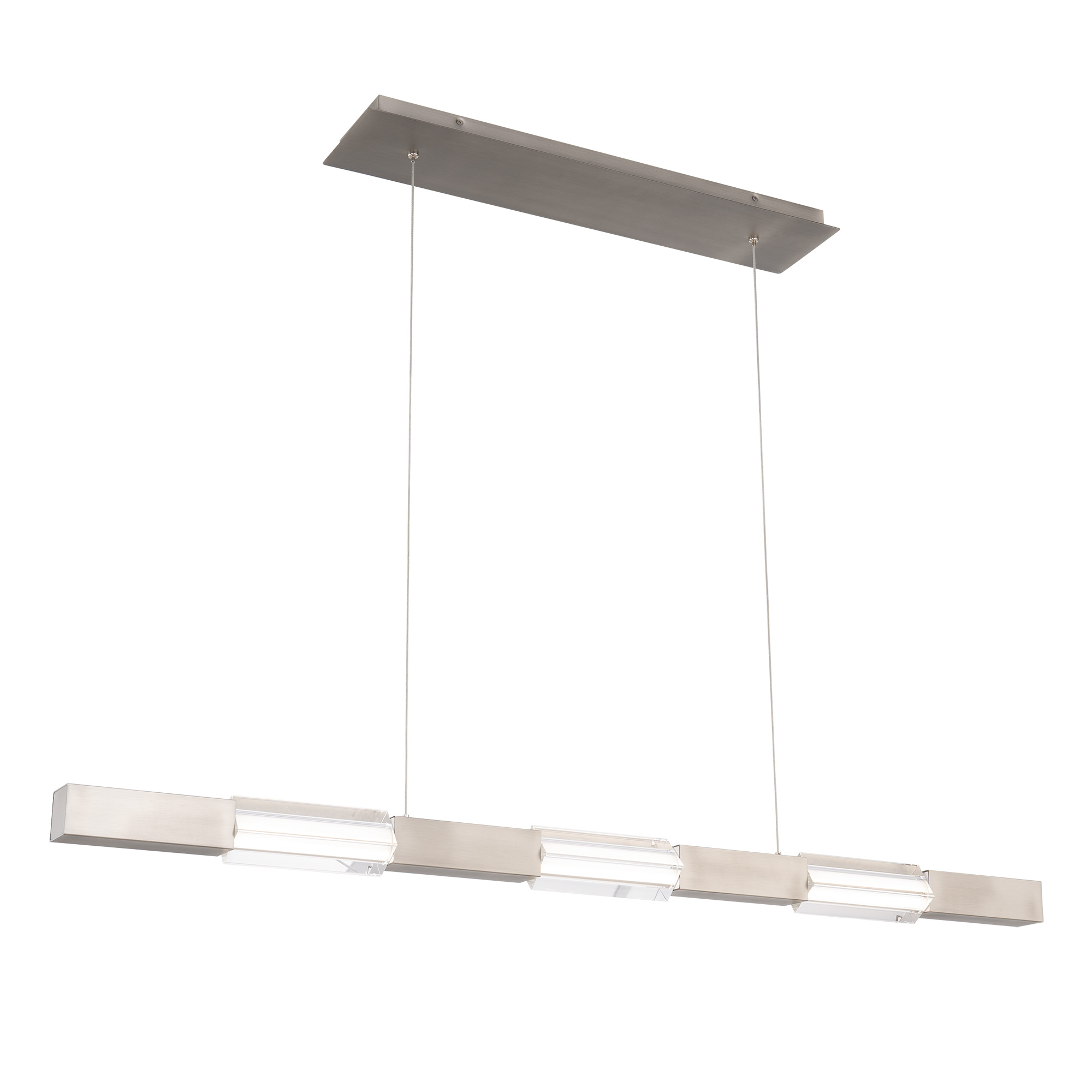

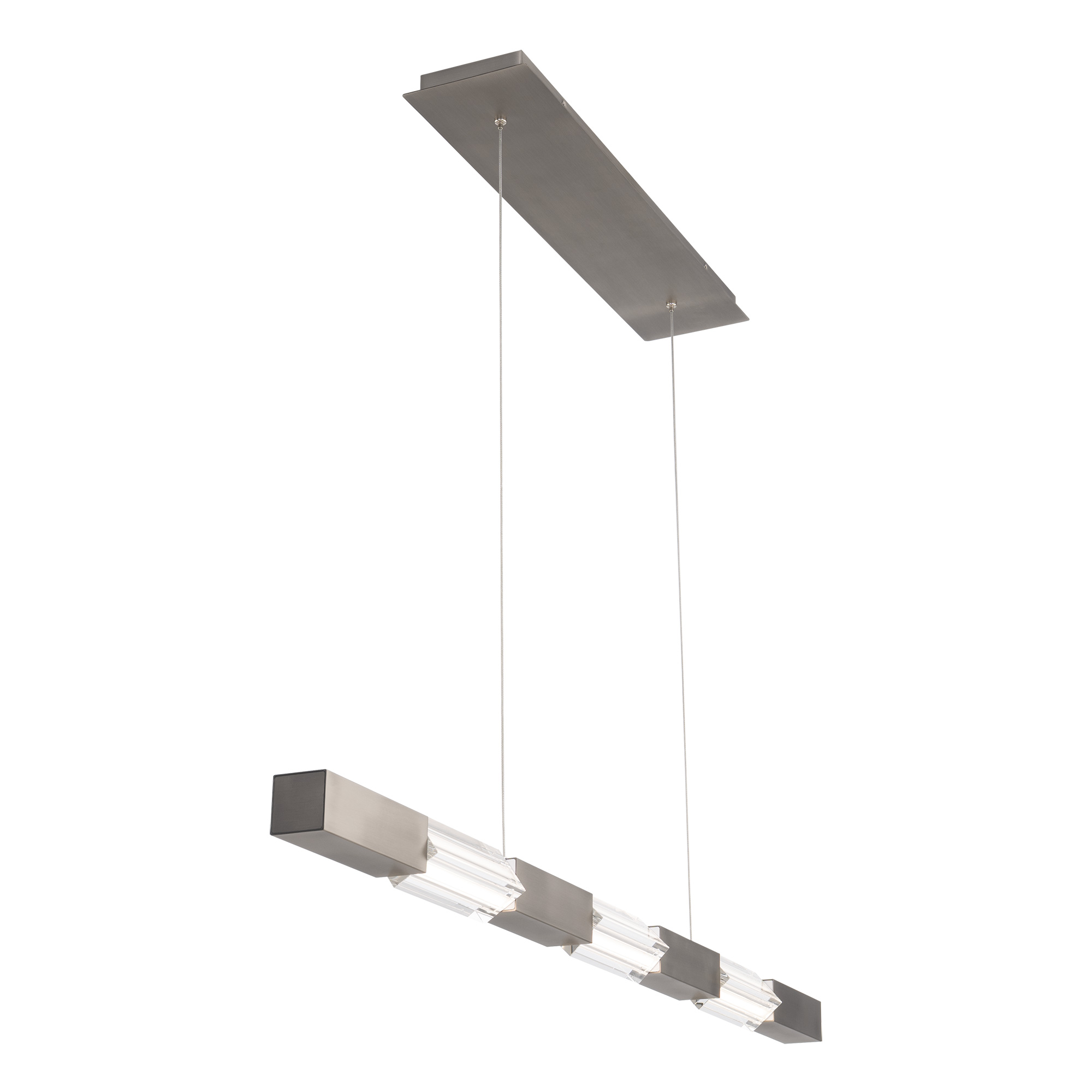

| PD-15547 - 47" | 3000K/3500K/4000K/5000K | BN - Brushed Nickel | 22.4W | 2000 | 1699 |
| PD-15560 - 60" | 3000K/3500K/4000K/5000K | BK - Black | 29.1W | 2200 | 2023 |

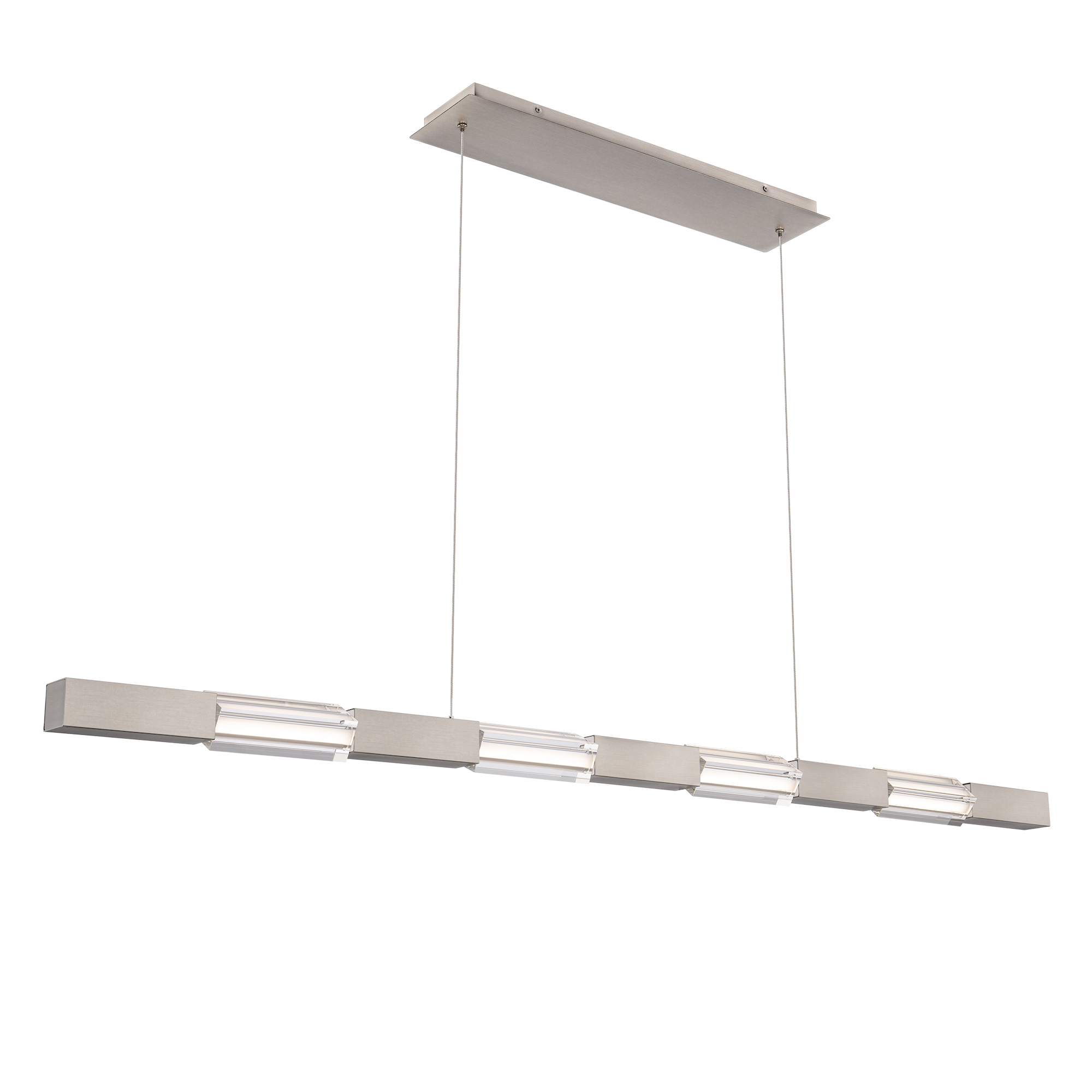

| PD-15560 - 60" | 3000K/3500K/4000K/5000K | BN - Brushed Nickel | 29.1W | 2200 | 2023 |
Features
- Delivered Lumens: Up to 2023lm
- CCT: 3000K/3500K/4000K/5000K
- CRI: 90
- Power: 22.4W, 29.1W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- 0-10V Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with K5 crystal
- Built in color temperature adjustability. Switch from 3000K/3500K/4000K/5000K
- Option to pre-select color temperature or adjust in the field
- Rotatable K5 Crystal

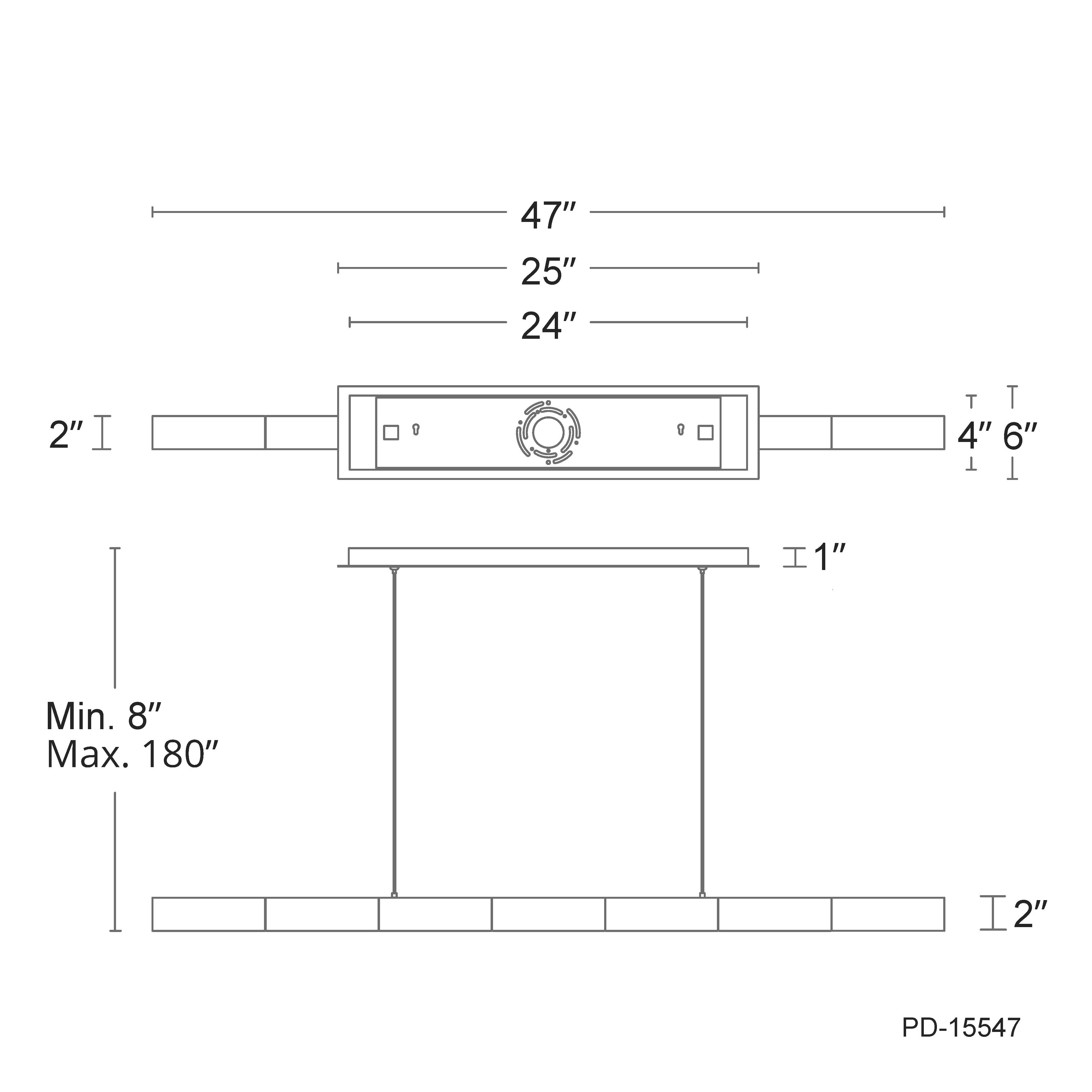

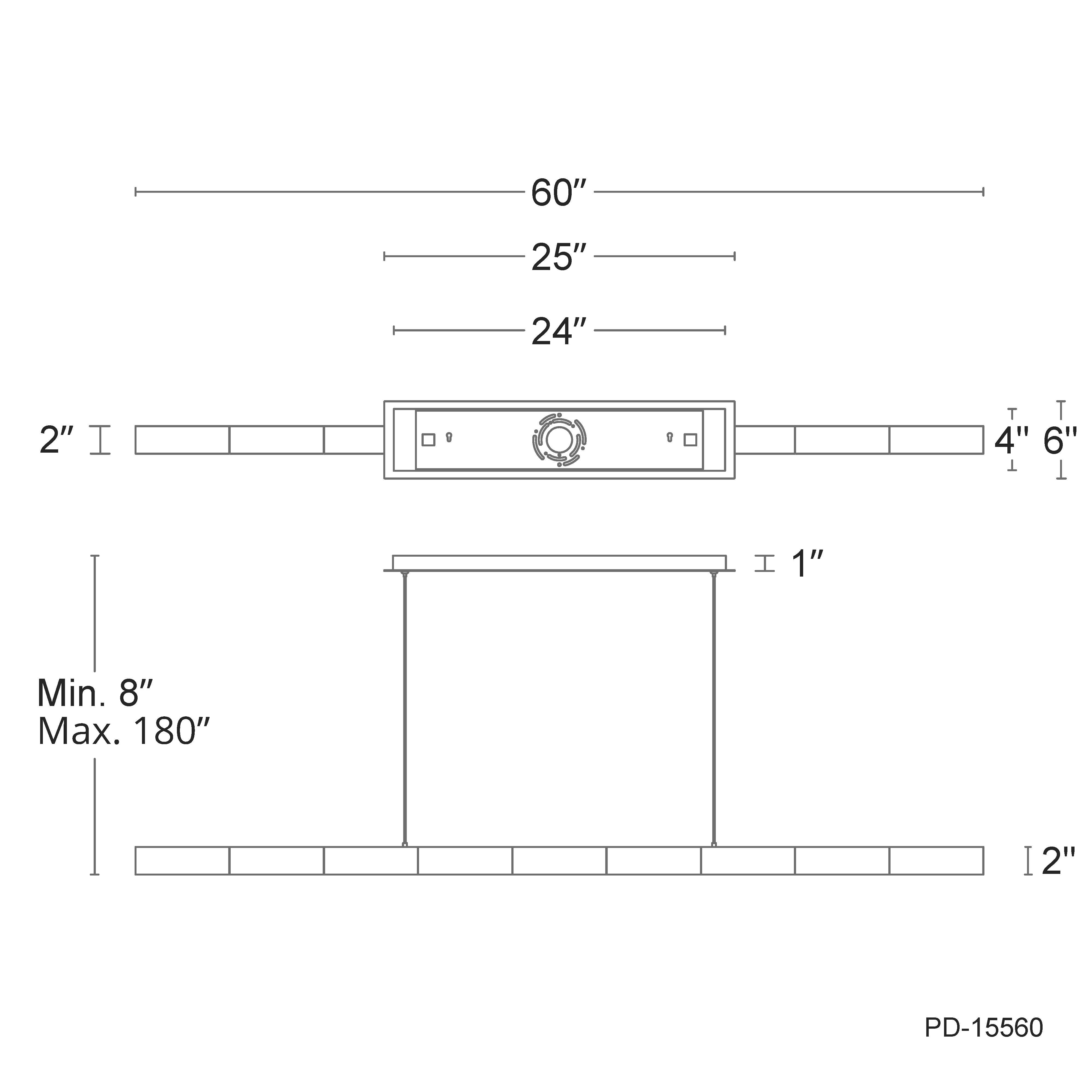

Line Drawing
