Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| PD407609 - 9" | 2700K/3000K/3500K/4000K | BKAM - Black | 11W | 765 | 395 |

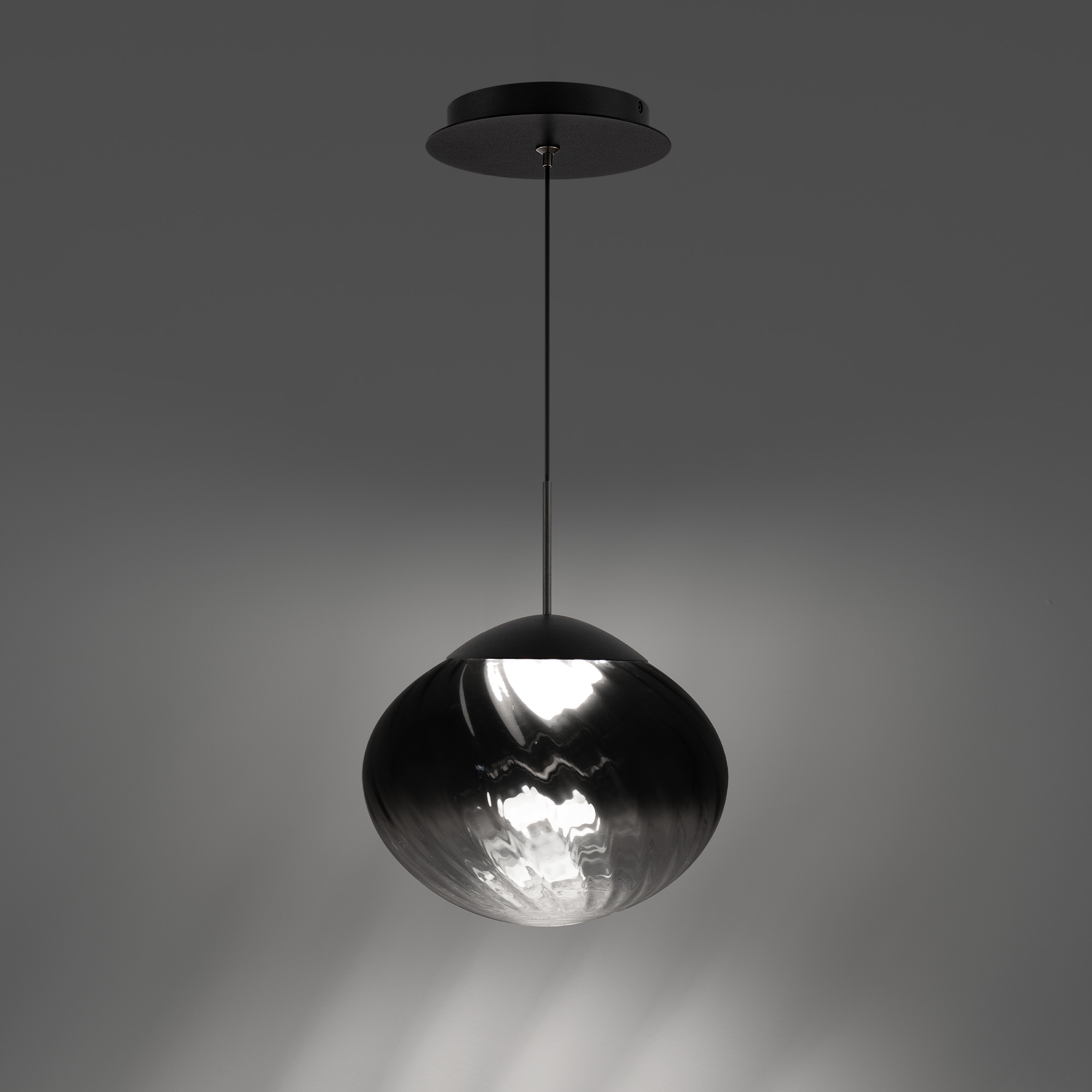

| PD407609 - 9" | 2700K/3000K/3500K/4000K | BKSM - Black | 11W | 765 | 395 |

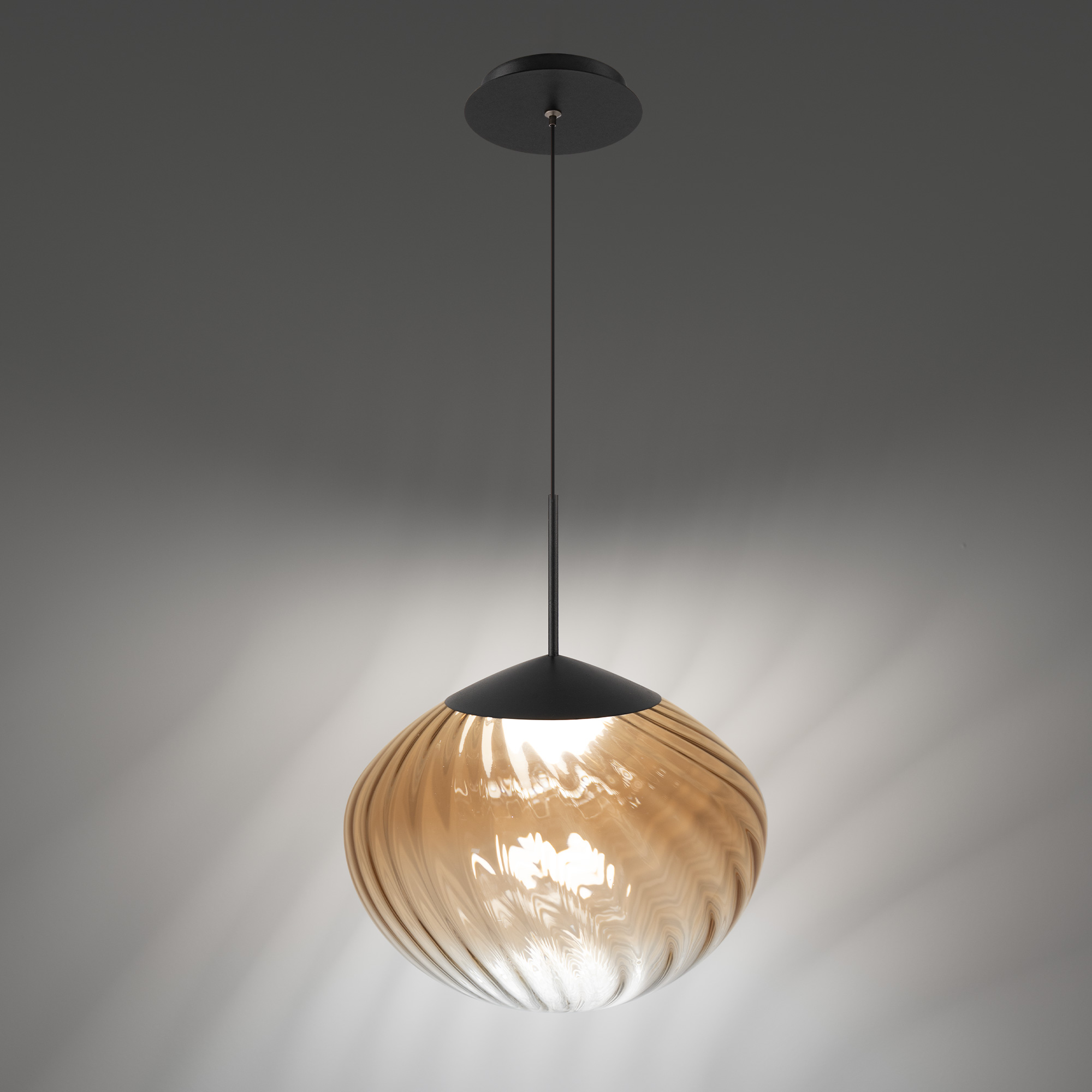

| PD407614 - 14" | 2700K/3000K/3500K/4000K | BKAM - Black | 12W | 794 | 488 |
| PD407614 - 14" | 2700K/3000K/3500K/4000K | BKSM - Black | 12W | 794 | 488 |
Features
- Delivered Lumens: Up to 488lm
- CCT: 2700K/3000K/3500K/4000K
- CRI: 90
- Power: 11W, 12W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours

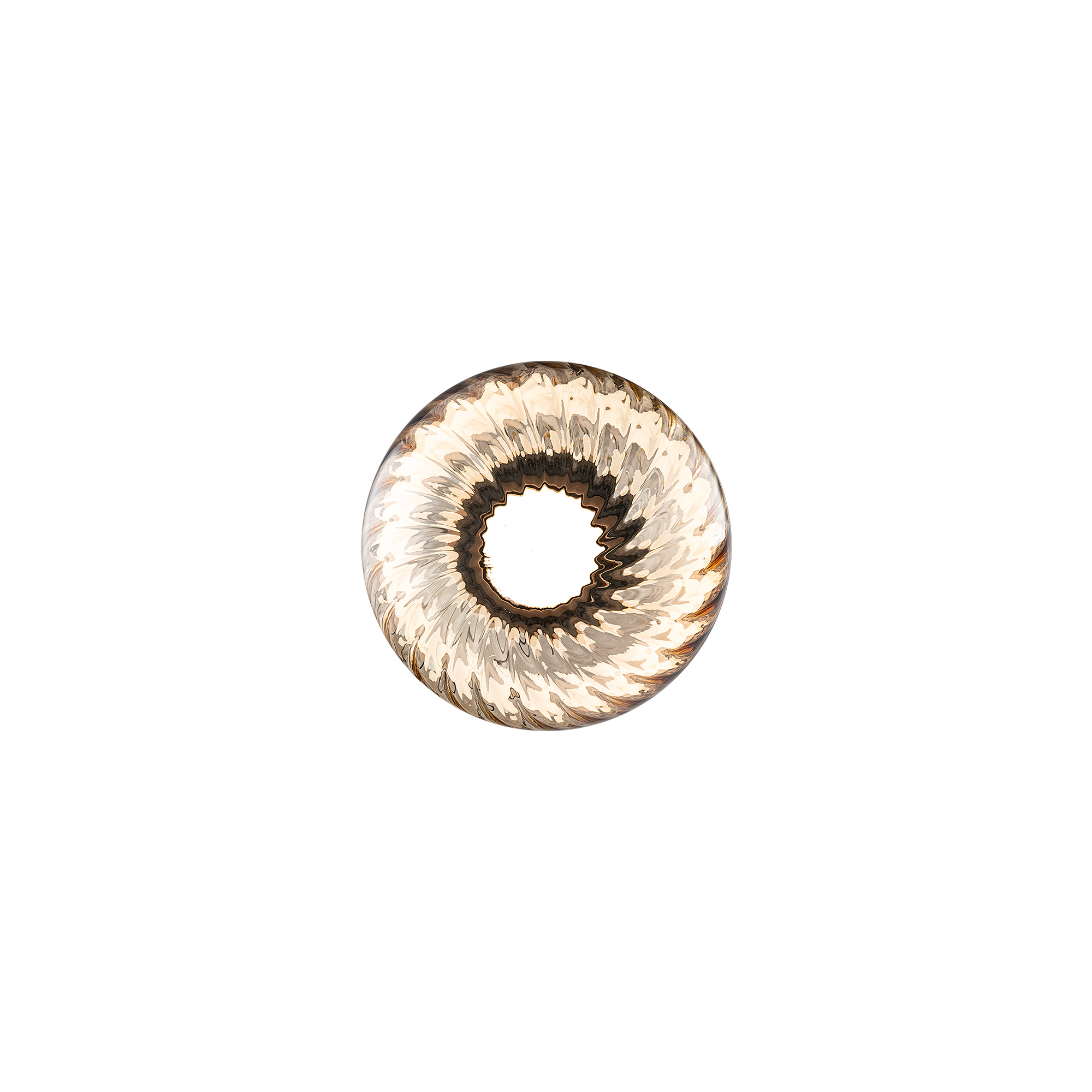

- Construction: Metal frame with mouth-blown swirly glass
- Built in color temperature adjustability. Switch from 3000K/3500K/4000K/5000K
- Thin, adjustable powered aircraft cables for an ultra-clean look for adjustable suspension height
- Spin-on round canopy with minimal hardware
- Driver concealed within the canopy

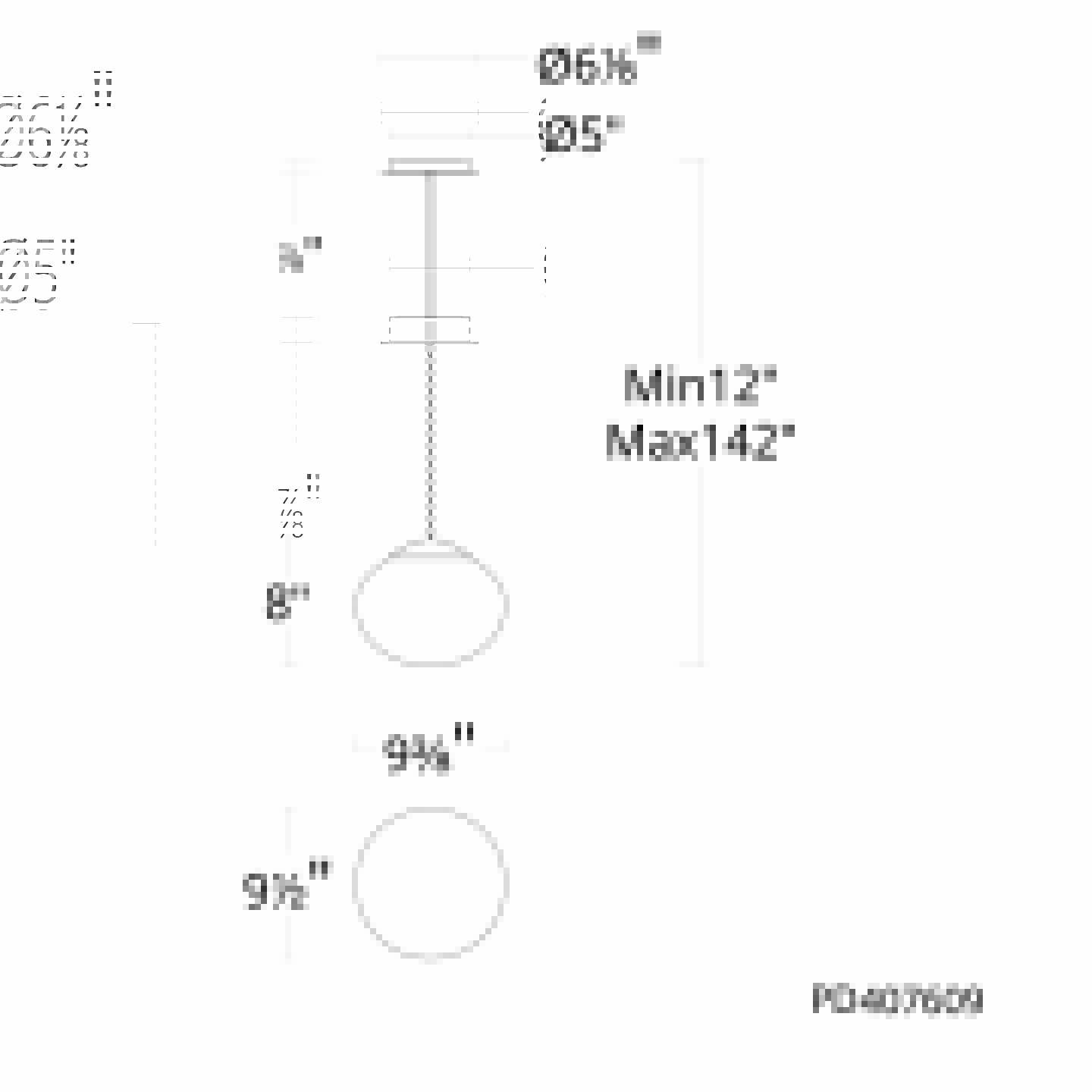

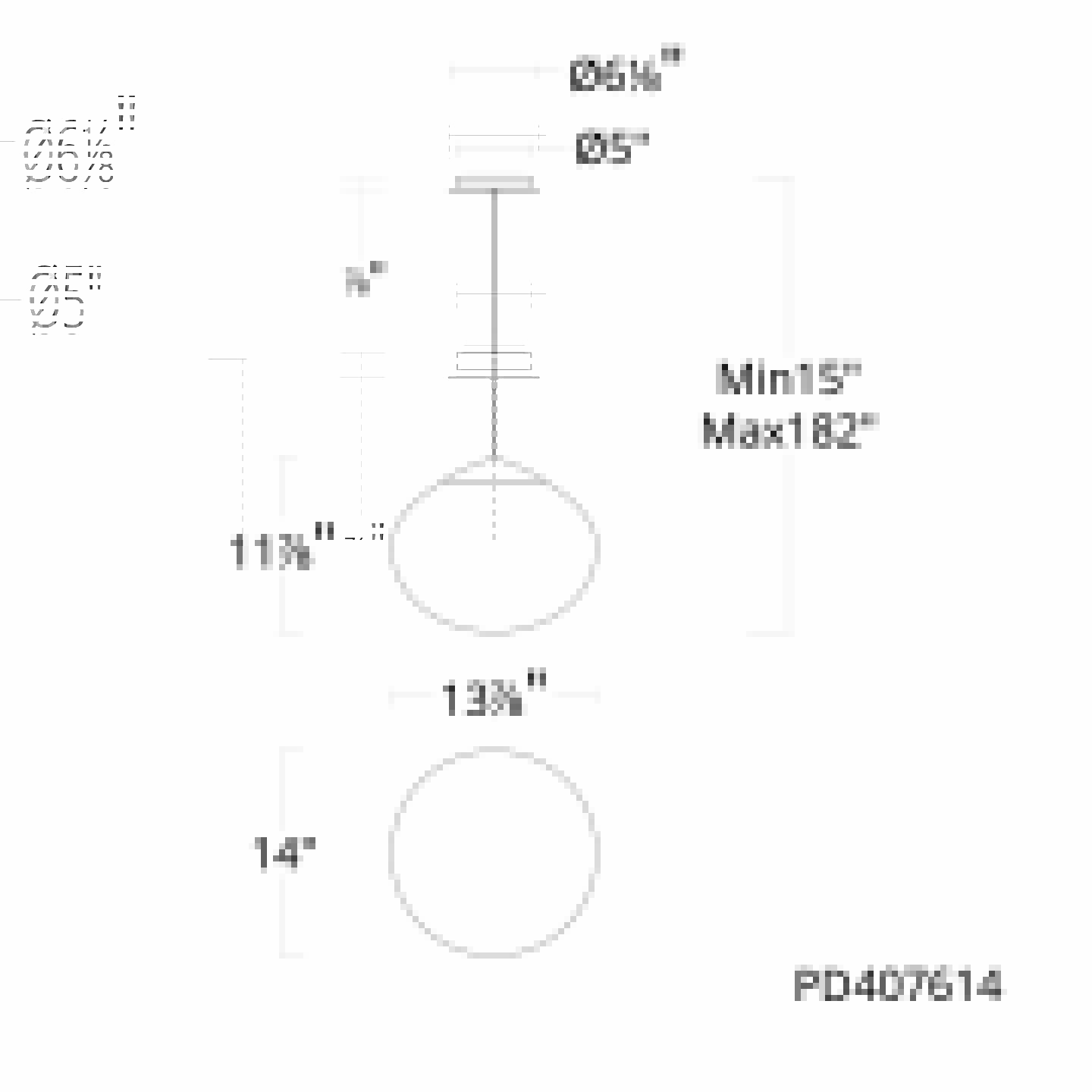

Line Drawing
