Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WSW111608 - 8" | 2700K/3000K/3500K/4000K | BK - Black | 20.2W | 1078 | 467 |
| WSW111612 - 12" | 2700K/3000K/3500K/4000K | BK - Black | 29.6W | 1400 | 514 |
Features
- Delivered Lumens: Up to 514lm
- CCT: 2700K/3000K/3500K/4000K
- CRI: 90
- Power: 20.2W, 29.6W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours

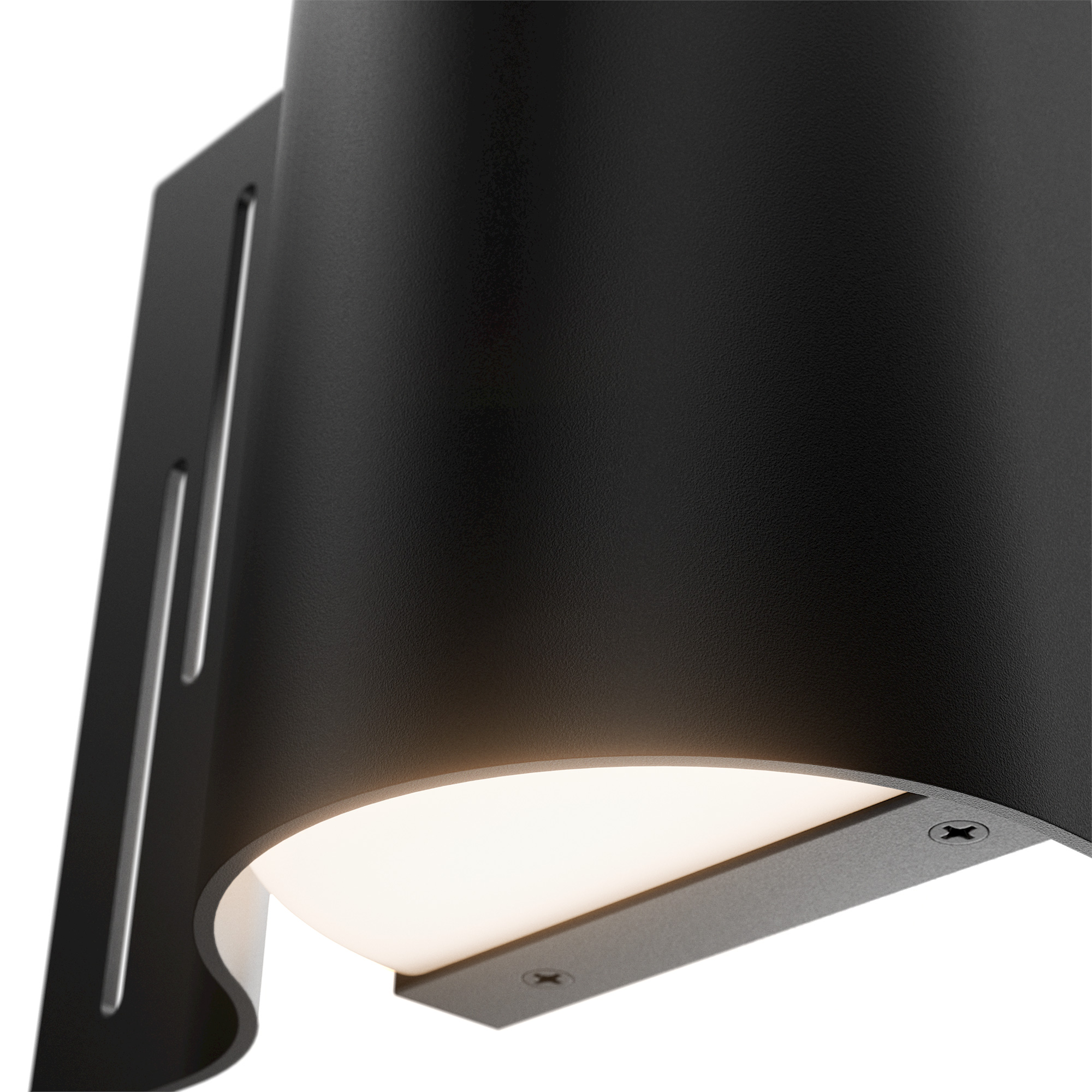

- Construction: Aluminum frame with PC diffuser
- Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
- Driver concealed within the canopy
- Light engine is factory sealed for maximum protection from the elements
- Can be mounted vertically or horizontally
- Can be mounted on wall vertically or horizontally
Line Drawing
