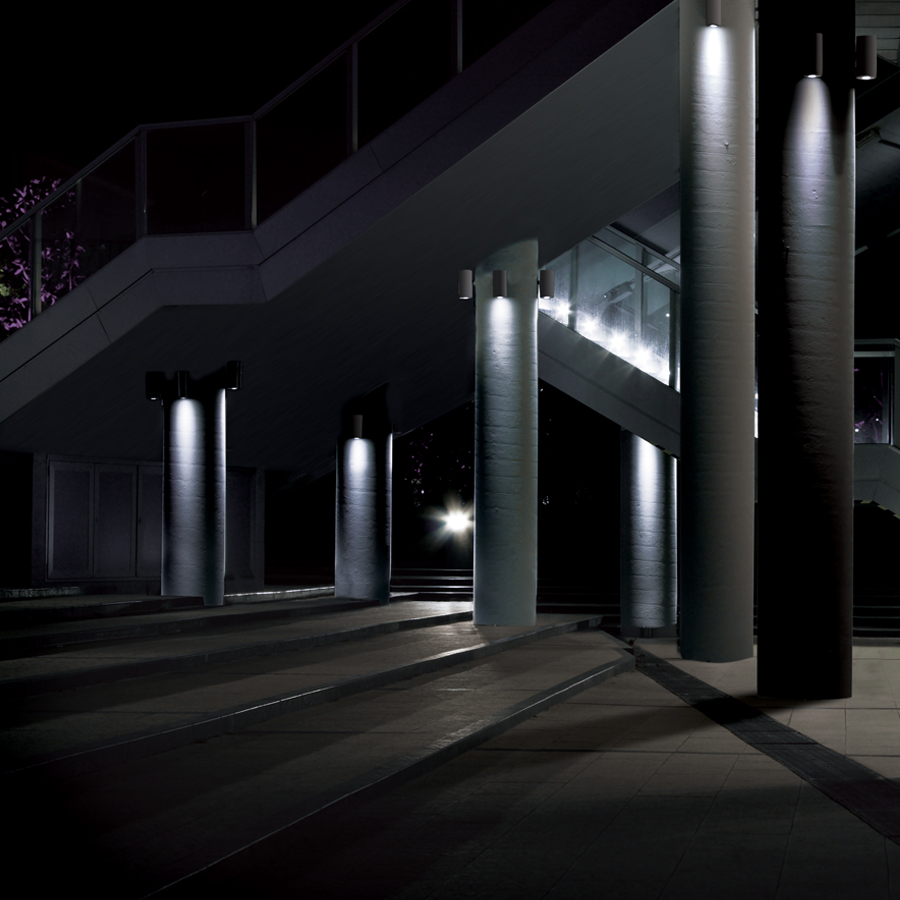

Tube Architectural 8" Single Wall Mount

tube-architectural-6

tube-architectural-6

tube-architectural-6

tube-architectural-6

tube-architectural-6

Specifications

Order Number:

model & watt	beam	color temp & cri	light direction	lumens	cbcp	finish
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	A - Away fr wall	3790		BK - Black
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	A - Away fr wall	3790		BZ - Bronze
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	A - Away fr wall	3790		GH - Graphite
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	A - Away fr wall	3790		WT - White
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	B - Twrds wall	3790		BK - Black
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	B - Twrds wall	3790		BZ - Bronze
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	B - Twrds wall	3790		GH - Graphite
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	B - Twrds wall	3790		WT - White
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	S - Str Up/Down	3785	7211	BK - Black
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	S - Str Up/Down	3785	7211	BZ - Bronze
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	S - Str Up/Down	3785	7211	GH - Graphite
DS-WS08 - 46W	F - 35°	27 - 2700K - 85	S - Str Up/Down	3785	7211	WT - White
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	A - Away fr wall	3855		BK - Black
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	A - Away fr wall	3855		BZ - Bronze
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	A - Away fr wall	3855		GH - Graphite
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	A - Away fr wall	3855		WT - White
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	B - Twrds wall	3855		BK - Black
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	B - Twrds wall	3855		BZ - Bronze
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	B - Twrds wall	3855		GH - Graphite
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	B - Twrds wall	3855		WT - White
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	S - Str Up/Down	3850	7334	BK - Black
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	S - Str Up/Down	3850	7334	BZ - Bronze
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	S - Str Up/Down	3850	7334	GH - Graphite
DS-WS08 - 46W	F - 35°	30 - 3000K - 85	S - Str Up/Down	3850	7334	WT - White
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	A - Away fr wall	3950		BK - Black
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	A - Away fr wall	3950		BZ - Bronze
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	A - Away fr wall	3950		GH - Graphite
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	A - Away fr wall	3950		WT - White
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	B - Twrds wall	3950		BK - Black
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	B - Twrds wall	3950		BZ - Bronze
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	B - Twrds wall	3950		GH - Graphite
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	B - Twrds wall	3950		WT - White
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	S - Str Up/Down	3945	7517	BK - Black
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	S - Str Up/Down	3945	7517	BZ - Bronze
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	S - Str Up/Down	3945	7517	GH - Graphite
DS-WS08 - 46W	F - 35°	35 - 3500K - 85	S - Str Up/Down	3945	7517	WT - White
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	A - Away fr wall	4015		BK - Black
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	A - Away fr wall	4015		BZ - Bronze
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	A - Away fr wall	4015		GH - Graphite
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	A - Away fr wall	4015		WT - White
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	B - Twrds wall	4015		BK - Black
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	B - Twrds wall	4015		BZ - Bronze
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	B - Twrds wall	4015		GH - Graphite
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	B - Twrds wall	4015		WT - White
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	S - Str Up/Down	4010	7639	BK - Black
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	S - Str Up/Down	4010	7639	BZ - Bronze
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	S - Str Up/Down	4010	7639	GH - Graphite
DS-WS08 - 46W	F - 35°	40 - 4000K - 85	S - Str Up/Down	4010	7639	WT - White
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	A - Away fr wall	3020		BK - Black
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	A - Away fr wall	3020		BZ - Bronze
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	A - Away fr wall	3020		GH - Graphite
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	A - Away fr wall	3020		WT - White
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	B - Twrds wall	3020		BK - Black
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	B - Twrds wall	3020		BZ - Bronze
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	B - Twrds wall	3020		GH - Graphite
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	B - Twrds wall	3020		WT - White
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	S - Str Up/Down	3015	5745	BK - Black
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	S - Str Up/Down	3015	5745	BZ - Bronze
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	S - Str Up/Down	3015	5745	GH - Graphite
DS-WS08 - 46W	F - 35°	927 - 2700K - 90	S - Str Up/Down	3015	5745	WT - White
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	A - Away fr wall	3210		BK - Black
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	A - Away fr wall	3210		BZ - Bronze
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	A - Away fr wall	3210		GH - Graphite
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	A - Away fr wall	3210		WT - White
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	B - Twrds wall	3210		BK - Black
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	B - Twrds wall	3210		BZ - Bronze
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	B - Twrds wall	3210		GH - Graphite
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	B - Twrds wall	3210		WT - White
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	S - Str Up/Down	3210	6111	BK - Black
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	S - Str Up/Down	3210	6111	BZ - Bronze
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	S - Str Up/Down	3210	6111	GH - Graphite
DS-WS08 - 46W	F - 35°	930 - 3000K - 90	S - Str Up/Down	3210	6111	WT - White
DS-WS08 - 46W	N - 25°	27 - 2700K - 85	S - Str Up/Down	4000	13226	BK - Black
DS-WS08 - 46W	N - 25°	27 - 2700K - 85	S - Str Up/Down	4000	13226	BZ - Bronze
DS-WS08 - 46W	N - 25°	27 - 2700K - 85	S - Str Up/Down	4000	13226	GH - Graphite
DS-WS08 - 46W	N - 25°	27 - 2700K - 85	S - Str Up/Down	4000	13226	WT - White
DS-WS08 - 46W	N - 25°	30 - 3000K - 85	S - Str Up/Down	4070	13450	BK - Black
DS-WS08 - 46W	N - 25°	30 - 3000K - 85	S - Str Up/Down	4070	13450	BZ - Bronze
DS-WS08 - 46W	N - 25°	30 - 3000K - 85	S - Str Up/Down	4070	13450	GH - Graphite
DS-WS08 - 46W	N - 25°	30 - 3000K - 85	S - Str Up/Down	4070	13450	WT - White
DS-WS08 - 46W	N - 25°	35 - 3500K - 85	S - Str Up/Down	4170	13786	BK - Black
DS-WS08 - 46W	N - 25°	35 - 3500K - 85	S - Str Up/Down	4170	13786	BZ - Bronze
DS-WS08 - 46W	N - 25°	35 - 3500K - 85	S - Str Up/Down	4170	13786	GH - Graphite
DS-WS08 - 46W	N - 25°	35 - 3500K - 85	S - Str Up/Down	4170	13786	WT - White
DS-WS08 - 46W	N - 25°	40 - 4000K - 85	S - Str Up/Down	4240	14010	BK - Black
DS-WS08 - 46W	N - 25°	40 - 4000K - 85	S - Str Up/Down	4240	14010	BZ - Bronze
DS-WS08 - 46W	N - 25°	40 - 4000K - 85	S - Str Up/Down	4240	14010	GH - Graphite
DS-WS08 - 46W	N - 25°	40 - 4000K - 85	S - Str Up/Down	4240	14010	WT - White
DS-WS08 - 46W	N - 25°	927 - 2700K - 90	S - Str Up/Down	3185	10536	BK - Black
DS-WS08 - 46W	N - 25°	927 - 2700K - 90	S - Str Up/Down	3185	10536	BZ - Bronze
DS-WS08 - 46W	N - 25°	927 - 2700K - 90	S - Str Up/Down	3185	10536	GH - Graphite
DS-WS08 - 46W	N - 25°	927 - 2700K - 90	S - Str Up/Down	3185	10536	WT - White
DS-WS08 - 46W	N - 25°	930 - 3000K - 90	S - Str Up/Down	3390	11208	BK - Black
DS-WS08 - 46W	N - 25°	930 - 3000K - 90	S - Str Up/Down	3390	11208	BZ - Bronze
DS-WS08 - 46W	N - 25°	930 - 3000K - 90	S - Str Up/Down	3390	11208	GH - Graphite
DS-WS08 - 46W	N - 25°	930 - 3000K - 90	S - Str Up/Down	3390	11208	WT - White
DS-WS08 - 46W	S - 18°	27 - 2700K - 85	S - Str Up/Down	3865	19064	BK - Black
DS-WS08 - 46W	S - 18°	27 - 2700K - 85	S - Str Up/Down	3865	19064	BZ - Bronze
DS-WS08 - 46W	S - 18°	27 - 2700K - 85	S - Str Up/Down	3865	19064	GH - Graphite
DS-WS08 - 46W	S - 18°	27 - 2700K - 85	S - Str Up/Down	3865	19064	WT - White
DS-WS08 - 46W	S - 18°	30 - 3000K - 85	S - Str Up/Down	3935	19387	BK - Black
DS-WS08 - 46W	S - 18°	30 - 3000K - 85	S - Str Up/Down	3935	19387	BZ - Bronze
DS-WS08 - 46W	S - 18°	30 - 3000K - 85	S - Str Up/Down	3935	19387	GH - Graphite
DS-WS08 - 46W	S - 18°	30 - 3000K - 85	S - Str Up/Down	3935	19387	WT - White
DS-WS08 - 46W	S - 18°	35 - 3500K - 85	S - Str Up/Down	4030	19872	BK - Black
DS-WS08 - 46W	S - 18°	35 - 3500K - 85	S - Str Up/Down	4030	19872	BZ - Bronze
DS-WS08 - 46W	S - 18°	35 - 3500K - 85	S - Str Up/Down	4030	19872	GH - Graphite
DS-WS08 - 46W	S - 18°	35 - 3500K - 85	S - Str Up/Down	4030	19872	WT - White
DS-WS08 - 46W	S - 18°	40 - 4000K - 85	S - Str Up/Down	4095	20195	BK - Black
DS-WS08 - 46W	S - 18°	40 - 4000K - 85	S - Str Up/Down	4095	20195	BZ - Bronze
DS-WS08 - 46W	S - 18°	40 - 4000K - 85	S - Str Up/Down	4095	20195	GH - Graphite
DS-WS08 - 46W	S - 18°	40 - 4000K - 85	S - Str Up/Down	4095	20195	WT - White
DS-WS08 - 46W	S - 18°	927 - 2700K - 90	S - Str Up/Down	3080	15187	BK - Black
DS-WS08 - 46W	S - 18°	927 - 2700K - 90	S - Str Up/Down	3080	15187	BZ - Bronze
DS-WS08 - 46W	S - 18°	927 - 2700K - 90	S - Str Up/Down	3080	15187	GH - Graphite
DS-WS08 - 46W	S - 18°	927 - 2700K - 90	S - Str Up/Down	3080	15187	WT - White
DS-WS08 - 46W	S - 18°	930 - 3000K - 90	S - Str Up/Down	3275	16156	BK - Black
DS-WS08 - 46W	S - 18°	930 - 3000K - 90	S - Str Up/Down	3275	16156	BZ - Bronze
DS-WS08 - 46W	S - 18°	930 - 3000K - 90	S - Str Up/Down	3275	16156	GH - Graphite
DS-WS08 - 46W	S - 18°	930 - 3000K - 90	S - Str Up/Down	3275	16156	WT - White
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	A - Away fr wall	3120		BK - Black
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	A - Away fr wall	3120		BZ - Bronze
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	A - Away fr wall	3120		GH - Graphite
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	A - Away fr wall	3120		WT - White
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	B - Twrds wall	3120		BK - Black
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	B - Twrds wall	3120		BZ - Bronze
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	B - Twrds wall	3120		GH - Graphite
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	B - Twrds wall	3120		WT - White
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	S - Str Up/Down	3110	5901	BK - Black
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	S - Str Up/Down	3110	5901	BZ - Bronze
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	S - Str Up/Down	3110	5901	GH - Graphite
DS-WS0834 - 34W	F - 35°	27 - 2700K - 85	S - Str Up/Down	3110	5901	WT - White
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	A - Away fr wall	3170		BK - Black
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	A - Away fr wall	3170		BZ - Bronze
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	A - Away fr wall	3170		GH - Graphite
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	A - Away fr wall	3170		WT - White
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	B - Twrds wall	3170		BK - Black
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	B - Twrds wall	3170		BZ - Bronze
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	B - Twrds wall	3170		GH - Graphite
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	B - Twrds wall	3170		WT - White
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	S - Str Up/Down	3165	6001	BK - Black
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	S - Str Up/Down	3165	6001	BZ - Bronze
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	S - Str Up/Down	3165	6001	GH - Graphite
DS-WS0834 - 34W	F - 35°	30 - 3000K - 85	S - Str Up/Down	3165	6001	WT - White
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	A - Away fr wall	3250		BK - Black
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	A - Away fr wall	3250		BZ - Bronze
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	A - Away fr wall	3250		GH - Graphite
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	A - Away fr wall	3250		WT - White
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	B - Twrds wall	3250		BK - Black
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	B - Twrds wall	3250		BZ - Bronze
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	B - Twrds wall	3250		GH - Graphite
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	B - Twrds wall	3250		WT - White
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	S - Str Up/Down	3245	6151	BK - Black
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	S - Str Up/Down	3245	6151	BZ - Bronze
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	S - Str Up/Down	3245	6151	GH - Graphite
DS-WS0834 - 34W	F - 35°	35 - 3500K - 85	S - Str Up/Down	3245	6151	WT - White
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	A - Away fr wall	3305		BK - Black
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	A - Away fr wall	3305		BZ - Bronze
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	A - Away fr wall	3305		GH - Graphite
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	A - Away fr wall	3305		WT - White
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	B - Twrds wall	3305		BK - Black
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	B - Twrds wall	3305		BZ - Bronze
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	B - Twrds wall	3305		GH - Graphite
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	B - Twrds wall	3305		WT - White
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	S - Str Up/Down	3295	6251	BK - Black
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	S - Str Up/Down	3295	5939	BZ - Bronze
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	S - Str Up/Down	3295	5939	GH - Graphite
DS-WS0834 - 34W	F - 35°	40 - 4000K - 85	S - Str Up/Down	3295	5939	WT - White
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	A - Away fr wall	2485		BK - Black
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	A - Away fr wall	2485		BZ - Bronze
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	A - Away fr wall	2485		GH - Graphite
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	A - Away fr wall	2485		WT - White
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	B - Twrds wall	2485		BK - Black
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	B - Twrds wall	2485		BZ - Bronze
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	B - Twrds wall	2485		GH - Graphite
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	B - Twrds wall	2485		WT - White
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	S - Str Up/Down	2480	4701	BK - Black
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	S - Str Up/Down	2480	4701	BZ - Bronze
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	S - Str Up/Down	2480	4701	GH - Graphite
DS-WS0834 - 34W	F - 35°	927 - 2700K - 90	S - Str Up/Down	2480	4701	WT - White
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	A - Away fr wall	2645		BK - Black
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	A - Away fr wall	2645		BZ - Bronze
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	A - Away fr wall	2645		GH - Graphite
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	A - Away fr wall	2645		WT - White
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	B - Twrds wall	2645		BK - Black
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	B - Twrds wall	2645		BZ - Bronze
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	B - Twrds wall	2645		GH - Graphite
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	B - Twrds wall	2645		WT - White
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	S - Str Up/Down	2635	5001	BK - Black
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	S - Str Up/Down	2635	5001	BZ - Bronze
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	S - Str Up/Down	2635	5001	GH - Graphite
DS-WS0834 - 34W	F - 35°	930 - 3000K - 90	S - Str Up/Down	2635	5001	WT - White
DS-WS0834 - 34W	N - 25°	27 - 2700K - 85	S - Str Up/Down	3245	10751	BK - Black
DS-WS0834 - 34W	N - 25°	27 - 2700K - 85	S - Str Up/Down	3245	10751	BZ - Bronze
DS-WS0834 - 34W	N - 25°	27 - 2700K - 85	S - Str Up/Down	3245	10751	GH - Graphite
DS-WS0834 - 34W	N - 25°	27 - 2700K - 85	S - Str Up/Down	3245	10751	WT - White
DS-WS0834 - 34W	N - 25°	30 - 3000K - 85	S - Str Up/Down	3300	10933	BK - Black
DS-WS0834 - 34W	N - 25°	30 - 3000K - 85	S - Str Up/Down	3300	10933	BZ - Bronze
DS-WS0834 - 34W	N - 25°	30 - 3000K - 85	S - Str Up/Down	3300	10933	GH - Graphite
DS-WS0834 - 34W	N - 25°	30 - 3000K - 85	S - Str Up/Down	3300	10933	WT - White
DS-WS0834 - 34W	N - 25°	35 - 3500K - 85	S - Str Up/Down	3385	11207	BK - Black
DS-WS0834 - 34W	N - 25°	35 - 3500K - 85	S - Str Up/Down	3385	11207	BZ - Bronze
DS-WS0834 - 34W	N - 25°	35 - 3500K - 85	S - Str Up/Down	3385	11207	GH - Graphite
DS-WS0834 - 34W	N - 25°	35 - 3500K - 85	S - Str Up/Down	3385	11207	WT - White
DS-WS0834 - 34W	N - 25°	40 - 4000K - 85	S - Str Up/Down	3440	11389	BK - Black
DS-WS0834 - 34W	N - 25°	40 - 4000K - 85	S - Str Up/Down	3440	11389	BZ - Bronze
DS-WS0834 - 34W	N - 25°	40 - 4000K - 85	S - Str Up/Down	3440	11389	GH - Graphite
DS-WS0834 - 34W	N - 25°	40 - 4000K - 85	S - Str Up/Down	3440	11389	WT - White
DS-WS0834 - 34W	N - 25°	927 - 2700K - 90	S - Str Up/Down	2585	8565	BK - Black
DS-WS0834 - 34W	N - 25°	927 - 2700K - 90	S - Str Up/Down	2585	8565	BZ - Bronze
DS-WS0834 - 34W	N - 25°	927 - 2700K - 90	S - Str Up/Down	2585	8565	GH - Graphite
DS-WS0834 - 34W	N - 25°	927 - 2700K - 90	S - Str Up/Down	2585	8565	WT - White
DS-WS0834 - 34W	N - 25°	930 - 3000K - 90	S - Str Up/Down	2750	9111	BK - Black
DS-WS0834 - 34W	N - 25°	930 - 3000K - 90	S - Str Up/Down	2750	9111	BZ - Bronze
DS-WS0834 - 34W	N - 25°	930 - 3000K - 90	S - Str Up/Down	2750	9111	GH - Graphite
DS-WS0834 - 34W	N - 25°	930 - 3000K - 90	S - Str Up/Down	2750	9111	WT - White
DS-WS0834 - 34W	S - 18°	27 - 2700K - 85	S - Str Up/Down	3155	15772	BK - Black
DS-WS0834 - 34W	S - 18°	27 - 2700K - 85	S - Str Up/Down	3155	15772	BZ - Bronze
DS-WS0834 - 34W	S - 18°	27 - 2700K - 85	S - Str Up/Down	3155	15772	GH - Graphite
DS-WS0834 - 34W	S - 18°	27 - 2700K - 85	S - Str Up/Down	3155	15772	WT - White
DS-WS0834 - 34W	S - 18°	30 - 3000K - 85	S - Str Up/Down	3210	16039	BK - Black
DS-WS0834 - 34W	S - 18°	30 - 3000K - 85	S - Str Up/Down	3210	16039	BZ - Bronze
DS-WS0834 - 34W	S - 18°	30 - 3000K - 85	S - Str Up/Down	3210	16039	GH - Graphite
DS-WS0834 - 34W	S - 18°	30 - 3000K - 85	S - Str Up/Down	3210	16039	WT - White
DS-WS0834 - 34W	S - 18°	35 - 3500K - 85	S - Str Up/Down	3290	16440	BK - Black
DS-WS0834 - 34W	S - 18°	35 - 3500K - 85	S - Str Up/Down	3290	16440	BZ - Bronze
DS-WS0834 - 34W	S - 18°	35 - 3500K - 85	S - Str Up/Down	3290	16440	GH - Graphite
DS-WS0834 - 34W	S - 18°	35 - 3500K - 85	S - Str Up/Down	3290	16440	WT - White
DS-WS0834 - 34W	S - 18°	40 - 4000K - 85	S - Str Up/Down	3340	16707	BK - Black
DS-WS0834 - 34W	S - 18°	40 - 4000K - 85	S - Str Up/Down	3340	16707	BZ - Bronze
DS-WS0834 - 34W	S - 18°	40 - 4000K - 85	S - Str Up/Down	3340	16707	GH - Graphite
DS-WS0834 - 34W	S - 18°	40 - 4000K - 85	S - Str Up/Down	3340	16707	WT - White
DS-WS0834 - 34W	S - 18°	927 - 2700K - 90	S - Str Up/Down	2515	12564	BK - Black
DS-WS0834 - 34W	S - 18°	927 - 2700K - 90	S - Str Up/Down	2515	12564	BZ - Bronze
DS-WS0834 - 34W	S - 18°	927 - 2700K - 90	S - Str Up/Down	2515	12564	GH - Graphite
DS-WS0834 - 34W	S - 18°	927 - 2700K - 90	S - Str Up/Down	2515	12564	WT - White
DS-WS0834 - 34W	S - 18°	930 - 3000K - 90	S - Str Up/Down	2675	13366	BK - Black
DS-WS0834 - 34W	S - 18°	930 - 3000K - 90	S - Str Up/Down	2675	13366	BZ - Bronze
DS-WS0834 - 34W	S - 18°	930 - 3000K - 90	S - Str Up/Down	2675	13366	GH - Graphite
DS-WS0834 - 34W	S - 18°	930 - 3000K - 90	S - Str Up/Down	2675	13366	WT - White

Features

Delivered Lumens: Up to 4240lm
CBCP: Up to 20195
CCT: 2700K, 3000K, 3500K, 4000K
CRI: Up to 90
Power: 34W, 46W
Input: 120-277 VAC, 50/60Hz
ELV Dimming: 100-5%
0-10V Dimming: 100-1%
Rated Life: 60000 Hours
Construction: Die-cast Aluminum
High performance exterior rated LED wall mount light
Fixture can install upside down to alter light distribution
Available in multiple power / lumen output combinations
Driver concealed within the fixture
Can be mounted on wall in all orientations

Gallery

Line Drawing

WACLighting.com Line Drawing
