Specifications
Order Number:
| model & size | color temp & cri | finish | watt | voltage | led lumens | delivered lumens |
|---|---|---|---|---|---|---|
| FM-67116 - 16" | 3000K - 90 | AB - Aged Brass | 30W | 120-277V | 2674 | 1904 |
| FM-67116 - 16" | 3000K - 90 | BN - Brushed Nickel | 30W | 120-277V | 2674 | 1904 |
| FM-67120 - 20" | 3000K - 90 | AB - Aged Brass | 40W | 120-277V | 3600 | 2891 |
| FM-67120 - 20" | 3000K - 90 | BN - Brushed Nickel | 40W | 120-277V | 3600 | 2891 |
Features
- Delivered Lumens: Up to 2891lm
- CCT: 3000K
- CRI: 90
- Power: 30W, 40W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body, PC diffuser
- Driver concealed within the canopy
- Can be mounted on ceiling or wall in all orientations
Gallery

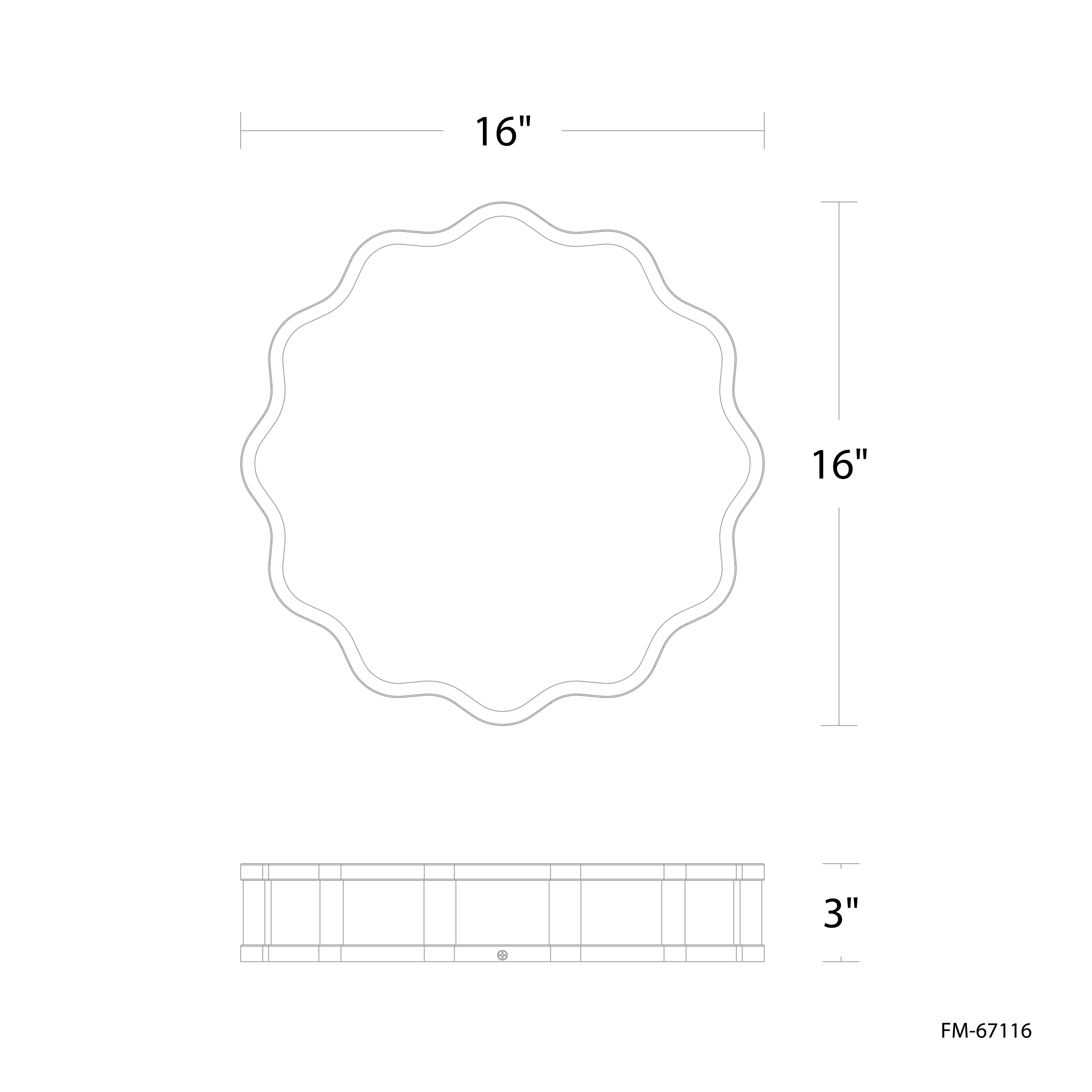

Line Drawing
