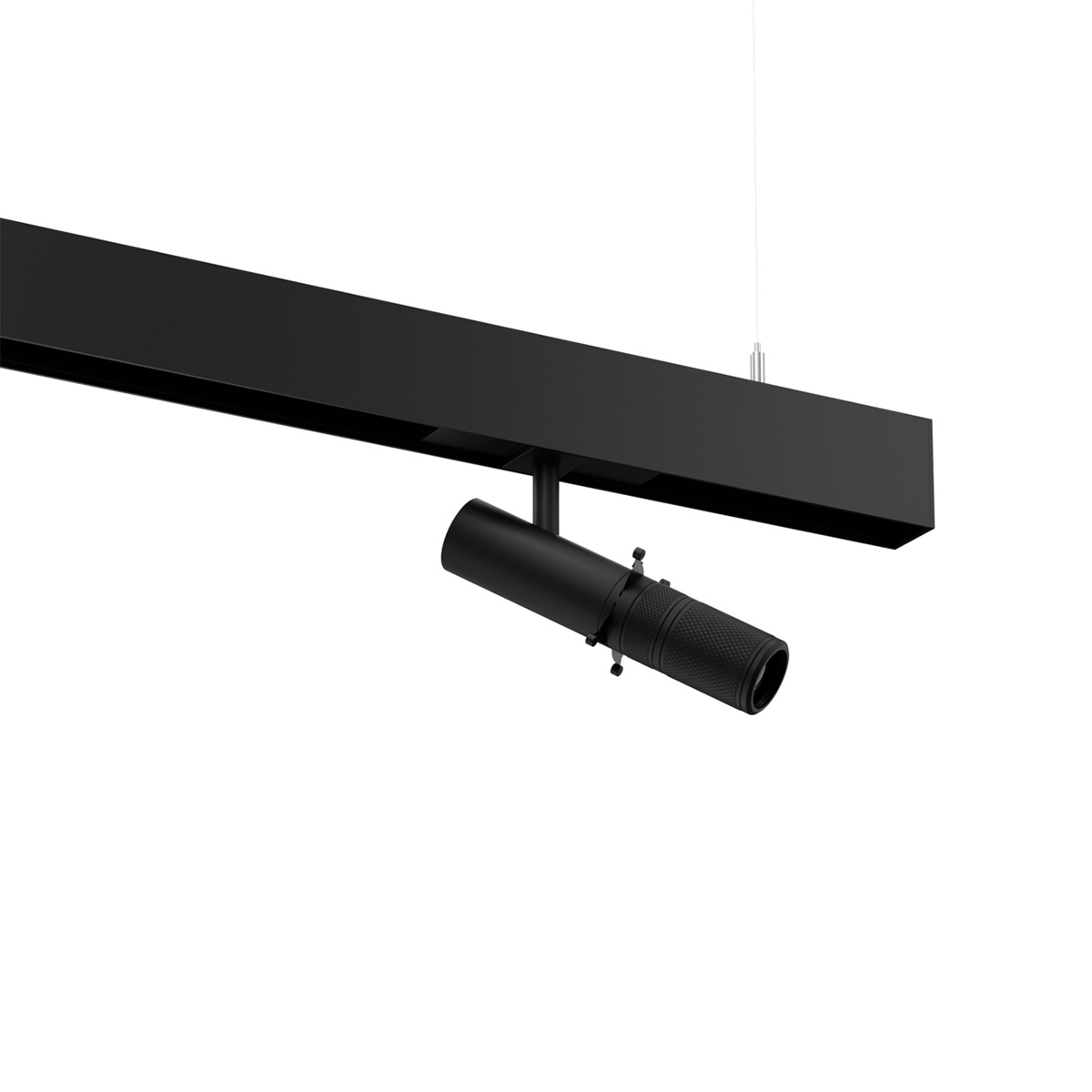

VENTRIX Large Stealth Framing Projector Adjustable Beam

NEW

Order Number:

model	power	watt	color temp & cri	delivered lumens	cbcp	finish
S2SP	2	20W	927 - 2700K - 90	13°: 330 / 35°: 565	13°: 8400 / 35°: 2010	BK - Black
S2SP	2	20W	927 - 2700K - 90	13°: 330 / 35°: 565	13°: 8400 / 35°: 2010	WT - White
S2SP	2	20W	930 - 3000K - 90	13°: 355 / 35°: 605	13°: 8935 / 35°: 2140	BK - Black
S2SP	2	20W	930 - 3000K - 90	13°: 355 / 35°: 605	13°: 8935 / 35°: 2140	WT - White
S2SP	2	20W	935 - 3500K - 90	13°: 370 / 35°: 635	13°: 9385 / 35°: 2245	BK - Black
S2SP	2	20W	935 - 3500K - 90	13°: 370 / 35°: 635	13°: 9385 / 35°: 2245	WT - White
S2SP	2	20W	940 - 4000K - 90	13°: 380 / 35°: 650	13°: 9650 / 35°: 2310	BK - Black
S2SP	2	20W	940 - 4000K - 90	13°: 380 / 35°: 650	13°: 9650 / 35°: 2310	WT - White

Delivered Lumens: Up to 650lm
CBCP: 9650
CCT: 2700K, 3000K, 3500K, 4000K
CRI: 90
Power: 20W
Input: 48 VDC
ELV Dimming: 100-0.1%
0-10V Dimming: 100-0.1%
TRIAC Dimming: 100-0.1%
Rated Life: 50000 Hours
Construction: Die-cast aluminum with optical glass lenses
Precise, high definition zoomable projection
Stealth armature with 360° horizontal rotation and 90° vertical aiming
Accepts one glass or metal gobo. Custom gobo size: Outside Diameter: 24.5mm, Thickness: ≤ 1.5mm, Image Size: ≤ 19mm
To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
Driver concealed within the fixture
Can be mounted on ceiling or wall vertically or horizontally
