Specifications
Order Number:
| model & size | power | watt | beam | color temp & cri | delivered lumens |
|---|---|---|---|---|---|
| S2ID48 - 48" | 1 | 24W | F | TWA - 1800-4000K - 90 | 1960 |
| S2ID48 - 48" | 2 | 46W | F | TWA - 1800-4000K - 90 | 3920 |
Features
- Delivered Lumens: Up to 3920lm
- CCT: 1800-4000K
- CRI: 90
- Power: 24W, 46W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- DMX Dimming: 100-0.1%
- Rated Life: 50000 Hours
- Construction: Heavy duty aluminum printed circuit board
- May be field cut every 4" at the end of a run
- One S2ID-DR96-TW indirect driver required per 96W of indirect tunable white elements

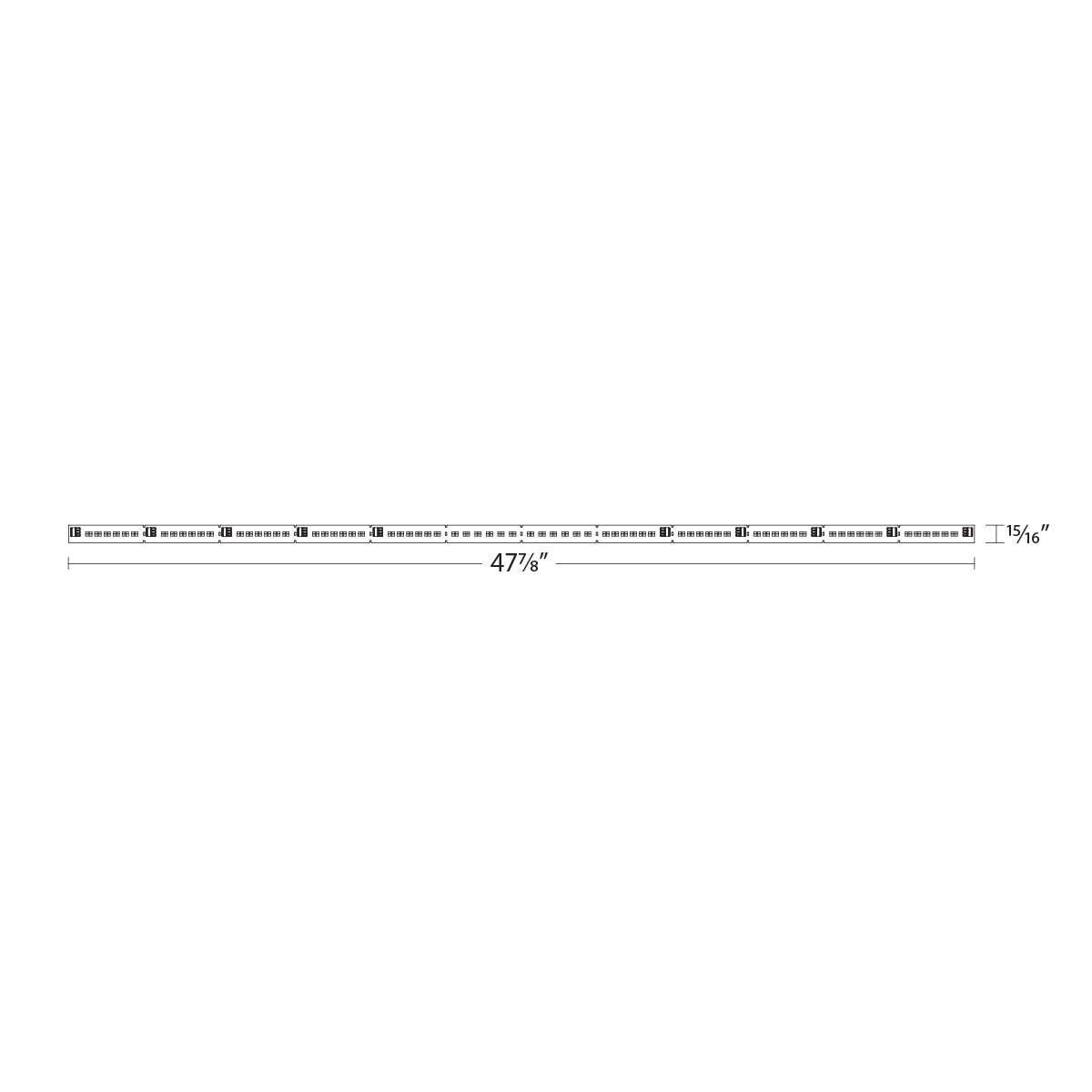

Line Drawing
