Specifications
Order Number:
| model & size | power | watt | beam | color temp & cri | delivered lumens | finish |
|---|---|---|---|---|---|---|
| S2DH12 - 12" | 1 | 7W | F - 100° | TWA - 1800-4000K - 90 | 425 | BK - Black |
| S2DH12 - 12" | 2 | 13W | F - 100° | TWA - 1800-4000K - 90 | 990 | BK - Black |
| S2DH24 - 24" | 1 | 12W | F - 100° | TWA - 1800-4000K - 90 | 925 | BK - Black |
| S2DH24 - 24" | 2 | 25W | F - 100° | TWA - 1800-4000K - 90 | 1915 | BK - Black |
| S2DH48 - 48" | 1 | 26W | F - 100° | TWA - 1800-4000K - 90 | 1975 | BK - Black |
| S2DH48 - 48" | 2 | 53W | F - 100° | TWA - 1800-4000K - 90 | 3760 | BK - Black |
Features
- Delivered Lumens: Up to 3760lm
- CCT: 1800-4000K
- CRI: 90
- Power: 7W, 12W, 13W, 25W, 26W, 53W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- DMX Dimming: 100-0.1%
- Rated Life: 50000 Hours
- Construction: Extruded aluminum with polycarbonate endcaps and lens
- Provides high lumen output linear line of light
- To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
- Driver concealed within the fixture
- Can be mounted on ceiling or wall vertically or horizontally

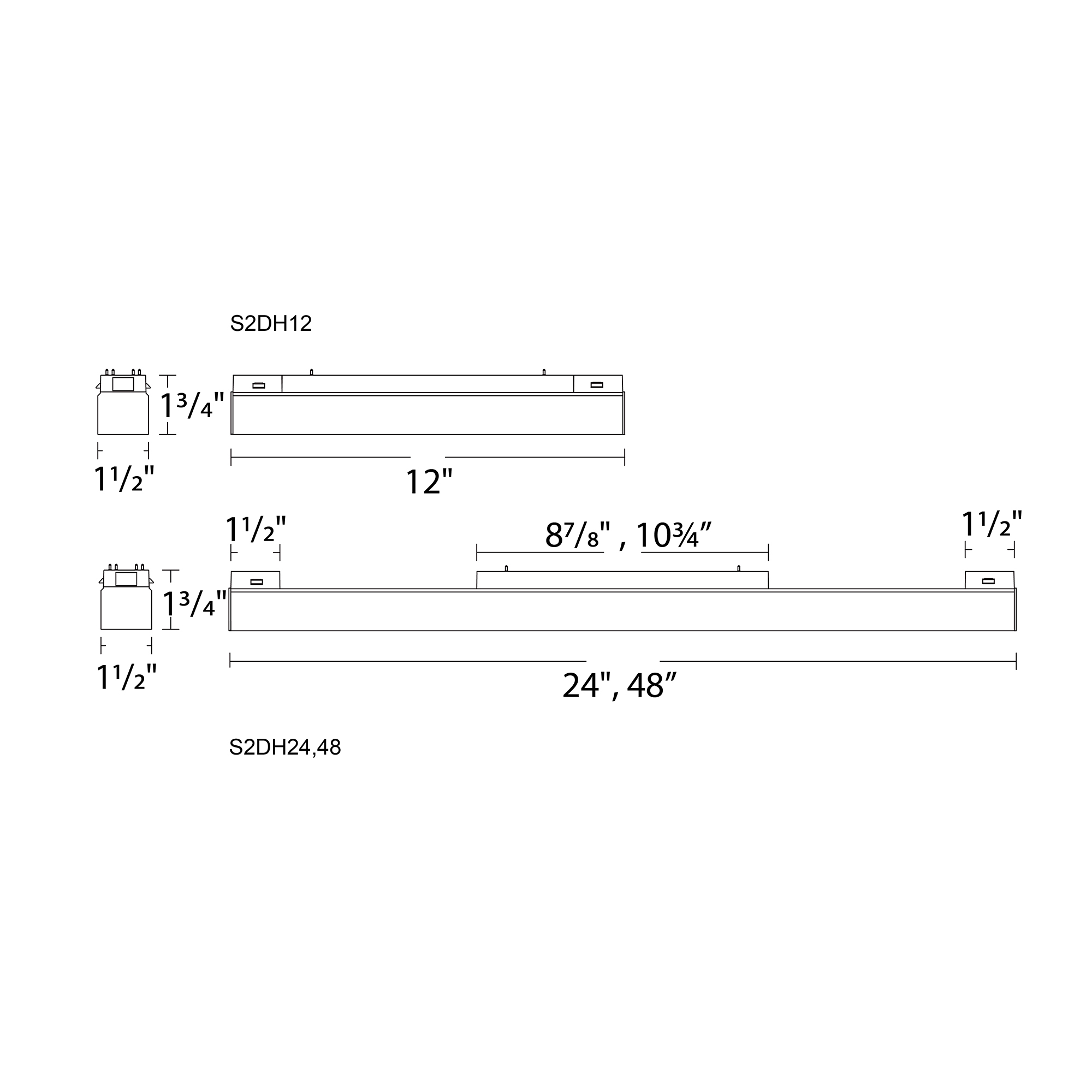

Line Drawing
