Specifications
Order Number:
| model & size | power | watt | beam | color temp & cri | delivered lumens | finish |
|---|---|---|---|---|---|---|
| S2DR12 - 12" | 1 | 7W | F - 100° | TWA - 1800-4000K - 90 | 350 | BK - Black |
| S2DR12 - 12" | 2 | 13W | F - 100° | TWA - 1800-4000K - 90 | 670 | BK - Black |
| S2DR24 - 24" | 1 | 12W | F - 100° | TWA - 1800-4000K - 90 | 730 | BK - Black |
| S2DR24 - 24" | 2 | 25W | F - 100° | TWA - 1800-4000K - 90 | 1500 | BK - Black |
| S2DR48 - 48" | 1 | 26W | F - 100° | TWA - 1800-4000K - 90 | 1620 | BK - Black |
| S2DR48 - 48" | 2 | 53W | F - 100° | TWA - 1800-4000K - 90 | 3005 | BK - Black |
Features
- Delivered Lumens: Up to 3005lm
- CCT: 1800-4000K
- CRI: 90
- Power: 7W, 12W, 13W, 25W, 26W, 53W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- DMX Dimming: 100-0.1%
- Rated Life: 50000 Hours
- Construction: Extruded aluminum with polycarbonate endcaps and lens
- Reduced glare linear line of light with deep cutoff
- To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
- Driver concealed within the fixture
- Can be mounted on ceiling or wall vertically or horizontally

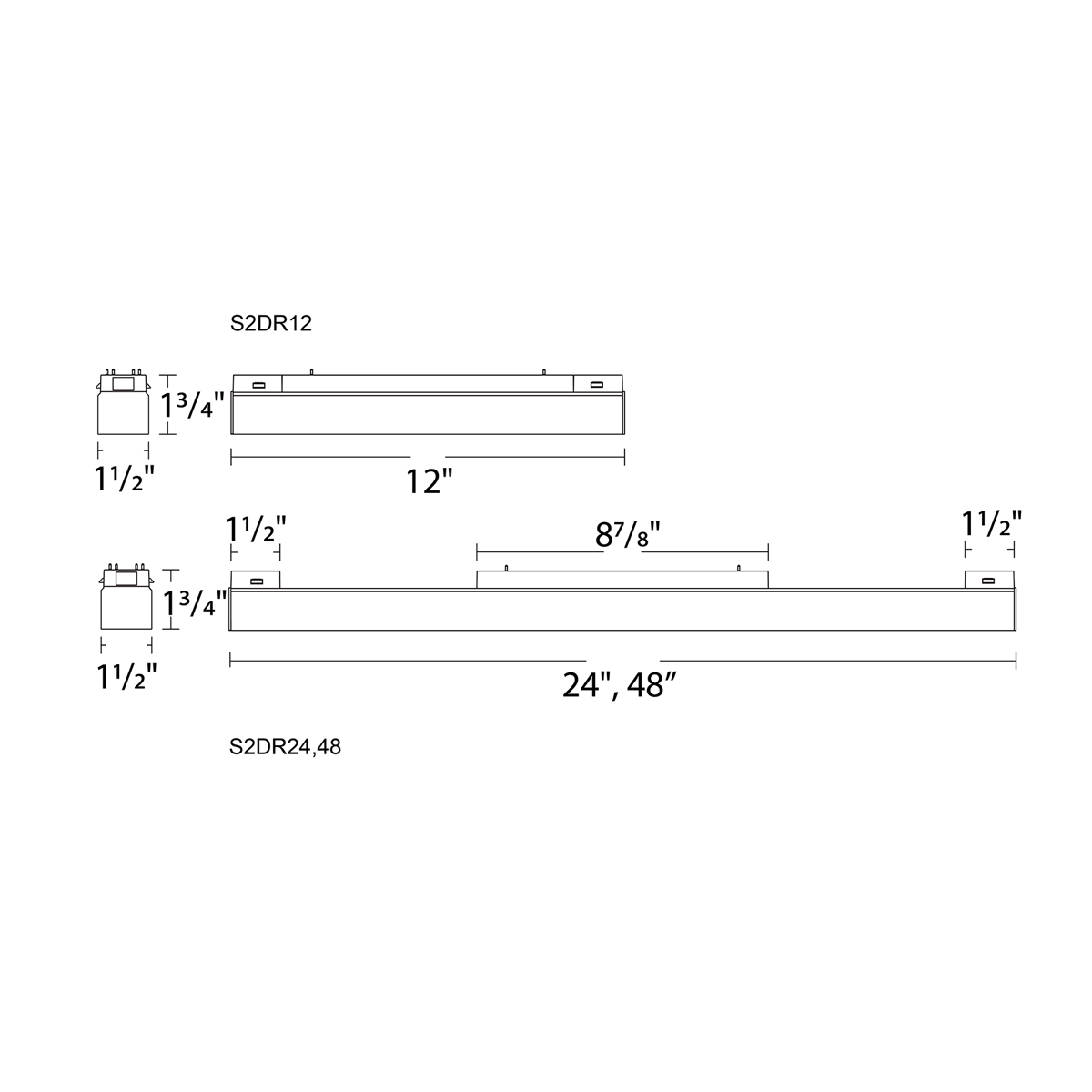

Line Drawing
