Specifications
Order Number:
| model | power | watt | color temp & cri | delivered lumens | cbcp | finish |
|---|---|---|---|---|---|---|
| S2SP | 2 | 17W | FTWA - 1800-4000K - 90 | 365 | 615 | BK - Black |
| S2SP | 2 | 17W | FTWA - 1800-4000K - 90 | 365 | 615 | WT - White |
Features
- Delivered Lumens: 365lm
- CBCP: 615
- CCT: 1800-4000K
- CRI: 90
- Power: 17W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum with optical glass lenses
- Precise, high definition wide projection
- Stealth armature with 360° horizontal rotation and 90° vertical aiming
- Accepts one glass or metal gobo. Custom gobo size: Outside Diameter 24.5mm, Thickness ≤ 1.5mm, Image Size ≤ 19mm
- To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
- Driver concealed within the fixture
- Can be mounted on ceiling or wall vertically or horizontally

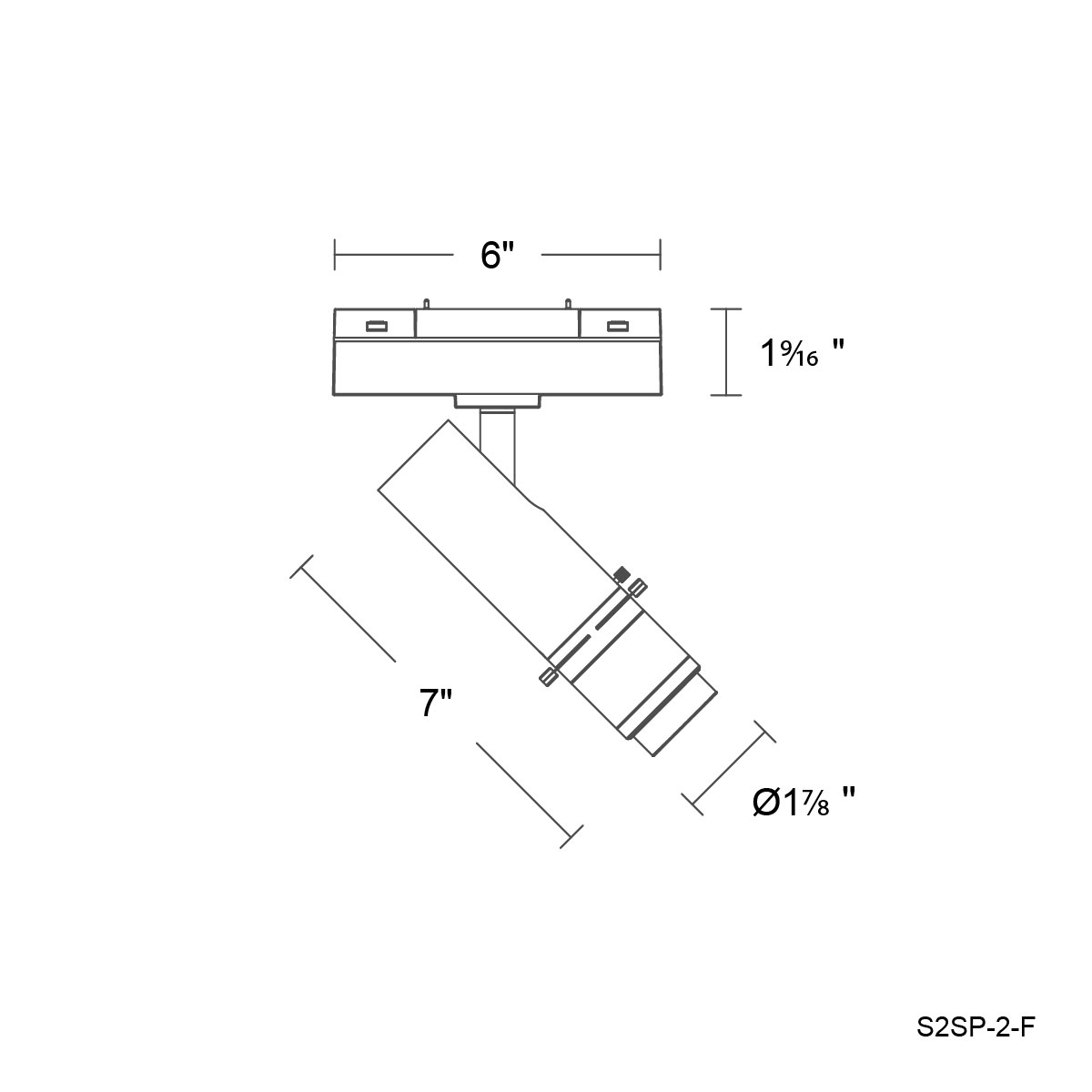

Line Drawing
