Specifications
Order Number:
| model | size | watt | color temp & cri | delivered lumens | finish |
|---|---|---|---|---|---|
| S2PD03 | 2 | 13W | TWA - 1800-4000K - 90 | 1840 | BK - Black |
| S2PD03 | 2 | 13W | TWA - 1800-4000K - 90 | 1840 | WT - White |
Features
- Delivered Lumens: 1840lm
- CCT: 1800-4000K
- CRI: 90
- Power: 13W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- DMX Dimming: 100-0.1%
- Rated Life: 50000 Hours
- Construction: Aluminum hardware with opal glass diffuser
- Twist lock glass attachment
- Evenly lit etched opal glass
- Thin powered cable provides an ultra-clean look
- Suspension cable may be field shortened
- Driver concealed within the VENTRIX adapter
- To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
- Driver concealed within the fixture

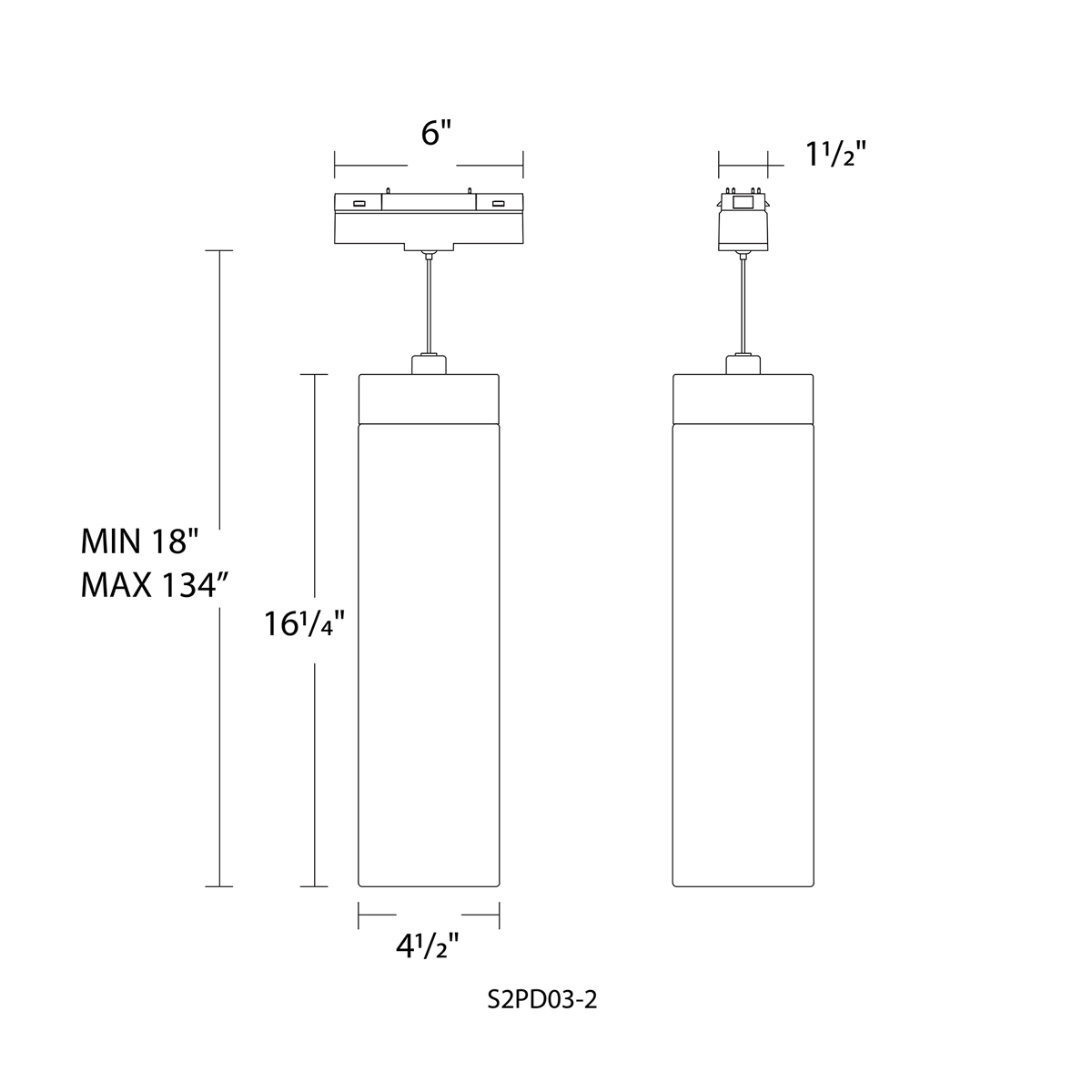

Line Drawing
